10mm RGB LED Strip Light with 5050 LEDs for Dynamic Color Lighting

BW-5050-60-10-1224D-12/14-RGB

BW- abbreviation of company name Byone

5050- Chips model

60- 60 PCS Chips per meter

10- Strip width:10mm

12/24D- Rated Voltage: DC 12V/24V

12/14- Rated Power: 12~14W/m

RGB- RGB multicolor lighting

Always consult our qualified salesperson to know more about our product models and descriptions.

Input Voltage: DC 12V/24V

Power:12~14W/m

Luminous:1200~1400LM/m

LED Chips model:SMD5050

LED density: 60 LEDs/m

Cutting unit: 6 LEDs per cut

Color temperature : RGB multicolor lighting

CRI:Ra>85

Dimensions:PCB Width-10mm; 10m per roll per package

Unique Feature:RGB color-changing capability

Working temperature and IP rating: -20 ~ 50° C, IP20.

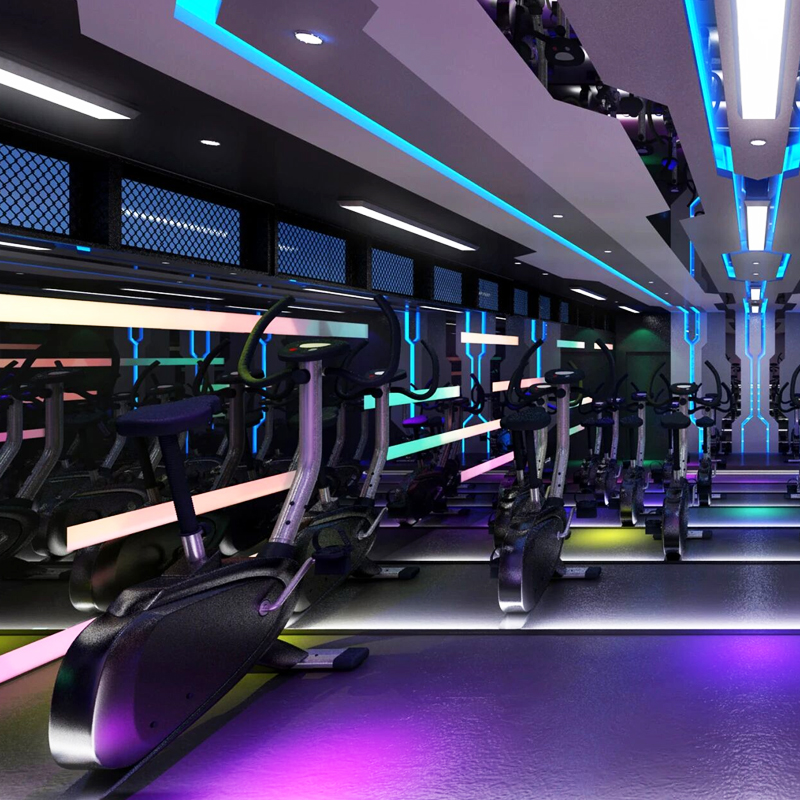

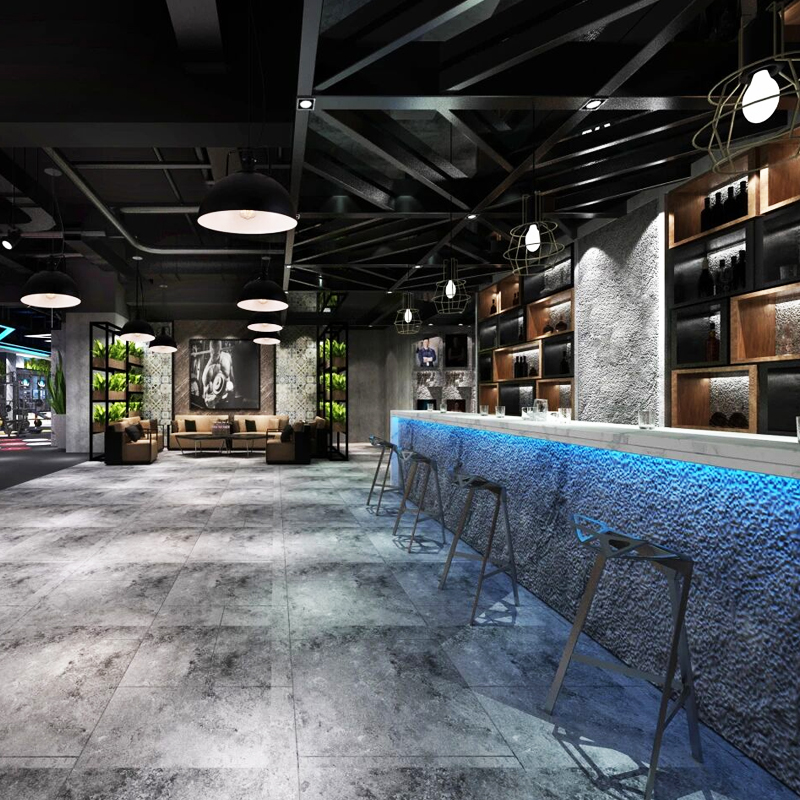

Application and installation: This RGB LED strip is well suited for architectural accents, entertainment venues, retail displays, bars, stages, and façade lighting where color dynamics define the atmosphere. It is commonly used in concealed lighting grooves, signage backlighting, and feature outlines where space is limited but visual impact is essential. The absence of white light makes it ideal for projects that already rely on separate functional lighting and require a dedicated solution for decorative or animated color effects.

● The defining characteristic of this strip lies in its RGB only configuration. The optical structure is optimized for color mixing, resulting in more pronounced hues and smoother gradient effects. This approach is particularly effective in dynamic lighting scenes where color intensity, movement, and rhythm are more important than neutral illumination. Each 5050 RGB LED chip provides a relatively large emitting area, which enhances brightness at each lighting point and supports strong visual presence even at moderate LED density.

● The 10mm PCB width represents a deliberate balance between compactness and electrical stability. Compared with wider RGB strips, this narrower modelallows easier integration into slim coves, shallow recesses, and decorative channels without sacrificing mechanical reliability. At the same time, it offers more robustness than ultra narrow boards, helping maintain consistent current distribution along the strip. Thermal performance remains well controlled, supporting reliable color output during extended operation.

● The strip avoids the excessive power concentration often associated with high density RGB designs. This density supports clean segmentation for chase, flowing, or pixel style effects while keeping system design straightforward. The result is a color focused LED strip that emphasizes visual clarity, structural simplicity, and installation flexibility rather than multifunction lighting.
