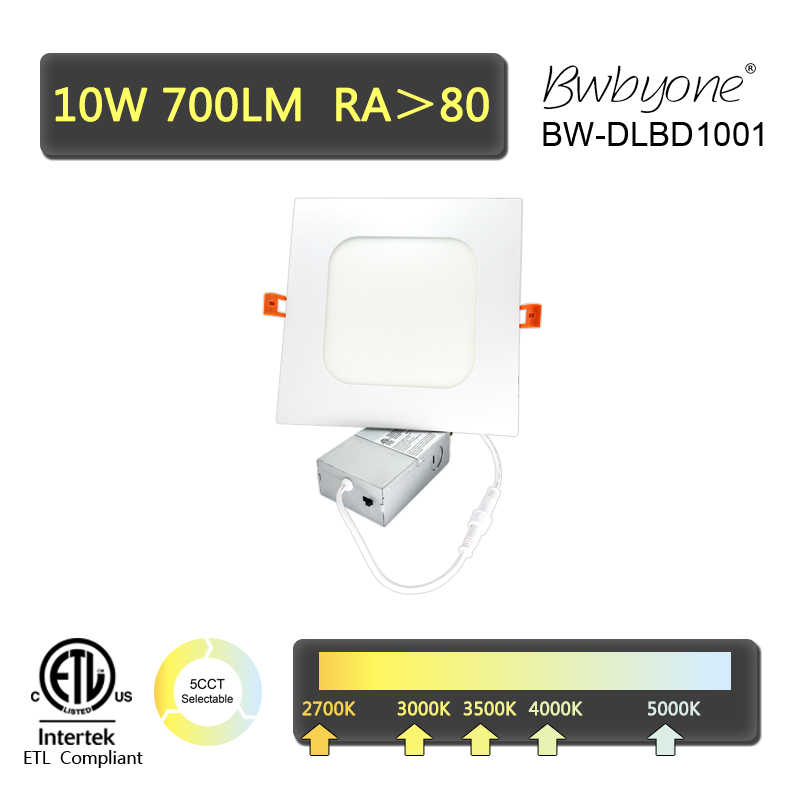

10W 700LM BW-DLBD1001 LED Recessed Square Panel light with ETL compliant
LED Recessed Mounted Downlight
We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.
Product models and descriptions
BW- abbreviation of company name Byone
DLB- Product model series, Square type
D - D: Dimmable by Triac dimmer
7/10/12/15/20- Optional product rated power
0/1/2- Product finish color: 0-white,1-silver,2-black
1/5- Product color temperature:1- single color temperature, 5CCT in one
Example:
BW-DLBD1001: White finish color, single color temperature,Dimmable by triac dimmer
BW-DLAD1021: Black finish color, single color temperature, Dimmable by triac dimmer
Always consult our qualified salesperson to know more about our product models and descriptions.
Product specification
Input Voltage: 120V,60Hz
Power:7W/10W/12W/15W/20W
Luminous:See the table below for details
Chips model:SMD2835
Color temperature :
A.Available in 2700/3000K/3500K/4000K/5000K single color temperature
B.5CCT IN 1 (2700K ~5000K)
Power factor:>0.9
CRI:Ra>80
Dimensions:See the table below for details
Opening sizes: See the table below for details
Housing material:Aluminum
Junction box material:Steel
Finish color: Available in White,Silver,Black or any other customized colors
Working temperature: -20 ~ 40° C
|
Model |
Rated Power |
Lumen |
Product Dimensions(MM) |
Opening sizes(MM) |
|

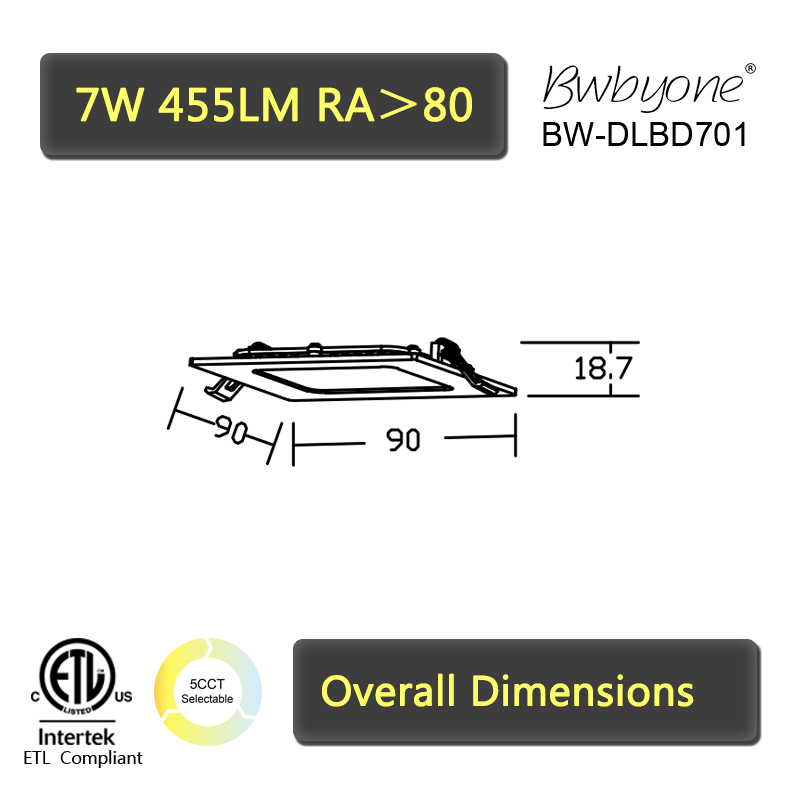

BW-DLBD701 |
7W |
455 LM |
L90 X W90 X H21 |
L83 X W83 |
|

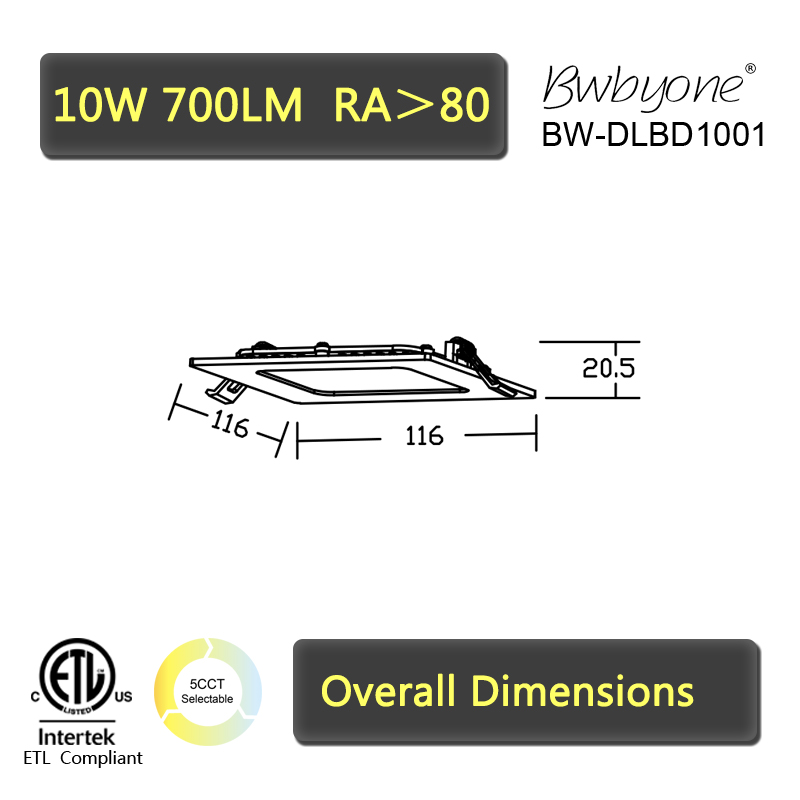

BW-DLBD1001 |
10W |
700 LM |
L120 X W120 X H24 |
L105 X W105 |
|

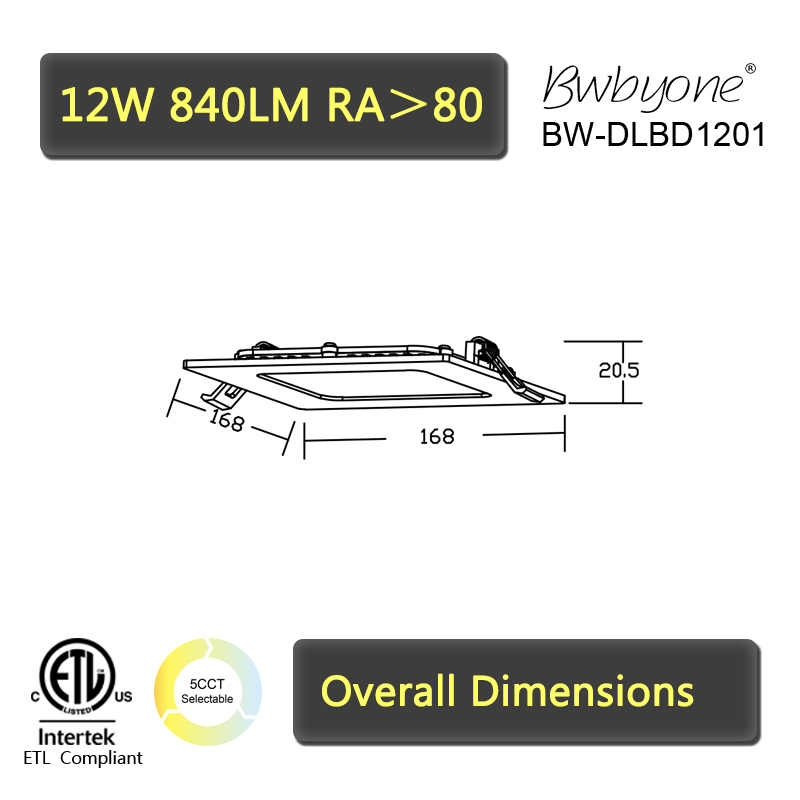

BW-DLBD1201 |
12W |
840 LM |
L170 X W170 X H24 |
L155 X W155 |
|
BW-DLBD1501 |
15W |
1050 LM |
L170 X W170 X H24 |
L155 X W155 |
|

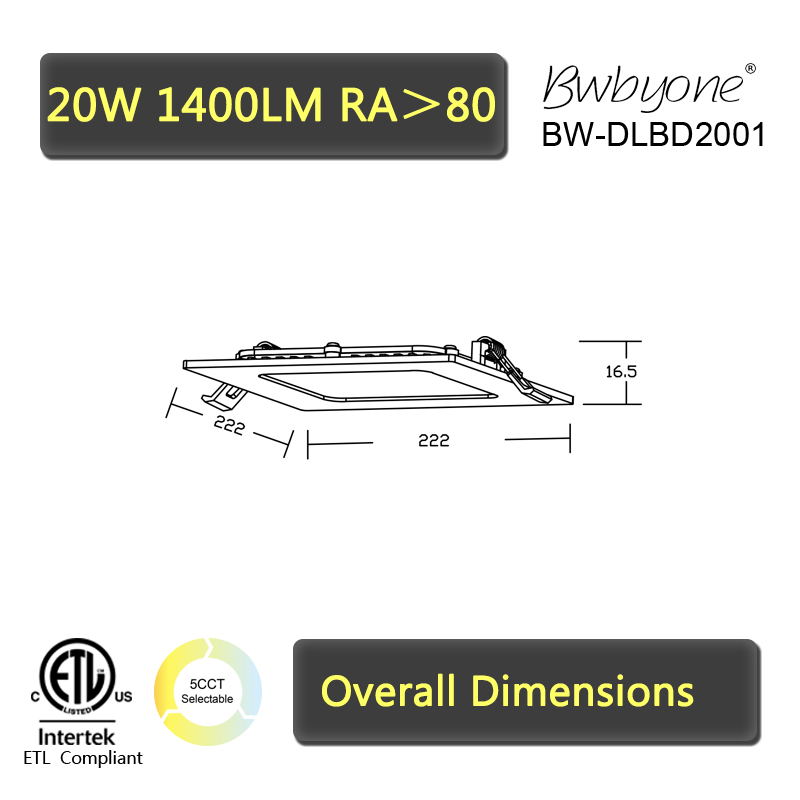

BW-DLBD2001 |
20W |
1400LM |
L222 X W222 X H19 |
L210 X W210 |

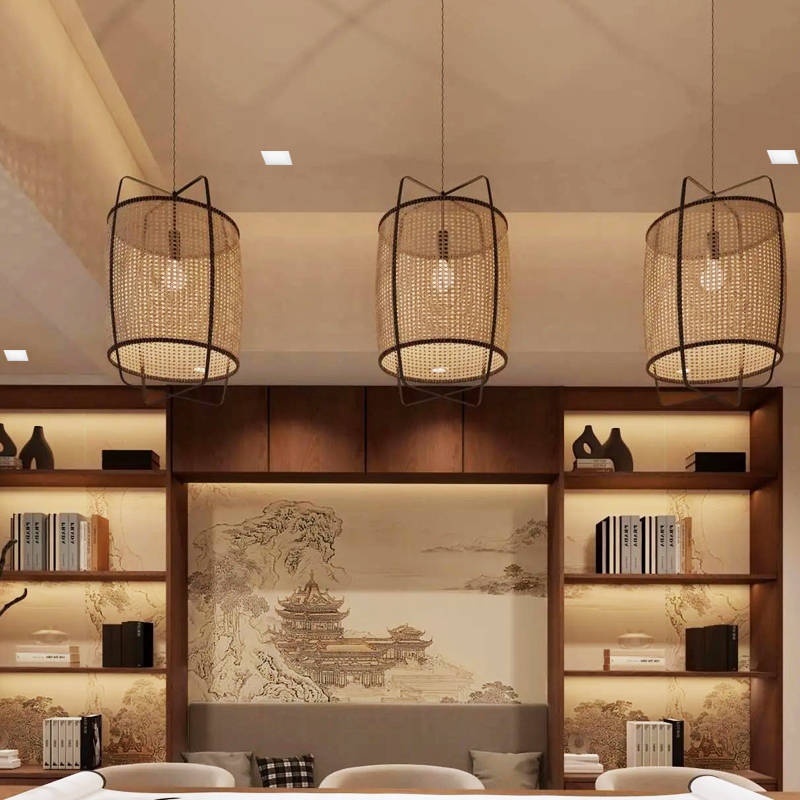

Application and installation:This square profile series is a smart choice for American lighting brands seeking a distinctive alternative to the common round panel format. Its clean lines make it a natural fit for contemporary interiors, corporate spaces, and retail layouts where design symmetry is important. The low profile body allows installation in shallow ceilings or spaces with structural constraints.
Features
● The square form factor brings a modern visual edge to the recessed panel category, helping projects achieve a coordinated, high end look without custom fabrication.
● Precision engineered aluminum housing supports efficient heat dissipation, while the steel junction box enhances safety and complies with American wiring requirements.
● Single color temperature models are available in five distinct color temperatures: 2700K, 3000K, 3500K, 4000K, and 5000K,for precise alignment with the intended atmosphere of each space.
● Our 5CCT in one variant integrates a patented selector switch mechanism, enabling quick manual color temperature adjustments during installation or post-installation changes.
● Triac dimmable performance ensures smooth, flicker-free brightness control with widely available North America dimmer switches.
● Designed to meet ETL certification standards, this series gives American brand owners a fast track to market with reduced compliance costs.
We offer OEM manufacturing services according to specific requirements.Our OEM services include:
