10W 700LM BW-LSG1005 LED Recessed Mounted rotating trim Downlight

Compact in size and effective in output, this 4-inch recessed LED downlight produces 700 lumens from 10 watts. It is engineered with an aluminum housing and finished with a matte diffuser to ensure even light distribution with reduced glare. The fixture maintains a refined ceiling appearance while offering multiple color temperature options, giving designers and homeowners the flexibility to adjust lighting tone as needed. With ETL compliance, the luminaire provides a dependable solution that balances efficiency and safety.

    Send Inquiry
    cpbjtp

    LED Recessed Mounted Downlight

    We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.

    product details

    Product models and descriptions

    BW- abbreviation of company name Byone

    LS- Product model series

    G- Gimbal trim

    10- Product rated power

    0/1/2- Product finish color: 0-White,1-Silver,2-Black

    1/3/5- Product color temperature:1- single color temperature,3-3CCT in 1,5-5CCT in 1


    Example:

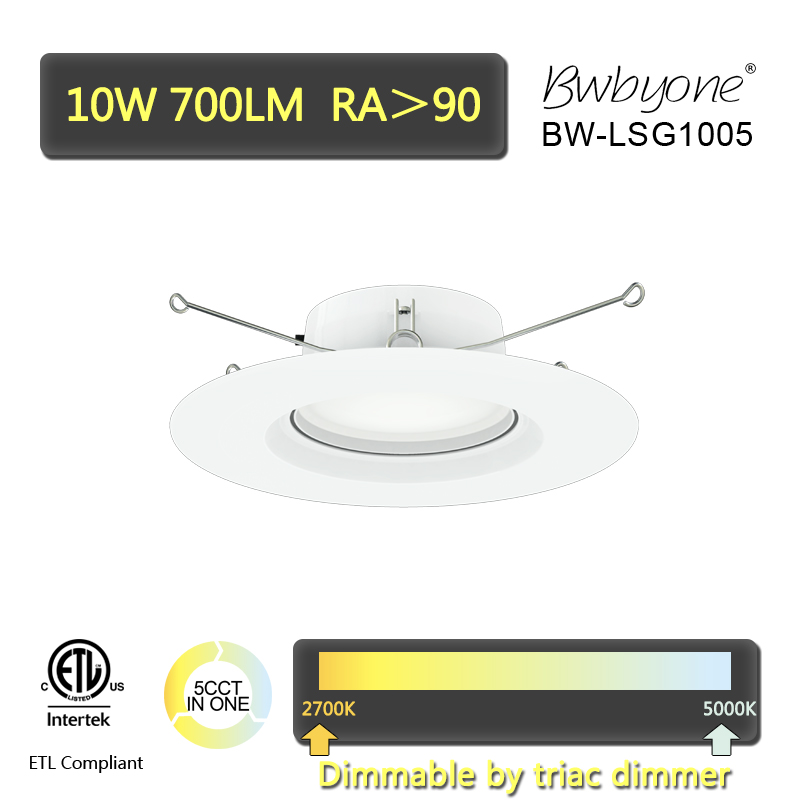

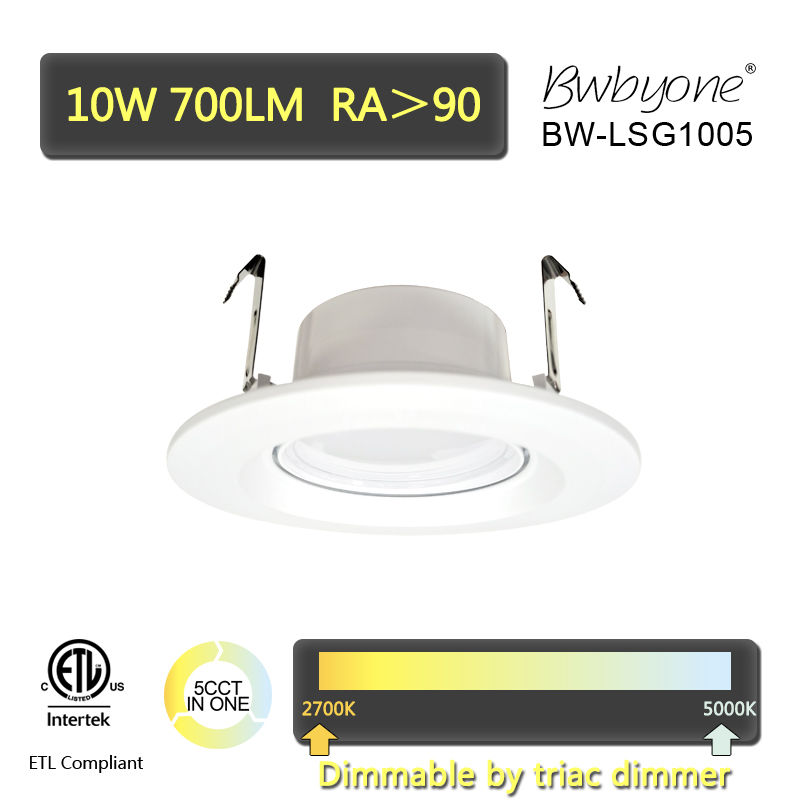

    BW-LSG1005: White finish color, 5CCT in one

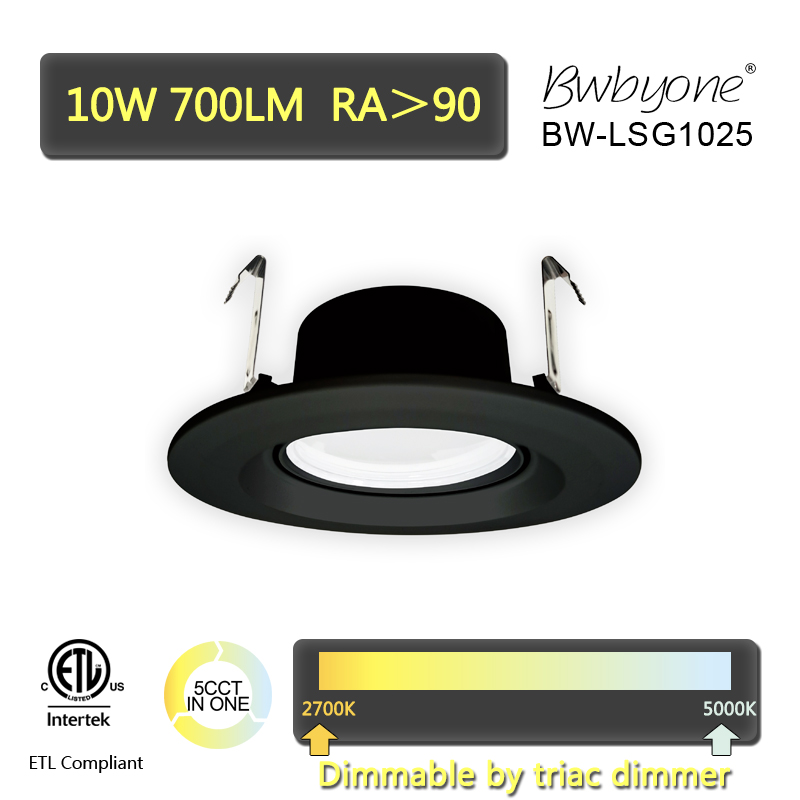

    BW-LSG1025: Black finish color, 5CCT in one

    Always consult our qualified salesperson to know more about our product models and descriptions.

    Product specification

    Input Voltage: 120V,60Hz

    Power:10W

    Luminous:700 lm

    Color temperature :

    A.Available in 2700K/3000K/3500K/4000K/5000K single color temperature

    B.2700K/3000K/3500K/4000K/5000K 5CCT in one

    Power factor:>0.9

    CRI:Ra>90

    Tilt Angle:30°

    Dimensions:H40 x Φ125 mm

    Opening sizes: Φ108mm

    Housing material: Aluminum

    Diffuser material: PC, matt white

    Finish color: Available in White,Silver,Black or any other customized colors

    Working temperature: -20 ~ 40° C

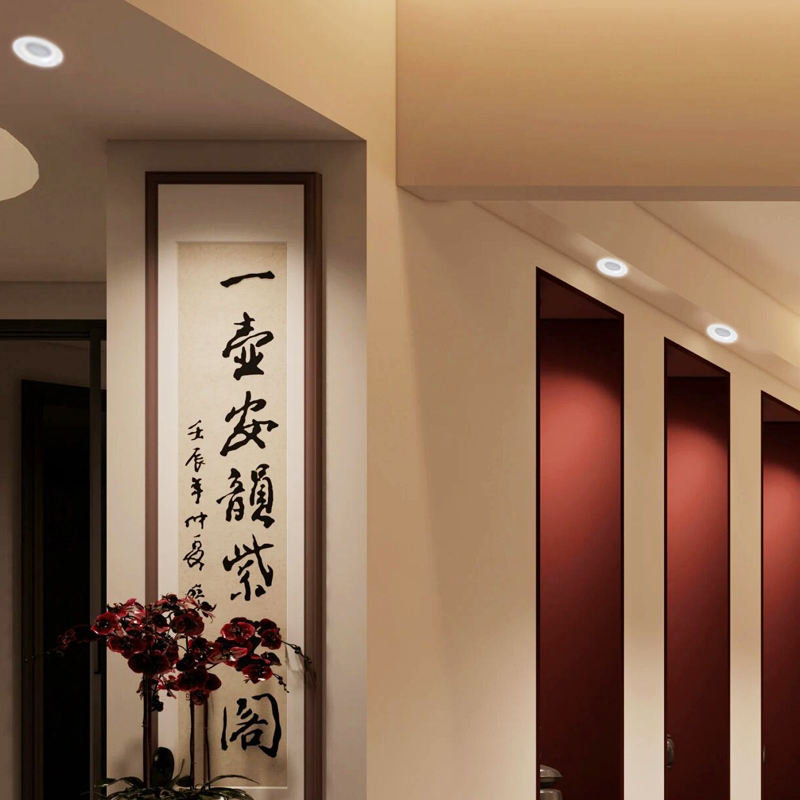

    Application and installation:This downlight is well suited for areas where space is limited or where a more focused scale of lighting is required. It integrates easily into kitchens, bathrooms, hallways, and small commercial settings, providing consistent illumination without drawing attention to the fixture itself. Its versatility also makes it an excellent choice for layering light in larger projects, where accent or perimeter lighting plays a role in shaping the overall atmosphere.

    Features

    ● Delivers 700 lumens from 10W LED light chips, offering high energy efficiency.

    ● Equipped with a 5CCT manual switch, allowing seamless adjustment across five color temperatures (2700K–5000K).

    ● 30° tilt angle produces a uniform spread of light suitable for general lighting.

    ● Aluminum housing enhances durability and supports effective thermal management.

    ● ETL compliant meets essential safety and quality requirements for residential and commercial use.

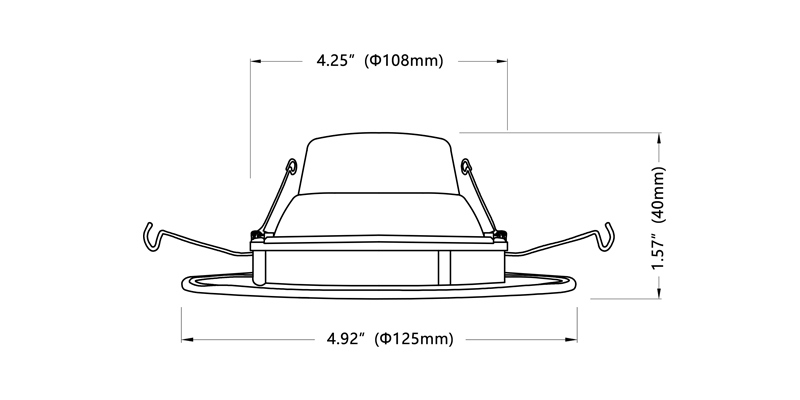

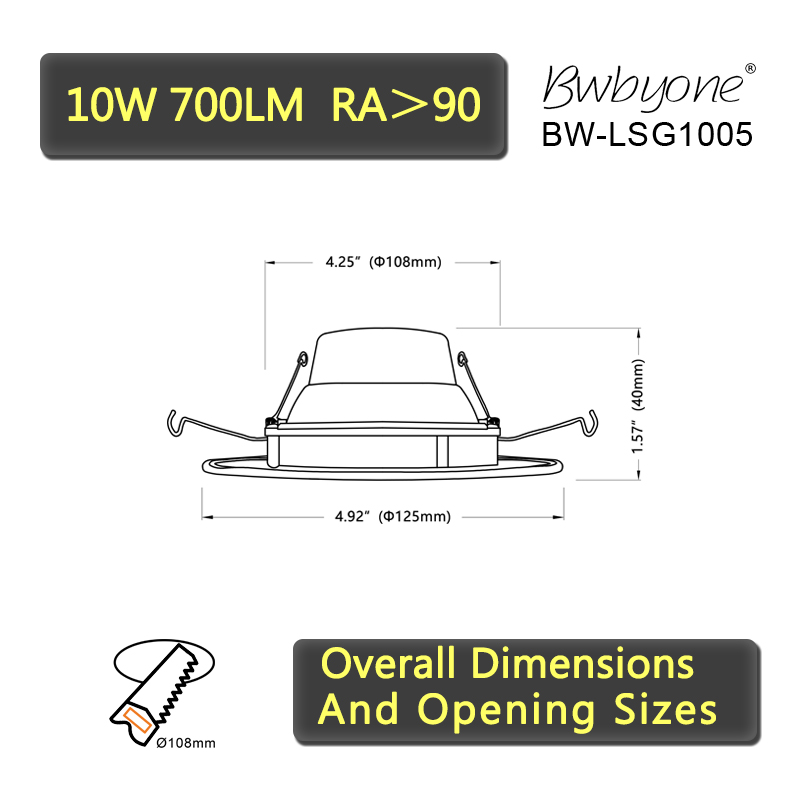

      Line Drawing

      BW-LSG1005 line drawing m
