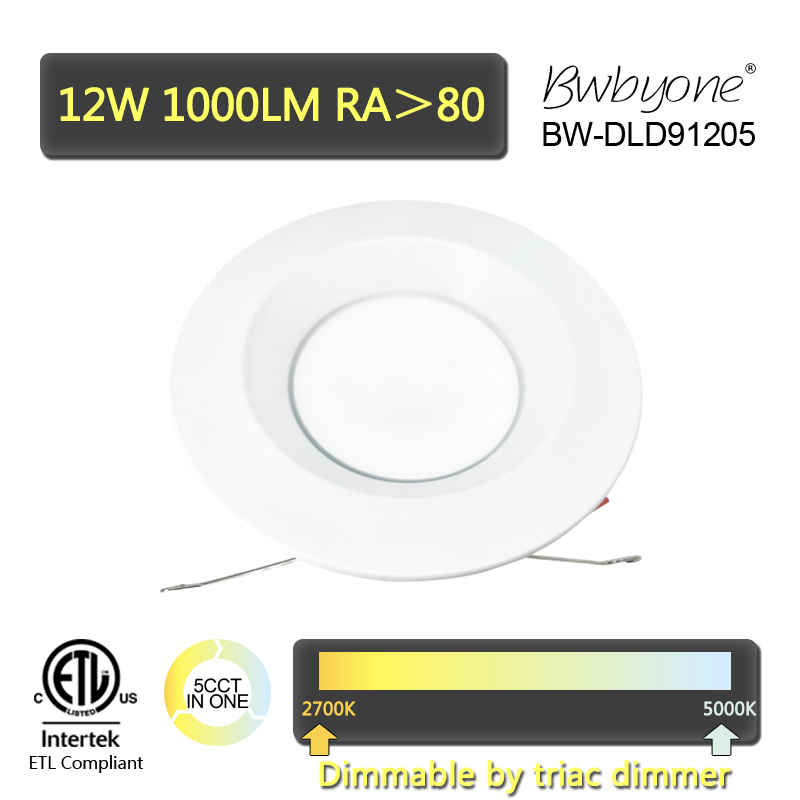

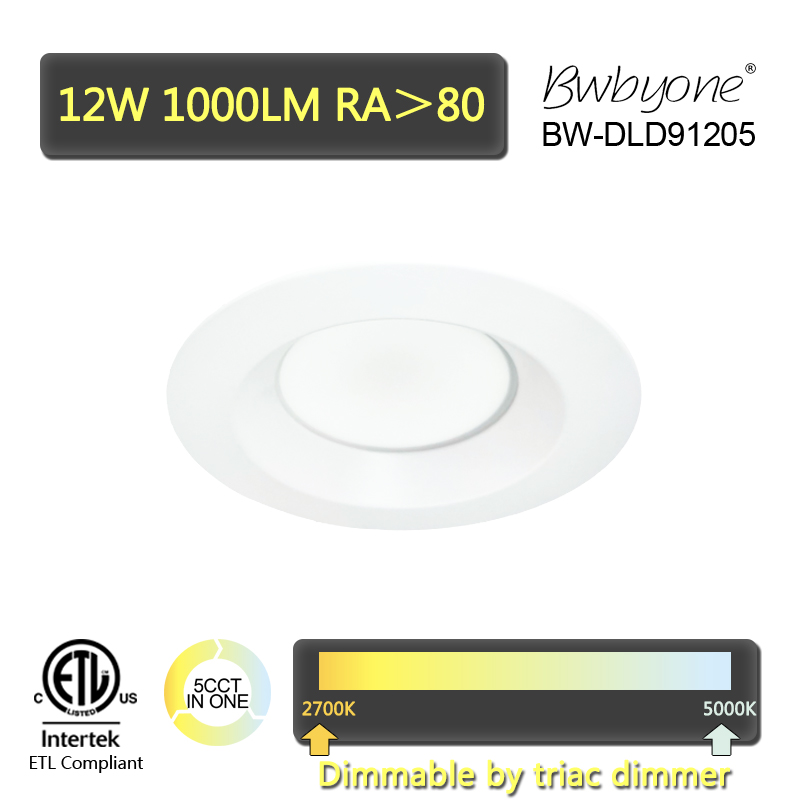

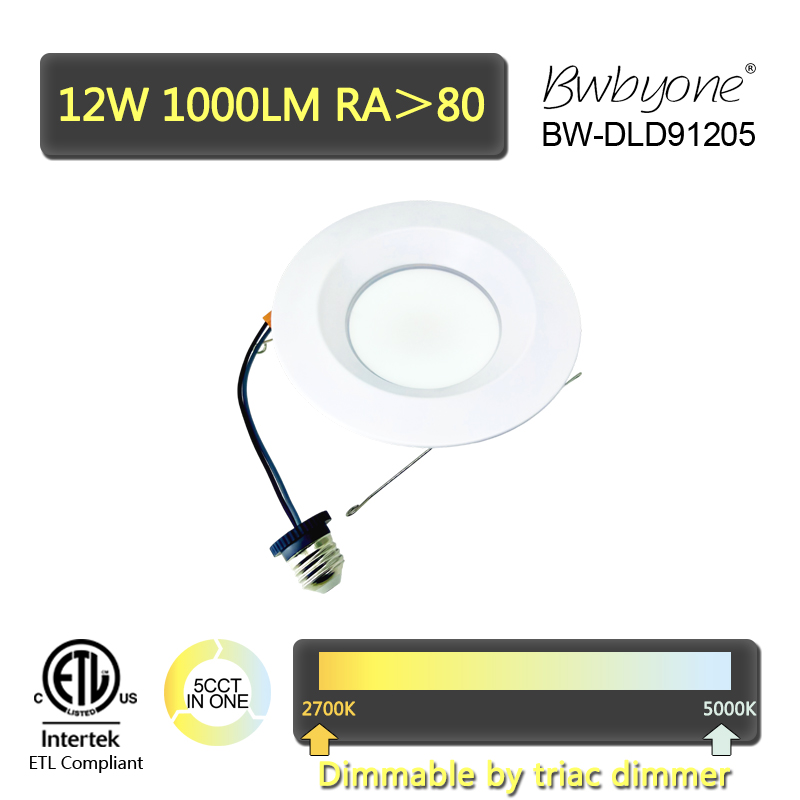

12W 1000LM BW-DLD61205 dimmable LED Recessed Mounted 6 inch Downlight
12W 1000LM BW-DLD61205 dimmable LED Recessed Mounted 6 inch Downlight
120V Lights/Recessed Mounted/Downlight
Product models and descriptions
DLD- Product model series,D: Dimmable by Triac dimmer
6- opening hole dimension(4 inches)
12-Product rated power
0/1/2- Product finish color: 0-White,1-Silver,2-Black
1/5- Product color temperature:1- single color temperature,5-5CCT in 1
Example:
BW-DLD61205: White finish color, 5CCT in one
BW-DLD61225: Black finish color, 5CCT in one
Always consult our qualified salesperson to know more about our product models and descriptions.
Product specification
Input Voltage: 120V,60HzPower:12WLuminous:1000 lmColor temperature :
A. Available in 2700K/3000K/3500K/4000K/5000K single color temperature
B. 2700K/3000K/3500K/4000K/5000K 5CCT in one
Power factor:>0.8CRI:Ra>80
Dimensions:H43 x Φ180 mm
Opening sizes: Φ140mm
Housing material: Steel
Diffuser material: PS, matt white
Finish color: Available in White,Silver,Black or any other customized colors
Working temperature: -20 ~ 40° C
Application and installation:The model is well suited for kitchens, dining areas, and basements that benefit from higher brightness. In commercial interiors, it adapts to conference rooms, retail aisles, and hospitality spaces where flexible color adjustment helps create the right atmosphere throughout the day. For builders and distributors, the product’s ETL compliance and 5 CCT in one design reduce the barriers to stocking and specifying, offering a straightforward path to serving both contractors and end users with a dependable, market ready solution.
Features
● This product is designed to cover a wide range of lighting needs where stronger output and wider coverage are required. In residential settings.
● A single unit covers 2700K~5000K color temperature, simplifying product selection for projects that call for varied lighting moods.
● With 1000 lumens of output, this model provides coverage suitable for larger rooms and open spaces compared to smaller diameters.
● Compatible with most standard triac dimmers, offering consistent light levels from full brightness down to low output without unexpected changes.
● The housing is engineered for proper thermal balance, helping protect internal components and extend product lifespan.
● By combining multiple color temperatures in one model and aligning with ETL standards, the fixture reduces the need for multiple models while easing regulatory steps.
● Its standard cutout size ensures easy adoption in both retrofit and new construction projects.
We offer OEM manufacturing services according to specific requirements.Our OEM services include:

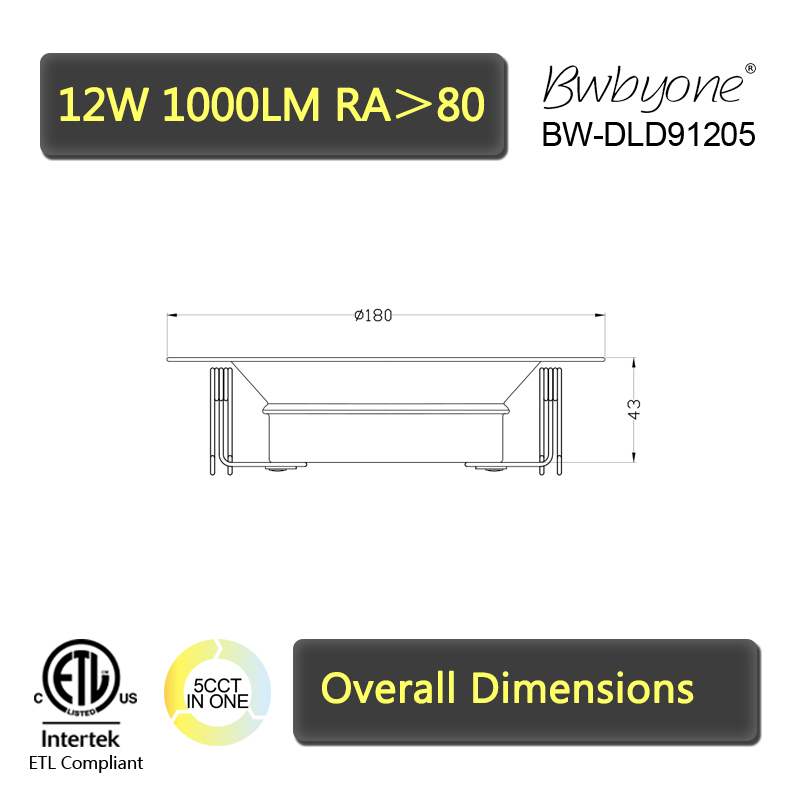

Line Drawing
We offer OEM manufacturing services according to specific requirements.Our OEM services include:
