12W 720LM BW-MMB3916120 LED Flush Mounted Square Ceiling Light
LED Recessed Mounted Panel Light
We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.
Product models and descriptions
BW- abbreviation of company name Byone
MMB39- Product model series
11/16-Round drum shape/Flat square shape
12- Product rated power
0/1/2- Product finish color: 0-white,1-silver,2-black
1/3- Product color temperature:1- single color temperature,3-3CCT in 1
Example
BW-MMB39161201: Square shape,White finish color,single color temperature

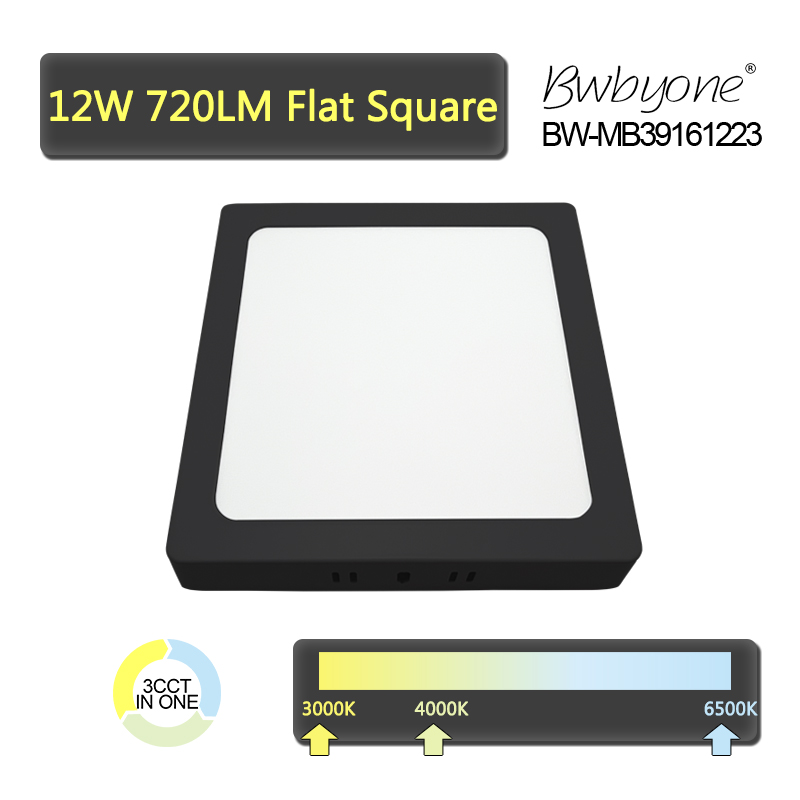

BW-MMB39161223: Square shape,Black finish color,3CCT in 1
Always consult our qualified salesperson to know more about our product models and descriptions.
Product specification
Input Voltage:100~240V,50 Hz
Power:12W
Luminous:720 lm
Chips model:SMD2134
Color temperature option:
A.Available in 3000K/4000K/6500K single color temperature
B.3-CCT in 1 switchable between 3000K and 6500K
Power factor:>0.5
CRI:Ra>70
Dimensions:L160 x W160 x H25 mm
Housing material:Aluminium
Finish color: Available in White,Silver,Black or any other customized colors

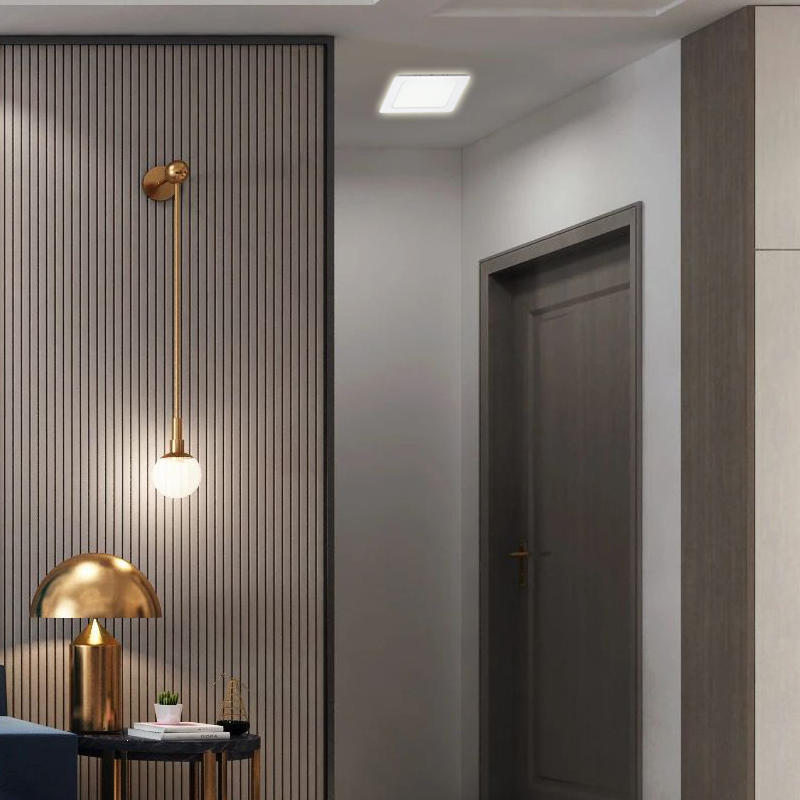

Application and installation:This model is well suited for bedrooms, stairways, utility rooms, office corridors, or commercial common areas that require a reliable and unobtrusive ceiling light. It is particularly effective in retrofitting older spaces or for use in new projects where maintaining a uniform ceiling surface is important.
Features
●Provides 720 lumens at 12W power, delivering bright and comfortable lighting suitable for general purpose use in mid-sized interiors.
●Available in three fixed CCT options (3000K, 4000K, or 6500K) as well as a 3CCT in one configuration for onsite adjustment of color temperature.
●The flush mounted design allows the luminaire to integrate seamlessly into ceilings without protruding, maintaining a clean architectural line.
●Designed for mounting directly to solid ceiling surfaces, including areas where recessed holes are not possible or permitted.The die-cast aluminum housing enhances thermal management, helping to maintain stable operating conditions over time.The frosted diffuser evenly disperses light, improving visual comfort and reducing harsh shadows or glare.
●Offers a rated lifespan of 15000 hours, supporting reduced maintenance cycles in both private and public settings.The LED chip minimizes energy consumption and reduces replacement frequency, making it ideal for both residential and commercial use.

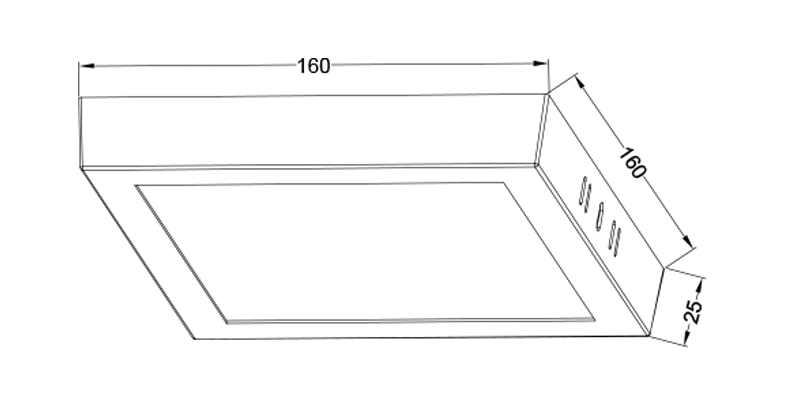

Line Drawing
