12W 840LM BW-CL831211 LED Flush Mounted Ceiling light
LED Recessed Flush Mounts
We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.
Product models and descriptions
BW- abbreviation of company name Byone
CL83- Product model series
12/15/20/25/30W- Optional product rated power
0/1/2- Product finish color: 0-Satin Nickel,1-Brushed nickel,2-Matt black
1/3- Product color temperature:1- single color temperature, 3-3CCT in one
Example:

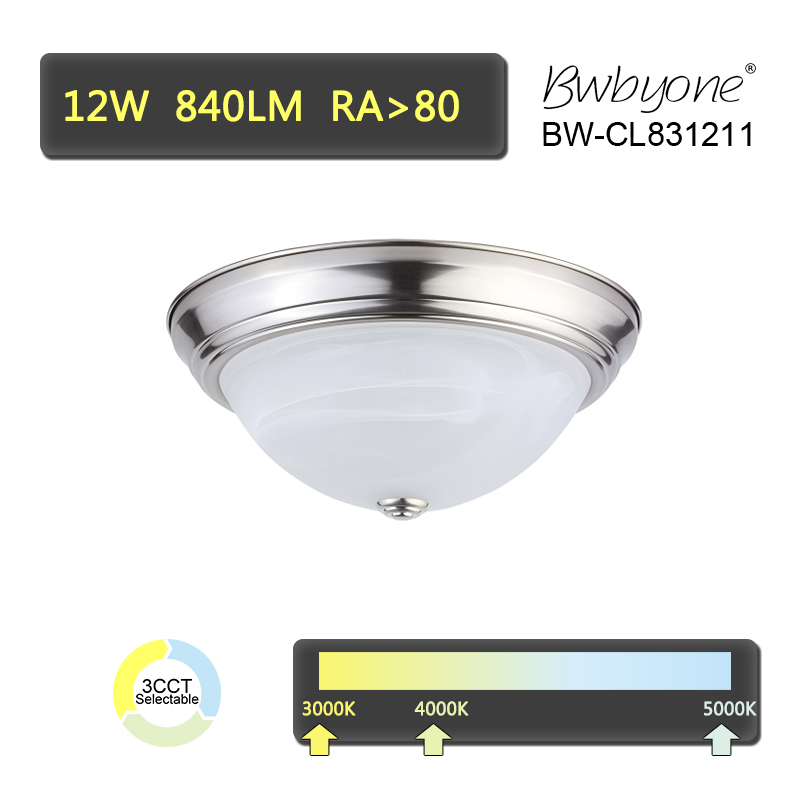

BW-CL831211: Silver finish color, single color temperature

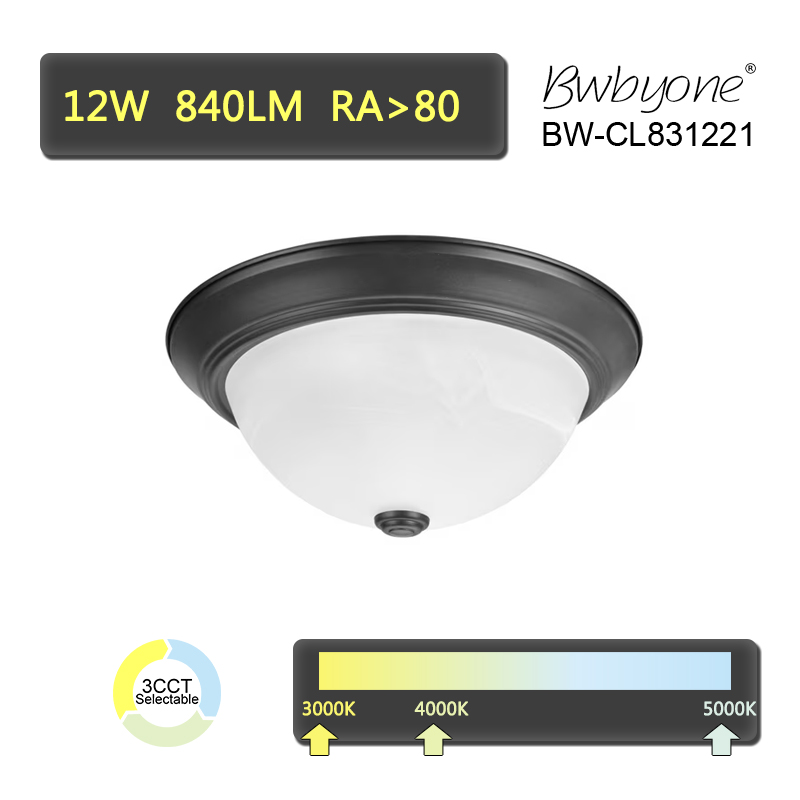

BW-CL831221: Black finish color, single color temperature
Always consult our qualified salesperson to know more about our product models and descriptions.
Product specification
Input Voltage: 120V,60HzPower:12W/15W/20W/25W/30WLuminous:See the table below for details
Dimmable: Yes,by triac dimmer
Chips model:SMD2835Color temperature :
A. Available in 3000K/4000K/5000K single color temperature
B. 3CCT IN 1 (3000K ~5000K)
Power factor:>0.9CRI:Ra>80Dimensions:See the table below for details
Opening sizes: See the table below for detailsHousing material:Steel
Diffuser material:GlassFinish color: Available in White,Silver,Black or any other customized colors
Working temperature: -20 ~ 40° C, can be used for damp location.
|
Model |
Rated Power |
Lumen |
Product Dimensions(inch) |
|
BW-CL831211 |
12W |
840 LM |
Φ11” X H4” |
|
BW-CL831511 |
15W |
1050 LM |
Available in two dimensions Φ11” X H4”/Φ13” X H4” |
|
BW-CL832011 |
20W |
1400 LM |
Φ13” X H4” |
|
BW-CL832511 |
25W |
1750 LM |
Φ15” X H4” |
|
BW-CL833011 |
30W |
2100LM |
Φ15” X H4” |

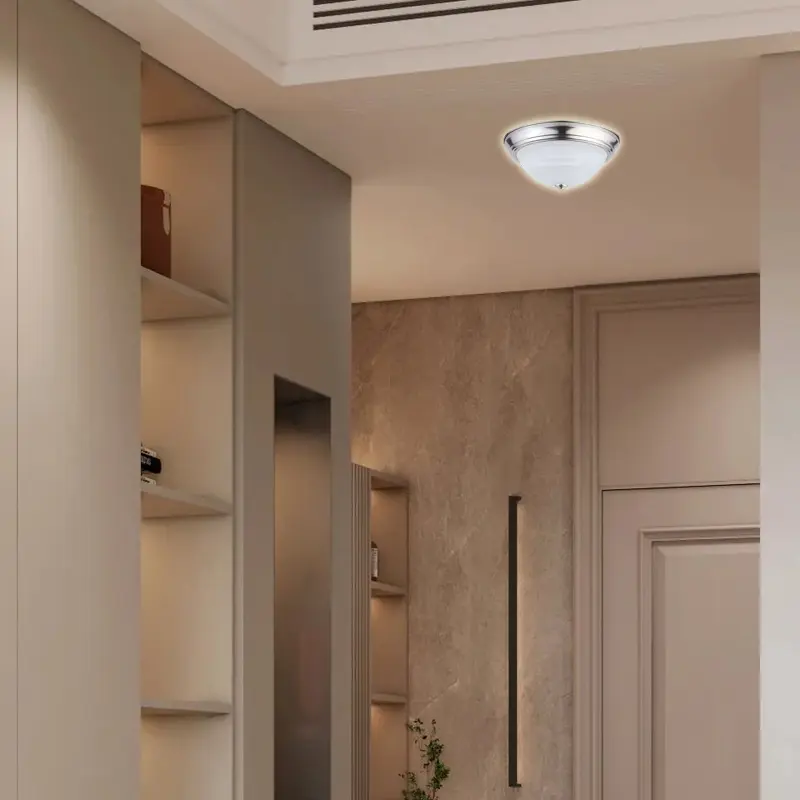

Application and installation: It fits naturally into living rooms, bedrooms, dining areas, kitchens, and hallways, while also being suitable for damp-rated indoor spaces such as bathrooms and covered porches. For project based applications, it provides an excellent solution for contractors and distributors who value both aesthetics and technical performance. The ability to select from different housing colors further expands its adaptability, allowing it to coordinate with a wide variety of interior schemes and project specifications.
Features
● The fixture’s timeless silhouette reflects a style that resonates strongly with European and North American design preferences.
● Offered in a full range of wattages and dimensions, giving clients the flexibility to choose the most appropriate light level and fixture size for each project.
● Equipped with a Byone’s patented triac dimming technology that ensures smooth, stable brightness adjustment and compatibility with standard wall dimmers.
● Designed with a classic glass and metal construction that meets Western and American aesthetic expectations, making it suitable for long term use in diverse architectural contexts.
● Customizable housing finishes available upon request, enabling customers to align the product with their preferred color schemes or brand requirements.
● Energy efficient LED performance with a long service life, minimizing maintenance and replacement costs over time.Backed by a long time warranty, ensuring dependable support and peace of mind for distributors and end users.
We offer OEM manufacturing services according to specific requirements.Our OEM services include:

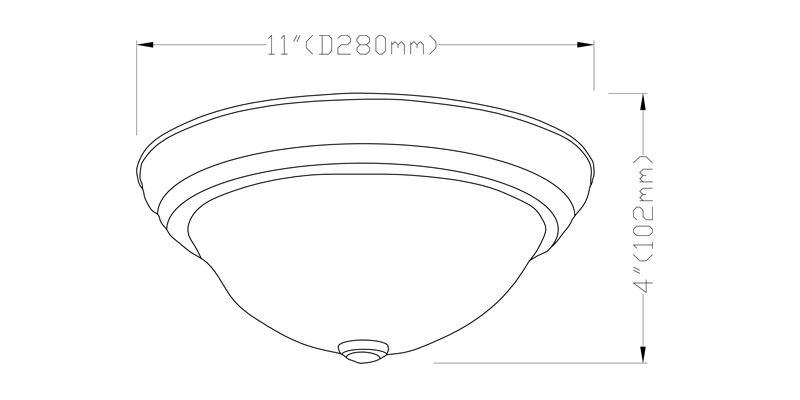

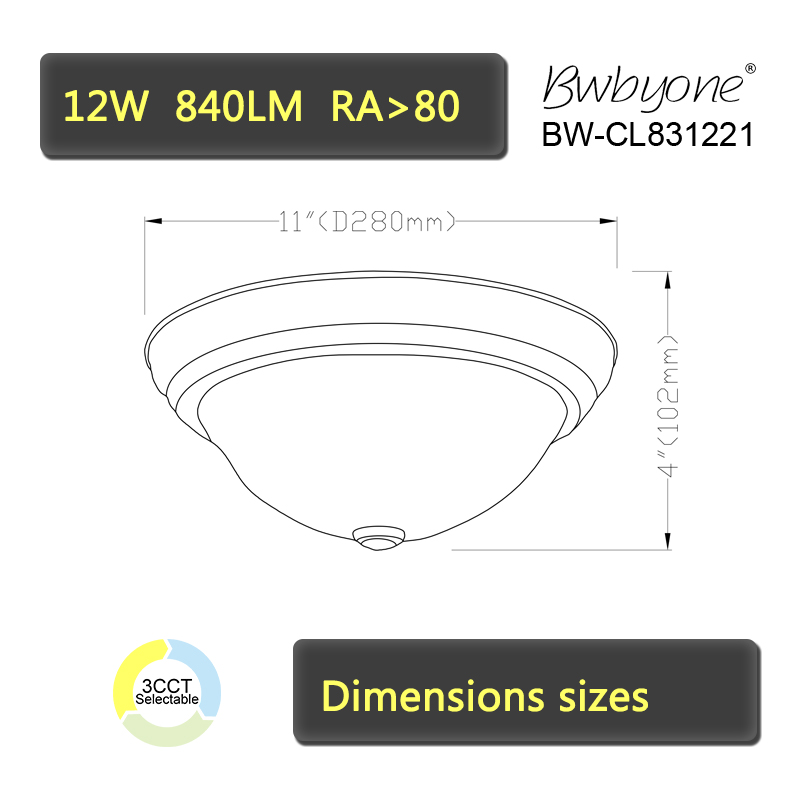

Line Drawing
