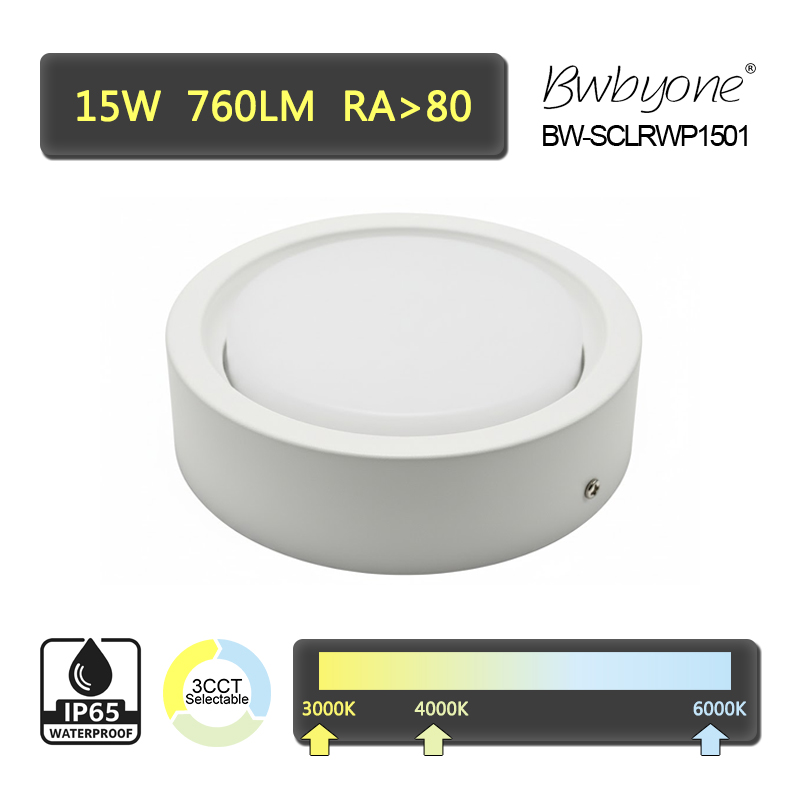

BW-SCLRWP1501 side view.jpg
BW-SCLRWP1511 side view.jpg

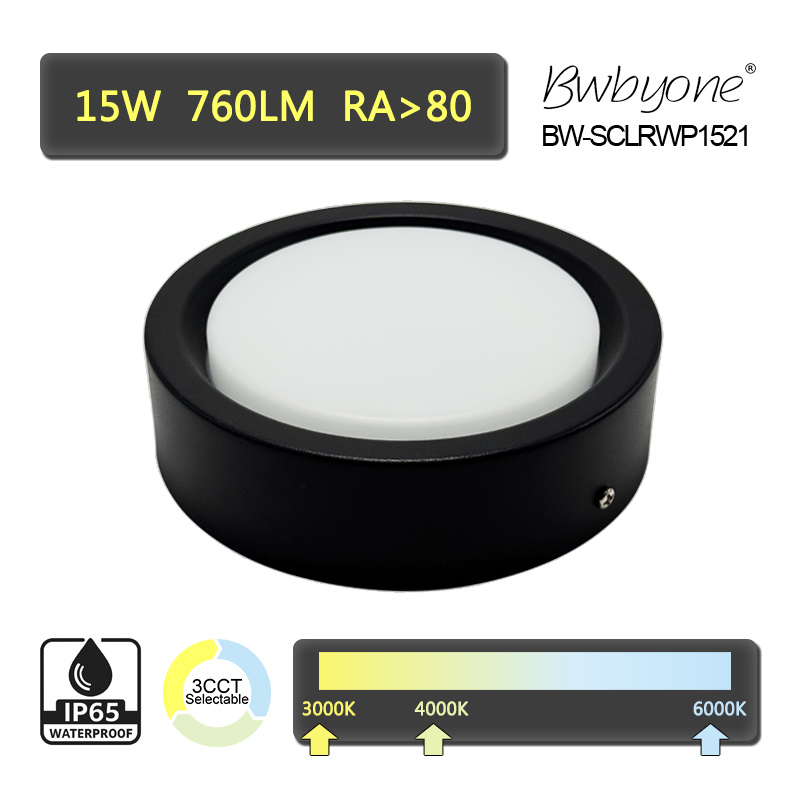

BW-SCLRWP1521 side view 2.jpg
BW-SCLRWP1501 front view.jpg

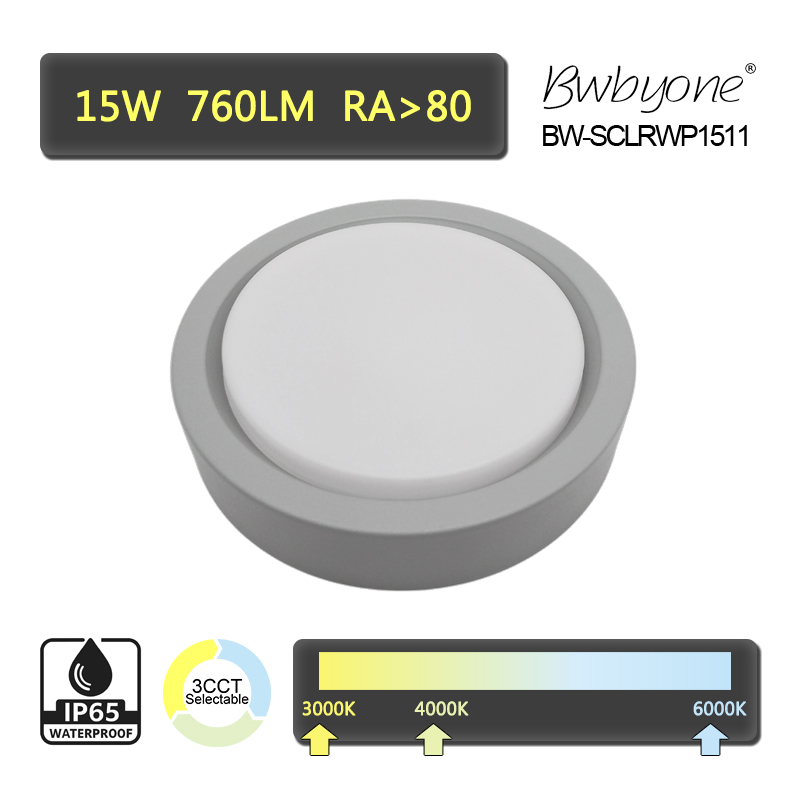

BW-SCLRWP1511 front view.jpg

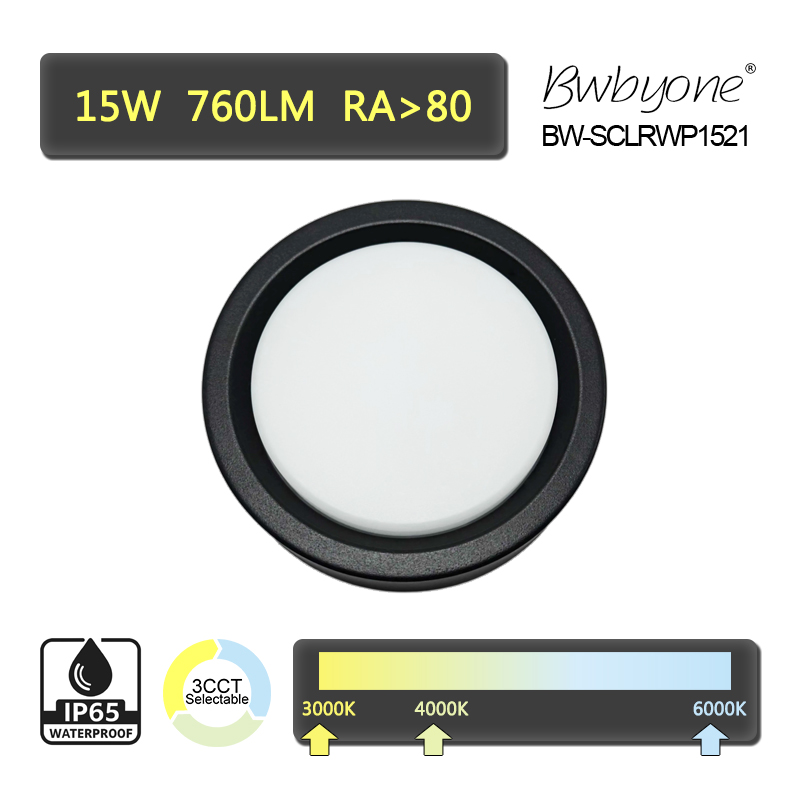

BW-SCLRWP1521 front view 1.jpg

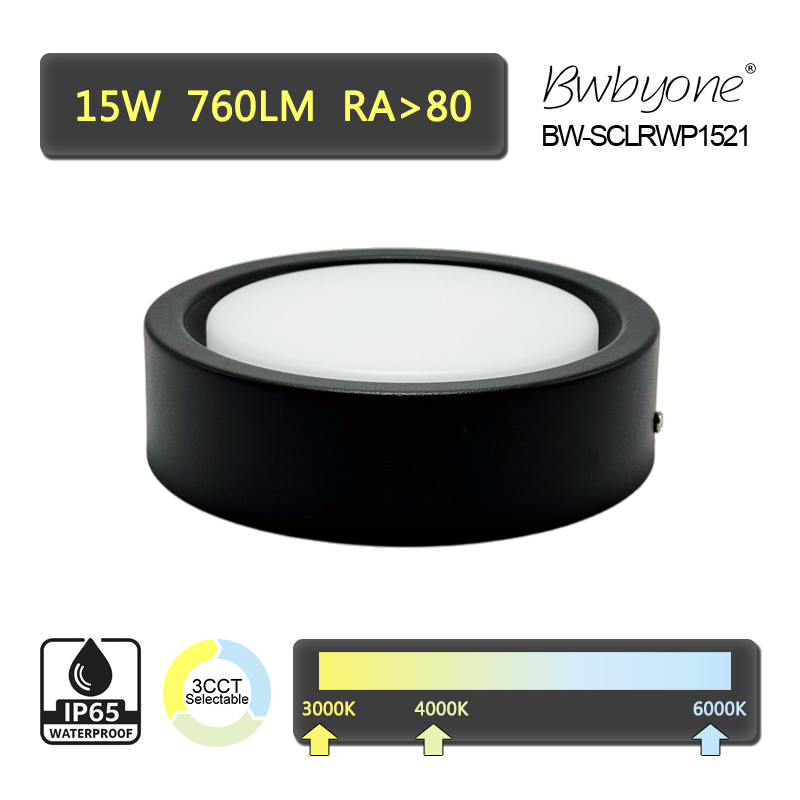

BW-SCLRWP1521 side view 1.jpg

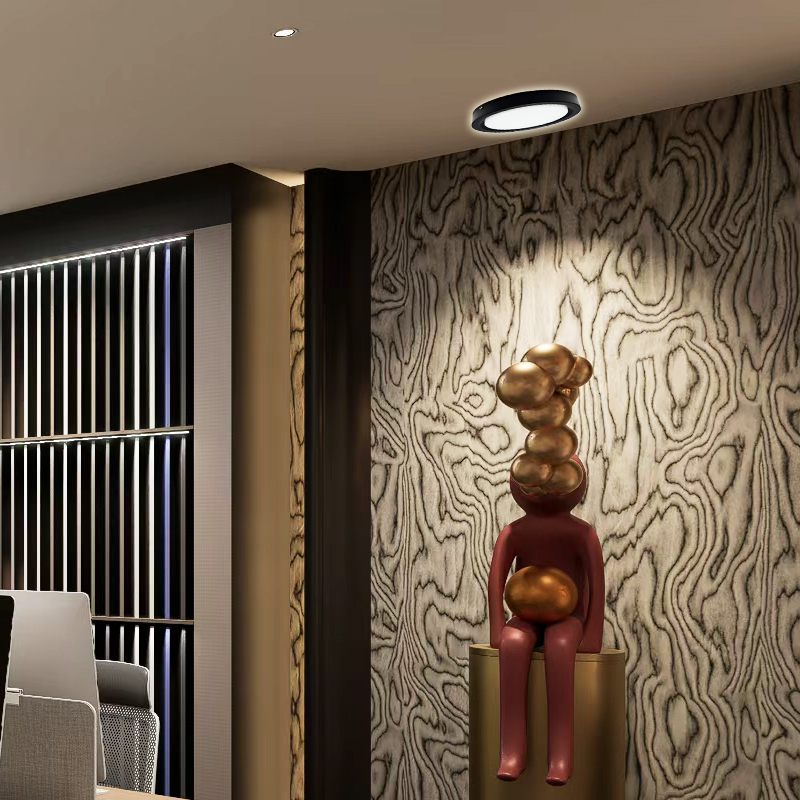

BW-SCLRWP150 Product visual .jpg

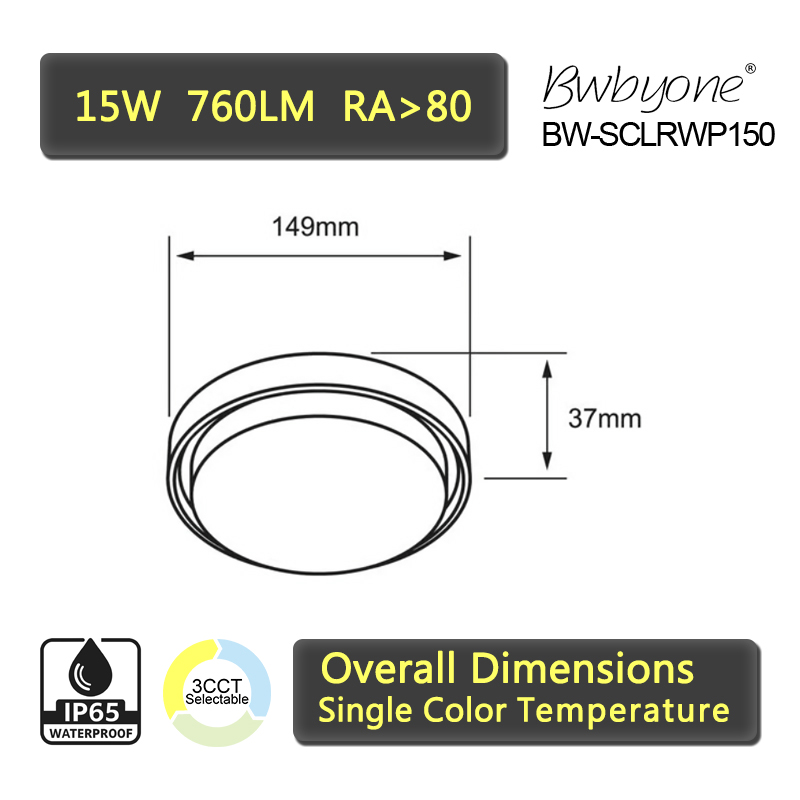

BW-SCLRWP150 line drawing.jpg

15W 760LM BW-SCLRWP150 Waterproof LED Flush Mounted Ceiling Light

Product Overview: This ceiling mounted LED fixture is designed for practical use in residential and commercial spaces where reliable illumination and long service life are essential. The housing is made of iron with a compact circular profile, giving the fixture a solid structure that resists deformation during installation and daily use. It delivers 15W of power with a light output of 760 lumens. The light is supplied in a single CCT configuration, with three available options:3000K, 4000K, or 6000K. allowing distributors and installers to stock targeted versions for each project. The IP65 protection rating supports use in environments exposed to moisture, dust, or occasional water spray. The fixture maintains a color rendering index above Ra80 to keep indoor surfaces, product displays, and signage closer to their natural appearance.

    Send Inquiry
    cpbjtp

    15W 760LM BW-SCLRWP150 Waterproof LED Flush Mounted Ceiling Light

    product details

    Product models and descriptions

    BW- abbreviation of company name Byone
    SCL- Product model series
    R/S-Round drum shape/Flat square shape
    WP-Water proof,IP65 protection rating
    15- Product rated power
    0/1/2- Product finish color: 0-white,1-Gray,2-black
    1- Product color temperature:1- single color temperature
    Example:
    BW-SCLRWP1501: Round shape,White finish color,single color temperature
    BW-SCLRWP1521: Round shape,Black finish color,single color temperature
    Always consult our qualified salesperson to know more about our product models and descriptions.

    Product specification

    Input Voltage:AC 220~240V,50/60
    HzPower:15WLuminous:760 lm
    Chips model:SMD2835
    Color temperature option:Available in 3000K/4000K/6000K single color temperature
    CRI:Ra>80
    Power factor:>0.5
    Dimensions:H37 x Φ149 mm
    Housing material:Iron
    Finish color: Available in White,Gray,Black or any other customized colors
    Application and installation:This model is used in circulation areas and service spaces where reliable light matters more than decorative form. It fits stairwells, corridors, storage rooms, basement passages, and parking areas with overhead protection. The IP65 rating supports use in humid environments and semi-open entrances. Its compact shape works well in low ceilings, providing a uniform light field that keeps routes visible in residential and commercial buildings.

    Features

    ●The iron housing forms a rigid enclosure that increases resistance against impact during installation and daily use.
    ●The IP65 structure prevents dust from entering the light engine and maintains stable performance when exposed to humidity or occasional water spray.
    ●The fixture provides a consistent beam pattern suited to lowceiling environments, improving perceived brightness without creating glare.
    ●The CRIrating supports accurate color appearance, which helps retain visual comfort in areas with mixed materials such as tiles, concrete surfaces, and painted walls.
    ●The power factor reduces unnecessary loss in the power network and supports longterm use in buildings where the lighting circuit runs for extended hours.
    ●The product range includes three single CCT models, giving installers the ability to match the light tone to the intended use of each space.
    ●The compact design and universal voltage range make the fixture suitable for projects that demand simple installation and predictable operating cost.
    ●Typical applications include stairwells, lobbies, corridors, basements, parking structures, and service areas where a uniform light field matters more than decorative expression.

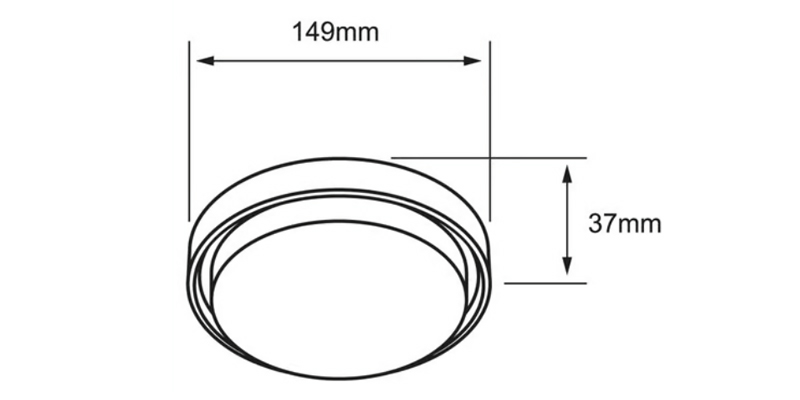

    Line Drawing

    5

    We offer OEM manufacturing services according to specific requirements.Our OEM services include:
