15W 760LM BW-SCLSWP150 Waterproof LED Flush Mounted Square Ceiling Light
Square Light
We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.
Product models and descriptions:
BW- abbreviation of company name Byone
SCL- Product model series
S/R-Flat square shape/Round drum shape
WP-Water proof,IP65 protection rating
15- Product rated power
0/1/2- Product finish color: 0-white,1-Gray,2-black
1- Product color temperature:1- single color temperature
Example:

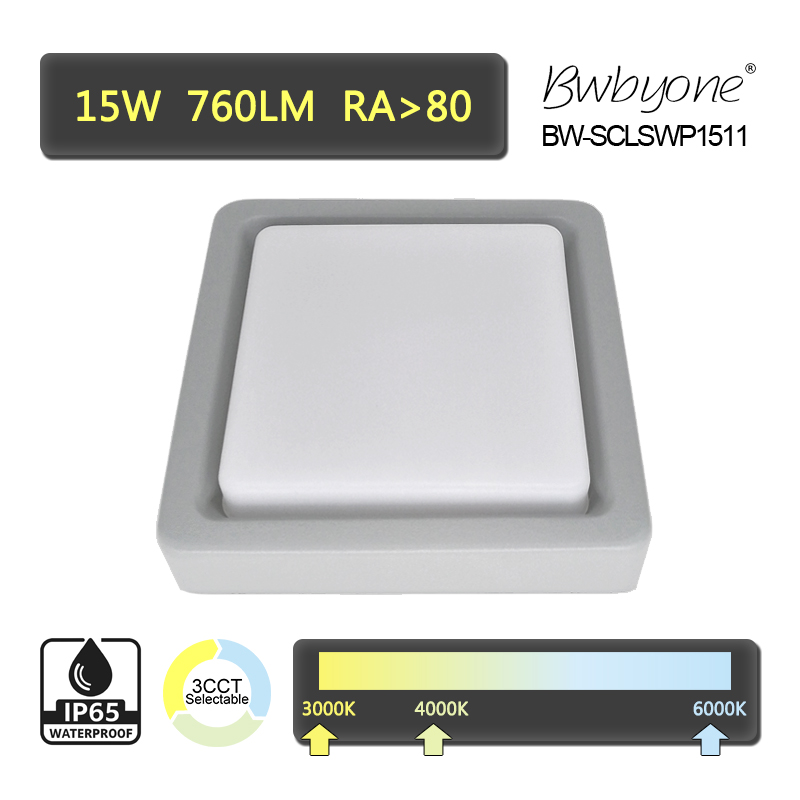

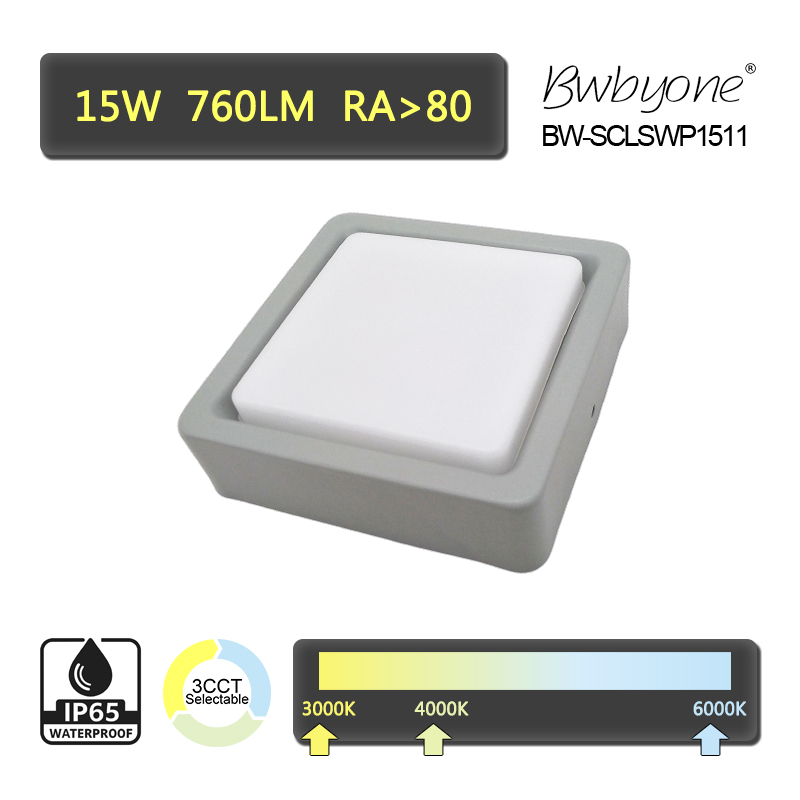

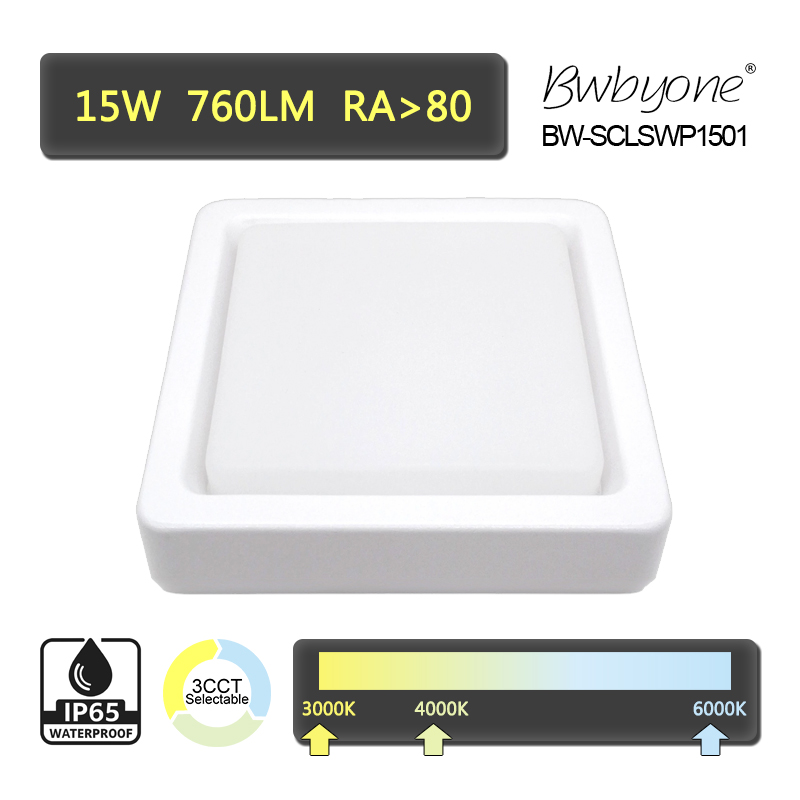

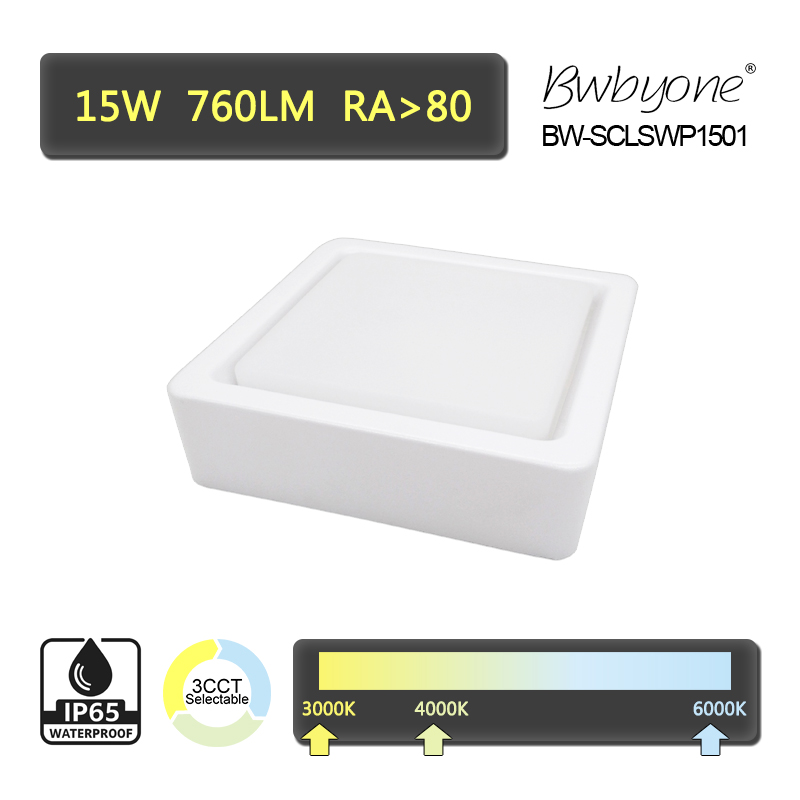

BW-SCLSWP1501: Square shape,White finish color,single color temperature

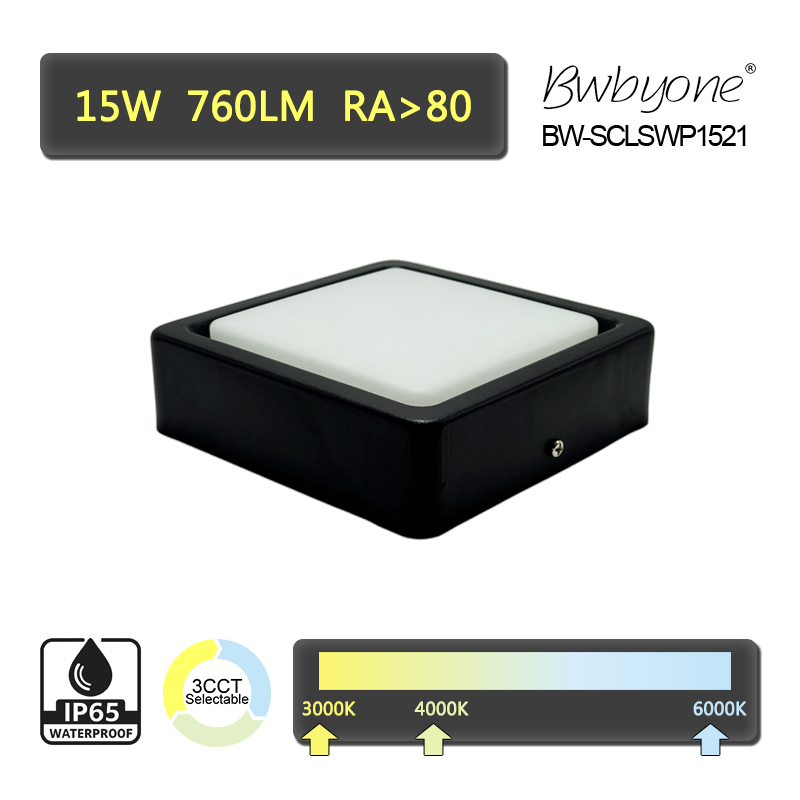

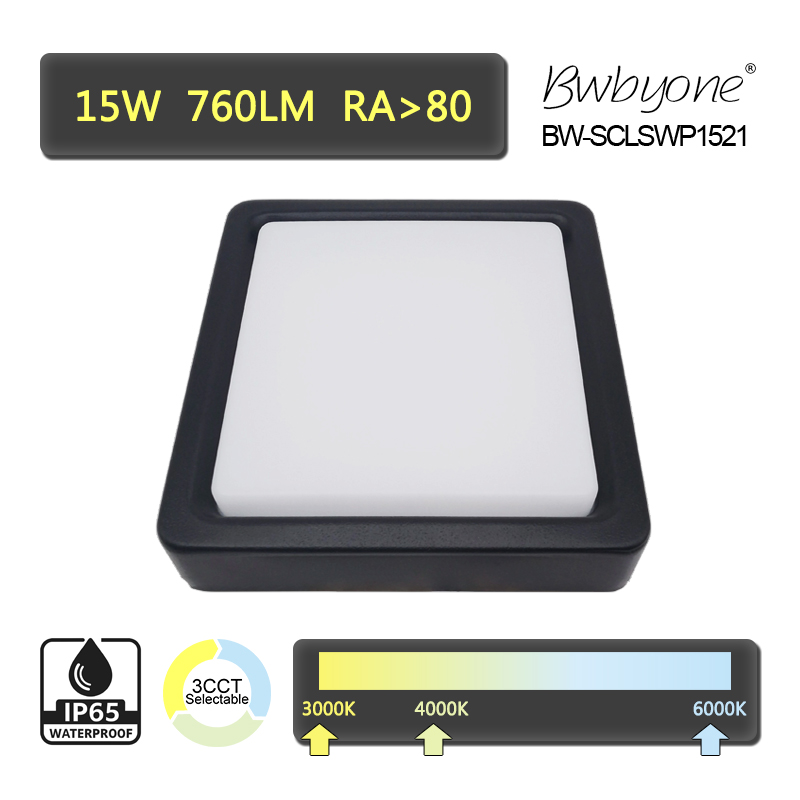

BW-SCLSWP1521: Square shape,Black finish color,single color temperature
Always consult our qualified salesperson to know more about our product models and descriptions.
Product specification
Input Voltage:AC 220~240V,50/60 HzPower:15WLuminous:760 lmChips model:SMD2835Color temperature option:Available in 3000K/4000K/6000K single color temperature
Power factor:>0.5CRI:Ra>80Dimensions:L115 x W115 x H37 mm
Housing material:IronFinish color: Available in White,Gray,Black or any other customized colors

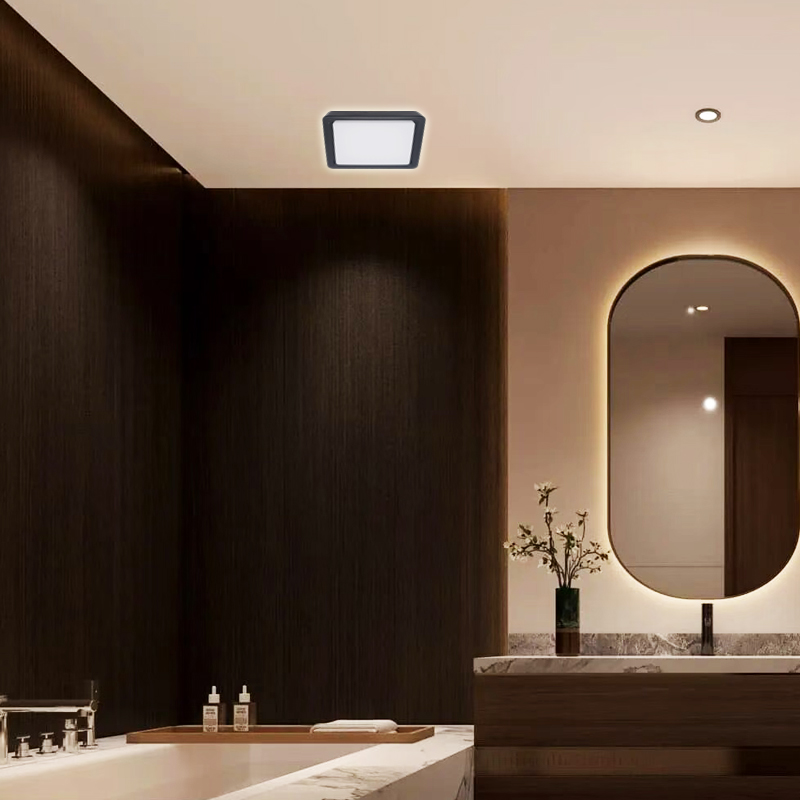

Application and installation:This square ceiling fixture is suited to shared spaces where functional light is the priority. It fits stair cores, internal corridors, basement routes, small storage rooms, and covered parking paths with overhead protection. The uniform light field supports visibility in residential and commercial buildings, particularly in low ceiling areas where broad surface illumination improves navigation. Single CCT distribution helps standardize lighting across larger projects and simplifies future maintenance for property managers.
Features
●Iron housing provides a stable enclosure that resists mechanical stress during installation on rigid ceiling substrates.
●The IP65 seal limits dust intrusion and preserves lumen performance in humid indoor environments with airflow from outside, its protection rating supports use in environments exposed to airborne dust and intermittent moisture, such as semi-enclosed access routes or humid service rooms.
●The light source maintains a good color rendering index, which helps preserve visual comfort in areas where users must navigate or read signage under uniform light.Optics tuned for a uniform spread produce a clean light distribution across the square face, reducing sharp contrast around ceiling edges.
●It supports accurate perception of surface tones, improving visibility of finishes such as painted walls, metal doors, and directional markings.Also supports electrical efficiency on long lighting circuits, especially in buildings where fixtures remain energized for extended periods.
●Three exterior colorsgive project designers the ability to align the fixture with ceiling finishes or exposed structural elements.
●Different CCT configuration supply per unit allows installers to set the desired color temperature during procurement and maintain consistency across multiple floors.
●The square profile produces a broader edge-to-edge light field than small circular housings, which can improve illumination in corridors or storage rooms with narrow wall spacing.

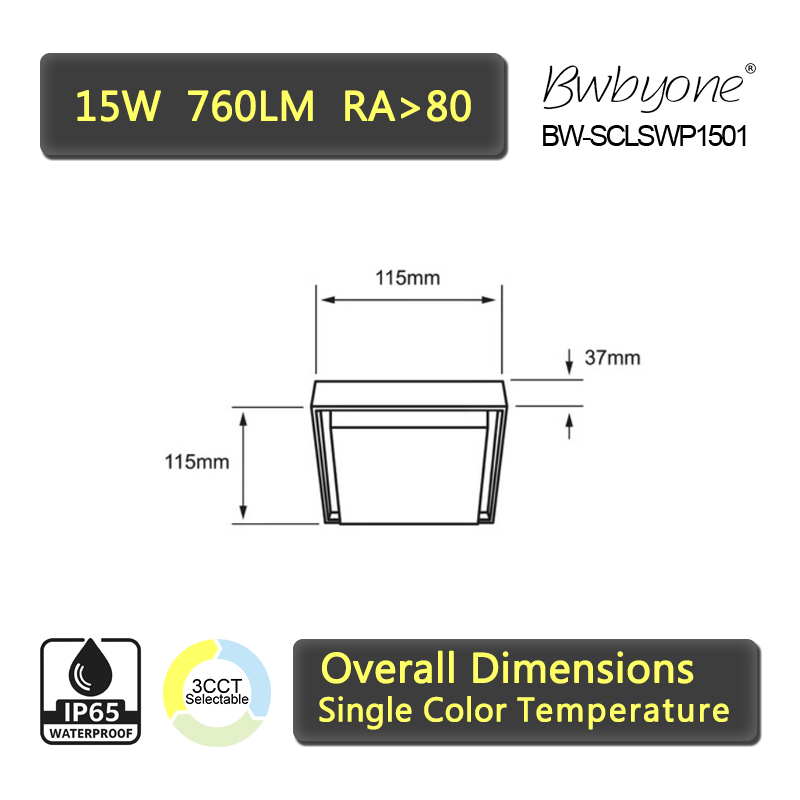

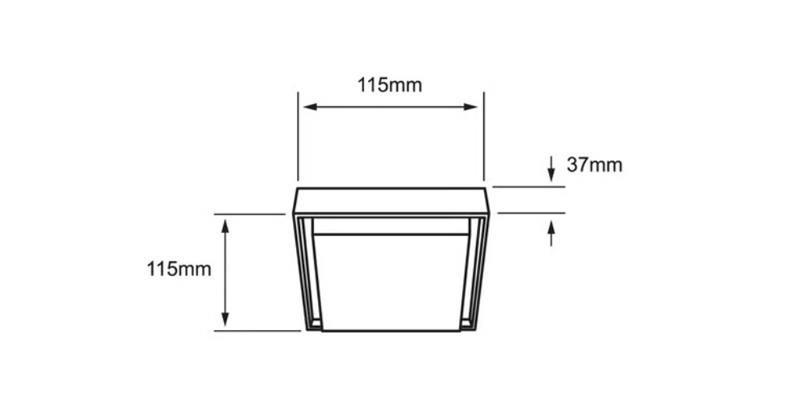

Line Drawing
