20W 100LM/W BW-DG182001 LED Surface Mounted COB Track Light

This 20W round track spot light delivers bright and efficient lighting for general commercial applications. It aligns with the power supply standards commonly used across Mexico and Latin America, making it suitable for NOM-standard installation scenarios. With a total luminous output of 2020 lumens, it supports higher ceiling heights and wider beam coverage, offering a solid solution for areas requiring stronger visual emphasis without involving dimming or adjustable color temperature.

    cpbjtp

    LED Recessed Mounted Downlight

    We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.

    Product models and descriptions

    BW- abbreviation of company name Byone

    DG18- Product model series

    20- Product rated power

    0/1/2- Product finish color: 0-white,1-silver,2-black

    1- Product color temperature:1- single color temperature

    Example:

    BW-DG182001: White finish color,single color temperature

    BW-DG182021: Black finish color,single color temperature

    Always consult our qualified salesperson to know more about our product models and descriptions.



    Product specification

    Input Voltage:127V,60 HzPower:20WLuminous:2020 lmChips model:COBColor temperature option:Available in 3000K/4000K/6500K single color temperature

    Power factor:>0.98CRI:Ra>80Dimensions:H64 x Φ130 mm(Lighting house body)

    Housing material:AluminiumFinish color: Available in White,Silver,Black or any other customized colors

    Application and installation:This model is well suited for large retail spaces, open plan offices, and showroom installations where consistent, neutral white light is needed to support product visibility, spatial clarity, and customer comfort.

    Features

    ●  Delivers 2020 lumens of output at 20W, offering high brightness with efficient energy use for commercial grade lighting needs.

    ●  Designed with compatibility for Latin American power systems, supporting NOM relevant usage requirements.

    ●  Produces clear, neutral lighting that enhances visibility of displays, merchandise, and architectural features.

    ●  Mounts directly to surface installed track systems, simplifying both initial setup and future replacements.

    ●  Focused on reliability and ease of use. Ideal for straightforward lighting specifications in retail and office environments.

    We offer OEM manufacturing services according to specific requirements.Our OEM services include:

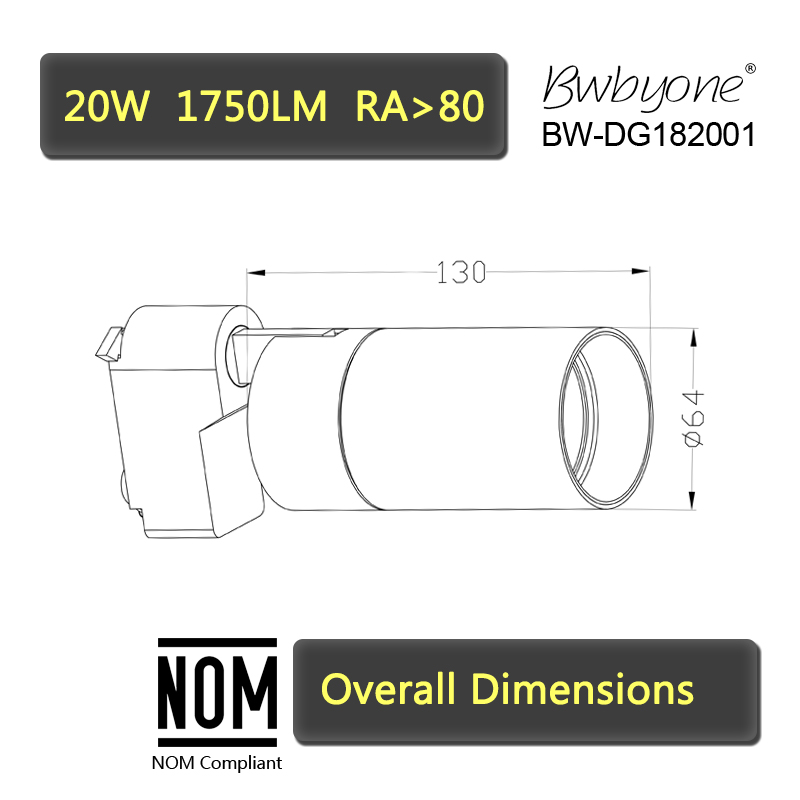

    Line Drawing

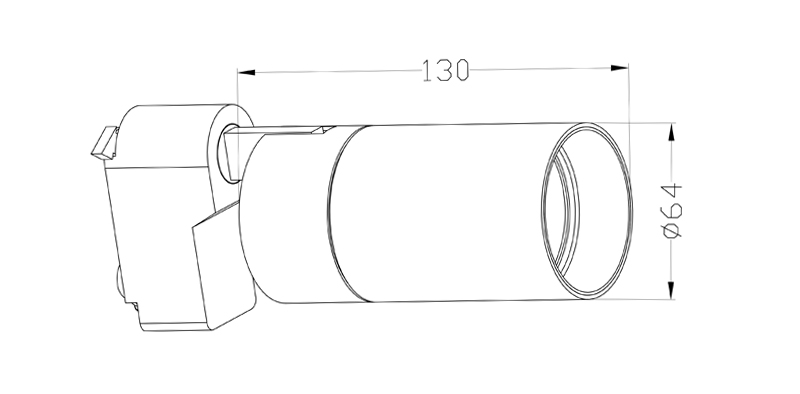

    BW-DG182001 line drawing m

    We offer OEM manufacturing services according to specific requirements.Our OEM services include:
