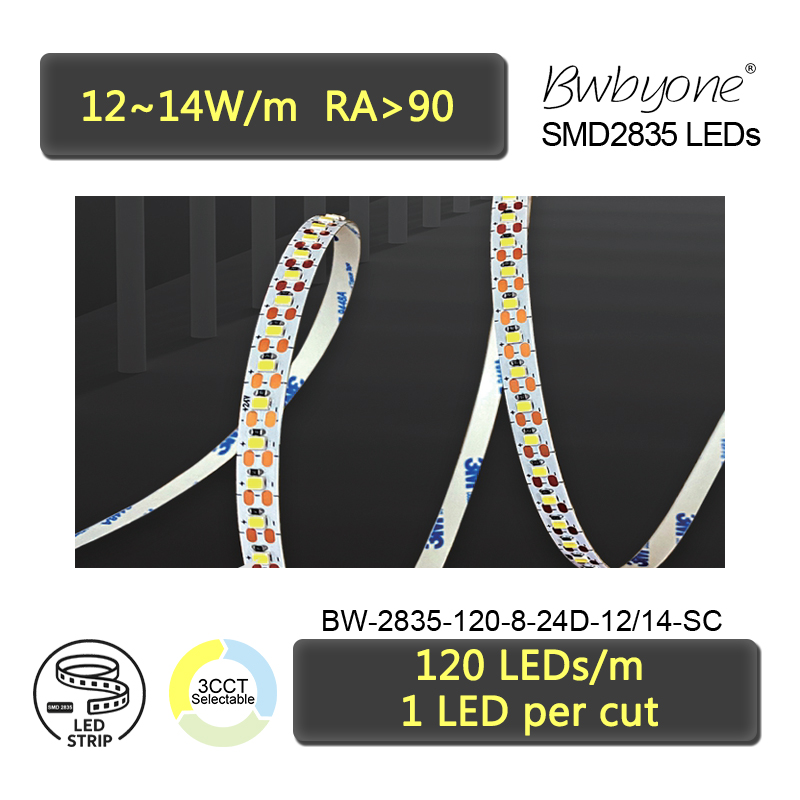

24V 2835 LED Strip 120 LEDs/M CRI90 with 8mm Width Indoor Linear Lighting

This 24V LED strip is designed as a versatile lighting solution for projects that require high color accuracy together with broader installation compatibility. Built with SMD 2835 LEDs at a density of 120 LEDs per meter, the strip delivers a luminous output of 1500–2000 lm/m. With a color rendering index above 90, it provides balanced and natural illumination suitable for a wide range of interior lighting environments.

    cpbjtp

    LED Recessed Mounted Downlight

    We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.

    Product models and descriptions

    BW-2835-120-8-24D-12/14-SC
    BW- abbreviation of company name Byone
    2835- Chips model
    120- 120 PCS Chips per meter
    8- Strip width:5mm
    24D- Rated Voltage: DC 12V/24V
    12/14- Rated Power: 12~14W/m
    SC- Single Cuttable LED strip

    Always consult our qualified salesperson to know more about our product models and descriptions.

    Product specification

    Input Voltage: DC 24V
    Power:12~14W/m
    Luminous:1500~2000LM/m
    LED Chips model:SMD2835
    LED density: 120 LEDs/m
    Cutting unit: 1 LED per cut
    Color temperature: Available in 3000K/4000K/6000K single color temperature
    Max. CRI:Ra>90
    Dimensions:PCB Width-8mm; 10m per roll per package
    Unique Feature:1. Each chip has a resistor; 2. Suited to narrow extrusion applications
    Working temperature and IP rating: -20 ~ 50° C, IP20.

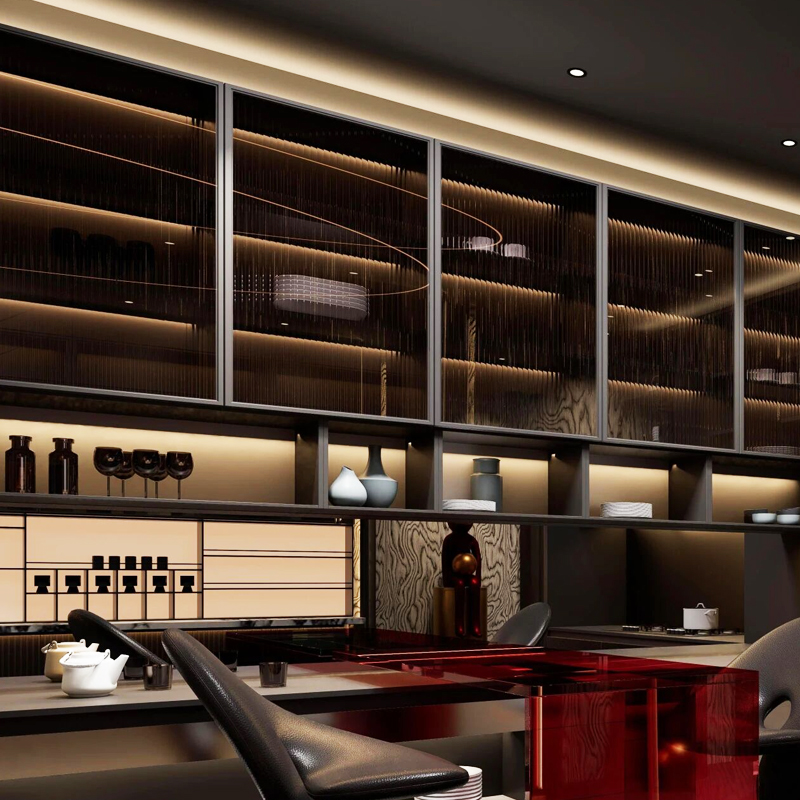

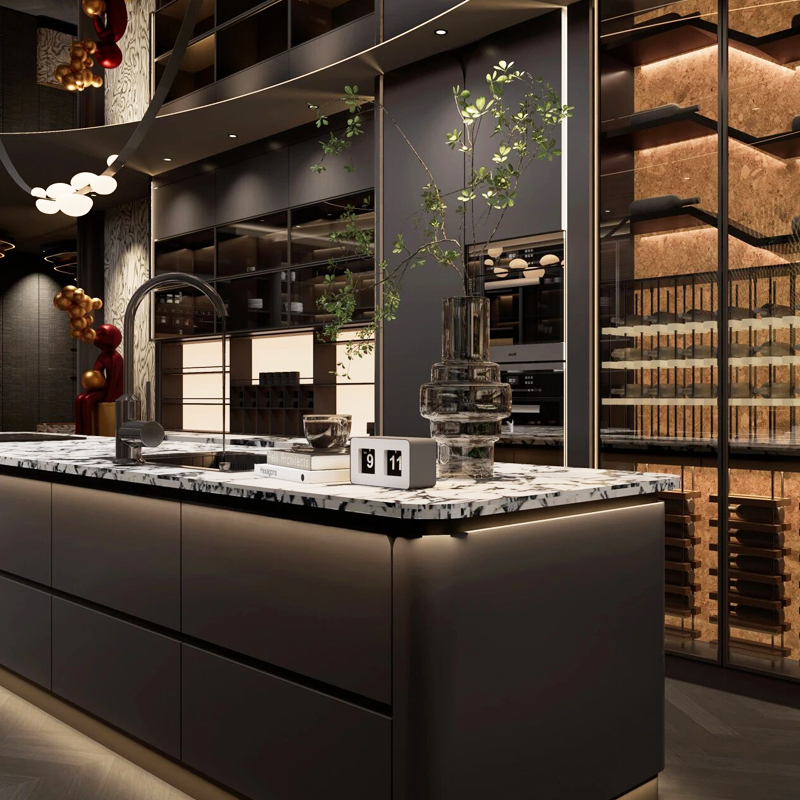

    Application and installation: This LED strip light is well suited for indoor lighting applications such as general ambient lighting, linear coves, cabinetry, shelving, retail fixtures, and architectural accents. The 8mm width allows the strip to fit securely into commonly used aluminum profiles, making it a practical choice for residential, commercial, and display oriented lighting projects where high color quality and installation reliability are required.

    Features

    ●  With a high CRI, this LED strip ensures faithful color reproduction and comfortable visual performance. It is appropriate for spaces where finishes, materials, and displayed objects need to appear natural under artificial lighting, without exaggerated color shifts.

    ●  The PCB provides a balanced structure that enhances physical strength and heat dissipation while remaining easy to integrate. This width aligns well with standard aluminum profiles, reducing installation constraints and supporting consistent longterm performance in continuous use environments.Compared with ultra-slim types, this model offers increased mechanical robustness and wider profile compatibility while maintaining installation flexibility.

    ●  The 5 mm PCB width enables installation in narrow profiles and tight architectural spaces where standardwidth strips are not suitable. The single LED cutting design allows precise length adjustment on site, supporting custom layouts without compromising brightness uniformity or circuit integrity.

    ●  The strip delivers stable brightness distribution. The low voltage design supports reliable operation over longer runs, helping maintain uniform illumination and simplifying power planning in linear lighting layouts.

    ●  This strip supports single CCT options of 3000 K, 4000 K, and 6000 K, and is supplied in 10 meters rolls for efficient handling and installation.

    ●  Designed for indoor use with an IP20 rating, it combines stable electrical performance with consistent light output along the entire length.

    We offer OEM manufacturing services according to specific requirements.Our OEM services include:
