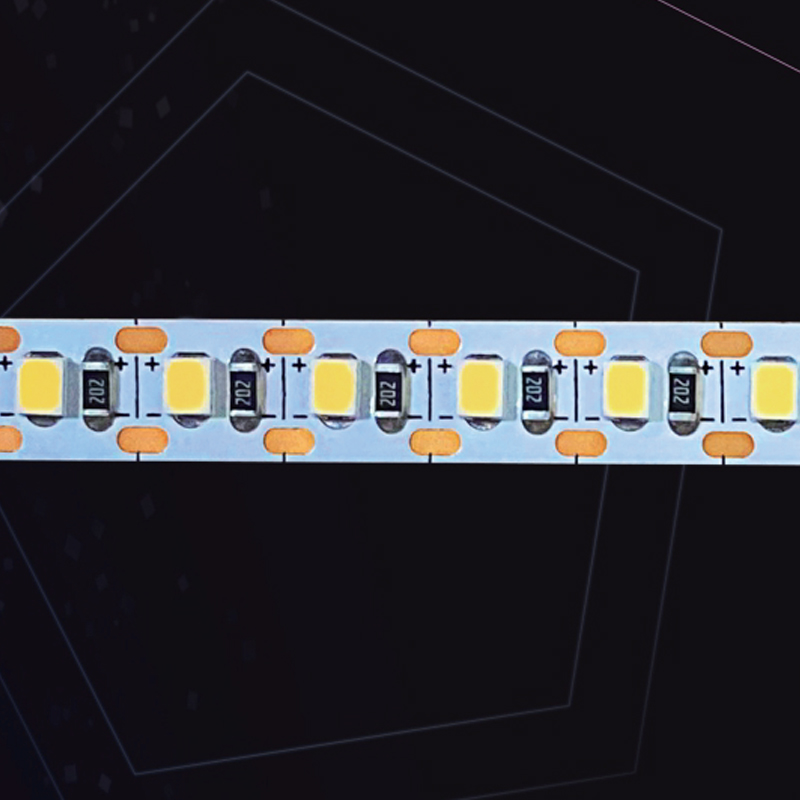

24V 2835 LED Strip 120 LEDs/M CRI98 8mm Width High Color Accuracy Indoor Strip Lighting

This 24V LED strip is configured as a high color accuracy lighting solution with enhanced structural tolerance, intended for professional interior applications that prioritize visual fidelity and installation stability. It uses SMD 2835 LED chips arranged at 120 LEDs per meter and operates at a rated power of 12–14 W/m, delivering a luminous output in the range of 12001500 lm/m. The strip supports single color versions at 3000 K, 4000 K, and 6000 K, with color rendering performance reaching up to CRI > 98.

    Send Inquiry
    cpbjtp

    LED Recessed Mounted Downlight

    We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.

    product details

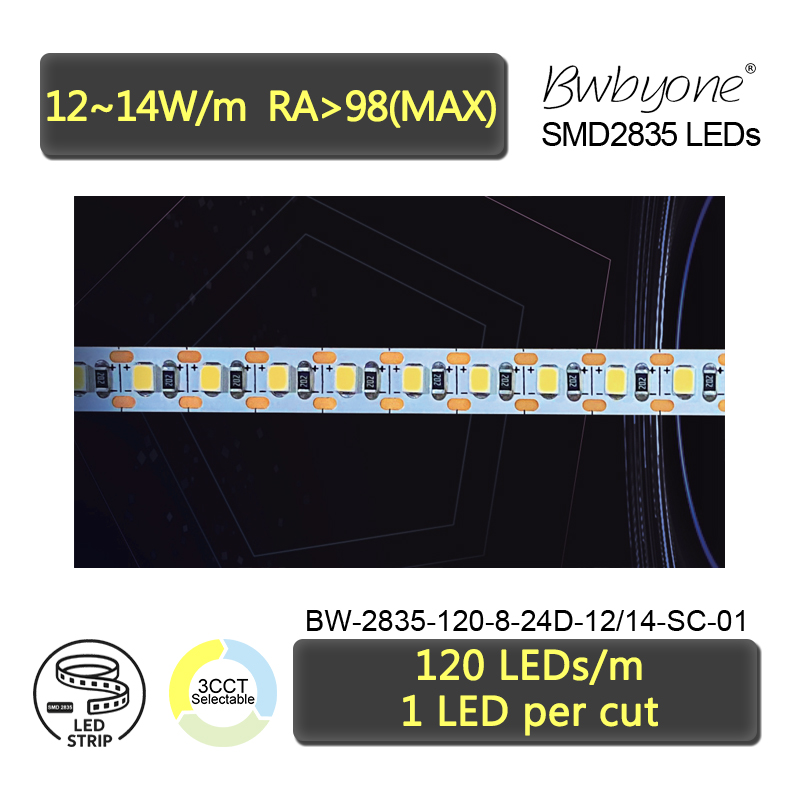

    Product models and descriptions

    BW-2835-120-8-24D-1214-SC-01
    BW- abbreviation of company name Byone
    2835- Chips model
    120- 120 PCS Chips per meter
    8- Strip width:8mm
    24D- Rated Voltage: DC 12V/24V
    12/14- Rated Power: 12~14W/m
    SC-01- Single Cuttable LED strip, high CRI model

    Always consult our qualified salesperson to know more about our product models and descriptions.

    Product specification

    Input Voltage: DC 24V
    Power:12~14W/m
    Luminous:1200~1500LM/m
    LED Chips model:SMD2835
    LED density: 120 LEDs/m
    Cutting unit: 1 LED per cut
    Color temperature: Available in 3000K/4000K/6000K single color temperature
    Max. CRI:Ra>98
    Dimensions:PCB Width-8mm; 10m per roll per package
    Unique Feature:1. Each chip has a resistor; 2. Suited to narrow extrusion applications
    Working temperature and IP rating: -20 ~ 50° C, IP20.

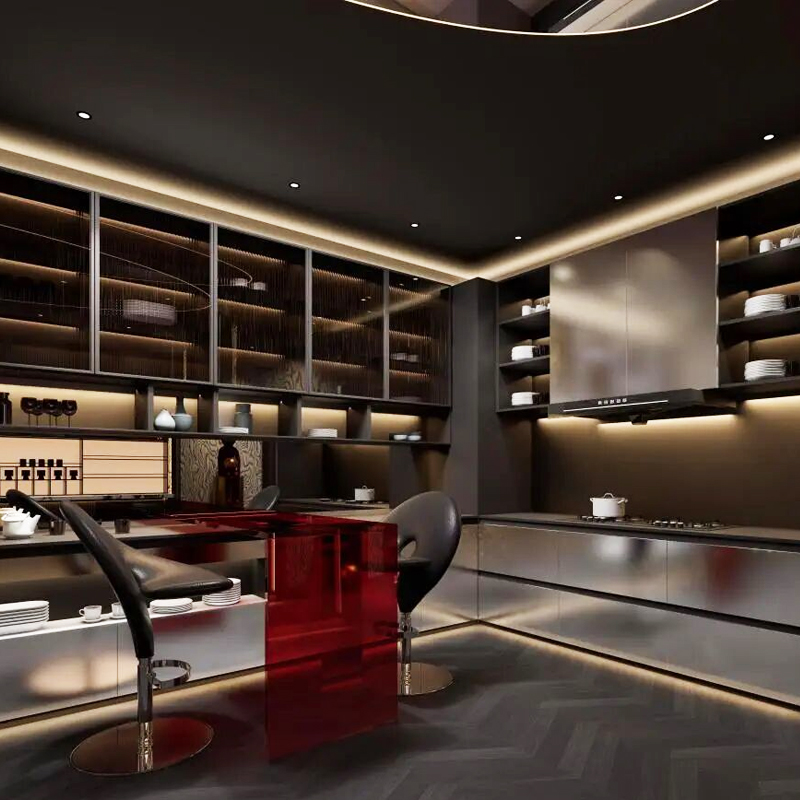

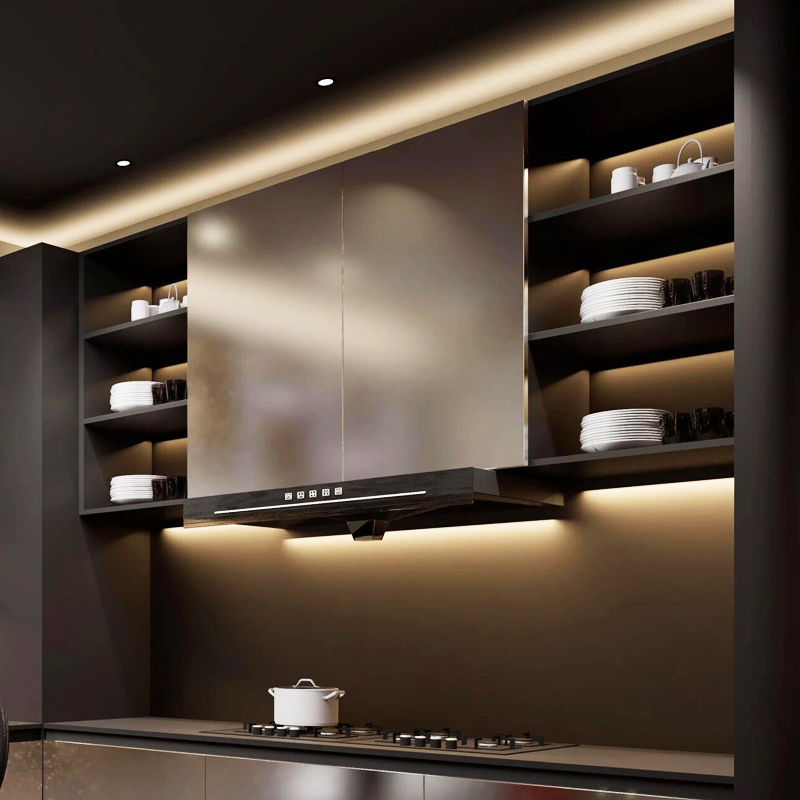

    Application and installation: This LED strip light is intended for indoor environments where high color accuracy and mechanical reliability are both required, such as retail displays, galleries, museums, residential cabinetry, and architectural linear lighting. The 8 mm width allows secure installation in commonly specified aluminum profiles, making it suitable for both decorative and functional lighting layouts with extended operating hours.

    Features

    ●  With a maximum color rendering index above 98, this LED strip enables highly accurate color presentation. It is well suited for lighting applications where the true appearance of materials, artworks, or merchandise must be preserved under artificial illumination

    ●  This PCB structure supporting longterm stability, approach improves overall electrical reliability, particularly in continuous use installations or locations with limited maintenance access.

    ●  It offers increased mechanical strength and improved compatibility with standard aluminum profiles. Compared with narrower models, it provides a more forgiving installation experience while maintaining controlled power consumption and uniform light distribution along the strip, also providing a more robust physical platform while retaining flexible installation capability.

    ●  Combined with a single LED cutting layout and 24V DC input, the strip is designed to deliver stable output across custom lengths. The product is supplied in 10meters rolls and rated IP20 for indoor use.
