24V 2835 LED Strip 8mm Width Cost Effective Indoor Lighting
LED Recessed Mounted Downlight
We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.
Product models and descriptions

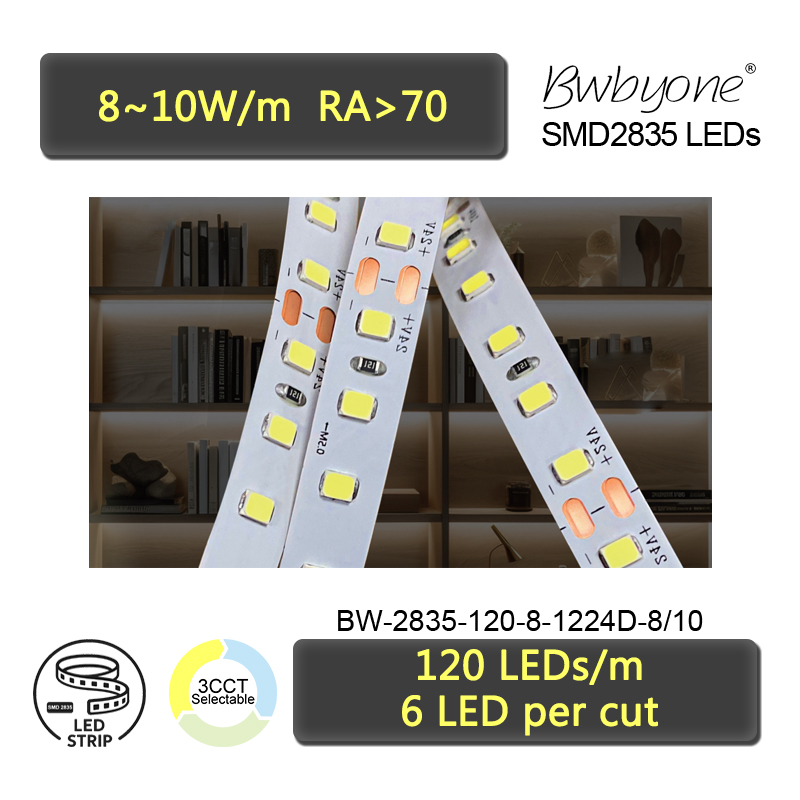

BW-2835-120-8-1224D-8/10
BW- abbreviation of company name Byone
2835- Chips model
120- 120 PCS Chips per meter
8- Strip width:8mm
12/24D- Rated Voltage: DC 12V/24V
8/10- Rated Power: 8~10W/m
Always consult our qualified salesperson to know more about our product models and descriptions.
Product specification
Input Voltage: DC 12V/24V
Power:8~10W/m
Luminous:800~1000LM/m
LED Chips model:SMD2835
LED density: 120 LEDs/m
Cutting unit: 6 LEDs per cut
Color temperature : Available in 3000K/4000K/6000K single color temperature
Max. CRI:Ra>70
Dimensions:PCB Width-8mm; 10m per roll per package
Working temperature and IP rating: -20 ~ 50° C, IP20.

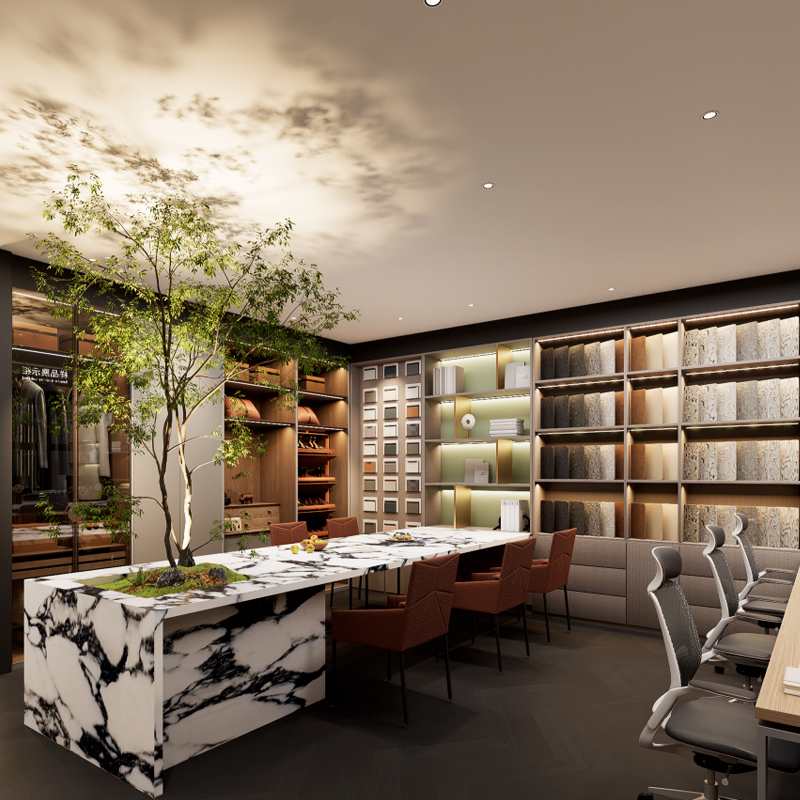

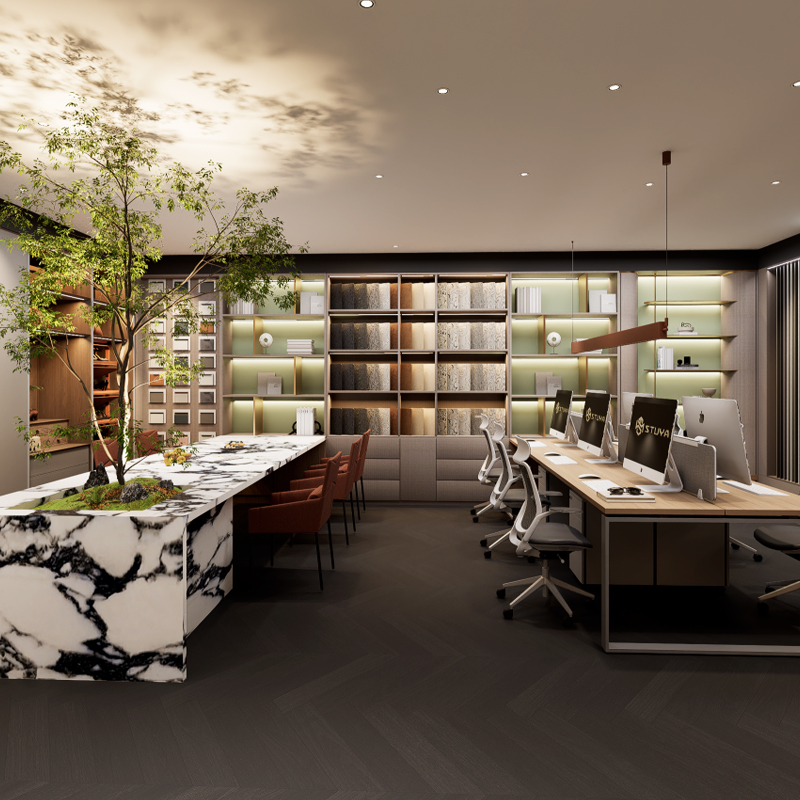

Application and installation: This LED strip light is suitable for basic indoor lighting needs such as under cabinet lighting, shelves, signage backlighting, residential accent lighting, and commercial installations where large quantities are required. The 8 mm width fits well into commonly available aluminum profiles, making it an accessible option for wholesalers, contractors, and projects with tight budget constraints.
Features
● This LED strip provides sufficient brightness for general illumination without unnecessary power consumption. It offers a practical lighting level for everyday environments, supporting efficient deployment across longer runs.
● The strip uses a practical cutting design with six LEDs per cut, allowing standard length adjustment while keeping the circuit layout straightforward and reliable.This cutting structure allows consistent segment lengths and straightforward installation. The configuration is well suited for standard layouts where fine cutting precision is not required, helping reduce installation time and material waste.
● The width ensures compatibility with a wide range of standard aluminum profiles and mounting accessories. This makes the strip easy to integrate into common lighting fixtures and architectural details, particularly in high volume applications where consistency and repeatability are important.
● Compared with higher specification products, this model focuses on balanced performance and ease of use rather than advanced optical or structural features.It is supplied in 10meters rolls, rated IP20, and intended for indoor use where functional lighting and cost control are key priorities.
We offer OEM manufacturing services according to specific requirements.Our OEM services include:
