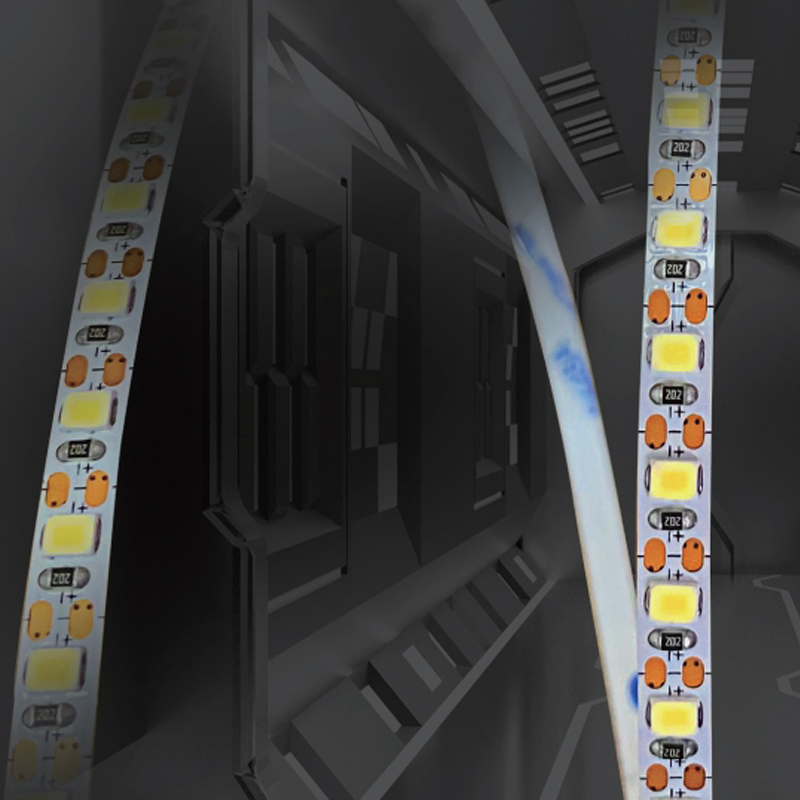

24V 2835 LED Strip with 5mm Slim width Cuttable per LED for Indoor Accent & Decorative Lighting

BW-2835-120-5-1224D-10/12-SC

BW- abbreviation of company name Byone

2835- Chips model

120- 120 PCS Chips per meter

5- Strip width:5mm

1224D- Rated Voltage: DC 12V/24V

10/12- Rated Power: 10~12W/m

SC- Single Cuttable LED strip

Always consult our qualified salesperson to know more about our product models and descriptions.

Input Voltage: DC 12V/24V
Power:10~12W/m
Luminous:1200~1500LM/m

LED Chips model:SMD2835

LED density: 120 LEDs/m

Cutting unit: 1 LED per cut
Color temperature : Available in 3000K/4000K/6000K single color temperature
CRI:Ra>90
Dimensions:PCB Width-5mm; 10m per roll per package

Unique Feature:1. Each chip has a resistor; 2. Suited to narrow extrusion applications

Working temperature and IP rating: -20 ~ 50° C, IP20.

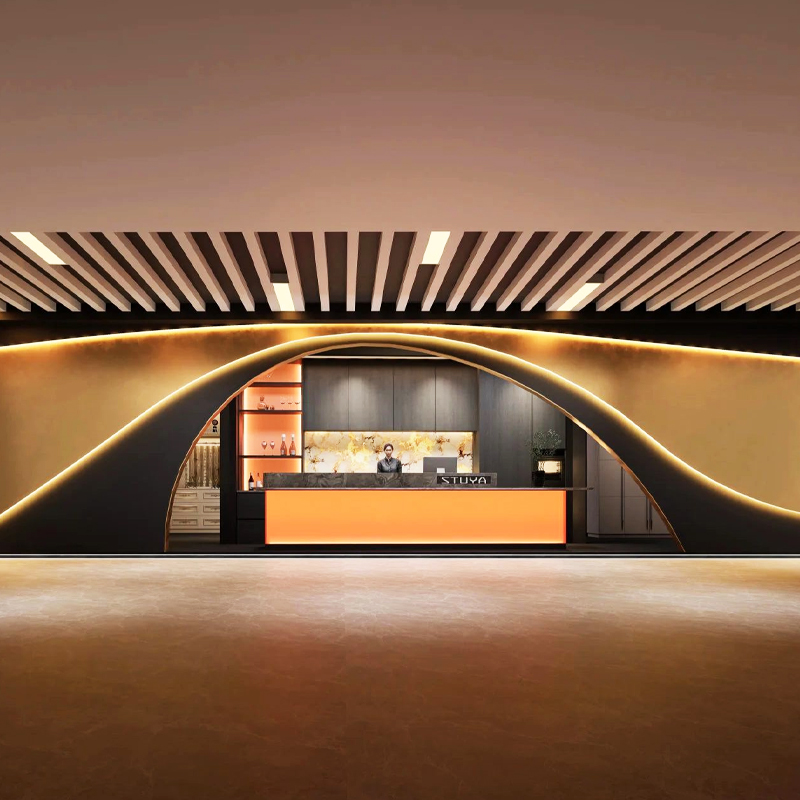

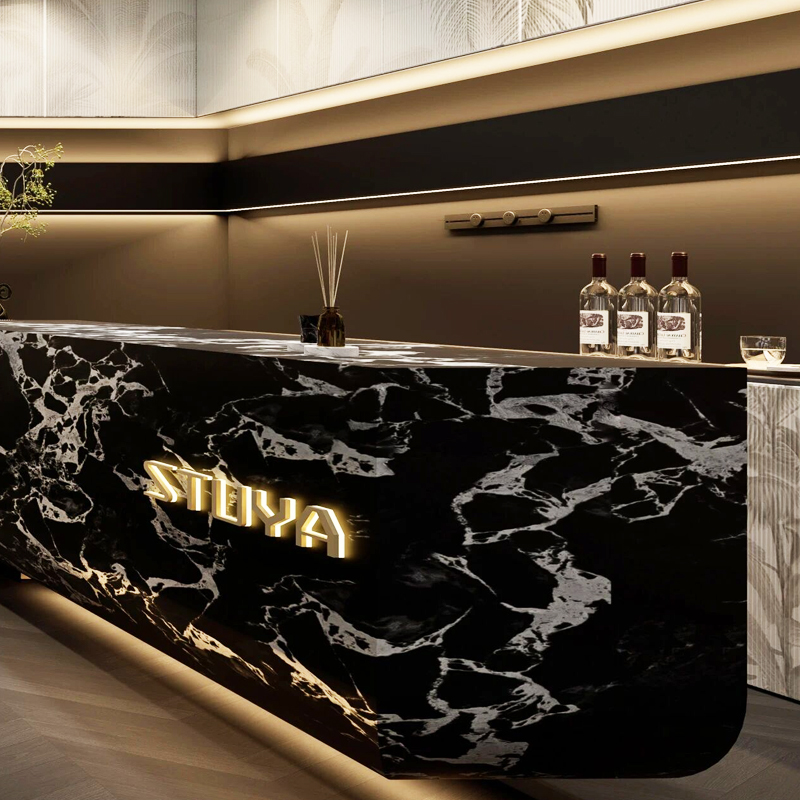

Application and installation: This LED strip light is used for indoor accent and task lighting, this slim 5 mm LED strip fits seamlessly into narrow profiles, cabinetry edges, display shelves, and architectural grooves. Its one-LED-one-cut design allows precise length adjustments, making it suitable for custom residential installations, retail displays, and decorative lighting projects where uniform brightness and discreet integration are required.

●The key technical feature of this LED strip is its single LED cutting design, where each LED is paired with an individual current-limiting resistor. It allows the strip to be cut at every single LED without affecting the electrical stability of the remaining section.
●Compared with conventional multi-LED cutting units, this structure significantly reduces brightness inconsistency after cutting and simplifies on-site length adjustment.
●It is particularly advantageous for custom installations, curved profiles, and projects that require exact fitting without visible light drop or uneven output.
●5 mm ultra-slim PCB width, which expands the range of applicable installation scenarios.The narrowstrip makes it suitable for integration into compact aluminum profiles, recessed grooves, cabinetry edges, display fixtures, and architectural details where standard strips cannot be used.
●This makes it a practical solution for refined residential interiors, retail showcases, and decorative lighting elements where visual discreteness is essential.
●In addition, the combination of high-density LEDchips, controlled power consumption, and ensures consistent light quality with comfortable visual performance.
●The 12V/24 V design supports stable operation over longer runs, helping to reduce voltage drop and maintain uniform brightness along the strip.
