24W 1300LM BW-SCLSWP240 Waterproof LED Flush Mounted Square Ceiling Light
Square Light
We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.
Product models and descriptions:
BW- abbreviation of company name Byone
SCL- Product model series
S/R-Flat square shape/Round drum shape
WP-Water proof,IP65 protection rating
24- Product rated power

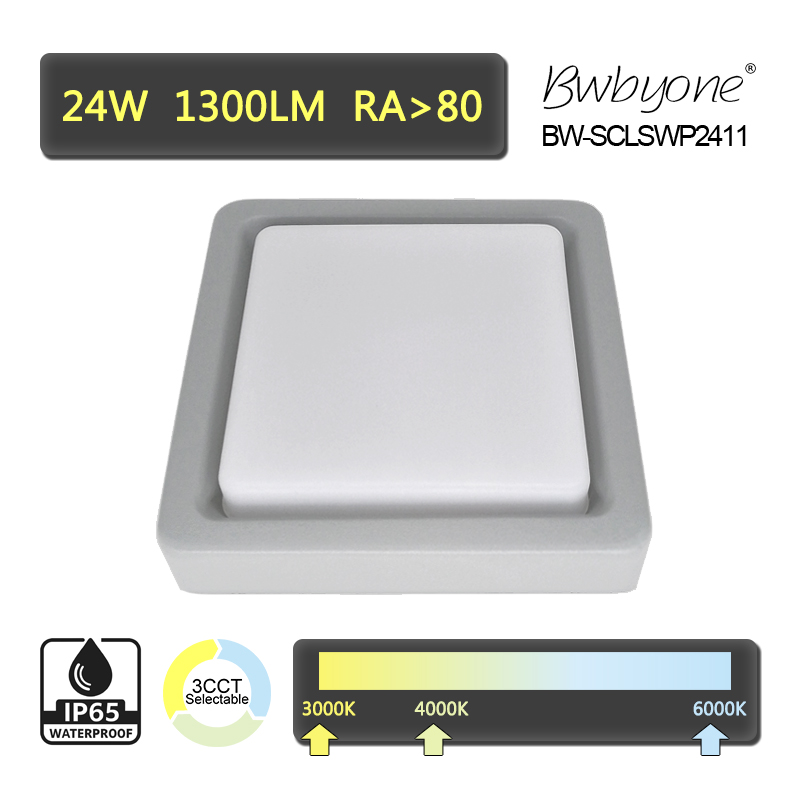

0/1/2- Product finish color: 0-white,1-Gray,2-black
1- Product color temperature:1- single color temperature
Example:

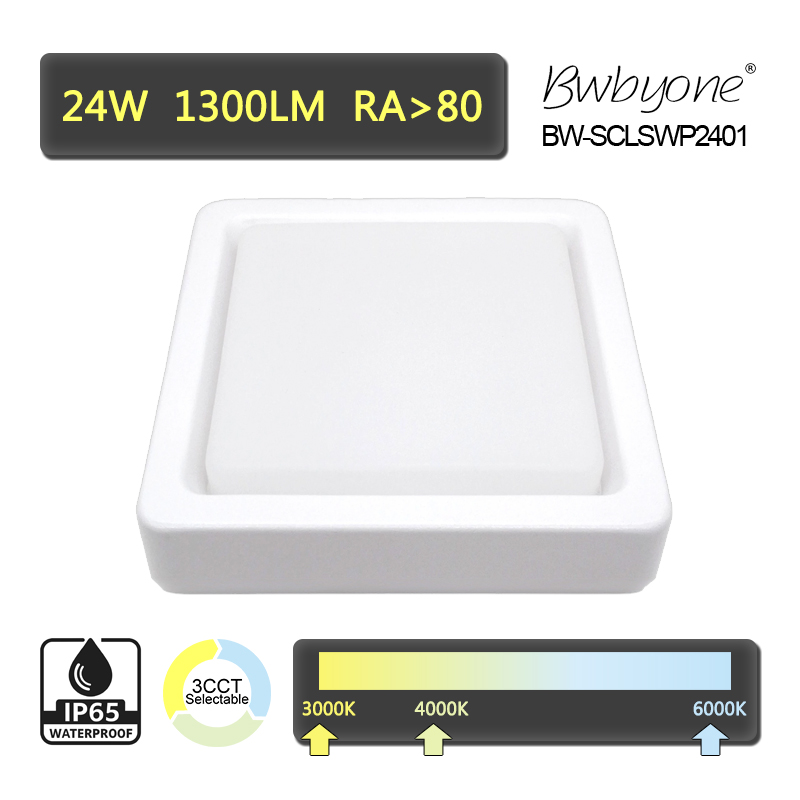

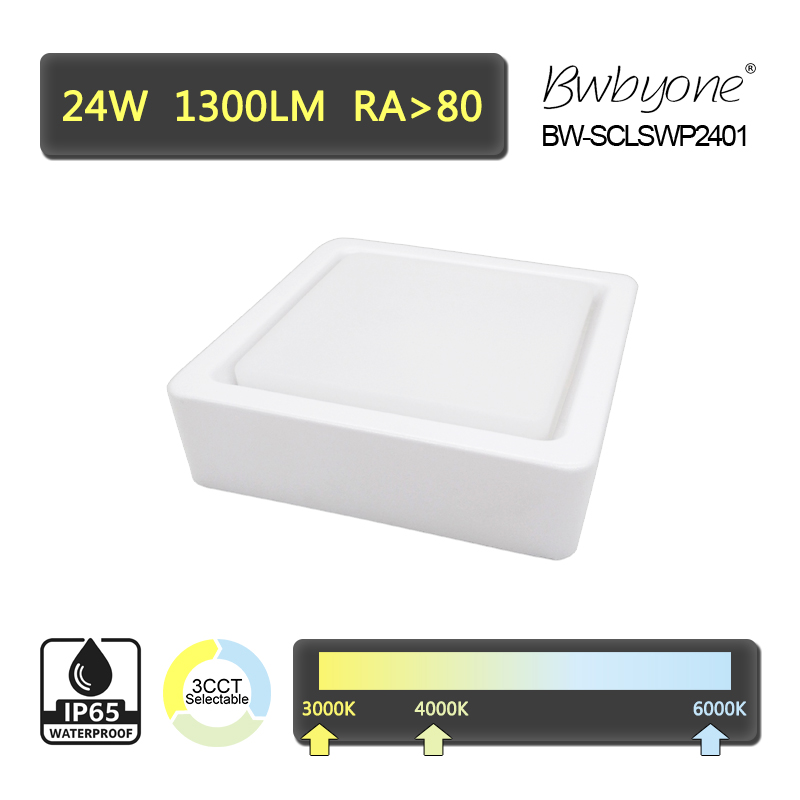

BW-SCLSWP2401: Square shape,White finish color,single color temperature

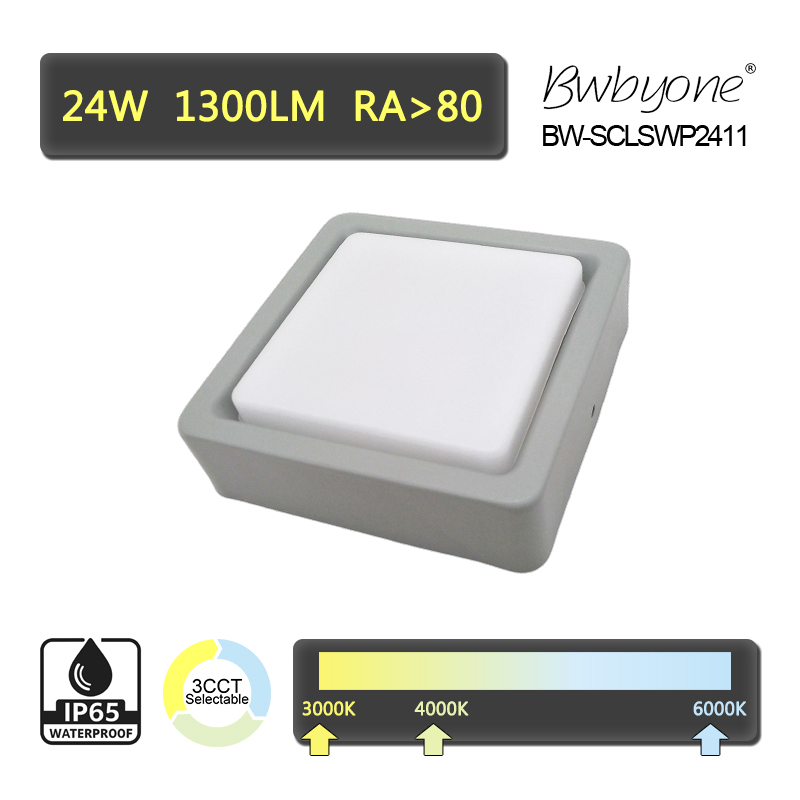

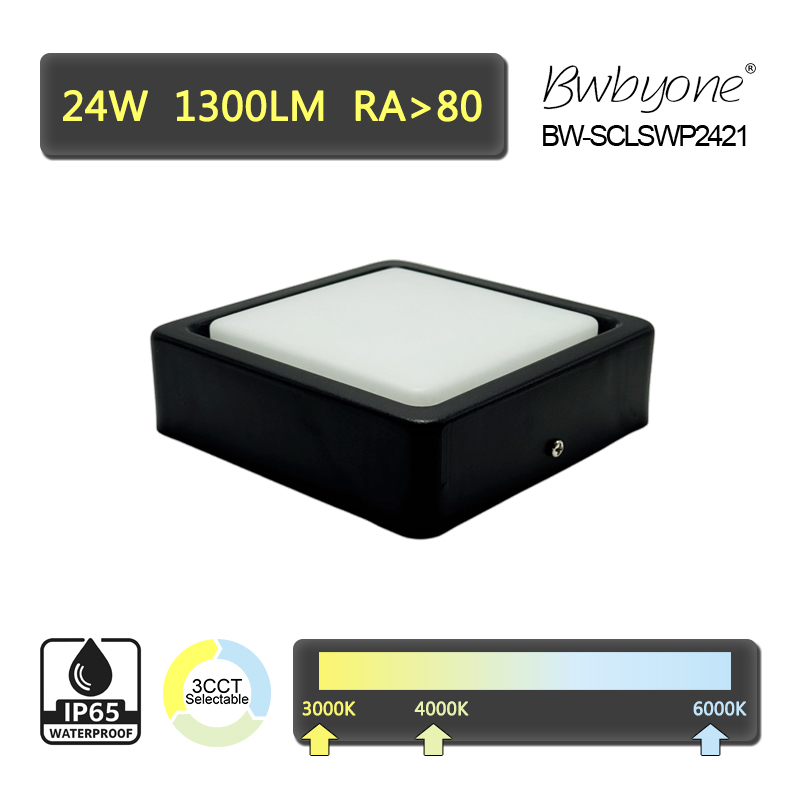

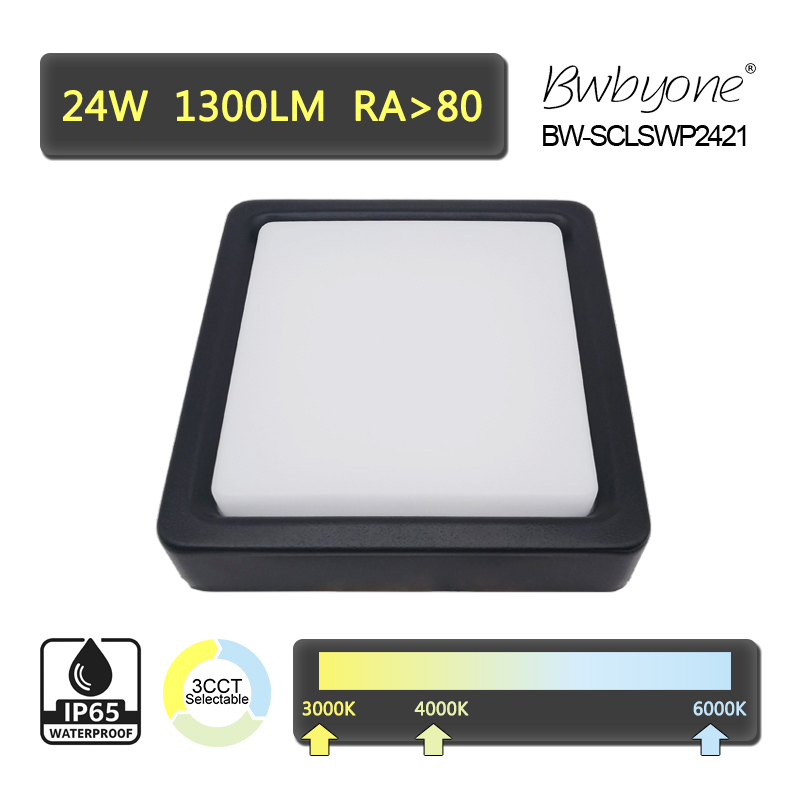

BW-SCLSWP2421: Square shape,Black finish color,single color temperature
Always consult our qualified salesperson to know more about our product models and descriptions.
Product specification
Input Voltage:AC 220~240V,50/60 HzPower:24WLuminous:1300 lmChips model:SMD2835Color temperature option:Available in 3000K/4000K/6000K single color temperature
Power factor:>0.5CRI:Ra>80Dimensions:L171 x W171 x H37 mm
Housing material:IronFinish color: Available in White,Gray,Black or any other customized colors

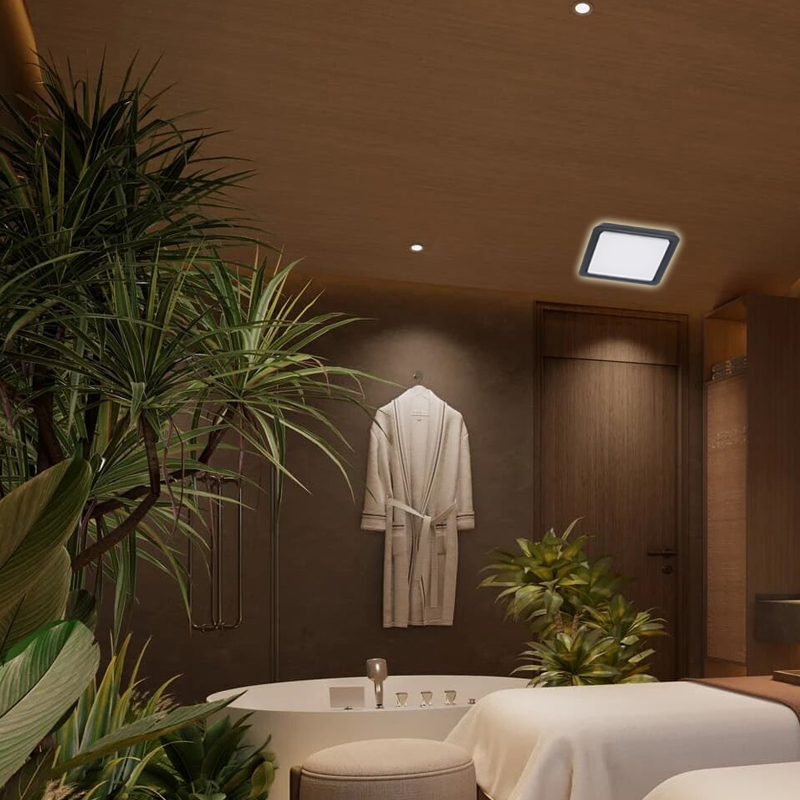

Application and installation:This 24W square ceiling fixture is suited to wider circulation spaces where strong ambient light supports movement and site awareness. It fits stair cores in multi-level buildings, long internal corridors, basement routes, and covered parking paths that require broader illumination than a small circular fixture can provide. The uniform beam spread improves visibility in low ceilings, while the single CCT type helps standardize lighting across large projects, reducing maintenance complexity for facility operators.
Features
●The fixture is used in venues where reliable light is a core part of daily use, including multiunit residential buildings, public circulation areas in commercial facilities, and semi-enclosed zones that must remain clearly illuminated for safety and wayfinding.It supports predictable electrical performance in large installations where circuits operate continuously.
●A rigid iron housing enhances the structural strength of the fixture, supporting direct mounting on solid ceiling substrates with minimal deformation during installation.The square outline distributes light across a wider surface area, which can improve visibility in areas with longer ceiling runs or tighter wall spacing.
●IP65rated sealing maintains lumen output by limiting contact between the optical components and airborne dust or periodic moisture.
●Thesingle CCT approach simplifies specification: distributors and installers select the target color temperature at procurement and keep uniform light tone across repeated installation zones.A broad light field extends outward from the square form, reducing dark edges along corridor ceilings and improving uniformity over walking paths.
●The color rendering index preserves contrast between surface materials, which supports visibility ofceiling mounted signage, safety markings, and directional indicators.Also supports visual clarity in environments where users rely on steady ambient lighting rather than decorative effects.
●Three exterior finishcolors help match the fixture to ceiling finishes ranging from painted gypsum to exposed structural concrete.

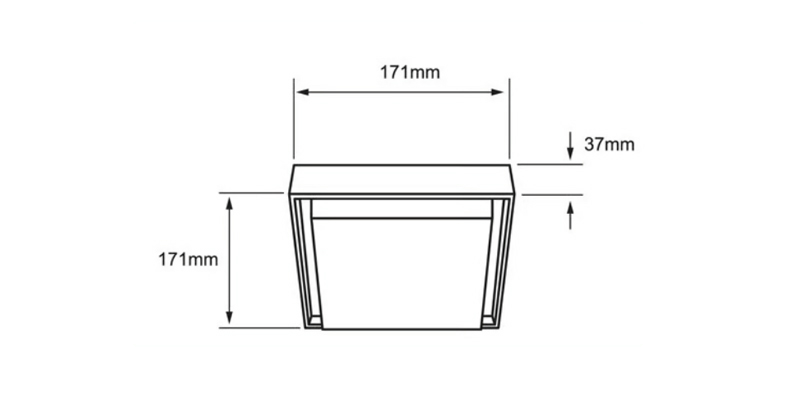

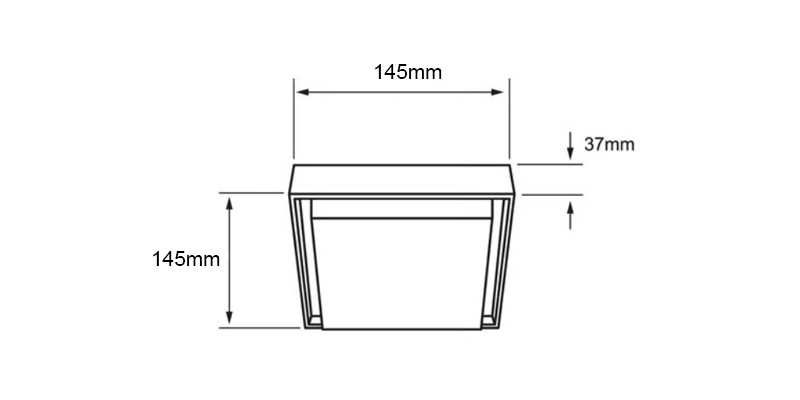

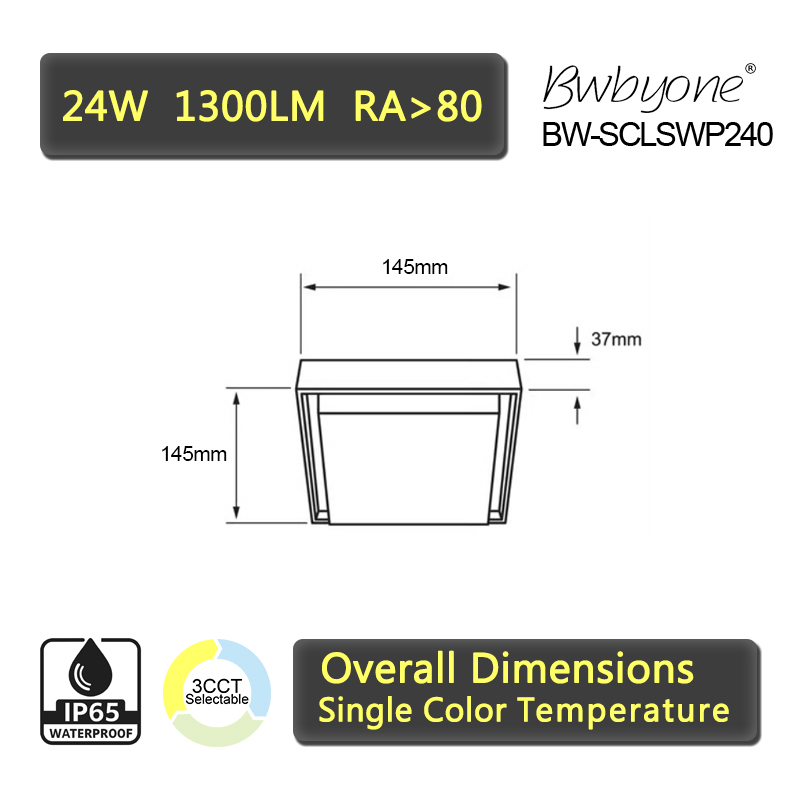

Line Drawing
