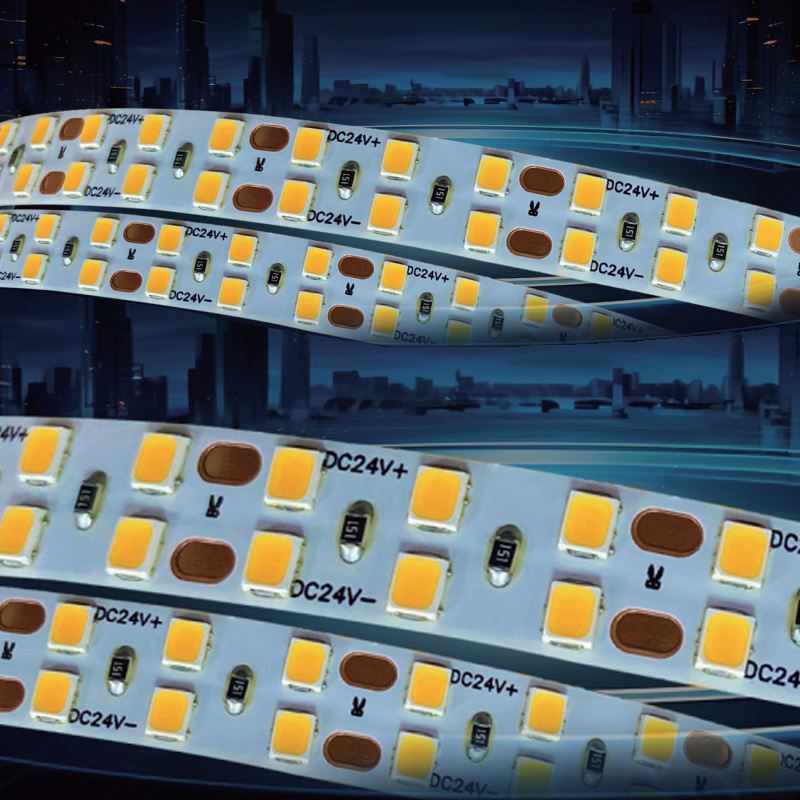

2835 Dual Row LED Strip 240 LEDs/m 10mm Width for Stable Linear Lighting

BW-2835-240-10-1224D-14/16-DR

BW- abbreviation of company name Byone

2835- Chips model

240- 240 PCS Chips per meter

10- Strip width:10mm

12/24D- Rated Voltage: DC 12V/24V

14/16- Rated Power: 14~16W/m

DR- Double row series

Always consult our qualified salesperson to know more about our product models and descriptions.

Input Voltage: DC 12V/24V

Power:14~16W/m

Luminous:1200~1500LM/m

LED Chips model:SMD2835

LED density: 240 LEDs/m

Cutting unit: 6 LEDs per cut

Color temperature : Available in 3000K/4000K/6000K single color temperature

CRI:Ra>85

Dimensions:PCB Width-10mm; 10m per roll per package

Working temperature and IP rating: -20 ~ 50° C, IP20.

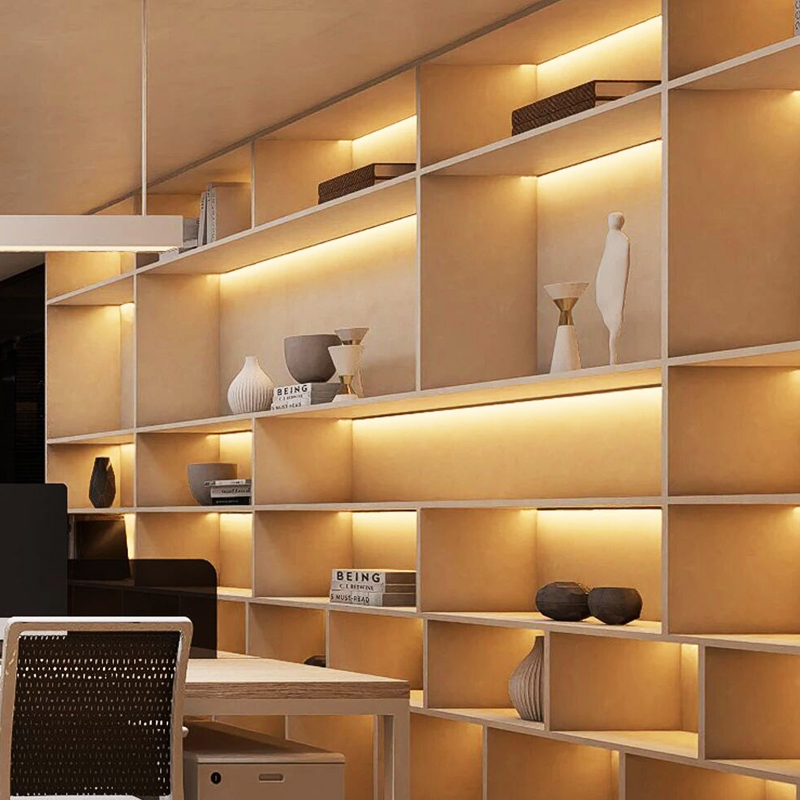

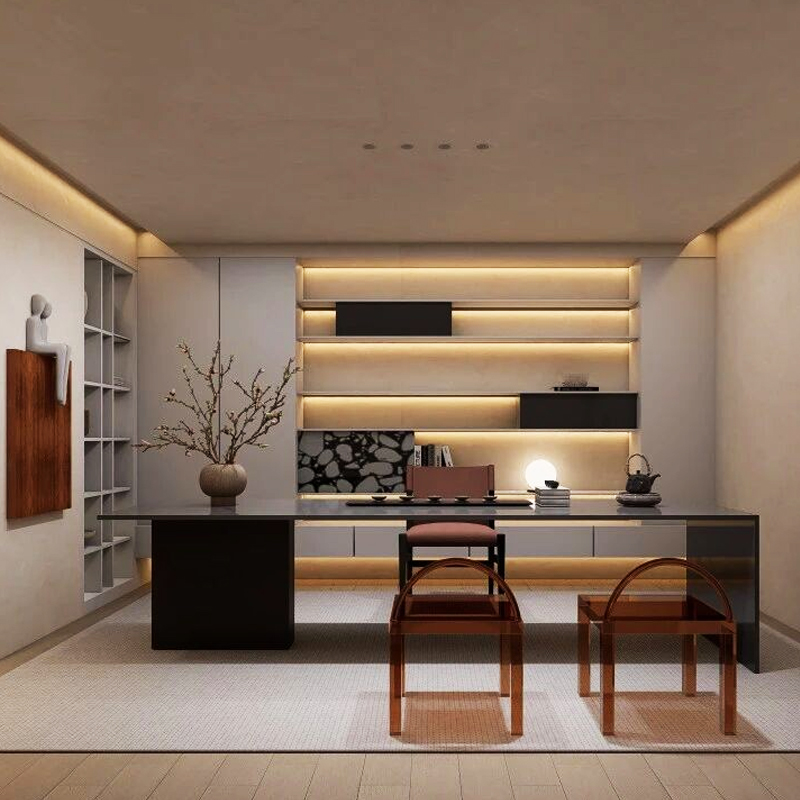

Application and installation: This model is suitable for interior linear lighting in commercial spaces, cabinetry, shelving, architectural recesses, signage back lighting, and continuous accent lighting where a stable and uniform light line is preferred. The 10 mm width fits standard aluminum profiles designed for higher structural support.

● The use of a 10 mm PCB combined with a dual row LED arrangement provides clear advantages in structural balance and light distribution. By spreading the chips across two rows, current flow and heat dissipation are handled more evenly compared with narrow, single row designs. This layout supports a stable operating condition and contributes to consistent brightness along the length of the strip, particularly in continuous installations.

● With a total density of 240 LEDs per meter, the strip achieves a refined light appearance without relying on extreme brightness levels. The increased number of light sources helps reduce visible spacing, producing a smoother illuminated surface when used with standard diffusers. This makes the product suitable for applications where visual consistency is more important than peak luminous output.

● The luminous performance is intentionally positioned at acommon level, aligning with foundational indoor lighting requirements. While the lumen output remains within a practical range, the combination of higher LED density ensures acceptable color rendering and visual comfort in everyday environments. This balance allows the strip to perform reliably in both functional and decorative roles.

● The wider PCB also contributes to mechanical stability during installation. It integrates well with commonly used aluminum profiles and mounting systems, reducing handling issues and supporting clean, straight linear runs. As a result, this double row LED strip offers a dependable solution for projects that prioritize even illumination, structural stability, and predictable lighting behavior over maximum brightness.
