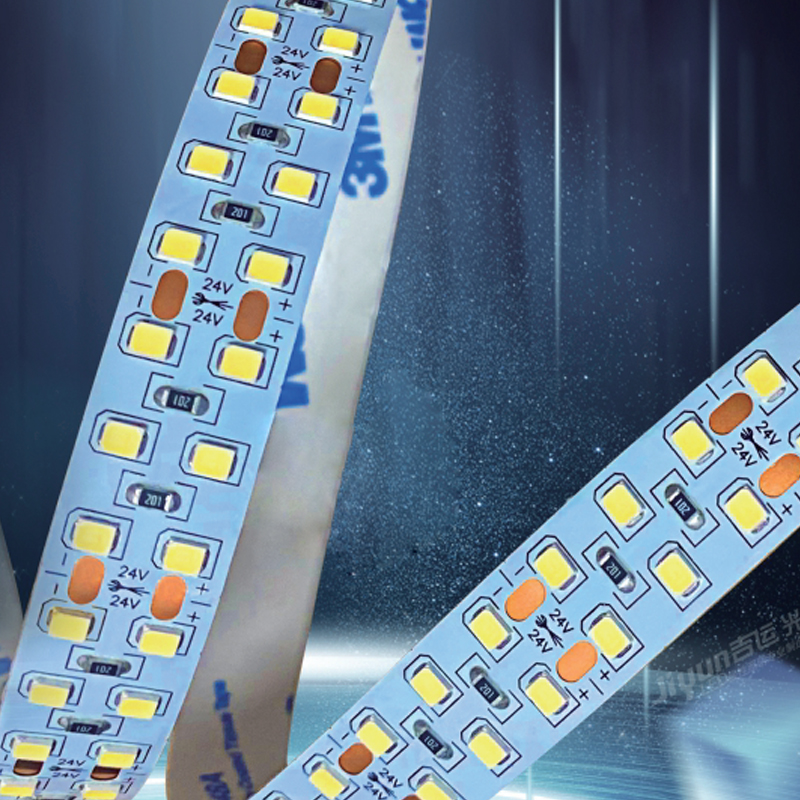

2835 Dual Row LED Strip 240 LEDs/m 15mm Width for Robust Linear Lighting Systems

BW-2835-240-15-1224D-14/16-DR

BW- abbreviation of company name Byone

2835- Chips model

240- 240 PCS Chips per meter

15- Strip width:15mm

12/24D- Rated Voltage: DC 12V/24V

14/16- Rated Power: 14~16W/m

DR- Double row series

Always consult our qualified salesperson to know more about our product models and descriptions.

Input Voltage: DC 12V/24V

Power:14~16W/m

Luminous:1200~1500LM/m

LED Chips model:SMD2835

LED density: 240 LEDs/m

Cutting unit: 6 LEDs per cut

Color temperature : Available in 3000K/4000K/6000K single color temperature

CRI:Ra>85

Dimensions:PCB Width-15mm; 10m per roll per package

Working temperature and IP rating: -20 ~ 50° C, IP20.

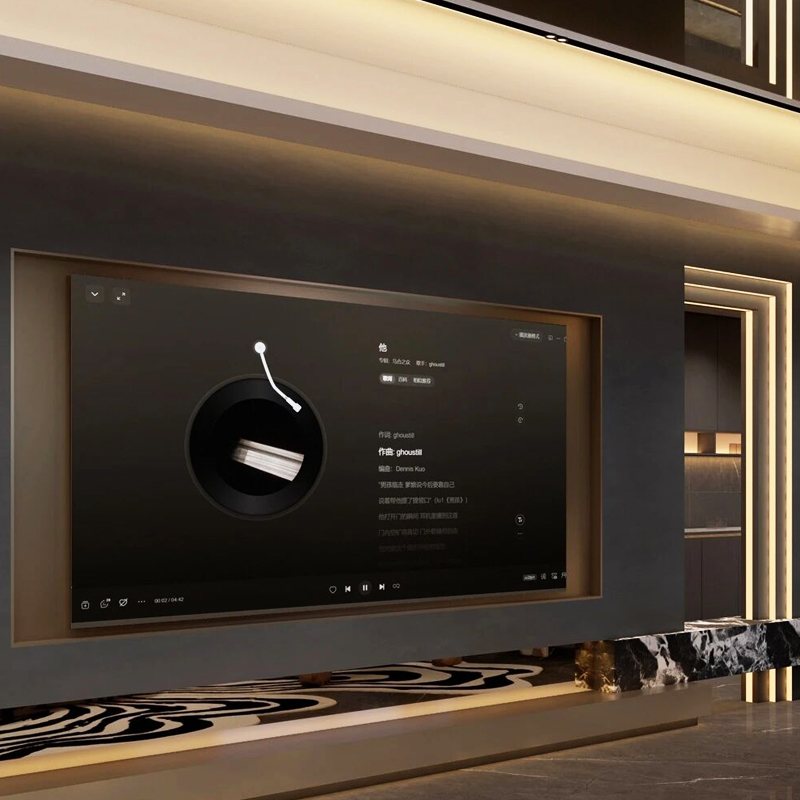

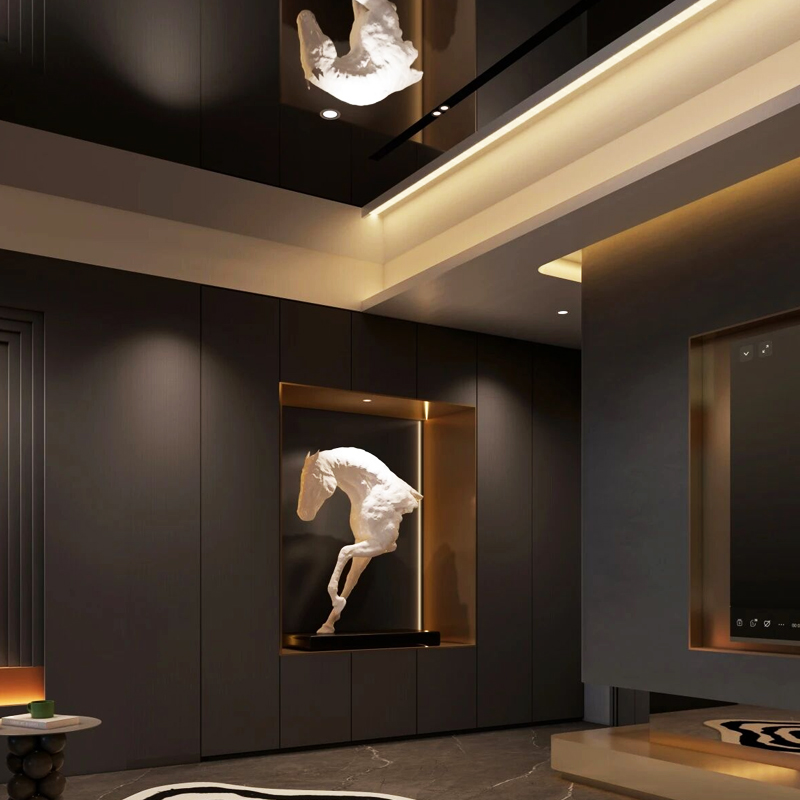

Application and installation: This model is recommended for commercial interiors, signage back lighting, large cabinetry, display systems, ceiling recesses, and architectural features using wide or deep aluminum profiles. Well suited for projects that prioritize durability, installation tolerance, and long term consistency over compact form factors.

● The 15 mm PCB width provides a clear structural advantage over narrower dual row designs. The additional board width increases copper area and spacing flexibility, which supports more stable current distribution and improved thermal management. This becomes especially relevant in installations with extended operating hours or enclosed profiles where heat buildup must be controlled.

● The dual row LED chips arrangement spreads the light sources across a broader surface, contributing to even illumination when paired with standard diffusers. With 240 LEDs per meter, the strip maintains a dense light pattern that minimizes visible segmentation while avoiding the complexity and cost of ultra high density solutions.

● Luminous output is intentionally positioned at a foundational level, aligning with common indoor lighting requirements. While the lumen range remains practical, the combination of high LED density ensures visually comfortable illumination with reliable color reproduction. This makes the strip suitable for functional lighting tasks where accuracy and consistency are more important than maximum brightness.

● From an installation perspective, the wider PCB offers greater handling stability and compatibility with heavyduty mounting systems. It integrates naturally into wider aluminum profiles, reducing flex during installation and supporting clean, straight linear runs. As a result, this 15 mm dual row LED strip is best suited for projects where system robustness, thermal margin, and predictable performance define the selection criteria.
