2835 LED Strip 180 LEDs/m 8mm Width for Refined General Lighting Applications

This LED strip is designed as an alternative to standard entry level products, targeting projects that require improved visual continuity without moving into high power or premium specifications. Using 2835 LEDs with a density of 180 LEDs per meter, it offers a noticeably smoother light output compared with conventional strips, while maintaining a familiar width and straightforward electrical configuration.

    cpbjtp

    LED Recessed Mounted Downlight

    We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.

    Product models and descriptions

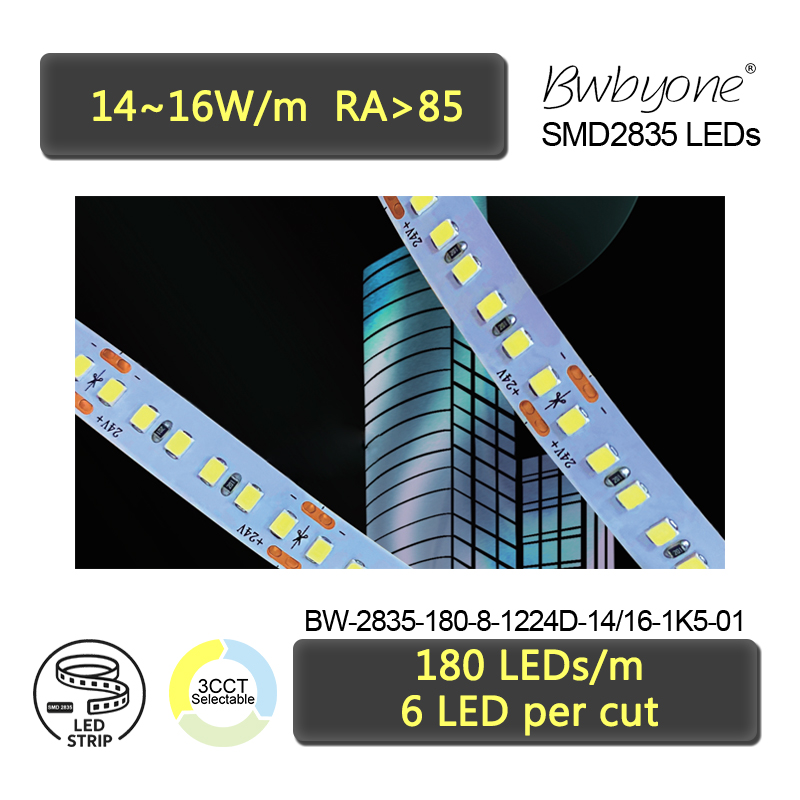

    BW-2835-180-8-1224D-14/16-1K5-01
    BW- abbreviation of company name Byone
    2835- Chips model
    180- 180 PCS Chips per meter
    8- Strip width:8mm
    12/24D- Rated Voltage: DC 12V/24V
    14/16- Rated Power: 14~16W/m
    1K5-01- Max. Luminous of this series,model mark01

    Always consult our qualified salesperson to know more about our product models and descriptions.

    Product specification

    Input Voltage: DC 12V/24V
    Power:14~16W/m
    Luminous:1200~1500LM/m
    LED Chips model:SMD2835
    LED density: 180 LEDs/m
    Cutting unit: 6 LEDs per cut
    Color temperature : Available in 3000K/4000K/6000K single color temperature
    CRI:Ra>85
    Dimensions:PCB Width-8mm; 10m per roll per package
    Working temperature and IP rating: -20 ~ 50° C, IP20.

    Application and installation: This model is recommended for general indoor lighting applications such as cabinets, shelves, ceiling recesses, wall accents, and commercial interiors where smoother light distribution is preferred over standard LED strips. Well suited for installations using slim aluminum profiles or diffusers with limited depth.

    Features

    ●  With higher LED density, this strip provides a clear step up from conventional model products. The increased density improves visual continuity along the light line, making it better suited for applications where segmentation or spotting would be noticeable.

    ●  The strip is positioned to meet common illumination requirements without excessive output. This balance allows it to be used comfortably in residential and commercial spaces where functional lighting is required but high brightness is not the primary goal.This model remains within the basic level performance range in terms of brightness, distinguishes itself through its higher LED density.

    ●  Rather than replacing basic strips purely on performance, this model addresses different usage scenarios. It is intended for projects where smoother appearance and better light uniformity are prioritized over minimal cost, offering designers and installers a practical middle ground.

    ●  The 8 mm width ensures compatibility with widely used profiles and channels, allowing the strip to be easily integrated into existing lighting designs while delivering improved visual results.

    ●  The result is a more uniform light line and reduced dot visibility, particularly when used in shallow profiles or applications where the strip is partially visible. This makes the product suitable for projects where basic illumination is sufficient, but visual refinement is still expected.

    We offer OEM manufacturing services according to specific requirements.Our OEM services include:
