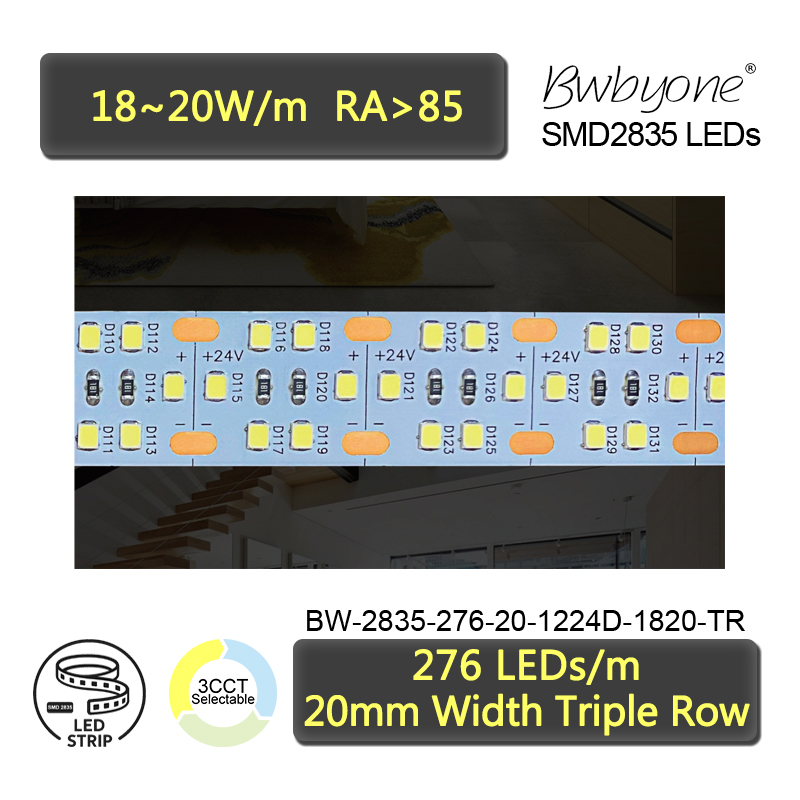

2835 Triple Row LED Strip 276 LEDs/m 20mm Width High Power Linear Lighting

BW-2835-276-20-1224D-18/20-TR

BW- abbreviation of company name Byone

2835- Chips model

276- 276 PCS Chips per meter

20- Strip width:20mm

12/24D- Rated Voltage: DC 12V/24V

18/20- Rated Power: 18~20W/m

TR- Triple row series

Always consult our qualified salesperson to know more about our product models and descriptions.

Input Voltage: DC 12V/24V

Power:18~20W/m

Luminous:2000~2200LM/m

LED Chips model:SMD2835

LED density: 276 LEDs/m

Cutting unit: 6 LEDs per cut

Color temperature : Available in 3000K/4000K/6000K single color temperature

CRI:Ra>85

Dimensions:PCB Width-20mm; 10m per roll per package

Working temperature and IP rating: -20 ~ 50° C, IP20.

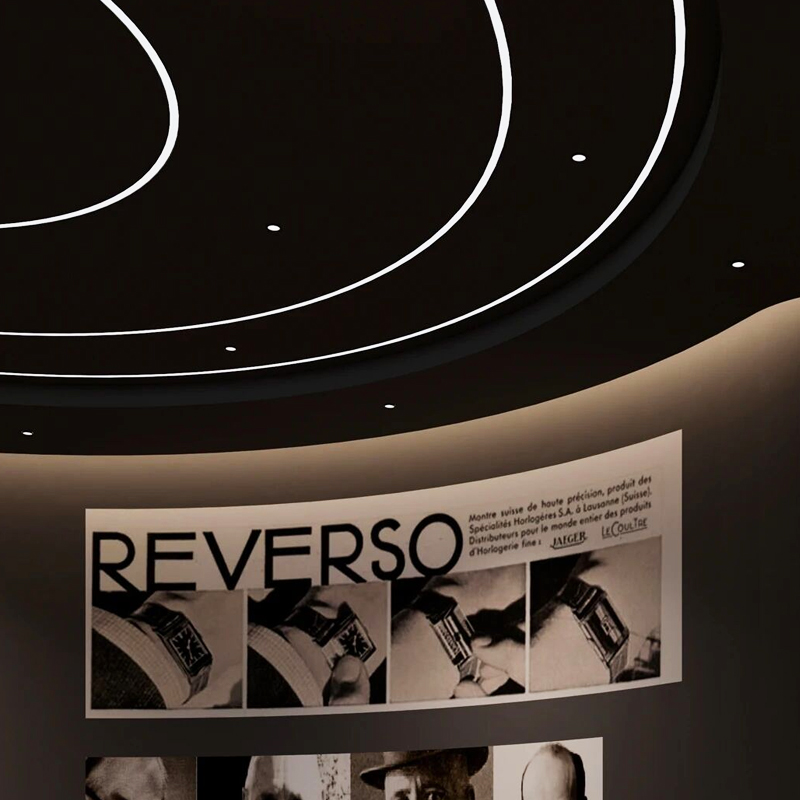

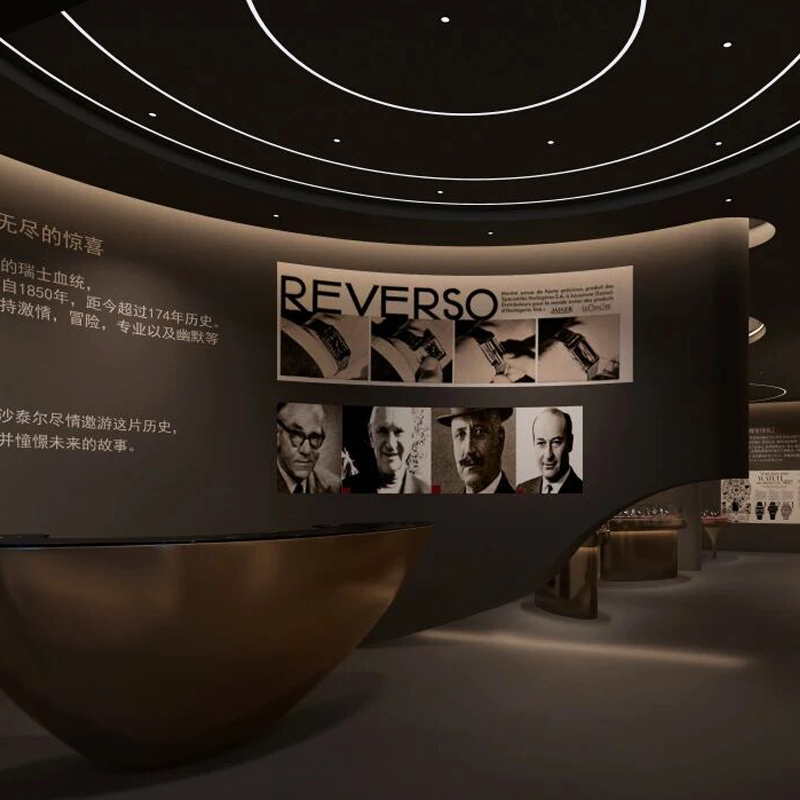

Application and installation: This model is designed for high output linear lighting in large commercial interiors, retail spaces, feature ceilings, signage systems, architectural coves, and areas requiring strong, uniform illumination over extended runs. Best suited for installations using wide, heavy duty aluminum profiles with sufficient thermal management capacity.

● The 20 mm product width provides a substantial structural advantage in high power applications. Compared with other dual row models, the wider board offers increased copper area and greater spacing flexibility, which supports higher current flow and more effective heat spreading. This allows the strip to operate reliably at power levels up to 20 W/m without compromising electrical stability.

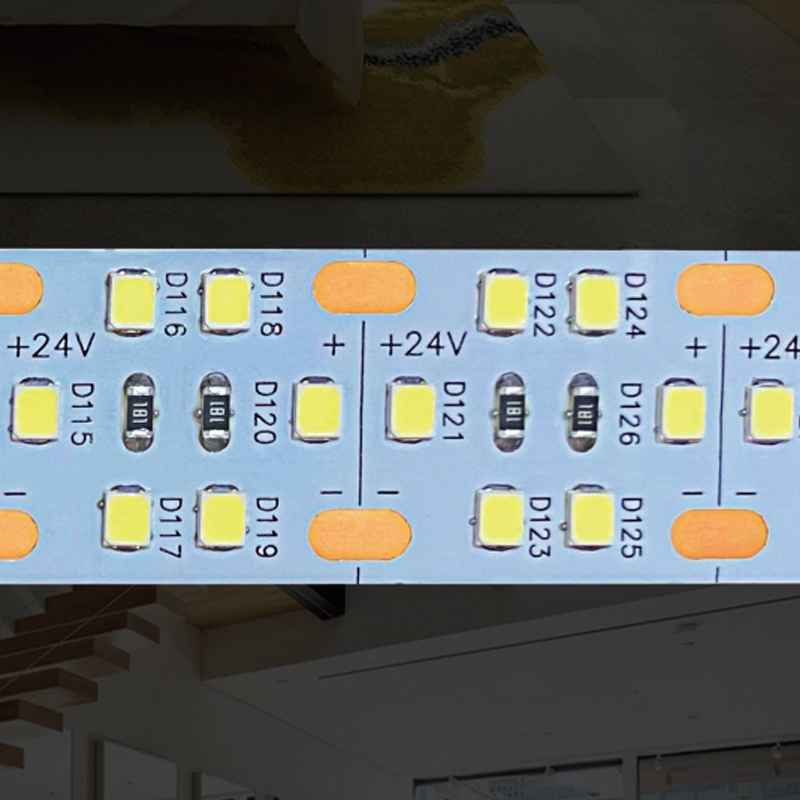

● The triple row LED arrangement distributes the chips across a broader surface, reducing localized thermal concentration and supporting consistent brightness under high-output conditions. The strip delivers dense and continuous illumination suitable for visible installations where both intensity and visual uniformity are required.

● High luminous output, combined with elevated power and LED density, places this product in the upper tier of flexible LED strip solutions commonly available on the global market. It is designed to replace multiple lower output runs or reduce the number of lighting lines required in large spaces, improving system efficiency at the layout level.

● Despite its output focused design, the strip ensures reliable color rendering for commercial and architectural use. From a system perspective, this triple row LED strip is best applied where lighting performance, durability, and thermal margin outweigh constraints on size or material usage, making it a suitable choice for professional grade linear lighting systems rather than compact or decorative applications.
