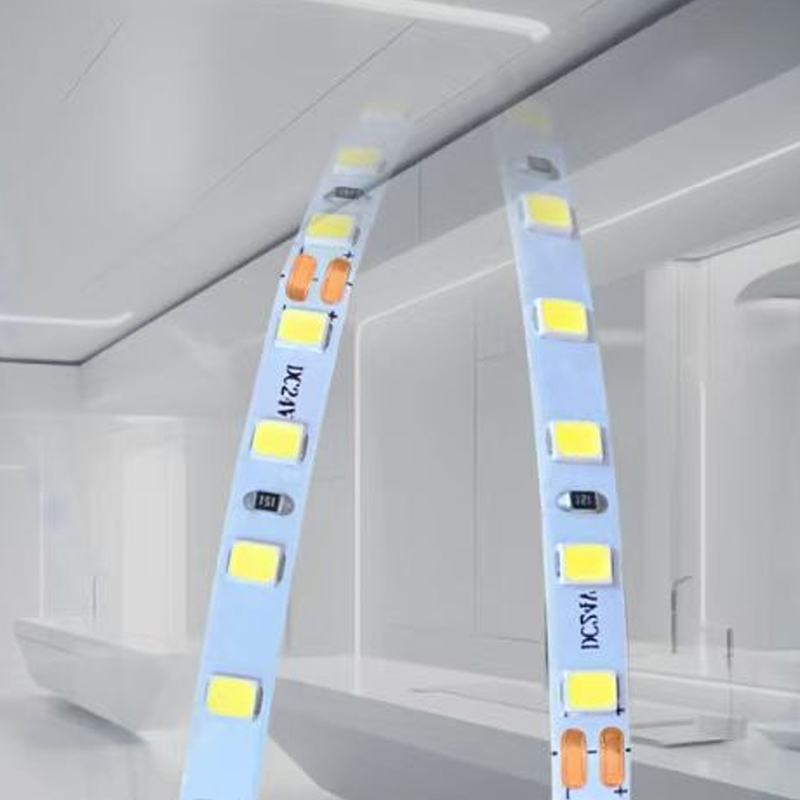

5mm Slim 2835 LED Strip 120 LEDs/m for Compact Linear Installations

Product Overview: This LED strip is designed for installations where space is the primary constraint rather than light output. With a PCB width of only 5 mm, it fits into ultra narrow channels, minimal aluminum profiles, and concealed architectural details that cannot accommodate standard width strips. The strip operates at a stable, entry-level photometric performance. Instead of targeting high brightness or dense visual effects, this model focuses on dimensional efficiency, offering a reliable lighting solution for compact applications where conventional model or wider strips are not practical.

Send Inquiry

SMD Strip Light

We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.

product details

Model
Specification
Features
Line Drawing
OEM services
Download

Product models and descriptions:

BW-2835-120-5-1224D-12/14-1K5

BW- abbreviation of company name Byone

2835- Chips model

120- 120 PCS Chips per meter

5- Strip width:5mm

12/24D- Rated Voltage: DC 12V/24V

12/14- Rated Power: 12~14W/m

1K5- Max. Luminous of this series

Always consult our qualified salesperson to know more about our product models and descriptions.

Product specification:

Input Voltage: DC 12V/24V

Power:12~14W/m

Luminous:1200~1500LM/m

LED Chips model:SMD2835

LED density: 120 LEDs/m

Cutting unit: 6 LEDs per cut

Color temperature : Available in 3000K/4000K/6000K single color temperature

CRI:Ra>85

Dimensions:PCB Width-5mm; 10m per roll per package

Working temperature and IP rating: -20 ~ 50° C, IP20.

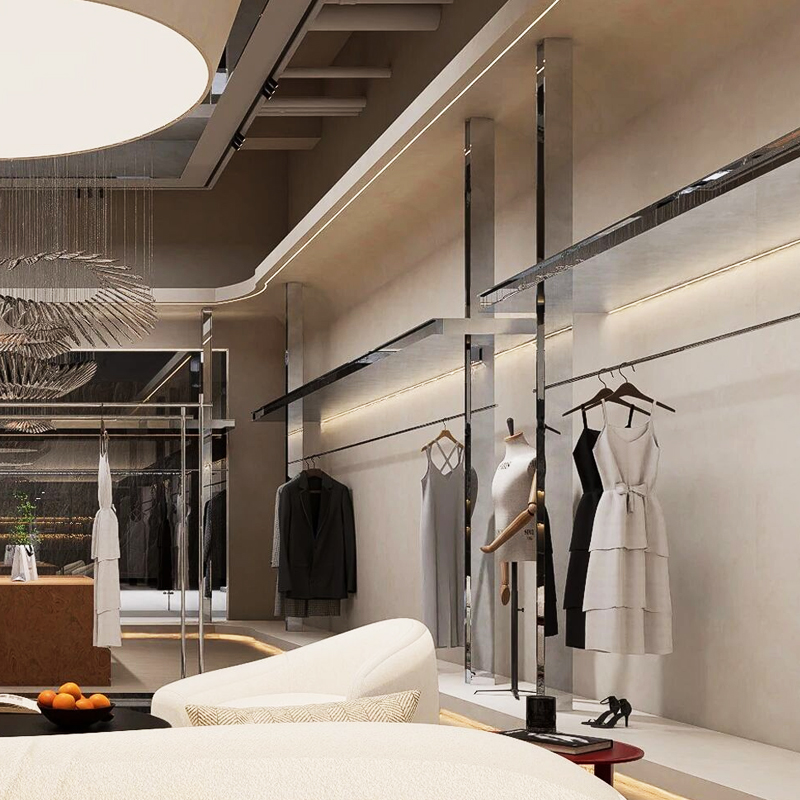

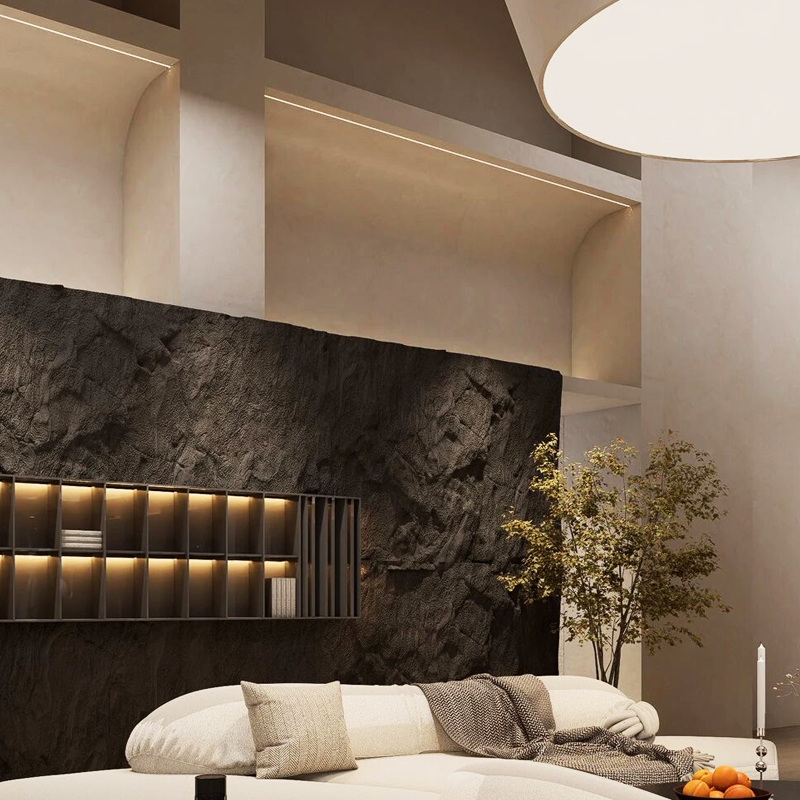

Application and installation: This model is intended for interior lighting in narrow profiles, slim grooves, furniture edges, showcases, shelving systems, and concealed linear accents where installation space is limited. Suitable for residential and commercial projects that prioritize discreet integration.

Features

●The defining characteristic of this strip is its 5 mm PCB width, which allows it to be installed in locations typically inaccessible to standard LED strips. This slim type enables cleaner detailing in furniture, cabinetry, and architectural elements, supporting lighting designs that emphasize subtlety rather than visual dominance. It also simplifies integration into custom profiles and tight recesses without modifying surrounding structures.

●The light output and electrical specifications are intentionally kept within a basic performance range. With a luminous output aligned with general purpose lighting needs, the strip provides consistent illumination suitable for everyday applications. It ensures acceptable color rendering for residential and commercial interiors, without moving into premium grade requirements.

●By combining an ultraslim PCB width with stable, well established electrical characteristics, this strip serves as a practical tool rather than a performance driven product. It is best suited for projects where space efficiency, ease of installation, and predictable output are more important than maximum brightness or visual intensity. The result is a compact linear lighting solution that addresses specific installation challenges while maintaining dependable lighting behavior.
