5W 300LM BW-CGA90502 Modern LED Under Cabinet Light

The new cabinet lighting series is introduced as a flexible solution for both residential and commercial interiors, built around a structure that prioritizes slim proportions and a refined look. The product line spans from compact 9 inches to extended 48 inches models, each designed to deliver dependable brightness with carefully matched rated power ranging from 5W to 18W. The updated exterior design distinguishes this series from our other models, offering a subtle difference in contour and surface detail that enhances visual integration with furniture and architectural elements. While maintaining energy efficiency and stable output, the series emphasizes straightforward installation and long service life, making it a dependable choice for everyday use. For overseas lighting brands, it presents a ready-to-market option that balances modern design with proven technical reliability.

    Send Inquiry
    cpbjtp

    LED Recessed Mounted Downlight

    We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.

    product details

    Product models and descriptions

    BW- abbreviation of company name Byone
    CGA- Product model series
    9/12/18/24/34/48- Product length(In inches)
    05/06/09/12/15/18-Product rated power
    0/1/2- Product finish color: 0-White,1-Silver,2-Black
    1/2- Product color temperature:1- single color temperature, 2-2CCT in one
    Example:
    BW-CGA90501: White finish color, single color temperature,9” length, 5W
    BW-CGA241222: Black finish color, 2CCT in 1, 24” length, 12W
    Always consult our qualified salesperson to know more about our product models and descriptions.

    Product specification

    Input Voltage: 120~277V,50/60HzPower:5W/6W/9W/12W/15W/18WLuminous:See the table below for details

    Chips model:SMD2835Color temperature :

    A.Available in 3000K/4000K/5000K single color temperature

    B.2CCT IN 1 (3000K + 4000K)

    Power factor:>0.85CRI:Ra>80Dimensions:See the table below for details

    Housing material: Aluminium

    Diffuser material:PCFinish color: Available in White,Silver,Black or any other customized colors

    Working temperature: -20 ~ 40° C, can be used for damp location.

    Model

    Rated Power

    Lumen

    Product Dimensions(L*W*H)

    BW-CGA90501

    5W

    300 LM

    228.6 X 88.9 X 28.6mm

    BW-CGA120601

    6W

    360 LM

    304.8 X 88.9 X 28.6mm

    BW-CGA180901

    9W

    540 LM

    457.2 X 88.9 X 28.6mm

    BW-CGC241201

    12W

    720 LM

    609.6 X 88.9 X 28.6mm

    BW-CGC321501

    15W

    900LM

    812.8 X 88.9 X 28.6mm

    BW-CGC481801

    18W

    1080 LM

    1219.2 X 88.9 X 28.6mm

    Application and installation: This cabinet lighting series is designed to create smooth and continuous illumination across a variety of settings. From residential kitchens to boutique retail shelves and office workstations, the fixtures provide a well balanced glow that enhances both functionality and atmosphere.

    Features

    • ●The range of length sizes, starting at 9 inches and extending to 48 inches, allows the lights to adapt to compact corners or longer spans where uninterrupted brightness is required. Their slim form makes them suitable for installation under counters, along bookcases, or within display units, giving end users a versatile solution for accenting surfaces while maintaining a clean design.
    • ●The models in this series are available in six standard length. Each size corresponds to an efficient power, ensuring a balanced ratio of energy consumption to brightness.
    • ●The construction emphasizes a slightly refined exterior compared with earlier series, offering smoother edges and a profile that integrates seamlessly with cabinetry and shelving.
    • ●Engineered with stable drivers and high quality LED chips, the fixtures deliver uniform light output and dependable performance over time. They are produced in accordance with North American market certification requirements, making them ready for brand partners to register under their own labels.
    • ●Consistency in lumen maintenance and color temperature also helps reduce variations when combining multiple units within a single project.

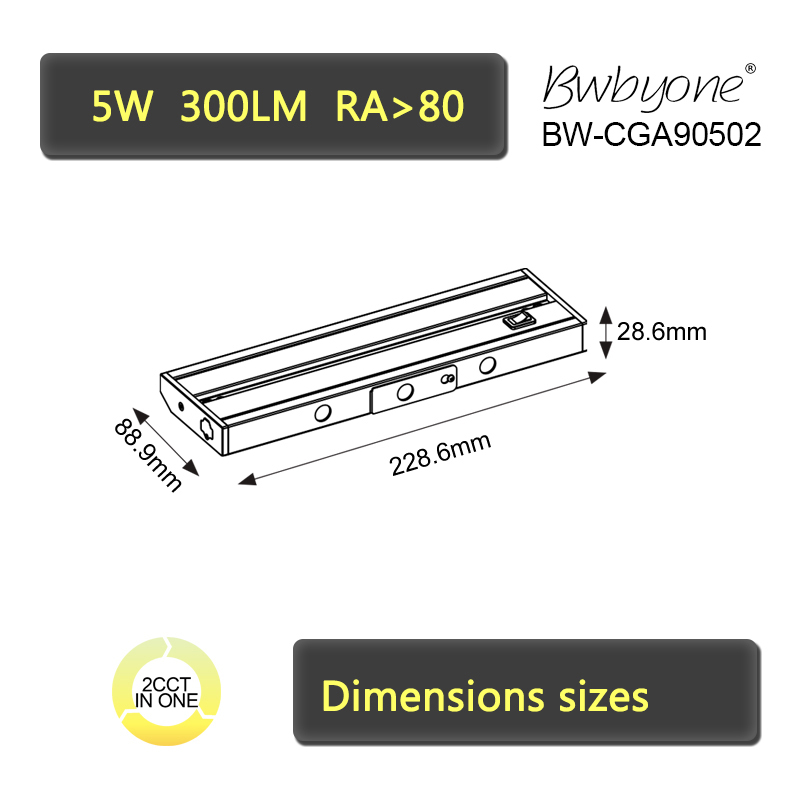

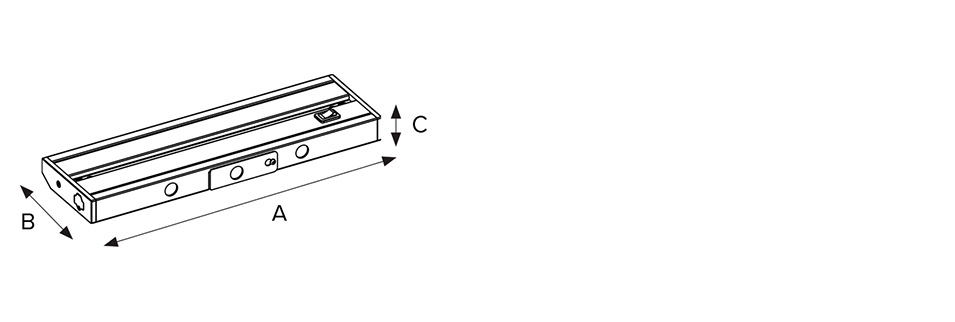

      Line Drawing
