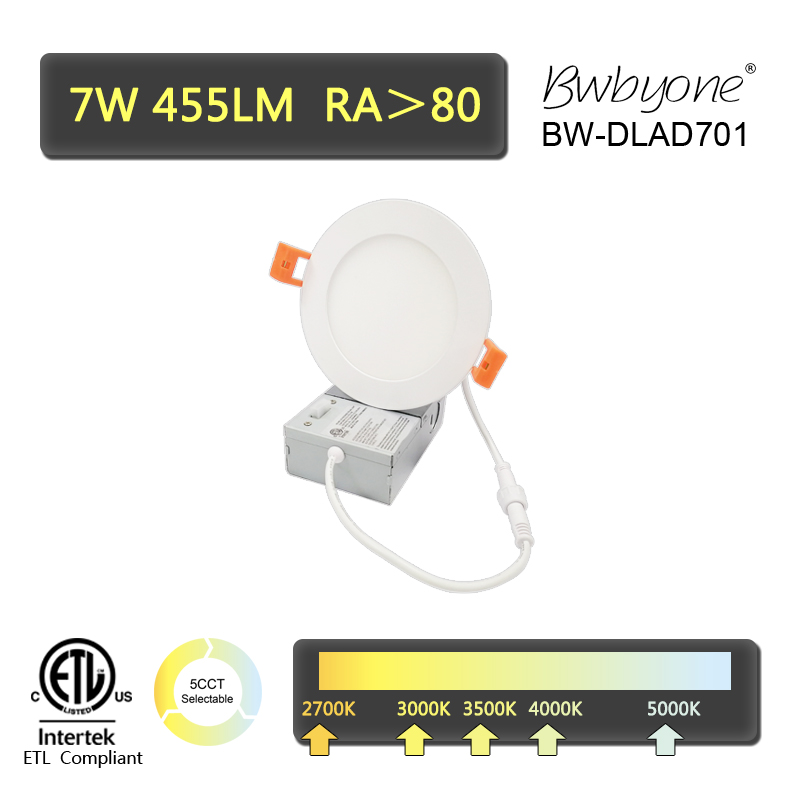

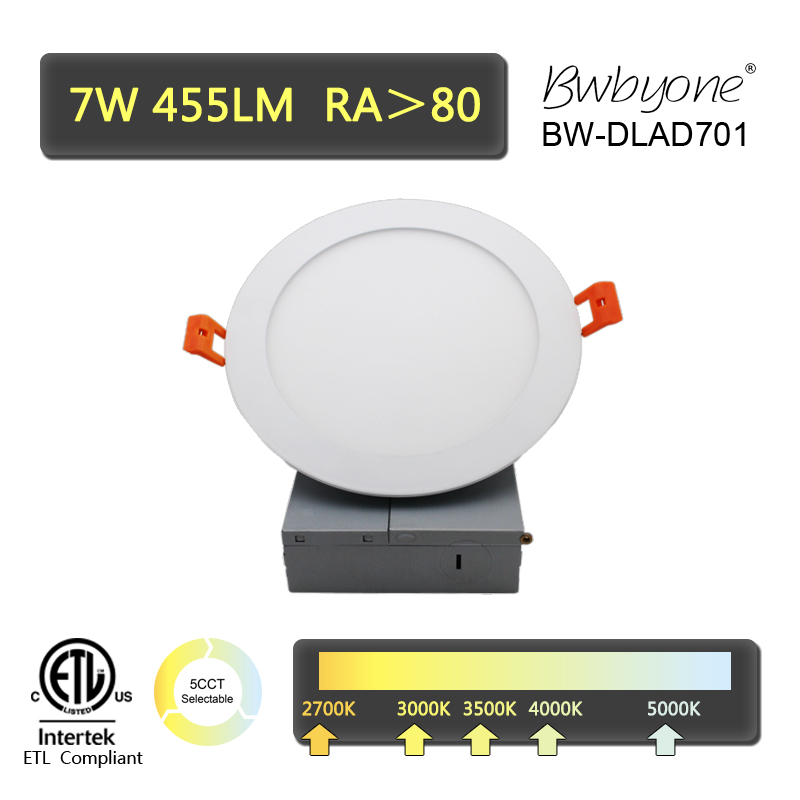

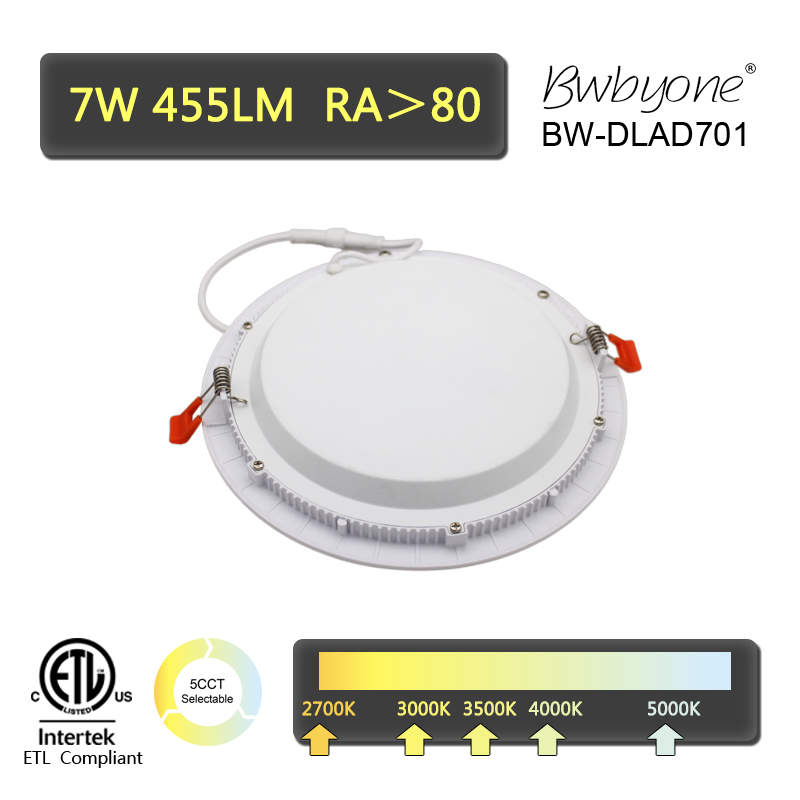

7W 455LM BW-DLAD701 LED Recessed Slim Panel light with ETL compliant
LED Recessed Mounted Downlight
We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.
Product models and descriptions
BW- abbreviation of company name Byone
DLA- Product model series
D - D: Dimmable by Triac dimmer
7/10/12/15/20- Optional product rated power
0/1/2- Product finish color: 0-white,1-silver,2-black
1/5- Product color temperature:1- single color temperature, 5CCT in one
Example:
BW-DLAD701: White finish color, single color temperature,Dimmable by triac dimmer
BW-DLAD1021: Black finish color, single color temperature, Dimmable by triac dimmer
Always consult our qualified salesperson to know more about our product models and descriptions.
Product specification
Input Voltage: 120V,60Hz
Power:7W/10W/12W/15W/20W
Luminous:See the table below for details
Chips model:SMD2835
Color temperature:
A.Available in 2700/3000K/3500K/4000K/5000K single color temperature
B.5CCT IN 1 (2700K ~5000K)
Power factor:>0.9
CRI:Ra>80
Dimensions:See the table below for details
Opening sizes: See the table below for details
Housing material:Aluminum
Junction box material:Steel
Finish color: Available in White,Silver,Black or any other customized colors
Working temperature: -20 ~ 40° C
|

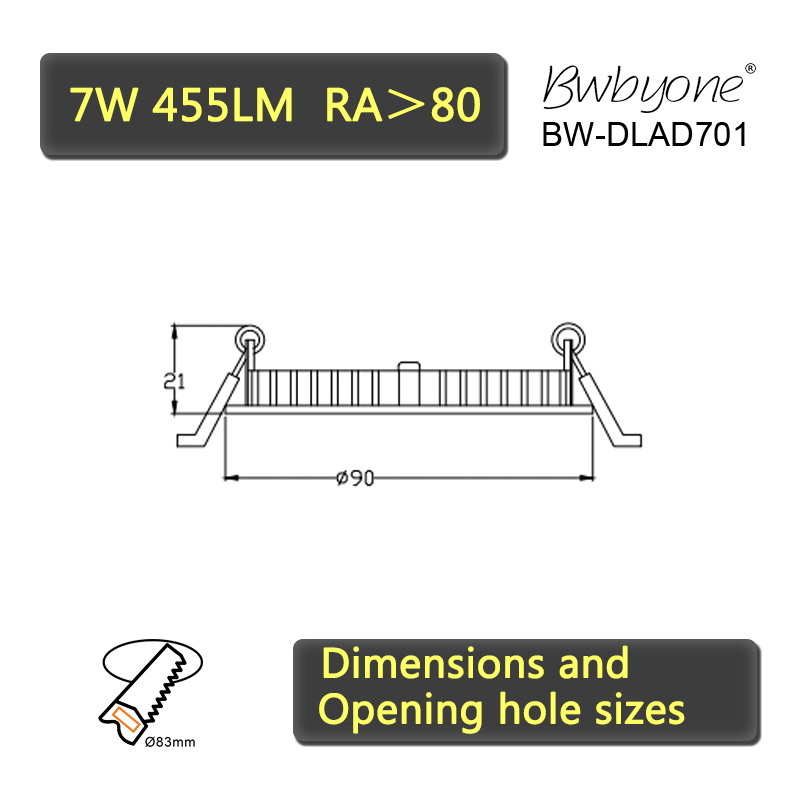

Model |
Rated Power |
Lumen |
Product Dimensions(MM) |
Opening sizes(MM) |
|
BW-DLAD701 |
7W |
455 LM |
Φ90 X H21 |
Φ83 |
|
BW-DLAD1001 |
10W |
700 LM |
Φ120 X H24 |
Φ105 |
|
BW-DLAD1201 |
12W |
840 LM |
Φ170 X H24 |
Φ155 |
|

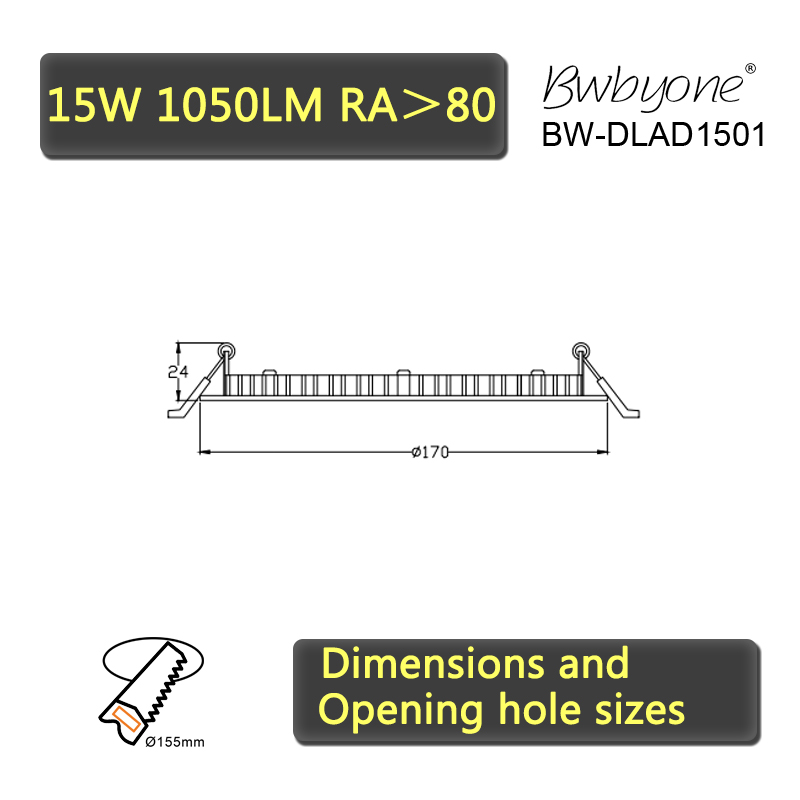

BW-DLAD1501 |
15W |
1050 LM |
Φ170 X H24 |
Φ155 |
|

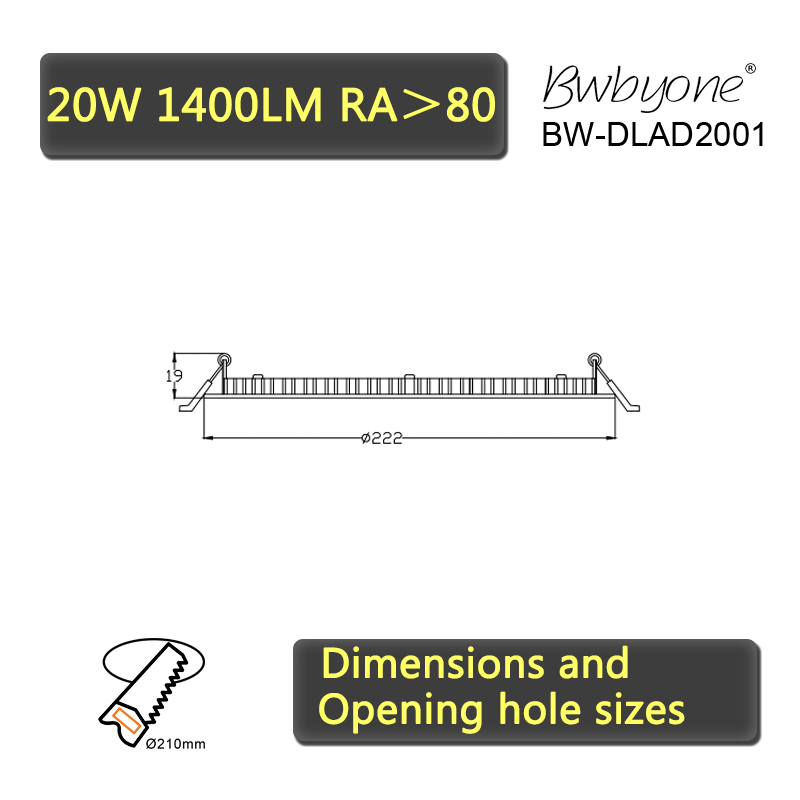

BW-DLAD2001 |
20W |
1400LM |
Φ222 X H19 |
Φ210 |

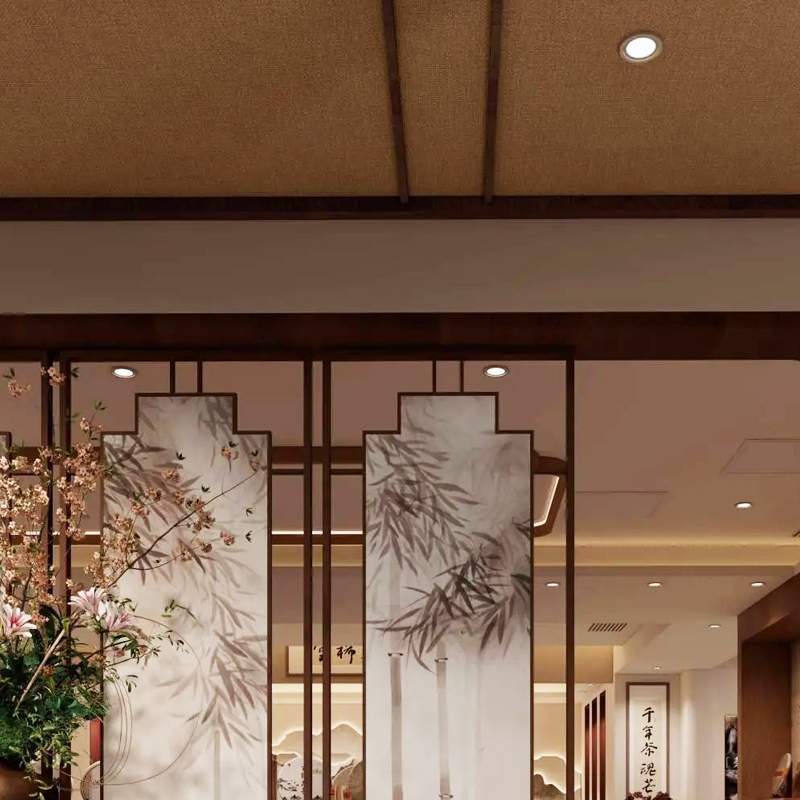

Application and installation:The ultra thin profile makes it especially suitable for installations where ceiling clearance is limited, such as multi family housing, office retrofits, and retail interiors. The dimmable by Triac feature allows end users to fine-tune brightness using widely available wall dimmers, making it compatible with typical U.S. lighting control setups.
Features
● The fixture’s aluminum body maintains a slim profile without compromising on structural integrity, while the steel junction box offers a secure enclosure that supports compliance with American electrical installation standards.
● For lighting projects that require fixed illumination, the single CCT models are available in 2700K, 3000K, 3500K, 4000K, or 5000K, allowing precise alignment with project specifications.
● The 5CCT in one type incorporates our patented Chinese design for its CCT selector switch, enabling quick changes from warm white to daylight white tones without additional tools or accessories ,an advantage that simplifies both stocking and installation.
● This series is designed for smooth dimming via standard Triac wall dimmers, ensuring compatibility with common U.S. control systems and offering greater end user convenience.
● Every model is built to meet ETL certification standards, giving American brand partners the advantage of bringing a compliant product to market faster and with reduced testing costs.
● Available in multiple finishes,this series adapts to a variety of interior design requirements while delivering efficient, flicker-free light output across all wattage options.
We offer OEM manufacturing services according to specific requirements.Our OEM services include:
