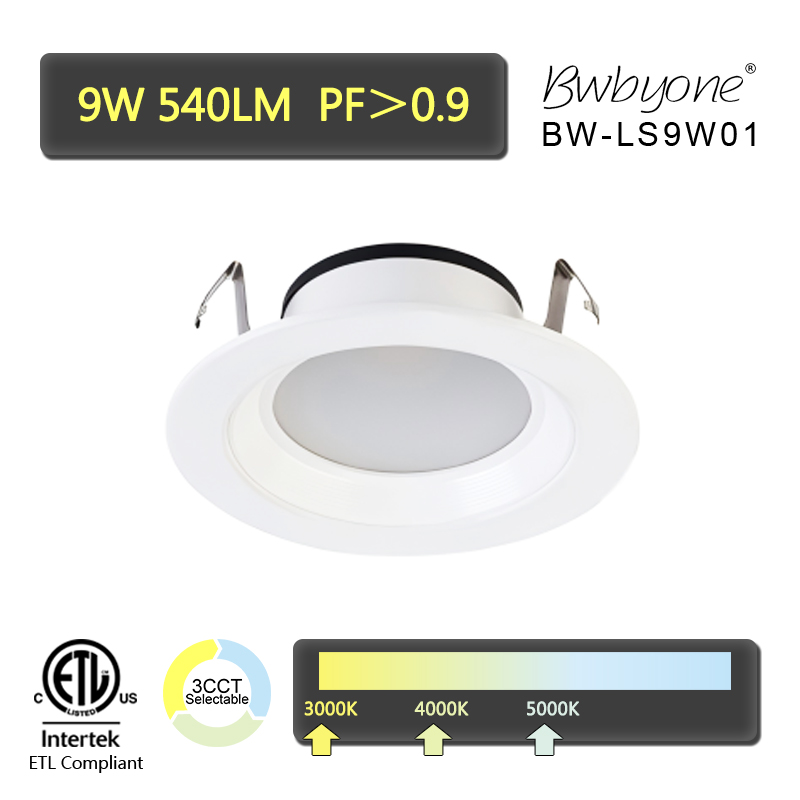

BW-LS9W01 front view.jpg

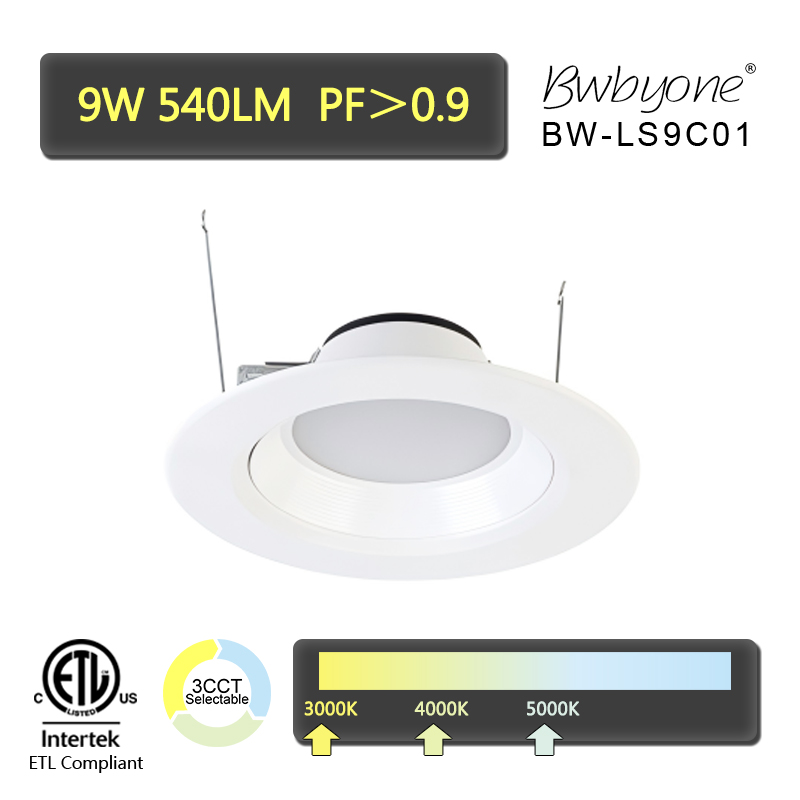

BW-LS9C01 front view.jpg

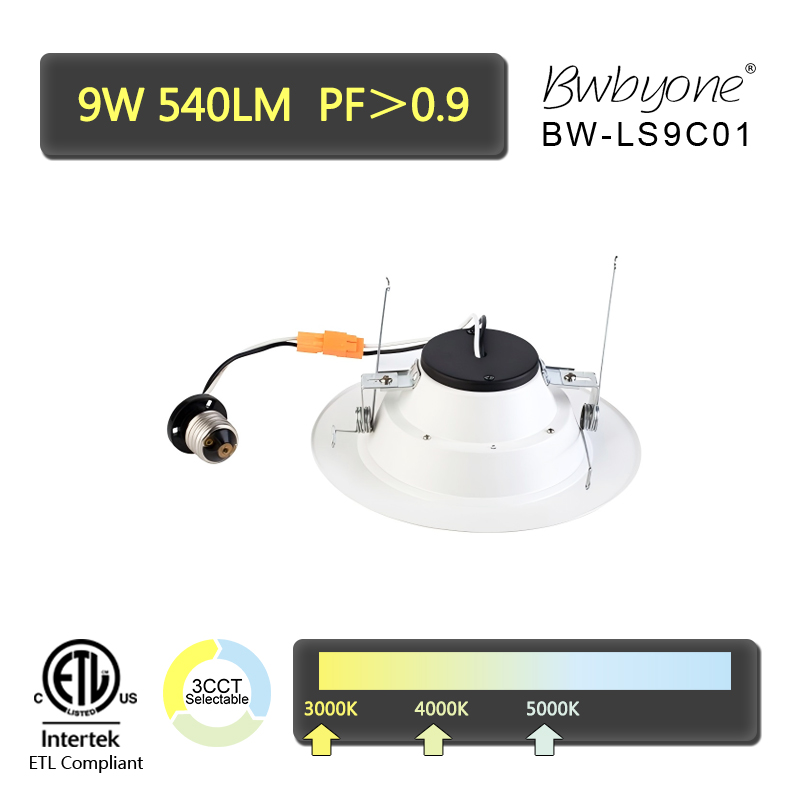

BW-LS9C01 back view.jpg

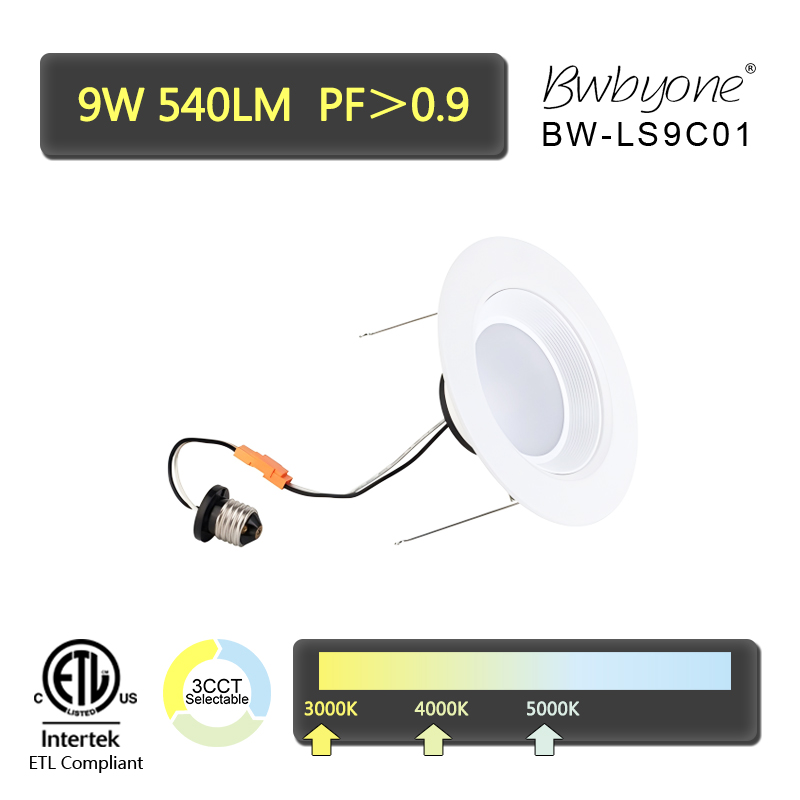

BW-LS9C01 side view.jpg

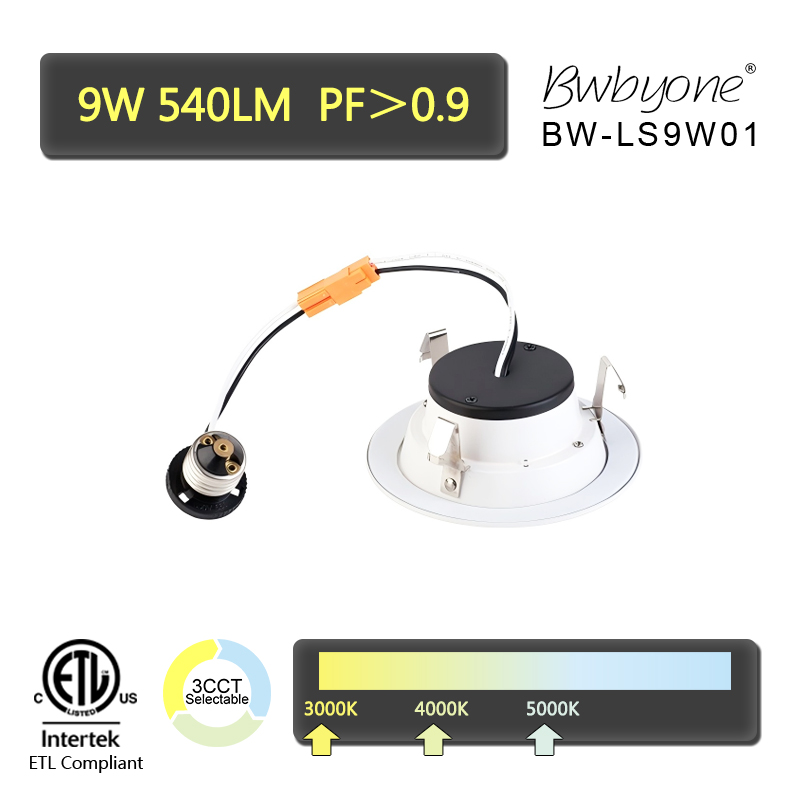

BW-LS9W01 back view.jpg

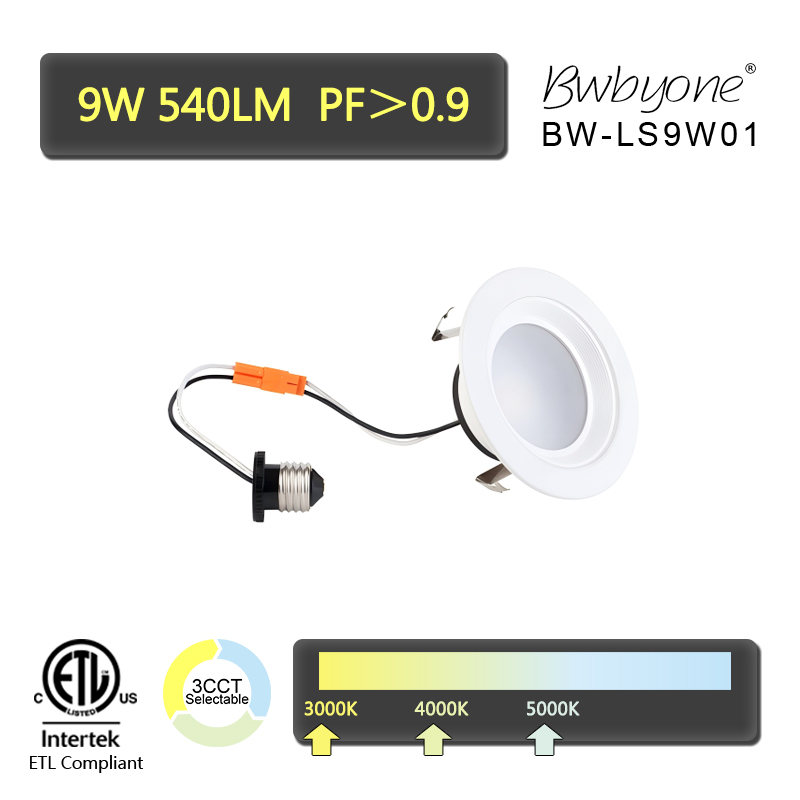

BW-LS9W01 side view.jpg

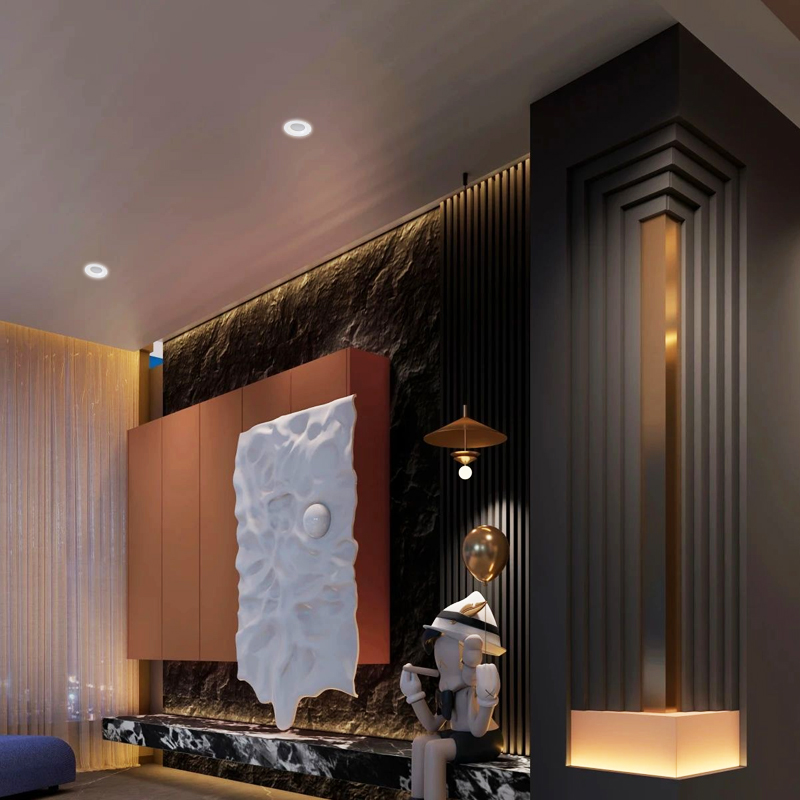

BW-LS901 product visual.jpg

9W 540LM BW-LS9C01 LED Recessed Mounted Retrofit Downlight

This recessed LED downlight delivers reliable illumination in a clean, functional design. Built with a durable aluminum housing and a matte polycarbonate diffuser, it offers uniform light distribution and minimizes glare. The fixture is available in three fixed color temperatures:3000K, 4000K, and 5000K, suit a variety of environments. With a hihger power factor, wide beam angle of 120°, it provides efficient and balanced lighting for both residential and commercial settings. The 9W model outputs 540 lumens, with additional 12W, 15W, and 18W variants available for higher brightness needs. Lifespan and warranty match our premium lines, ensuring long term performance.

    Send Inquiry
    cpbjtp

    LED Recessed Mounted Downlight

    We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.

    product details

    Product models and descriptions

    BW- abbreviation of company name Byone

    LS- Product model series

    9- Product rated power

    C/W- Mounting Bracket type: C-Spring Clip.W- Wire Torsion Spring

    0/1/2- Product finish color: 0-white,1-silver,2-black

    1/3/5- Product color temperature:1- single color temperature,3-3CCT in 1,5-5CCT in 1

    Example:

    BW-LS9C01: White finish color, with spring clip mounting bracket

    BW-LS9W21: Black finish color, with wire torsion spring mounting bracket

    Always consult our qualified salesperson to know more about our product models and descriptions.

    Product specification

    Input Voltage: 120V,60Hz

    Power:9W

    Luminous:540 lm

    Color temperature : Available in 3000K/4000K/5000K single color temperature

    Power factor:>0.9

    CRI:Ra>80

    Beam Angle:120°

    Dimensions:H63 x Φ150 mm

    Opening sizes: Φ100mm

    Housing material: Aluminum

    Diffuser material: PC, matt white

    Finish color: Available in White,Silver,Black or any other customized colors

    Working temperature: -20 ~ 40° C

    Application and installation:This model is designed for spaces where consistent, dependable lighting takes priority over advanced smart features. It’s well suited for kitchens, hallways, offices, and retail areas where a fixed color temperature provides the desired ambience without the need for adjustments.

    Features

    ● The downlight’s aluminum body ensures structural stability and effective heat management, while the matte polycarbonate diffuser provides a uniform and comfortable light output.

    ● Its fixed color temperature options allow the lighting to match the specific tone and mood of the intended environment without introducing unnecessary complexity.

    ● The 9W model and additional 12W, 15W, and 18W models are available for applications that require greater brightness, making it adaptable to various installation scenarios.

    ● The wide beam angle makes it effective in both compact rooms and more open layouts, ensures even light coverage, reducing the number of fixtures needed in a typical installation.

    ● With a higher power factor of 0.9, it maintains energy efficiency while providing accurate color rendering.

    ● For projects that demand greater flexibility, the fixture can be configured with our proprietary dimming feature, extending its use into settings where adjustable light levels are desirable.

    ● Its rated lifetime and warranty are consistent with our higher end offerings, ensuring dependable performance over years of use.

    Line Drawing
