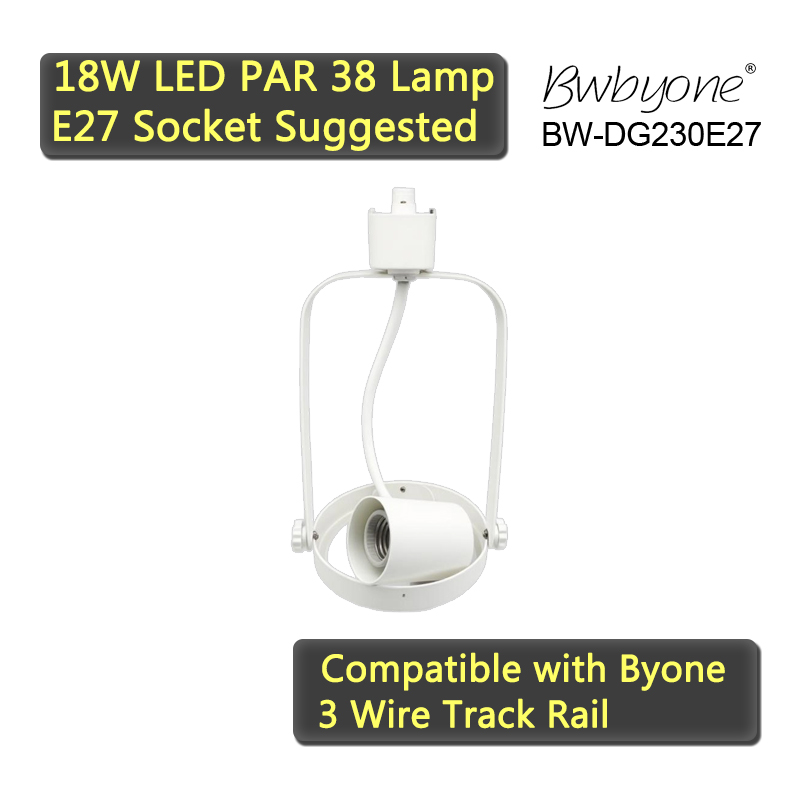

BW-DG230E27 front view.jpg

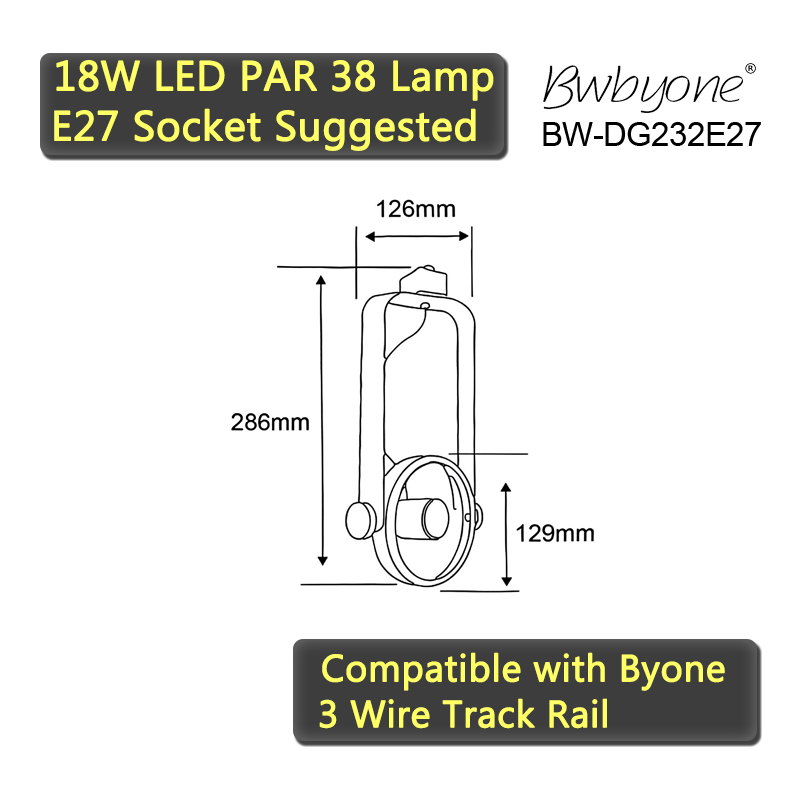

BW-DG230E27 line drawing.jpg

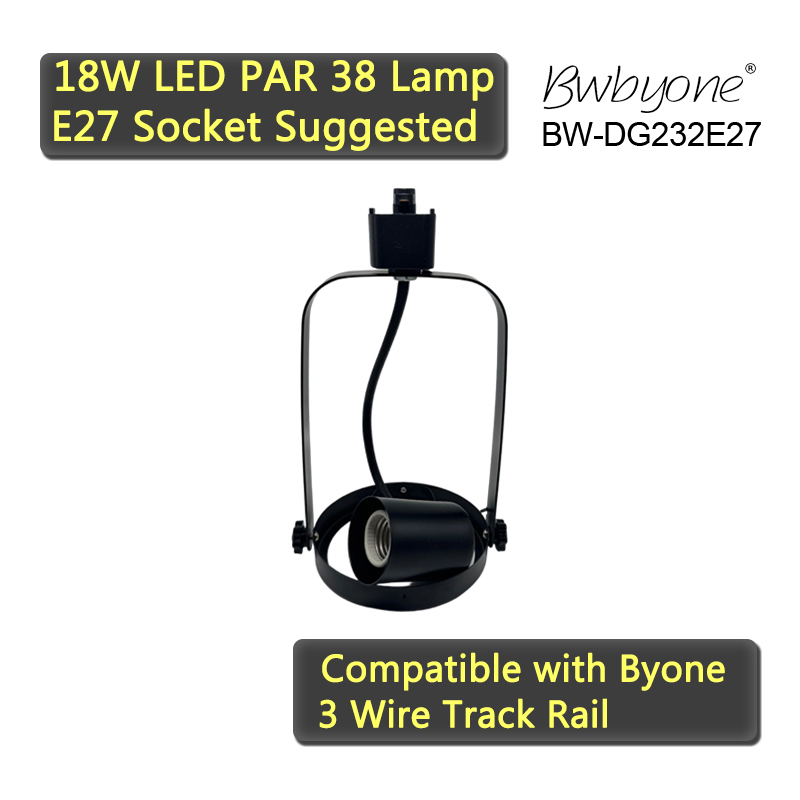

BW-DG232E27 front view.jpg

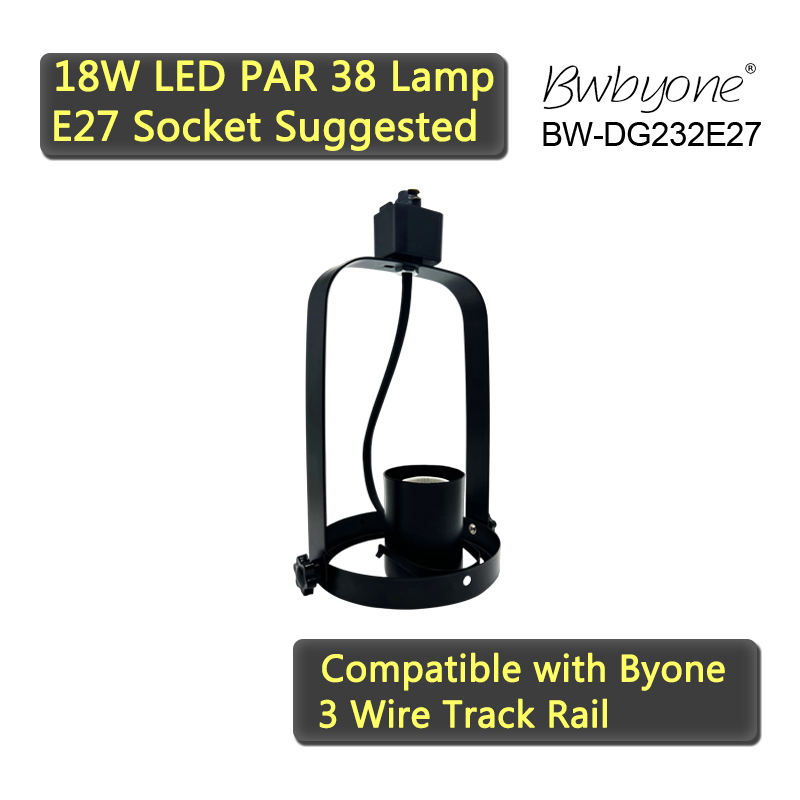

BW-DG232E27 front view2.jpg

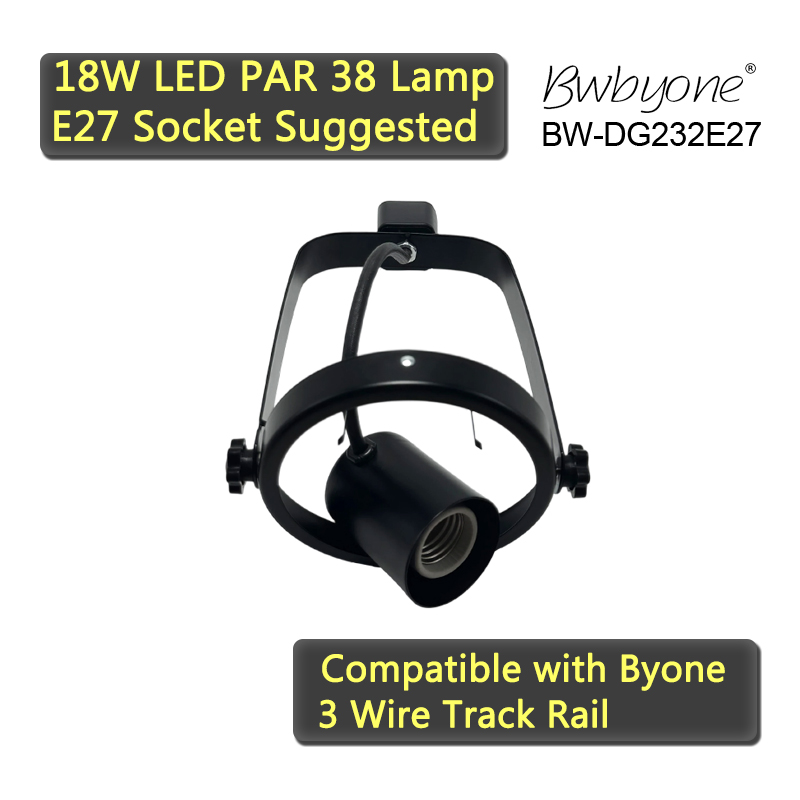

BW-DG232E27 front view3.jpg

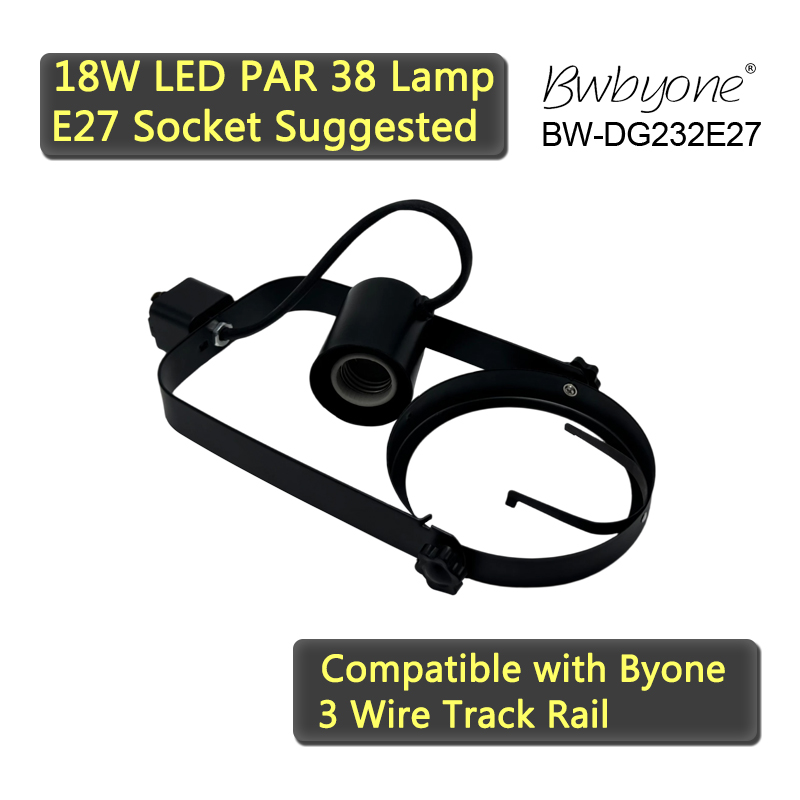

BW-DG232E27 side view.jpg

BW-DG230E27 Gimbal Ring LED Track Spotlight housing with E27 socket

This ceiling mounted spotlight housing is designed to provide a reliable and adaptable solution for accent lighting. By accommodating replaceable PAR38 spotlights with an E27 socket base, it offers users the flexibility to choose the appropriate light source according to their preferred wattage, dimming capability, and color temperature. The housing emphasizes practicality, as it can be surface mounted without requiring additional electrical modifications. With its clean and functional design, it serves as a versatile platform for creating a focused and adjustable lighting scheme in both residential and commercial settings.

    Send Inquiry
    cpbjtp

    BW-DG230E27 Gimbal Ring LED Track Spotlight housing with E27 socket

    product details

    Product models and descriptions

    BW- abbreviation of company name Byone

    DG23- Product model series

    0/1/2- Product finish color: 0-white,1-silver,2-black

    E27- LED Bulb socket type(Bulb Not Included)



    Example:

    BW-DG230E27: White finish color

    BW-DG232E27: Black finish color

    Always consult our qualified salesperson to know more about our product models and descriptions.

    Product specification

    Socket Input Voltage:100V~240V,50/60 HzSocket Type:E27

    Bulb Type:PAR38Suggested Lamp: 18 W LED PAR 38 spotlight(Bulb Not Included)

    Suggested track rail: 3-wire,1 phase(Track Rail Not Included)Dimensions:286 x 126 x 129 mm(Lighting house body)

    Housing material:SteelFinish color: Available in White,Silver,Black or any other customized colors

    Application and installation:The product is particularly suitable for areas where targeted illumination is needed to bring attention to specific features. It performs well in retail stores, showrooms, and exhibition halls, where merchandise or displays must be presented with clarity and emphasis. At the same time, it can be integrated into residential interiors, including living rooms, dining areas, or hallways, where architectural details, decorative elements, or artwork deserve to be highlighted.

    Features

    ●The adjustable housing allows users to direct light precisely, ensuring that the atmosphere and focal points of a space can be tailored to individual requirements. This makes it a practical choice for lighting designers, contractors, and brand owners seeking an OEM ready product that balances quality with adaptability.
    ●The spotlight housing is engineered for straightforward installation, as it mounts directly onto the ceiling surface without the need for specialized tools or additional wiring.
    ●It supports the use of PAR38 spotlights with an E27 base, giving users a familiar and widely available light source option.
    ●The compatibility with dimmable spotlights further enhances its usability, allowing end users to create customized lighting levels depending on the mood or functional needs of the space.
    ●Its directional adjustability ensures that light can be angled precisely where required, from highlighting a single object to covering wider areas.
    ●Each unit is delivered with the necessary connection and mounting accessories, ensuring a complete and efficient setup for installers and end users alike.

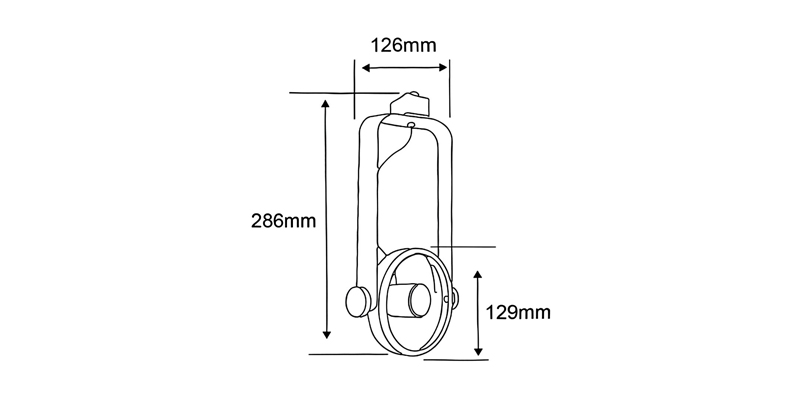

      Line Drawing

      BW-DG230E27 line drawing m

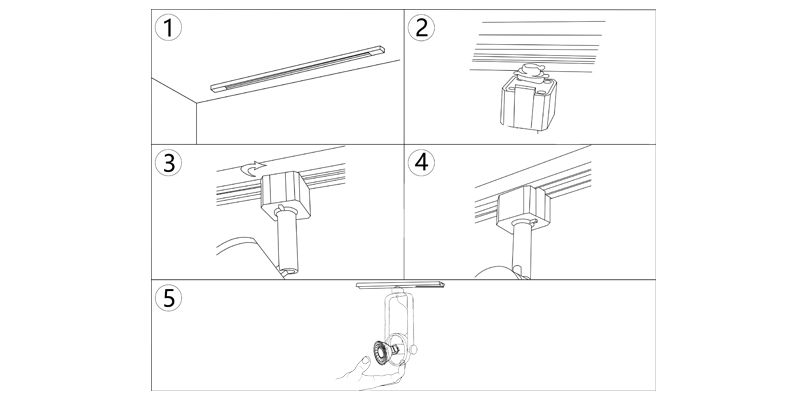

      Installation Instruction

      BW-DG230E27 installation instruction

      We offer OEM manufacturing services according to specific requirements.Our OEM services include:
