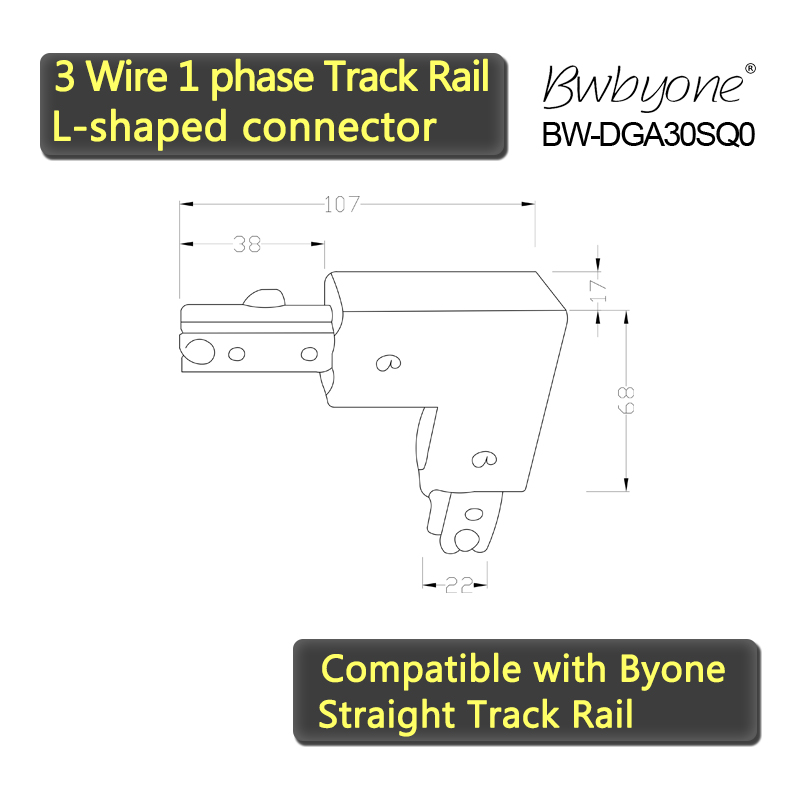

BW-DGA30SQ0 line drawing.jpg
BW-DGA30SQ2 product visual.jpg

BW-DGA30SQ0 L shaped LED Track rail connector for LED track lighting system

Byone Track accessories are essential components that allow a lighting system to be expanded, reconfigured, or adapted to different architectural layouts. While the track rail serves as the foundation, connectors and joints provide the flexibility to link sections together, change direction, or integrate circuits into more complex arrangements. Manufactured with the same precision as the track itself, these accessories ensure reliable electrical continuity and mechanical stability. For OEM and ODM clients, they form an important part of a complete product portfolio, enabling distributors and contractors to deliver fully adaptable track lighting solutions for local projects.

    Send Inquiry
    cpbjtp

    BW-DGA30ST0 Straight LED Track rail connector for LED track lighting system

    120V Lights/Recessed Mounted/Downlight

    product details

    Product models and descriptions

    BW- abbreviation of company name Byone
    DGA30- Product model series
    SQ- Product type:Square shape
    0/1/2- Product finish color: 0-white,1-satin,2-black



    Example:
    BW-DGA30SQ0: White finish color
    BW-DGA30SQ2: Black finish color
    Always consult our qualified salesperson to know more about our product models and descriptions.

    Product specification

    Input Voltage:100V~240V,50/60 Hz
    Electrical specification: single-phase, 3-wire, Single Circuit
    Dimensions:L107 x W107 x H17 mm
    Material:Plastic cover
    Operating Temperature:0 ~ 40° C
    Mounting:Surface-mounted
    Finish color: Available in White,Silver,Black or any other customized colors



    Application and installation:Byone track rail accessories is designed for use in retail shops, showrooms, residential interiors, and commercial spaces where lighting must remain adjustable over time. By using straight connectors, L-shaped joints, or flexible adapters, installers can extend track runs, navigate corners, or adjust to irregular ceiling plans without additional wiring.

    Features

    ● This connector makes it possible to cover larger spaces with continuous lighting circuits, while still giving designers the freedom to reposition or upgrade spotlights as display needs evolve. Whether applied in an art gallery requiring precise angles of illumination or a modern store seeking seamless coverage across aisles, the accessories provide the structural and electrical support needed for reliable long-term operation.
    ● This product is manufactured for a single phase, three wire circuit, guaranteeing safe operation within the standard 100~240 V range. The connectors are fully compatible with both 1 meter and 2 metes track rails, allowing straightforward integration without the need for modification.
    ● The aluminum and reinforced plastic construction provides a balance of durability and light weight, making installation secure yet easy to handle.
    ● All mounting elements are designed for surface application on ceilings, ensuring quick setup in new projects as well as straightforward retrofitting in existing spaces.
    ● By offering a consistent fit with all Byone track spotlights, these accessories give contractors and lighting brands confidence that the system will perform as expected across different environments.
    ● For OEM partners, this compatibility and reliability simplify inventory planning and provide a stable foundation for building customized lighting product lines.

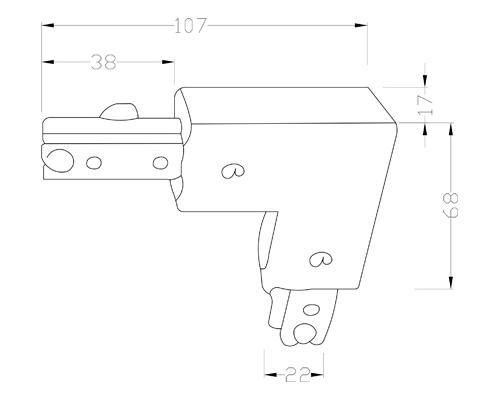

      Line Drawing

      BW-DGA30SQ0 line drawing m

      We offer OEM manufacturing services according to specific requirements.Our OEM services include:
