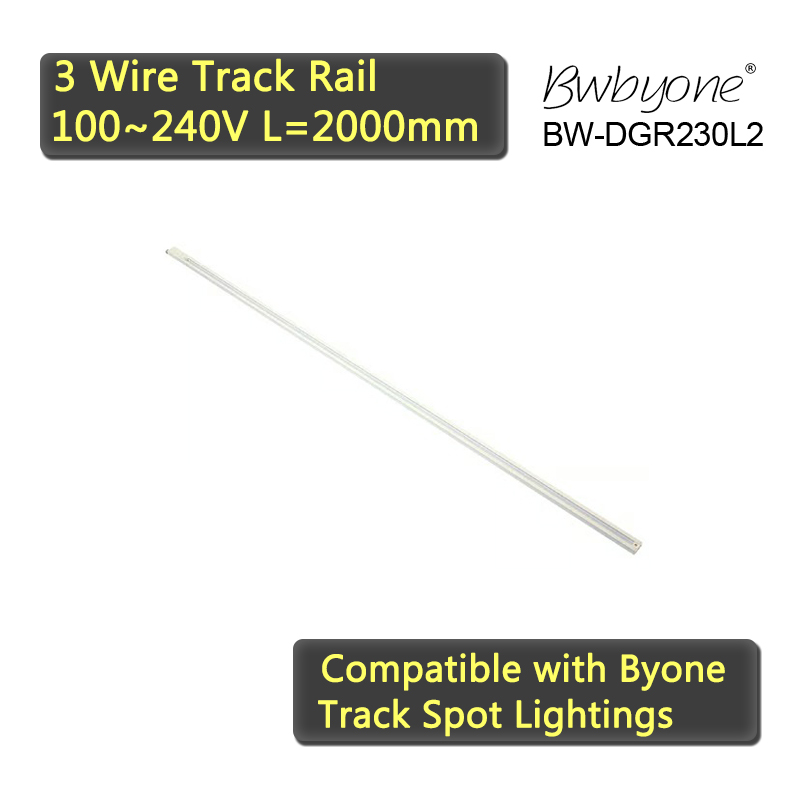

BW-DGR230L2 LED Track rail in 2000mm length for LED track lighting fixture

The two meters track rail provides an extended platform for building continuous lighting runs, making it particularly useful in larger interiors where broader coverage is required. Manufactured in aluminum for strength and durability, it combines a clean architectural look with reliable electrical performance. For lighting brands and distributors, the longer type reduces the number of joints in an installation, resulting in smoother layouts and greater efficiency during project execution. It is a versatile component that integrates into the same system as the shorter tracks, giving OEM and ODM partners flexibility to configure product lines for different project sizes.

    Send Inquiry
    cpbjtp

    BW-DGA30ST0 Straight LED Track rail connector for LED track lighting system

    120V Lights/Recessed Mounted/Downlight

    product details

    Product models and descriptions

    BW- abbreviation of company name Byone
    DGR23- Product model series
    0/1/2- Product finish color: 0-white,1-satin,2-black
    L2- Track rail length-2000mm



    Example:
    BW-DGR230L2: White finish color

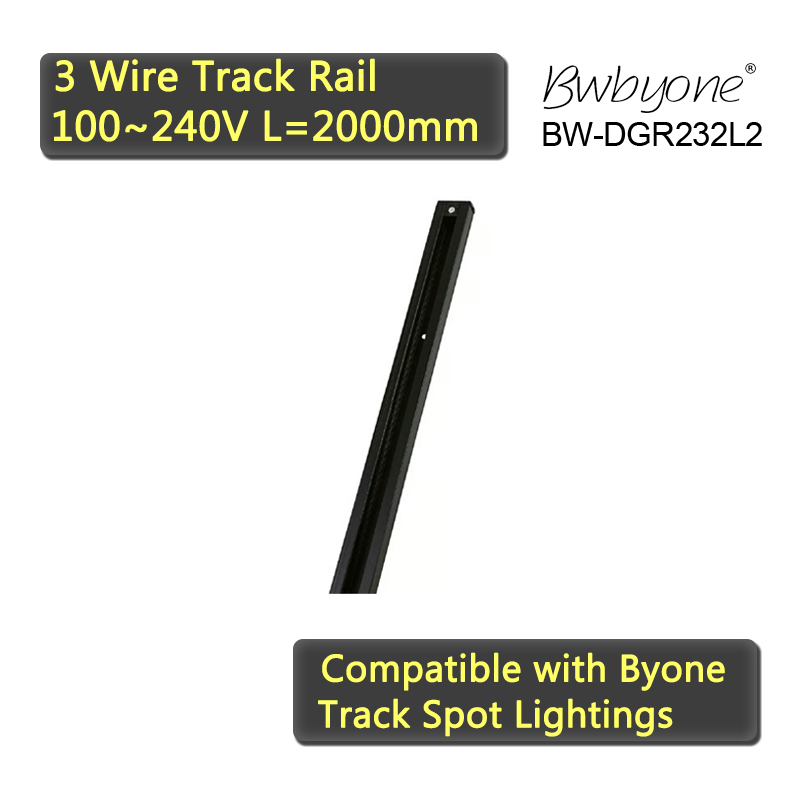

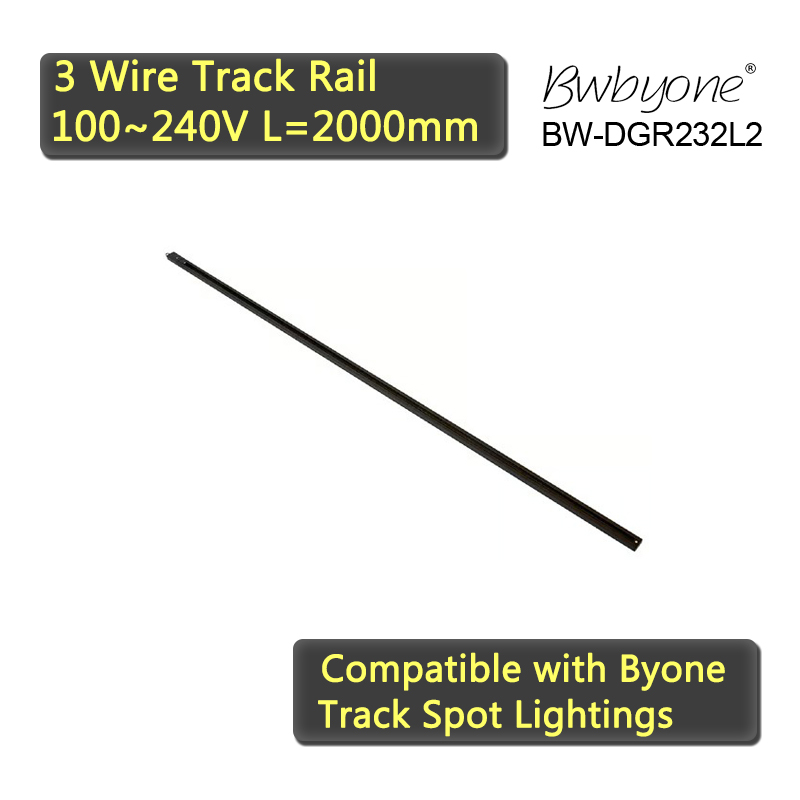

    BW-DGR232L2: Black finish color
    Always consult our qualified salesperson to know more about our product models and descriptions.

    Product specification

    Input Voltage:100V~240V,50/60 Hz
    Electrical specification: single-phase, 3-wire, Single Circuit
    Dimensions:L2000 x W34 x H17 mm
    Material:Aluminium
    Operating Temperature:0 ~ 40° C
    Mounting:Ceiling or wall Surface-mounted
    Finish color: Available in White,Silver,Black or any other customized colors

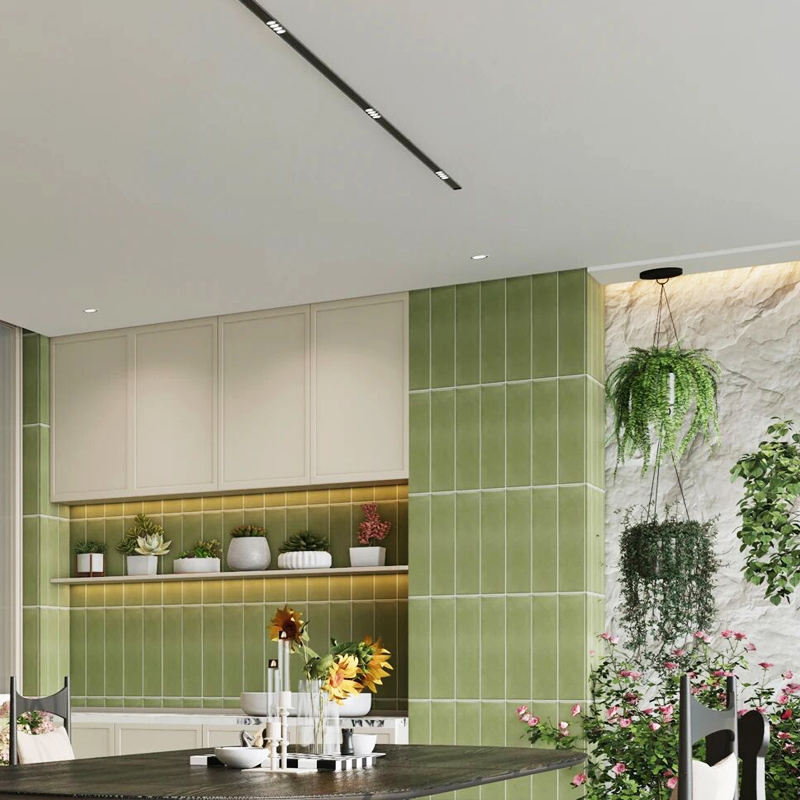

    Application and installation:This track rail length is especially well suited for retail chains, galleries, and commercial environments where wide spaces must be evenly illuminated. By minimizing the number of connectors needed, the two meters rail helps create more seamless lines of light across ceilings, an advantage in modern stores and exhibition halls where visual continuity is important. It is equally effective in residential lofts or open plan interiors, where extended circuits can be arranged without interruption. Combined with spotlights mounted on the system, this track rail allows lighting designers to highlight merchandise, art, or architectural structures while keeping the overall layout flexible for future adjustments.

    Features

    ● The rail operates on a single phase, 3 wire circuit, ensuring reliable electrical safety within the standard 100~240 V range.
    ● It is fully compatible with the other length models, as well as straight or L type connectors, enabling installers to expand or adapt circuits according to space requirements.
    ● The aluminum construction provides a stable base for multiple spotlight fixtures while keeping the weight manageable for ceiling mounting.
    ● Supplied with the necessary fittings, it is straightforward to install and integrates smoothly into our track spotlight system.
    ● With standardized connections and proven compatibility, this track rail offers both contractors and OEM customers a dependable solution for projects that demand extended coverage and clean design.

      Line Drawing

      BW-DGR230L2 line drawing m

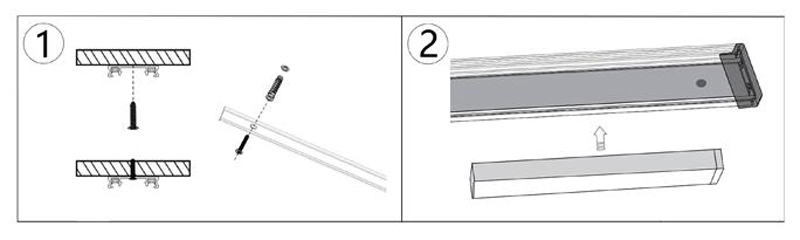

      Installation Instruction

      c4
