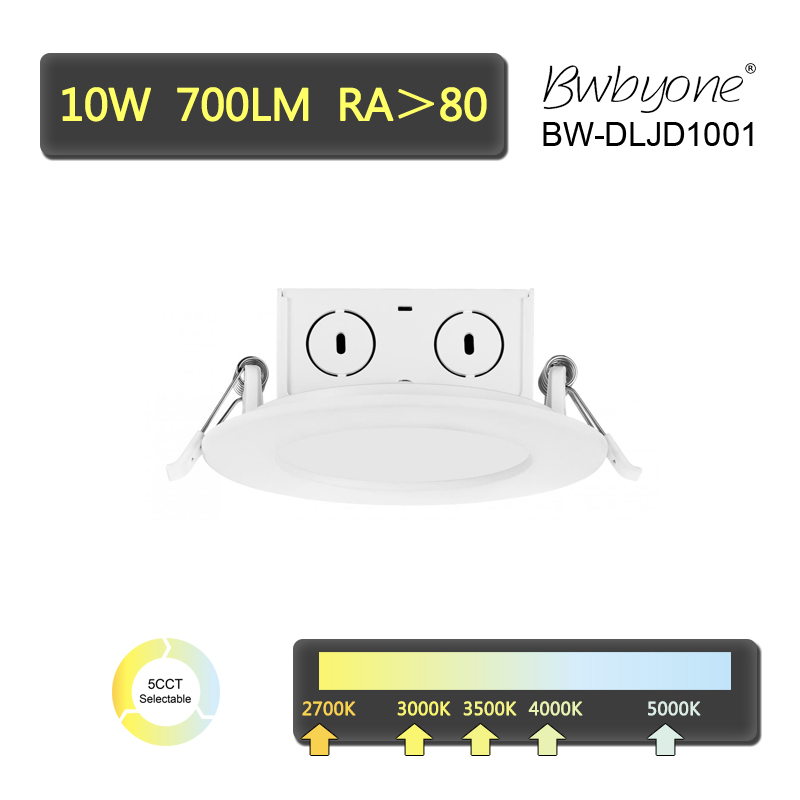

BW-DLJD1001 front view.jpg

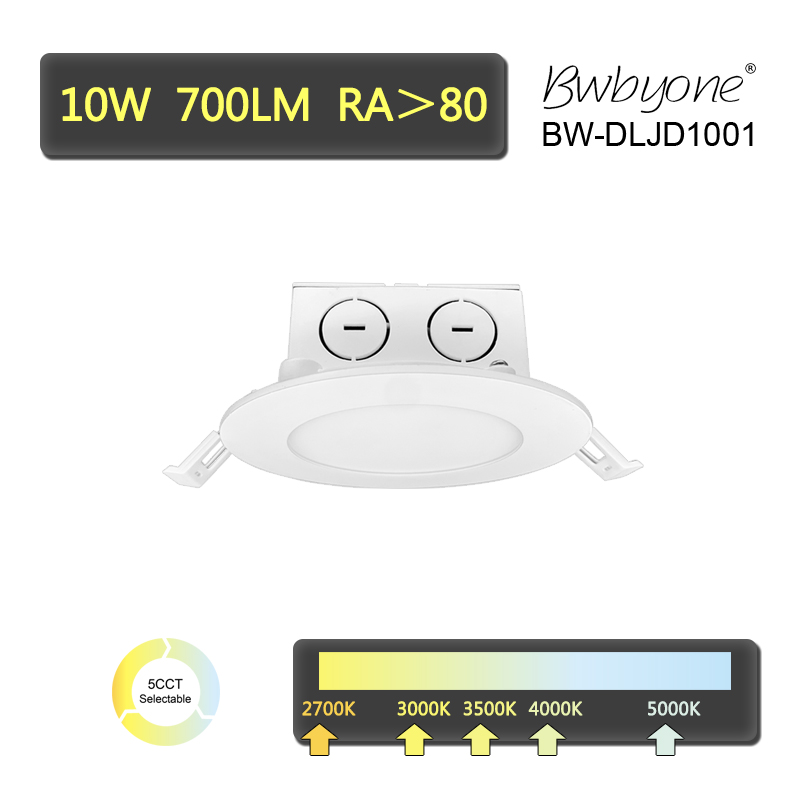

BW-DLJD1001 front view2.jpg

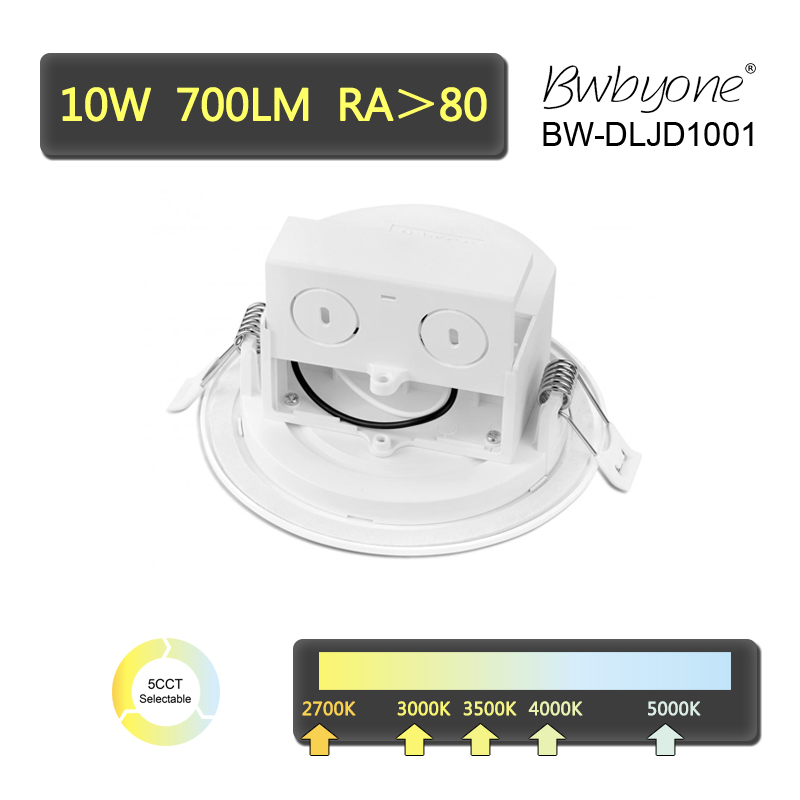

BW-DLJD1001 back view.jpg

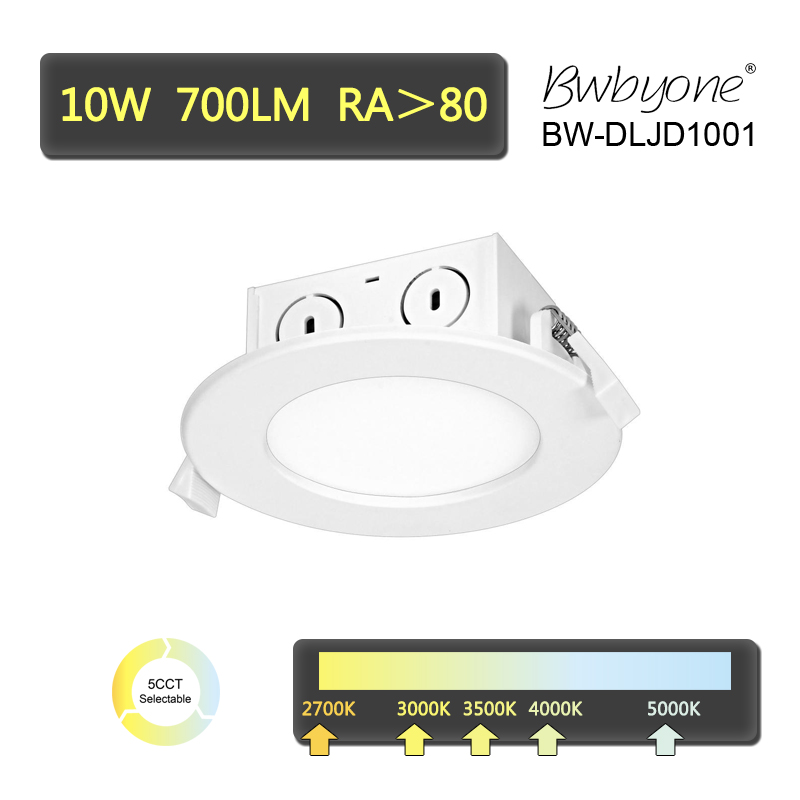

BW-DLJD1001 side view.jpg

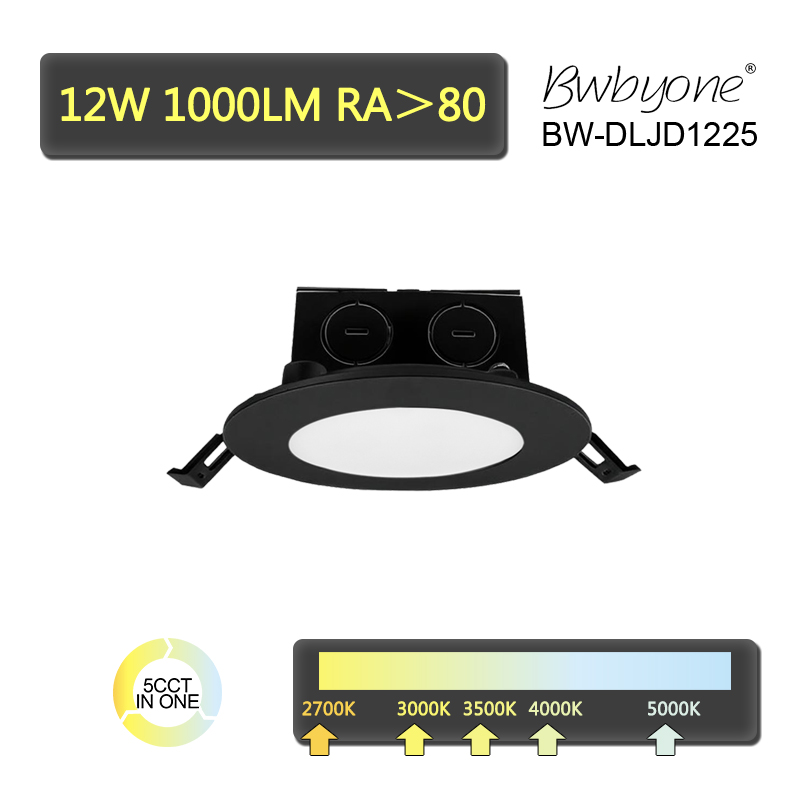

BW-DLJD1225 front view.jpg

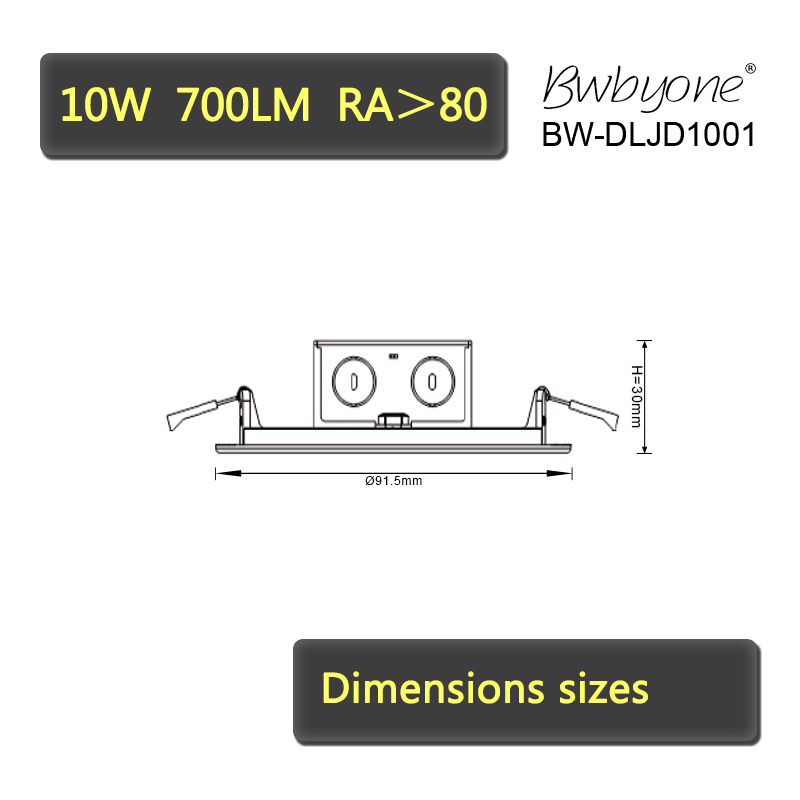

BW-DLJD1001 line drawing.jpg

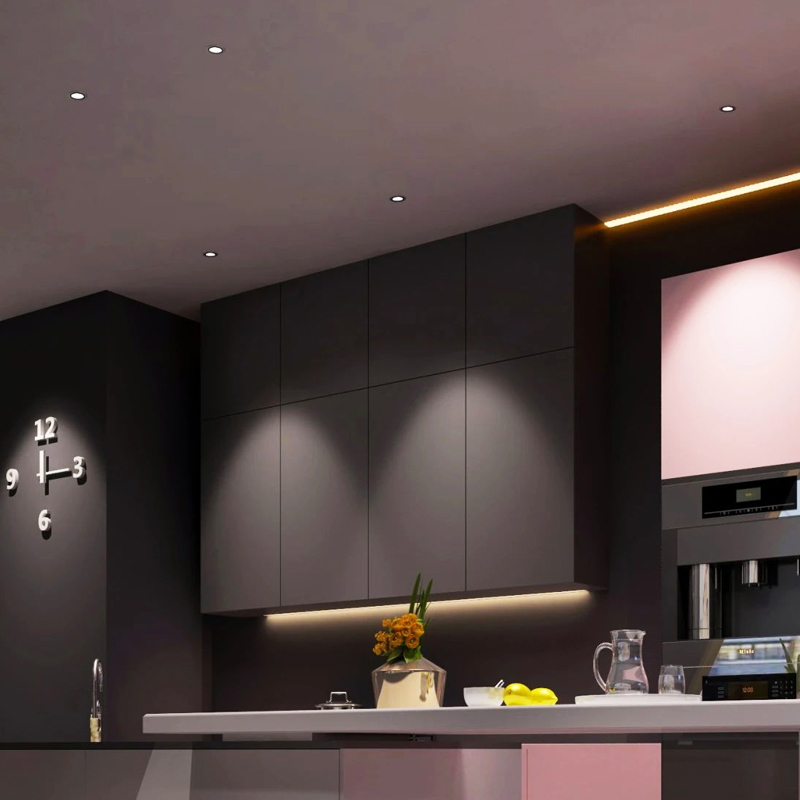

BW-DLJD1001 product visual.jpg

BW-DLJD1001 Intergrated LED recessed down light

This integrated recessed down light is designed as a practical and efficient solution for modern residential and commercial interiors. Available in 4-inch 10W with 700 lumens and 6-inch 12W with 1000 lumens, it delivers bright and comfortable lighting while consuming minimal energy. The fixture is offered in both single CCT models，available in 3000K, 4000K, and 5000K，and an advanced 5CCT in 1 type that allows one fixture to cover the full range of 2700K to 5000K. With high color rendering, the light provides natural and accurate tones, making it suitable for a wide variety of spaces. The slim integrated design eliminates the need for housings, ensuring an easy fit into ceilings with or without insulation.

    Send Inquiry
    cpbjtp

    LED Recessed Mounted Downlight

    We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.

    product details

    Product models and descriptions

    BW- abbreviation of company name Byone

    DLJ- Product model series, round type

    D - D: Dimmable by Triac dimmer

    10- Product rated power

    0/1/2- Product finish color: 0-white,1-silver,2-black

    1/5- Product color temperature::1- single color temperature,5- 5CCT in one color temperature

    Example:

    BW-DLJD1001: White finish color, single color temperature, Dimmable by triac dimmer

    BW-DLJD1225: Black finish color, 5CCT in 1, Dimmable by triac dimmer

    Always consult our qualified salesperson to know more about our product models and descriptions.

    Product specification

    Input Voltage: 120V,60Hz

    Power:10W/12W

    Luminous:700LM（10W）/1000LM（12W）

    Color temperature :

    A. Available in 3000K/4000K/5000K single color temperature

    B. 2700K/3000K/3500K/4000K/5000K 5CCT in one

    PF:>0.8

    CRI:Ra>80

    Beam Angle: 100°

    Dimensions:Φ100 X H140mm（4“）/Φ155 X H140mm（6“）

    Housing material:Plastic

    Junction box material:Flame-retardant thermoplastic

    Finish color: Available in White,Silver,Black or any other customized colors

    Working temperature: -20 ~ 40° C



    Application and installation:This down light is ideal for general illumination in living rooms, kitchens, and bedrooms, where balanced and comfortable light is required. In offices and retail spaces, it creates a bright and professional environment, while also highlighting displays with consistent color quality. Its versatile design makes it suitable for both renovation projects in older homes and new constructions, offering a seamless appearance that complements different architectural styles.

    Features

    ● The fixture provides uniform illumination with a wide beam angle, ensuring broad light coverage without harsh shadows.

    ● Built with an integrated junction box, it simplifies installation and removes the need for additional housings or cans, making it an excellent solution for spaces with limited ceiling depth.

    ● The light is compatible with standard TRIAC dimmers, offering smooth brightness adjustment for different settings.

    ● Constructed with quality materials for durability, it delivers long lasting performance and reliable operation. With options in both 4-inch and 6-inch sizes, and with the choice between fixed single CCT or adjustable 5CCT in 1 models, this recessed down light series offers flexibility, efficiency, and visual comfort in one streamlined design.

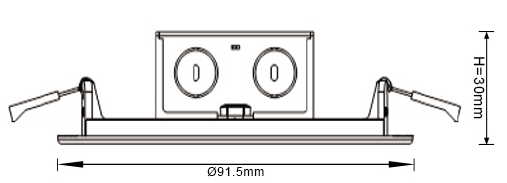

    Line Drawing

    3

    We offer OEM manufacturing services according to specific requirements.Our OEM services include:
