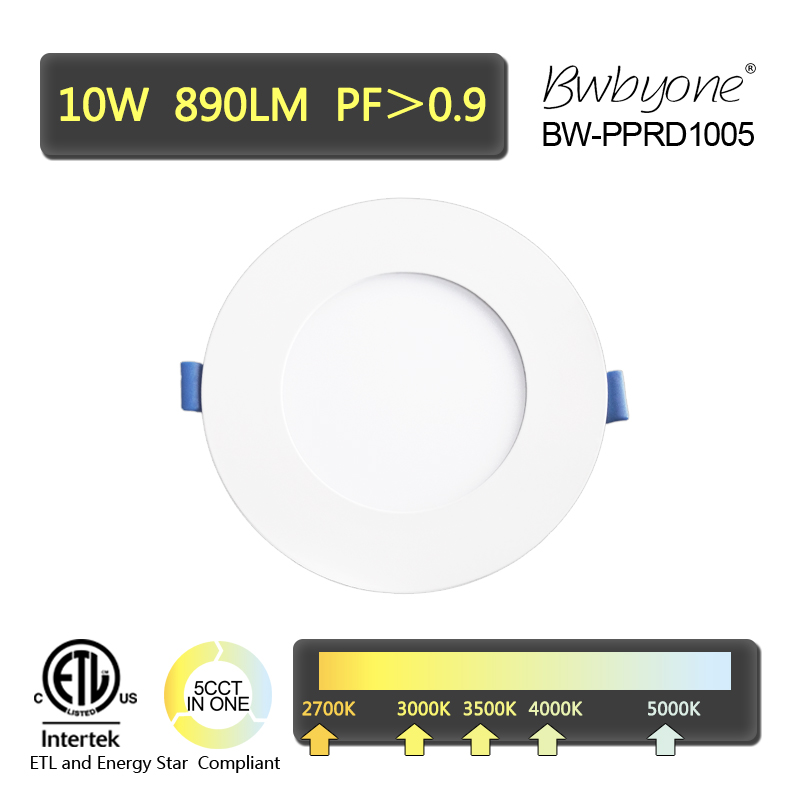

BW-PPRD1005 front view.jpg

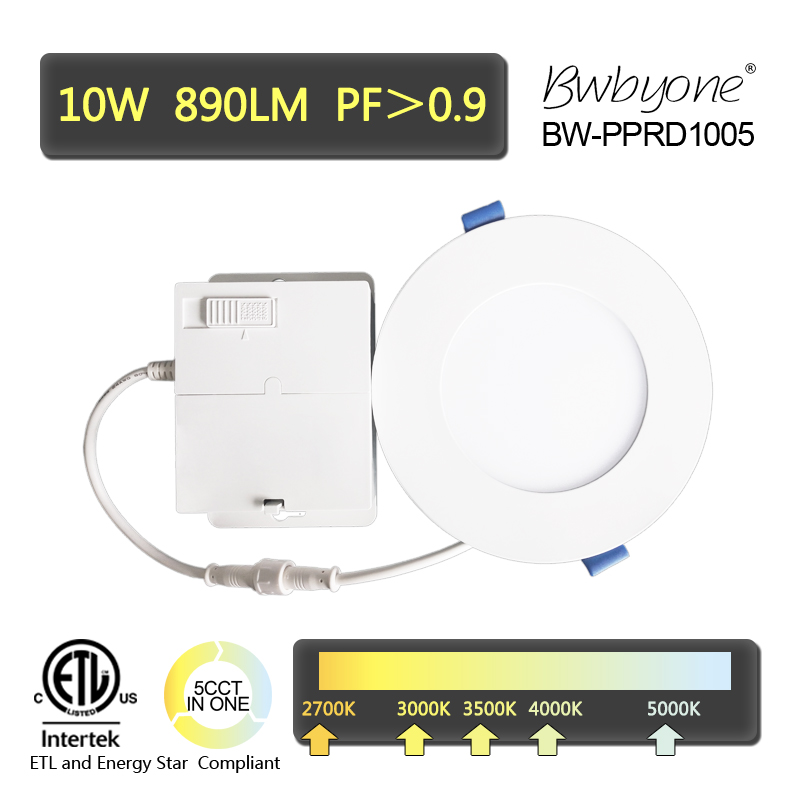

BW-PPRD1005 front view2.jpg

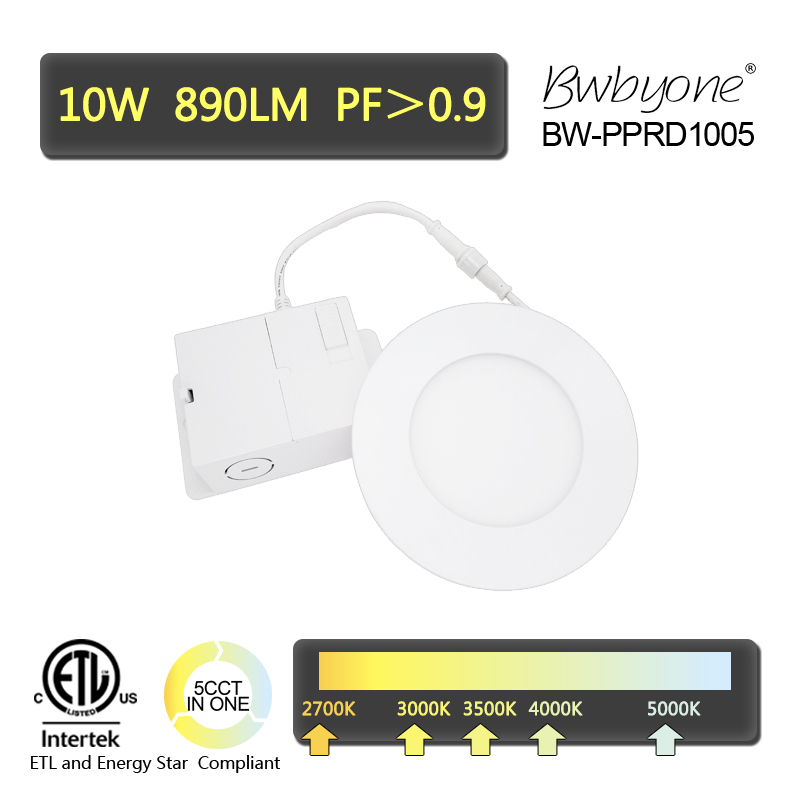

BW-PPRD1005 front view3.jpg

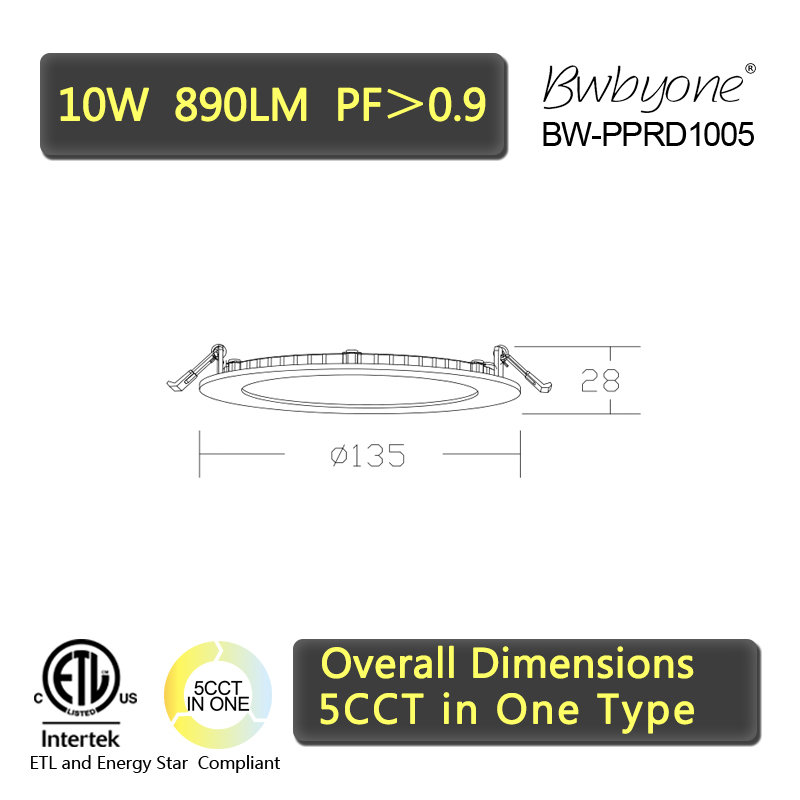

BW-PPRD1005 Line drawing.jpg

BW-PPRD1005 LED Recessed Slim Round Panel light with ETL and ES compliant

 The latest addition to our ultra thin recessed panel light series is designed to deliver both performance and compliance for the North American market. Operating at 10W and producing up to 890 lumens, this model combines high efficiency with an enhanced color rendering index, ensuring accurate and vivid presentation of interior spaces. The fixture integrates a 5CCT in one configuration, offering color temperature options from 2700K to 5000K in a single product. Its compact housing, crafted from high quality plastic, together with a flame-retardant thermoplastic junction box, provides both durability and safety. With a profile of only 28mm, it is engineered for tight ceiling spaces and modern installations.

    Send Inquiry
    cpbjtp

    LED Recessed Mounted Downlight

    We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.

    product details

    Product models and descriptions

    BW- abbreviation of company name Byone

    PPR- Product model series, round type

    D - D: Dimmable by Triac dimmer

    10- Product rated power

    0/1/2- Product finish color: 0-white,1-silver,2-black

    5- Product color temperature:5- 5CCT in one color temperature

    Example:

    BW-PPRD1005: White finish color, 5CCT in 1, Dimmable by triac dimmer

    BW-PPRD1025: Black finish color, 5CCT in 1, Dimmable by triac dimmer

    Always consult our qualified salesperson to know more about our product models and descriptions.

    Product specification

    Input Voltage: 120V,60HzPower:10WLuminous:890LMColor temperature : 2700K/3000K/3500K/4000K/5000K 5CCT in one PF:>0.9

    CRI:Ra>90

    Dimensions:Φ135 X H28mm

    Opening sizes: Φ110mm

    Housing material:PlasticJunction box material:Flame-retardant thermoplasticFinish color: Available in White,Silver,Black or any other customized colors

    Working temperature: -20 ~ 40° C

    Application and installation:Its slim size and simple mounting process make it a reliable choice for residential renovations, multi unit housing, or commercial fit-outs where ceiling clearance is limited. The wide 5CCT in 1 selection gives installers and distributors a single product that can adapt to different room atmospheres, while the patented dimming technology elevates everyday usability by offering smooth, responsive light control that works seamlessly with standard dimmers.



    Features

    ● This slim round panel light combines compact dimensions with a plastic housing and a flame-retardant thermoplastic junction box, ensuring safety without compromising installation convenience.

    ● This model has been specifically developed to meet the needs of North American lighting brands that prioritize compliance, design flexibility, and end user satisfaction. The certified alignment with both ETL and Energy Star requirements shortens the path to market and adds credibility for brand partners.

    ● Its 10W rated power produces 890 lumens, achieving high luminous efficacy while maintaining a greater power factor.With a higher CRI, it ensures accurate color reproduction, making it particularly effective in residential spaces, hospitality projects, and retail settings where visual quality is critical.

    ● Our patented dimming function enhances compatibility with Triac based dimmers commonly used in the U.S. market, delivering a smooth and flicker-free user experience.

    We offer OEM manufacturing services according to specific requirements.Our OEM services include:
