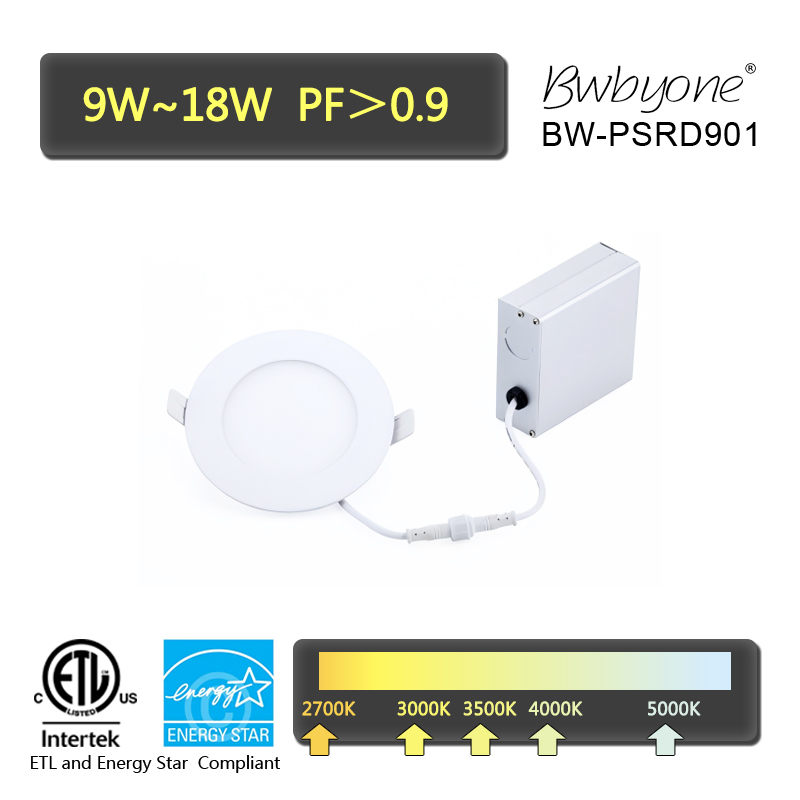

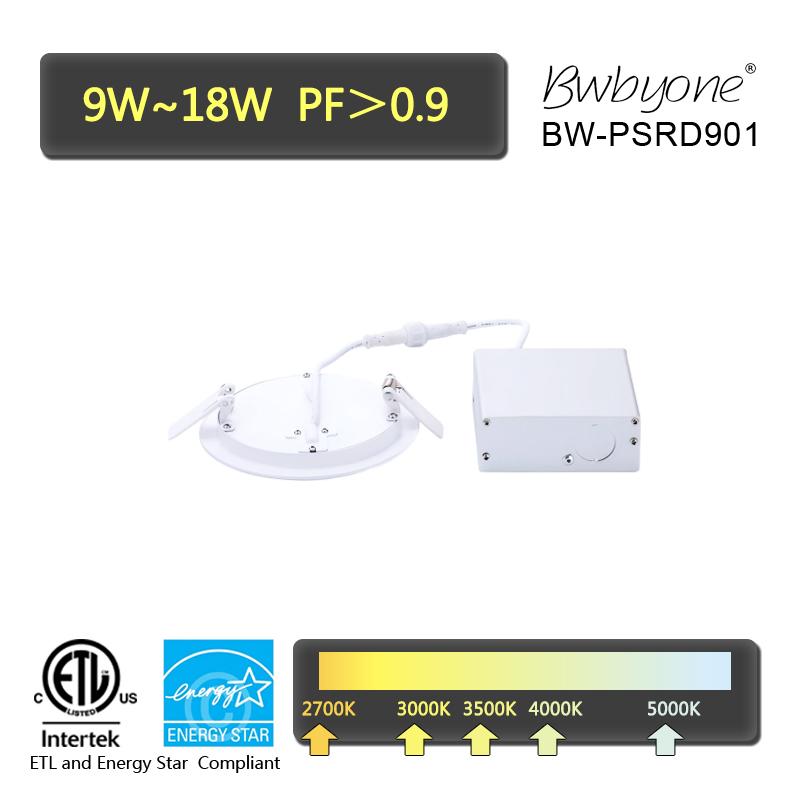

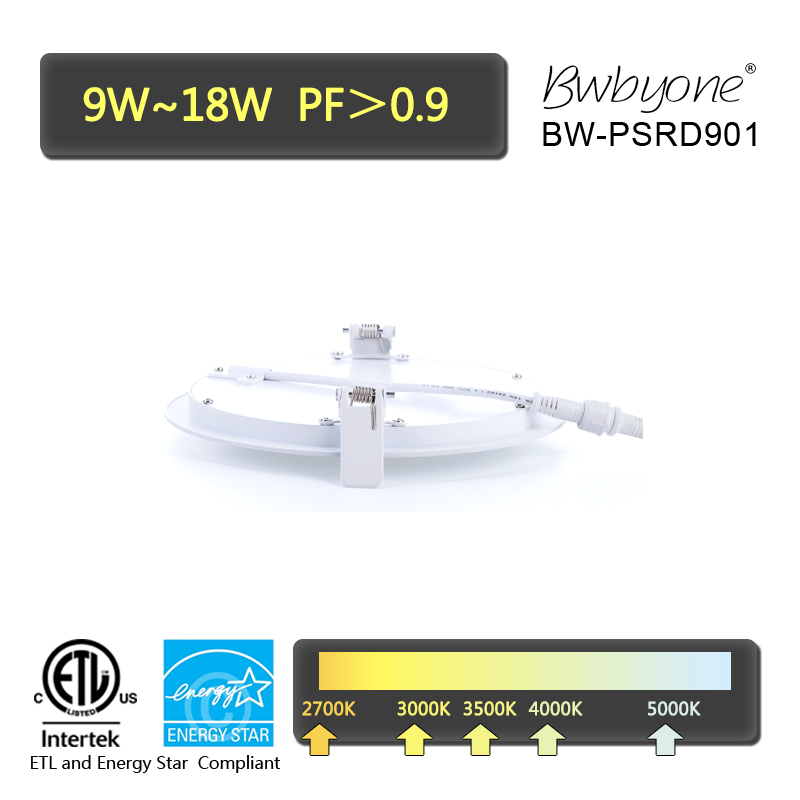

BW-PSRD901 LED Recessed Slim Round Panel light with ETL compliant
LED Recessed Mounted Downlight
We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.
Product models and descriptions
BW- abbreviation of company name Byone
PS- Product model series
D - D: Dimmable by Triac dimmer
9/12/15/18- Optional product rated power
0/1/2- Product finish color: 0-white,1-silver,2-black
1- Product color temperature:1- single color temperature
Example:
BW-PSRD901: 9W, White finish color, single color temperature,Dimmable by triac dimmer
BW-PSRD1211: 12W, Silver finish color, single color temperature,Dimmable by triac dimmer
Always consult our qualified salesperson to know more about our product models and descriptions.
Product specification
Input Voltage: 120V,60Hz
Power:9W/12W/15W/18W
Luminous:See the table below for details
Color temperature : Available in 2700K/3000K/3500K/4000K/5000K single color temperature
PF:>0.9
CRI:Ra>80
Beam Angle: 113°
Dimensions:See the table below for details
Opening sizes: See the table below for details
Housing material:Die-cast aluminum
Junction box material:Steel
Finish color: Available in White,Silver,Black or any other customized colors
Working temperature: -20 ~ 40° C
|
Model |
Rated Power |
Lumen |
Product Dimensions(MM) |
Opening sizes(MM) |
|
BW-PSRD901 |
9W |
540 LM |
Φ120 X H21.6 |
Φ108 |
|
BW-PSRD1201 |
12W |
720 LM |
Φ120 X H21.6 |
Φ108 |
|
BW-PSRD1501 |
15W |
1050 LM |
Φ171 X H21.6 |
Φ154 |
|
BW-PSRD1801 |
18W |
1200 LM |
Φ223 X H20.5 |
Φ205 |

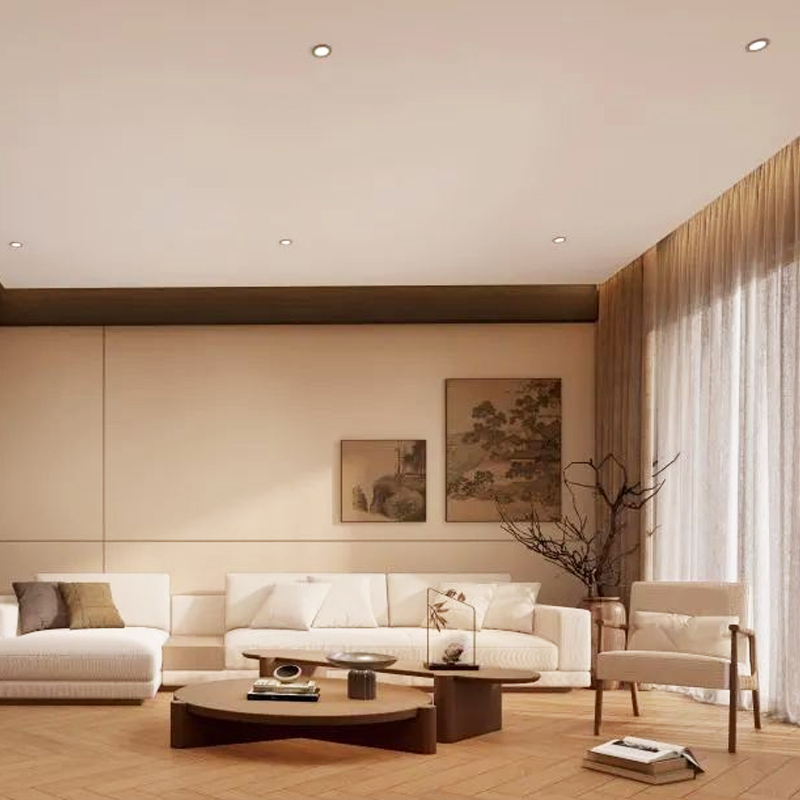

Application and installation:This series is well suited for kitchens, living rooms, hospitality venues, and compact commercial interiors where a clean circular profile, dimming flexibility, and compliance with U.S. lighting standards support both visual appeal and project efficiency.
Features
● Manufactured with an Die-cast aluminum body for effective heat dissipation, impact resistance, and uniform light distribution.
● Designed to align with Energy Star and ETL complaint construction requirements, supporting a smoother route to market for U.S. brand partners.

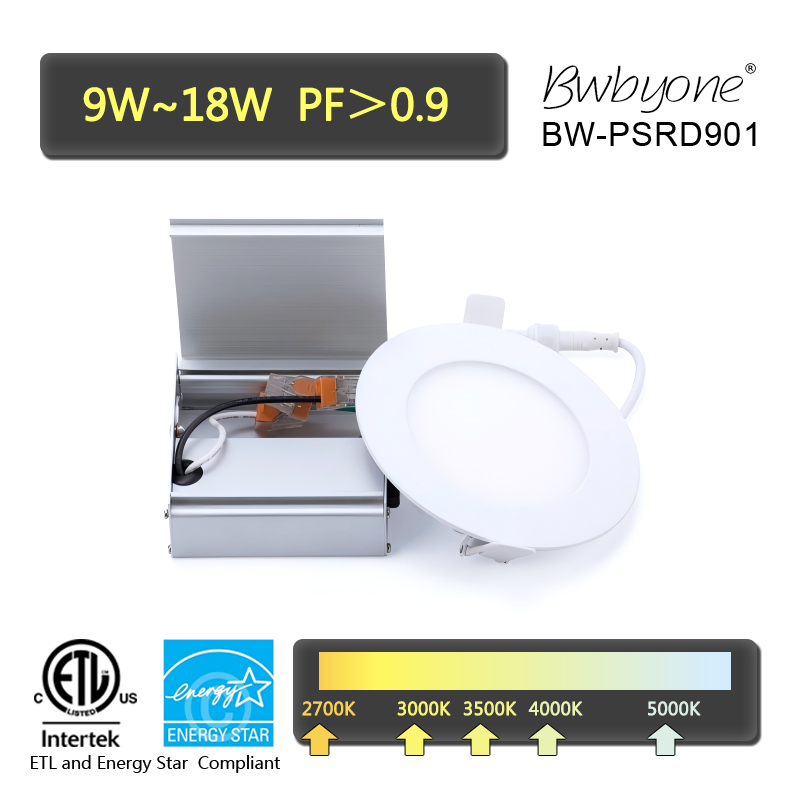

● Integrated junction box design offers flexible installation in standard housings or as a direct recessed mount.
● Compatible with a wide range of leading dimmer technology in North America, enabling consistent performance across different control systems.
● Multiple single color temperature options provide versatility for diverse residential and hospitality lighting needs.
● Extended service life helps reduce replacement cycles, supporting lower long-term maintenance efforts.
Line Drawing
We offer OEM manufacturing services according to specific requirements.Our OEM services include:
