Dual Color 2835 LED Strip Light with Integrated Cool White and Warm White LEDs for Dynamic Linear Lighting
Dual Color 2835 LED Strip Light
with Integrated Cool White and Warm White LEDs for Dynamic Linear Lighting
Product models and descriptions:
BW-2835-120-8-24D-10/12-SCM-WC
BW- abbreviation of company name Byone
2835- Chips model
120- 120 PCS Chips per meter
8- Strip width:8mm
24D- Rated Voltage: DC 24V
10/12- Rated Power: 10~12W/m
SCM- single color temperature chips, with chasing moving effect
WC-Dual CCT (WW/CW) LED configuration,each LED package integrates chips
Always consult our qualified salesperson to know more about our product models and descriptions.
Product specification:
Input Voltage: DC 24V
Power:10~12W/m
Luminous:1200~1400LM/m
LED Chips model:SMD2835
LED density: 120 LEDs/m
Color temperature : Warm white + Cold white dual color temperature
CRI:Ra>90
Dimensions:PCB Width-8mm; 10m per roll per package
Unique Feature:Chasing moving effect,remote control
Working temperature and IP rating: -20 ~ 50° C, IP20.

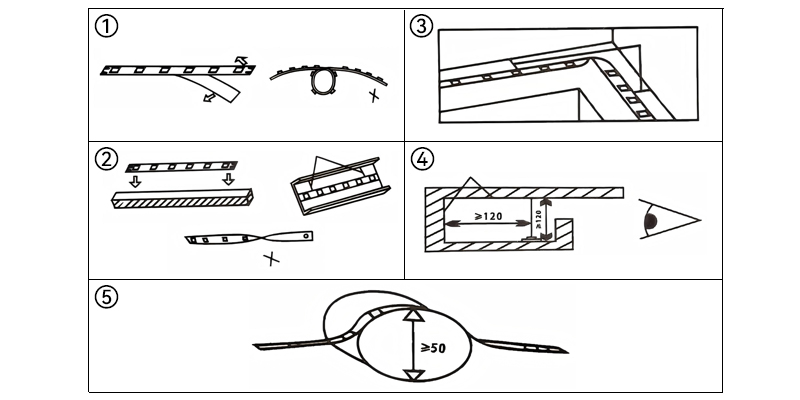

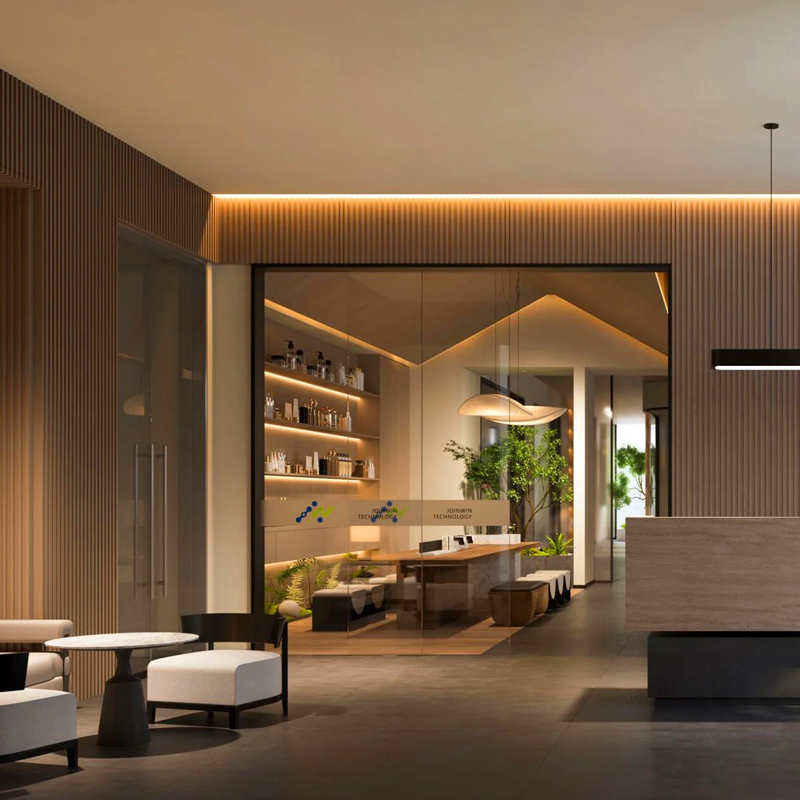

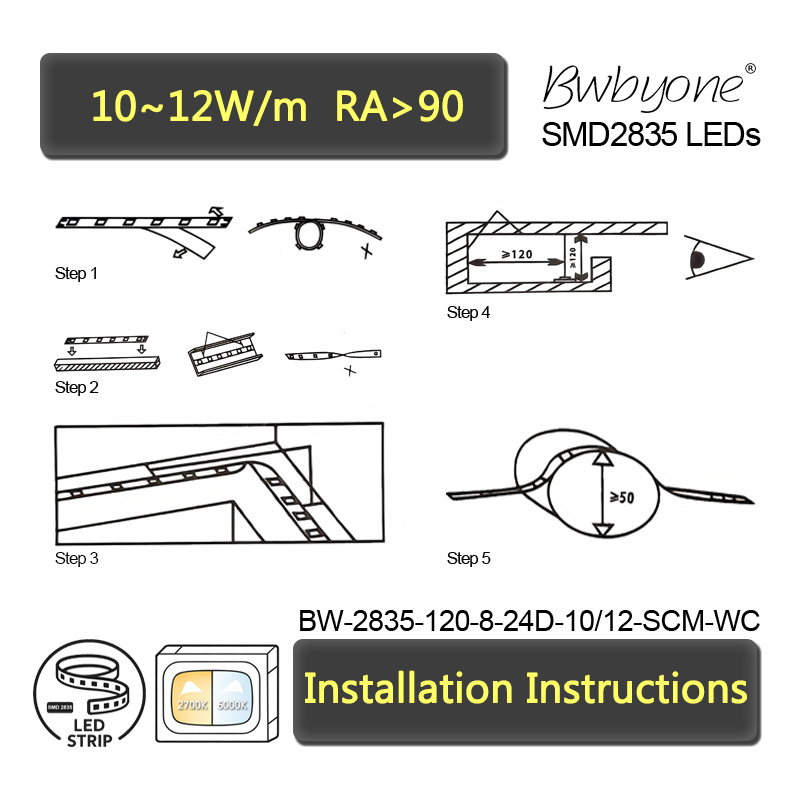

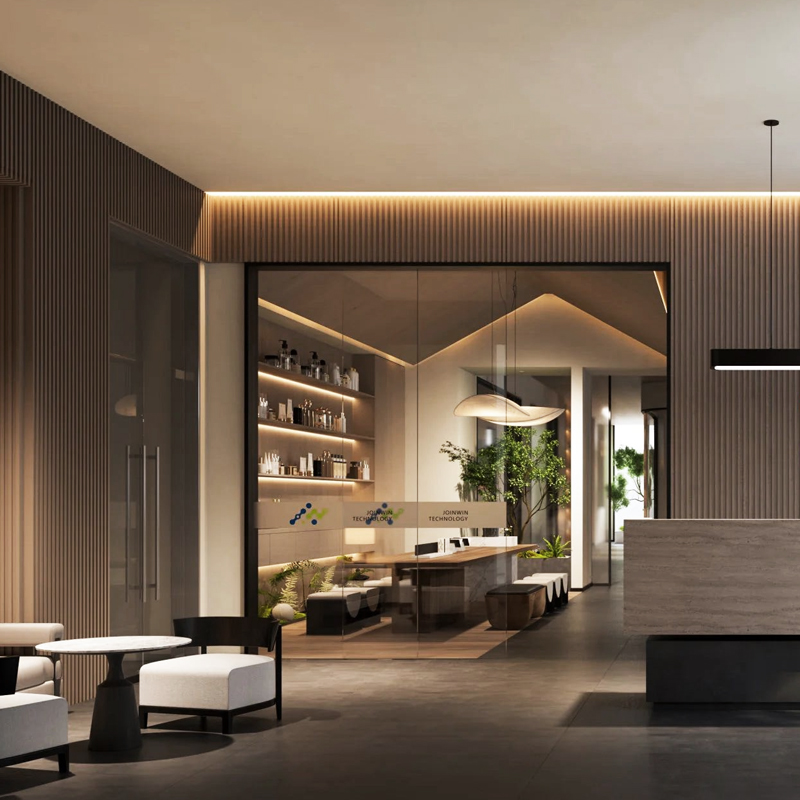

Application and installation:The integrated cool white and warm white LED structure makes this strip particularly suitable for projects requiring smoother white tone transitions and a cleaner illuminated appearance. It performs well in residential indirect lighting, display shelving, hospitality interiors, furniture integration, retail decorative lighting, and architectural accent applications where visible LED uniformity is important. The compact PCB width also supports installation in narrow aluminum profiles, recessed channels, and concealed lighting structures where traditional dual color strip layouts may appear visually crowded or uneven.
Features
· The strip adopts an integrated dual color 2835 LED package that combines cool white and warm white output within a single LED chip, creating a more consistent illuminated surface compared with conventional separated CCT LED arrangements.

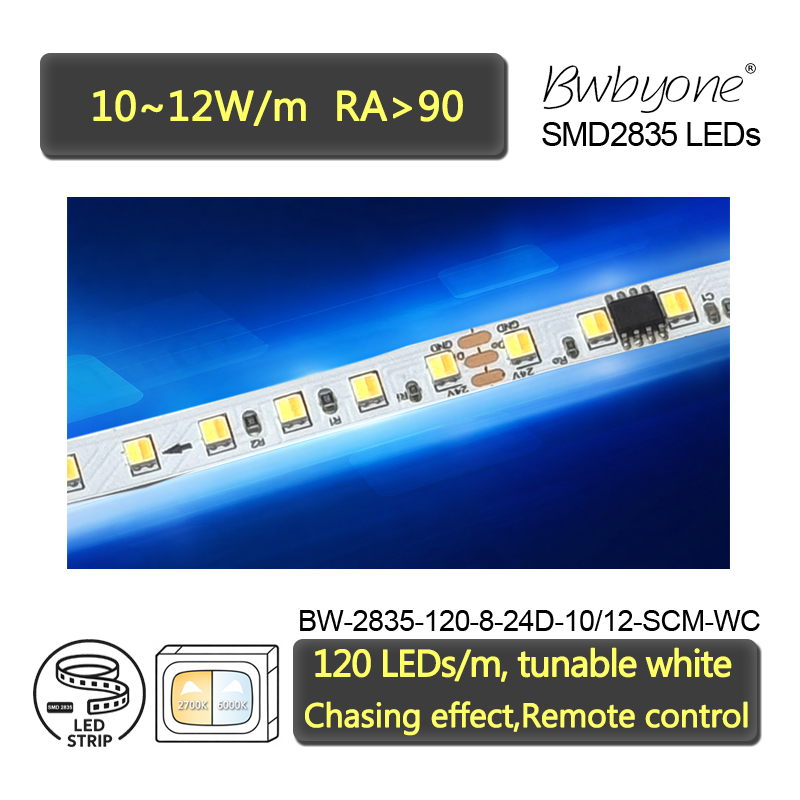

· With 120 LEDs per meter mounted on an 8 mm PCB, the strip maintains high LED density while preserving installation flexibility for compact lighting structures and aluminum profile applications.
· Each LED delivers approximately 26~28 lumens with a color rendering index above 90, supporting lighting environments where accurate surface color presentation and material detail are important.

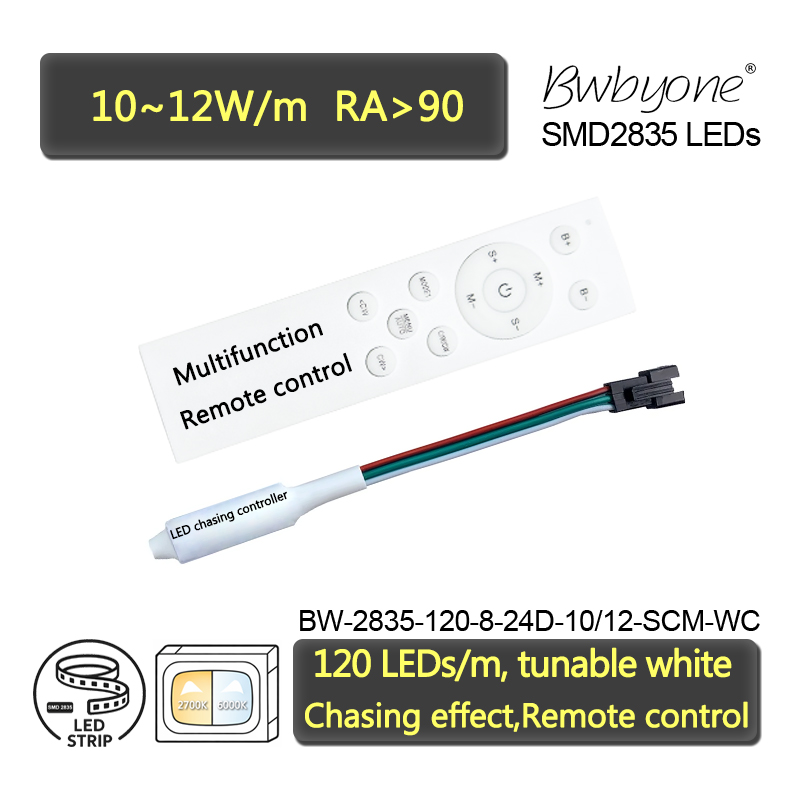

· The dynamic lighting system includes a chasingcontroller and multifunction remote control with 23 preset lighting modes, enabling direct adjustment of brightness levels, running sequences, and animated effects without additional programming devices.
· The segmented electrical structure also supports easier maintenance during long term use, since individual sections can be replaced independently without affecting the entire strip.
· The integrated LED chip arrangement reduces visible spacing inconsistencies often associated with traditional dualcolor strip structures, resulting in cleaner visual performance in exposed linear lighting applications.Suitable for both functional and decorative lighting projects where adjustable white tone presentation, smooth illumination, and dynamic lighting effects are required within a compact installation.
Line Drawing

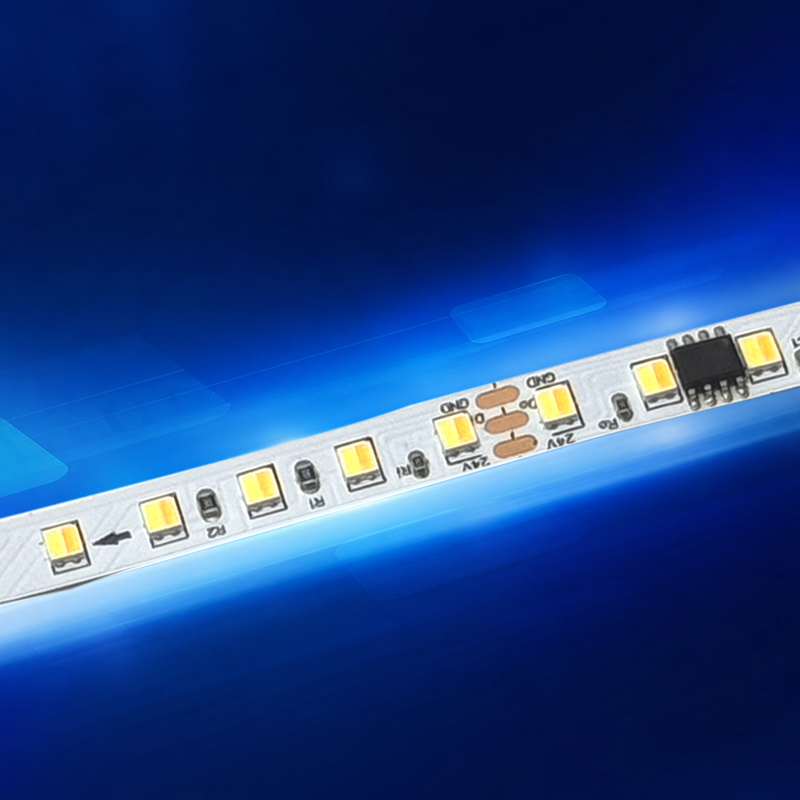

The strip functions as a dynamic lighting system equipped with a dedicated control module and multifunction remote control, allowing direct access to multiple animated lighting effects, running sequences, and adjustable brightness settings. A total of 23 lighting modes are available without the need for external programming systems. The circuit structure remains organized in twenty-one LED cutting sections, with each segment integrating its own ICs and resistor configuration. This segmented architecture supports stable signal transmission for dynamic lighting operation while simplifying maintenance and section replacement during extended use.
