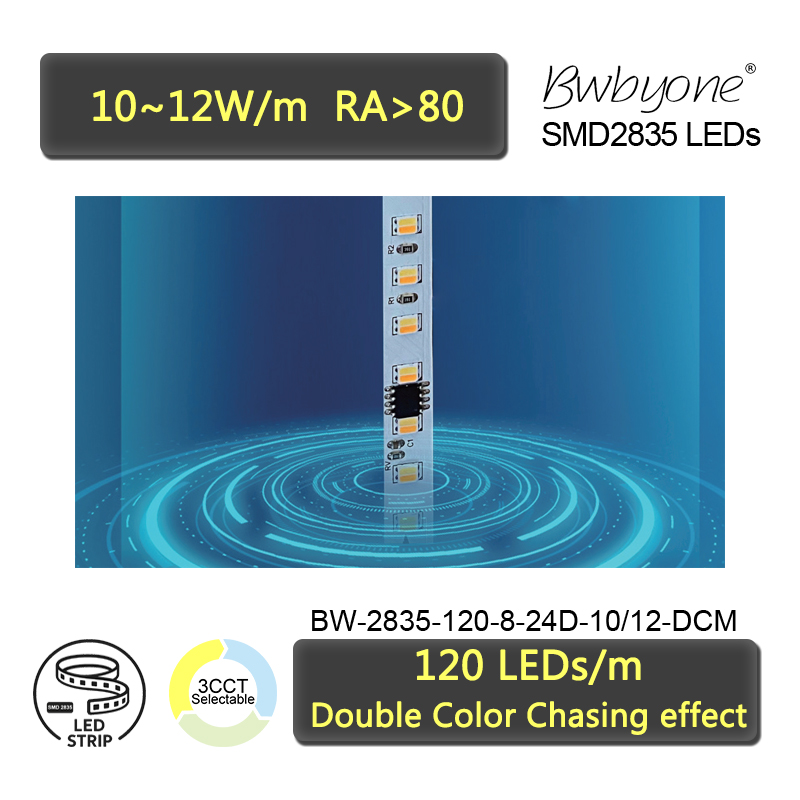

Dual Color Chasing LED Strip 2835 8mm Width Dynamic Linear Lighting Solution

BW-2835-120-8-24D-10/12-DCM

BW- abbreviation of company name Byone

2835- Chips model

120- 120 PCS Chips per meter

8- Strip width:8mm

24D- Rated Voltage: DC 24V

10/12- Rated Power: 10~12W/m

DCM- Double color temperature chips, with chasing moving effect

Always consult our qualified salesperson to know more about our product models and descriptions.

Input Voltage:DC 24V
Power:10~12W/m
Luminous:1200~1400LM/m

LED Chips model:SMD2835

LED density: 120 LEDs/m

Color temperature : Warm white + Cold white dual color temperature
CRI:Ra>80
Dimensions:PCB Width-8mm; 10m per roll per package

Unique Feature:1.Dual color temperature LEDs; 2.Chasing moving effect

Working temperature and IP rating: -20 ~ 50° C, IP20.

Application and installation: This LED strip is designed for indoor decorative and accent lighting in environments such as retail displays, bars, feature walls, signage outlines, entertainment venues, and architectural coves. The slim 8 mm width supports integration into standard aluminum profiles and recessed channels where dynamic visual effects are required without increasing installation depth.

  ●  This model uses dual-color LED chips to create flowing and chasing patterns with alternating tones. The result is a more expressive dynamic effect that adds contrast and visual layering while remaining simpler to control than full RGB systems.

  ●  With a luminous output of 1200–1400 lm/m, the strip provides sufficient brightness for most decorative and semi-functional uses. The light level supports clear visibility of motion effects while maintaining comfortable illumination in interior spaces.Its luminous output ispositioned at a practical mid-range level, allowing the dynamic patterns to remain clearly visible without overwhelming surrounding architectural elements.

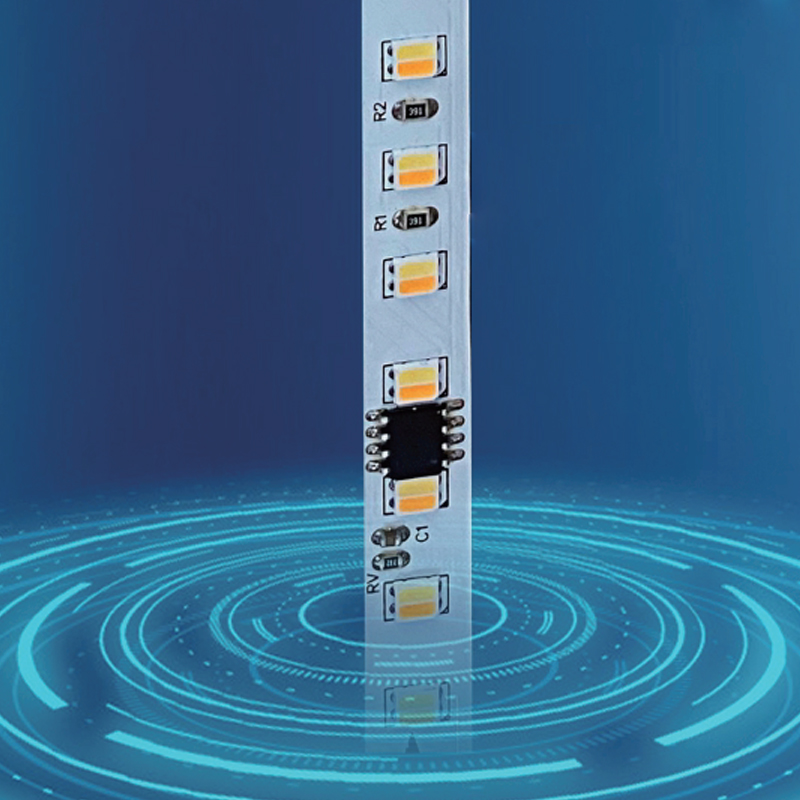

  ●  The circuit board is built on a high-temperature resistant electroplated PCB.This electroplated PCB is designed to withstand continuous thermal load generated by dynamic operation. Its heat-resistant structure helps maintain stable electrical performance and reduces the risk of long-term degradation,providing reliable current handling and thermal stability during extended dynamic operation.

  ●  The product design improves voltage stability along the strip, supporting cleaner dynamic transitions. Combined with the 8 mm width and standardized LED density, the strip integrates smoothly into a wide range of linear lighting systems.This combination makes the product suitable for decorative applications where motion, contrast, and reliability are equally important.
