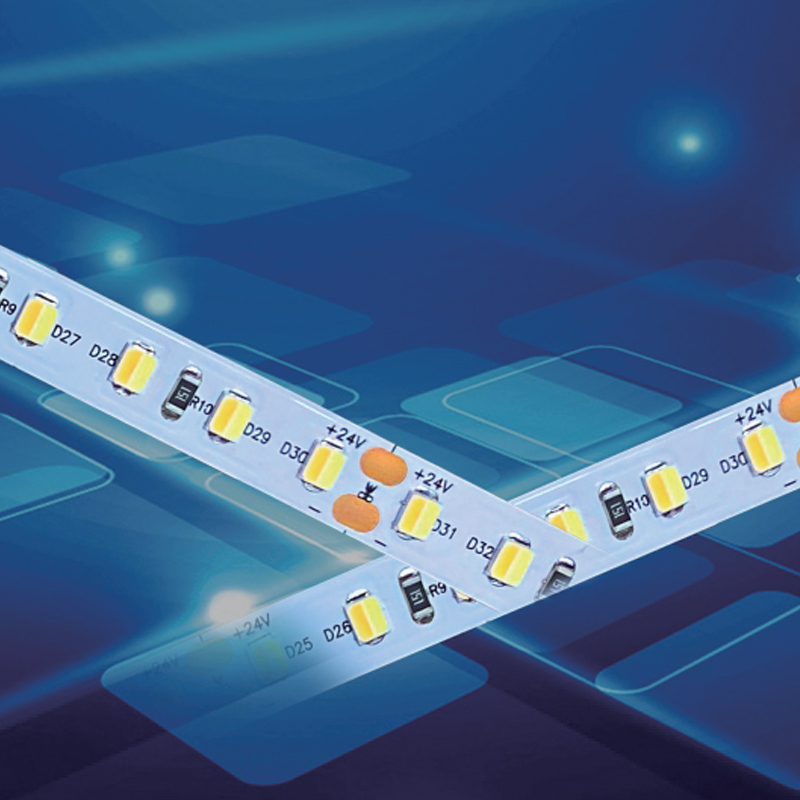

Dual White LED Strip Tunable White 2835 with 8mm PCB 120 LEDs/m

Product Overview: This LED strip is designed to deliver tunable white lighting within a familiar, entry level electrical specification. Using integrated dual white 2835 LEDs, each LED package integrates warm white and cool white emitters in one housing,enabling smooth CCT adjustment without increasing board width or altering standard installation practices. The strip is closely matching the power and output behavior of conventional single CCT products. Rather than pursuing higher brightness or denser layouts, this model focuses on flexibility in light tone while maintaining predictable performance, making it a practical option for projects that require adjustable ambience but do not demand premium optical specifications.

Send Inquiry

SMD Strip Light

We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.

product details

Model
Specification
Features
Line Drawing
OEM services
Download

Product models and descriptions:

BW-2835-120-8-1224D-12/14-WC

BW- abbreviation of company name Byone

2835- Chips model

120- 120 PCS Chips per meter

8- Strip width:8mm

1224D- Rated Voltage: DC 12V/24V

12/14- Rated Power: 12~14W/m

WC- Dual CCT (WW/CW) LED configuration,each LED package integrates warm white and cool white chips

Always consult our qualified salesperson to know more about our product models and descriptions.

Product specification:

Input Voltage: DC 12V/24V

Power:12~14W/m

Luminous:1200~1400LM/m

LED Chips model:SMD2835

LED density: 120 LEDs/m

Cutting unit: 6 LED per cut

Color temperature : Tunable White, 2700K~6000K

CRI:Ra>80

Dimensions:PCB Width-8mm; 10m per roll per package

Unique Feature:Using dual-CCT integrated LED packages

Working temperature and IP rating: -20 ~ 50° C, IP20.

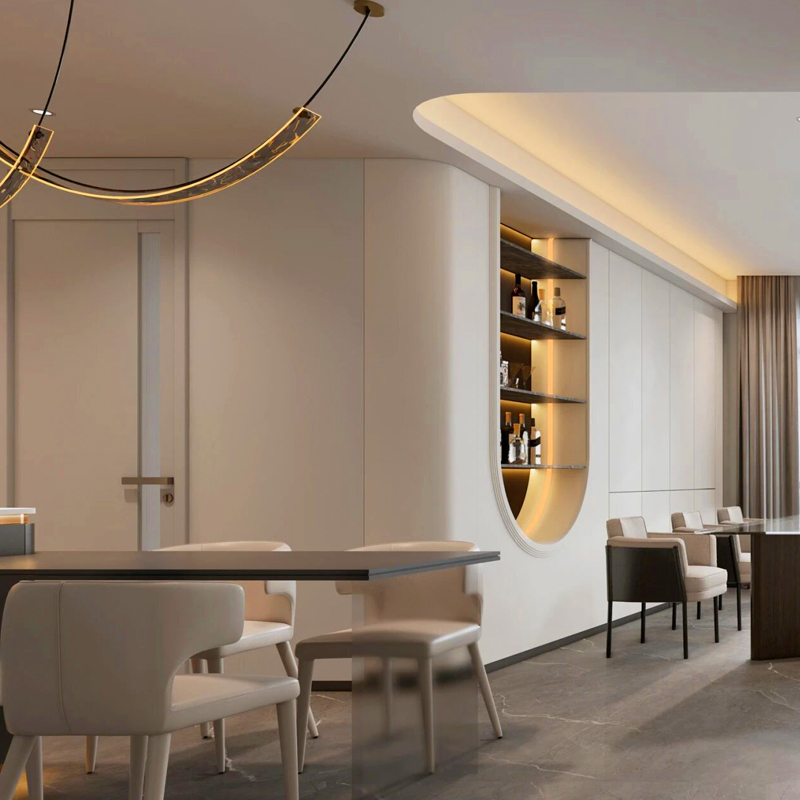

Application and installation: This product is suitable for residential interiors, hospitality spaces, display shelving, coves, and indirect lighting where users want to shift between warm and cool white tones depending on time of day or usage. It is also well suited for projects transitioning from fixed CCT strips to tunable white systems without redesigning profiles, wiring layouts, or power infrastructure.

Features

●Integrated dual white LED packages combine warm white and cool white chips within each 2835 emitter. This design allows CCT adjustment along the strip while preserving uniform light distribution and consistent spacing. Compared with alternating WW and CW LEDs, the integrated approach avoids color separation at short viewing distances and delivers smoother tonal transitions across the illuminated surface.

●The strip aligns closely with common singleCCT configurations. This makes electrical planning straightforward, as drivers, control methods, and thermal expectations remain familiar. The light output is intentionally positioned at a baseline level, providing sufficient brightness for general lighting without over

●This 8mm PCB keeps the strip compatible with narrow aluminum profiles and compact mounting channels. The width supports clean installation in space-restricted areas while still accommodating the dual white LED structure without crowding or layout compromise. It enables designers to add tunable white capability in applications where wider boards are not feasible.

●The product maintains a CRI above 80, ensuring acceptable color rendering for everyday environments. It offers a balanced visual experience suitable for residential and commercial interiors where adjustable color temperature is prioritized over enhanced color fidelity.
