Dual White LED Strip with Alternating Warm and Cool White 2835 LEDs 8mm PCB 120 LEDs/m

Product Overview: This LED strip is configured to deliver dual white lighting through a clearly defined, alternating LED layout rather than integrated dual chip packages. Warm white and cool white 2835 LEDs are placed in a regular sequence along an 8mm PCB, creating a tunable white solution that relies on physical separation instead of integrate models. The strip follows familiar electrical parameters commonly used in standard single CCT products. Its defining characteristic is the use of an alternating LED layout to enable color temperature adjustment, without relying on higher output levels or complex circuit design. This structure offers a straightforward, visually intuitive approach to dual white lighting, making the product easy to specify, install, and service in everyday projects.

Send Inquiry

SMD Strip Light

We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.

product details

Model
Specification
Features
Line Drawing
OEM services
Download

Product models and descriptions:

BW-2835-192-8-1224D-12/14-WC/WB

BW- abbreviation of company name Byone

2835- Chips model

192- 192 PCS Chips per meter

8- Strip width:8mm

1224D- Rated Voltage: DC 12V/24V

12/14- Rated Power: 12~14W/m

WC/WB- Discrete WW and CW LEDs in alternating arrangement

Always consult our qualified salesperson to know more about our product models and descriptions.

Product specification:

Input Voltage: DC 12V/24V

Power:12~14W/m

Luminous:1200~1400LM/m

LED Chips model:SMD2835

LED density: 192 LEDs/m

Cutting unit: 12 LED per cut

Color temperature : Tunable White, 2700K–6000K (WW/CW alternating LEDs)

CRI:Ra>80

Dimensions:PCB Width-8mm; 10m per roll per package

Unique Feature:Discrete warm white and cool white LEDs in an alternating layout.

Working temperature and IP rating: -20 ~ 50° C, IP20.

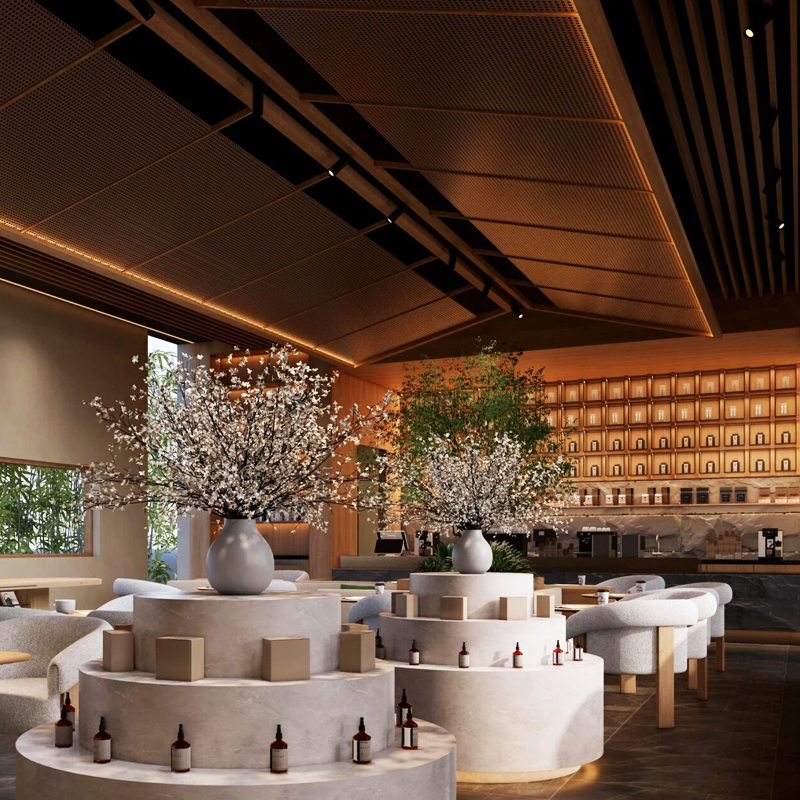

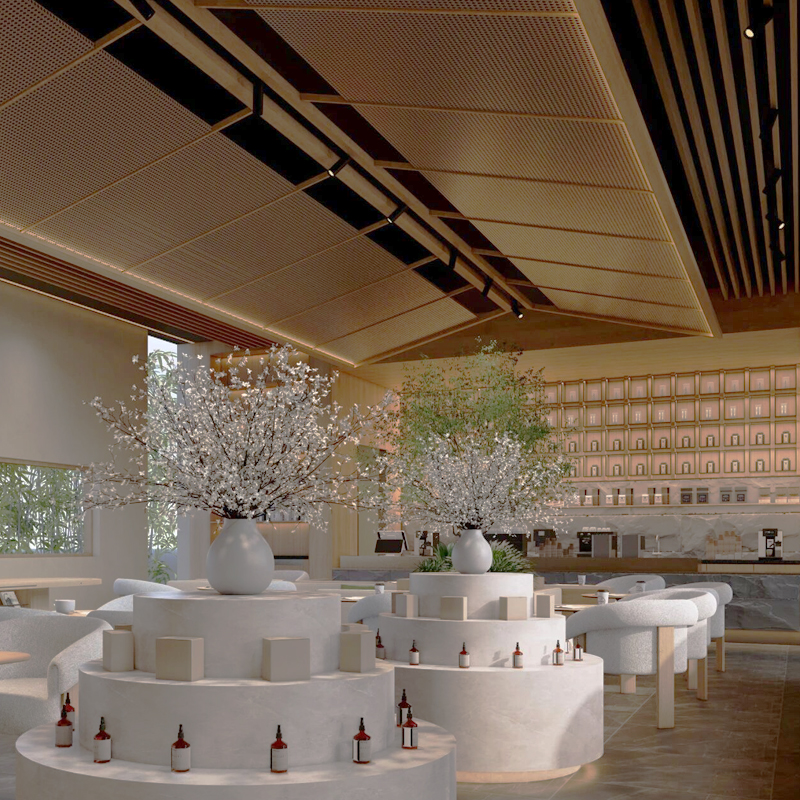

Application and installation: This product is suitable for residential interiors, hospitality spaces, display shelving, coves, and indirect lighting where users want to shift between warm and cool white tones depending on time of day or usage. It is also well suited for projects transitioning from fixed CCT strips to tunable white systems without redesigning profiles, wiring layouts, or power infrastructure.

Features

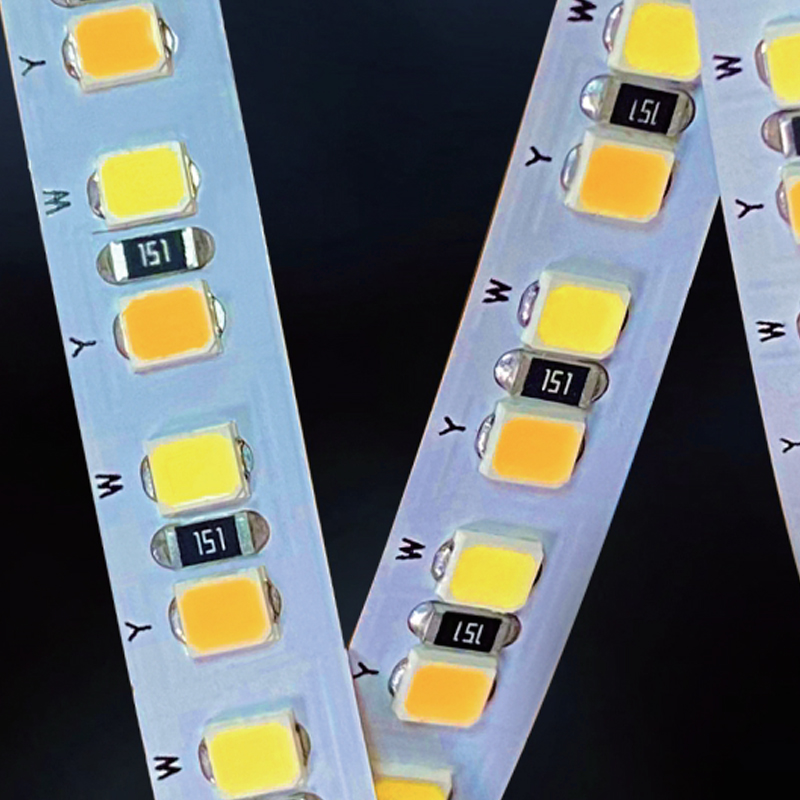

●Warm white and cool white LEDs are arranged in an alternating sequence along the strip. This layout allows color temperature adjustment by selectively driving different LED groups, providing tunable white functionality without relying on integrated dual emitter packages. The physical separation of the two color temperatures makes system behavior easy to predict and simplifies troubleshooting or replacement in long term use.

●The strip maintains a relatively high LED density for its class. This spacing supports continuous looking illumination when installed behind diffusers or in indirect lighting applications, while preserving the familiar visual rhythm of discrete LED points when used in open profiles. The density also helps balance output between warm and cool channels across the length of the strip.

●Its PCB keeps the product compatible with narrow aluminum channels and compact mounting solutions. Despite accommodating two different LED types, the board width remains unchanged from standard singleCCT strips, allowing seamless substitution in existing designs without modifying profiles or mounting hardware.

●Electrical performance remains aligned with entrylevel expectations, ensures adequate brightness and acceptable color rendering for general lighting tasks, while keeping power planning, driver selection, and thermal management straightforward and cost-conscious.
