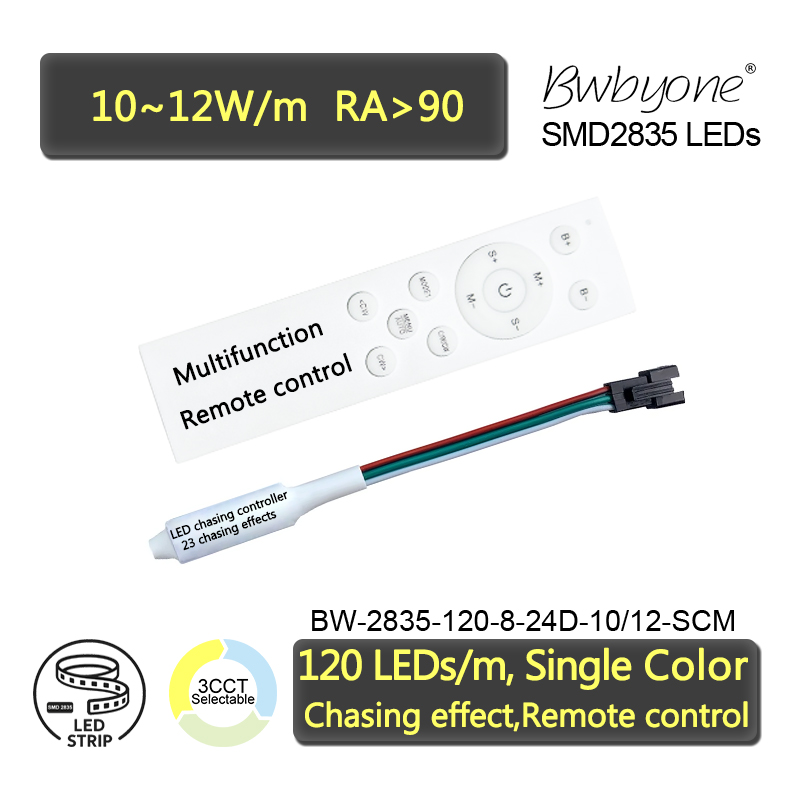

BW-2835-120-8-24D-1012-SCM acc.jpg

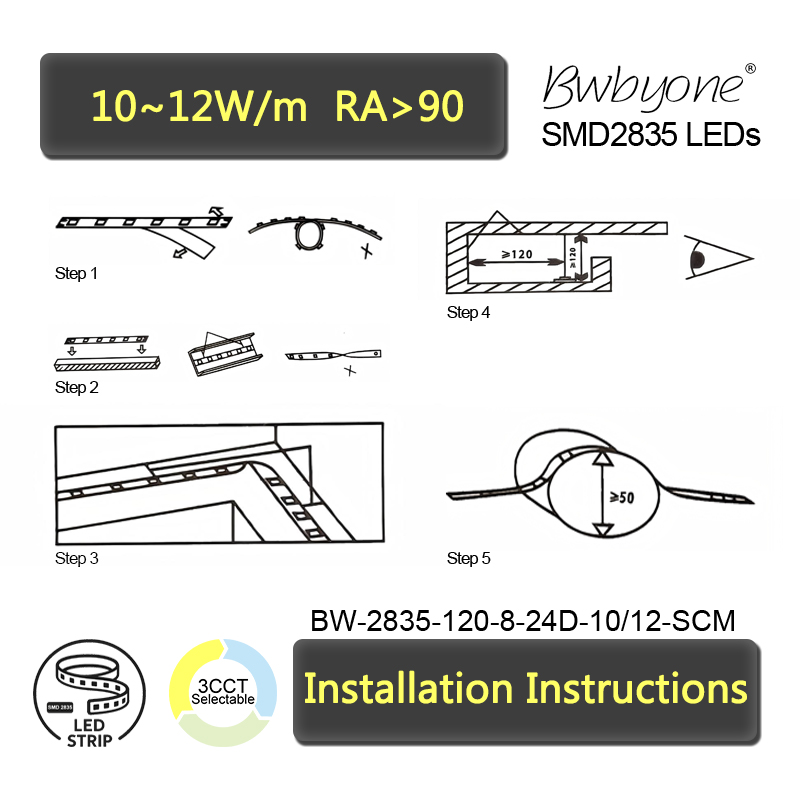

BW-2835-120-8-24D-1012-SCM installation.jpg

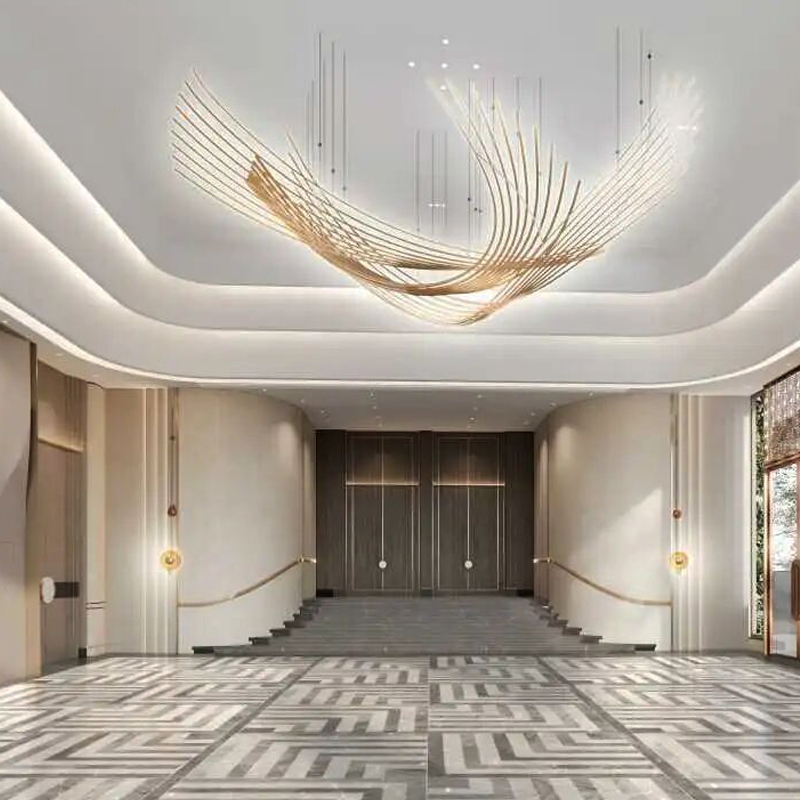

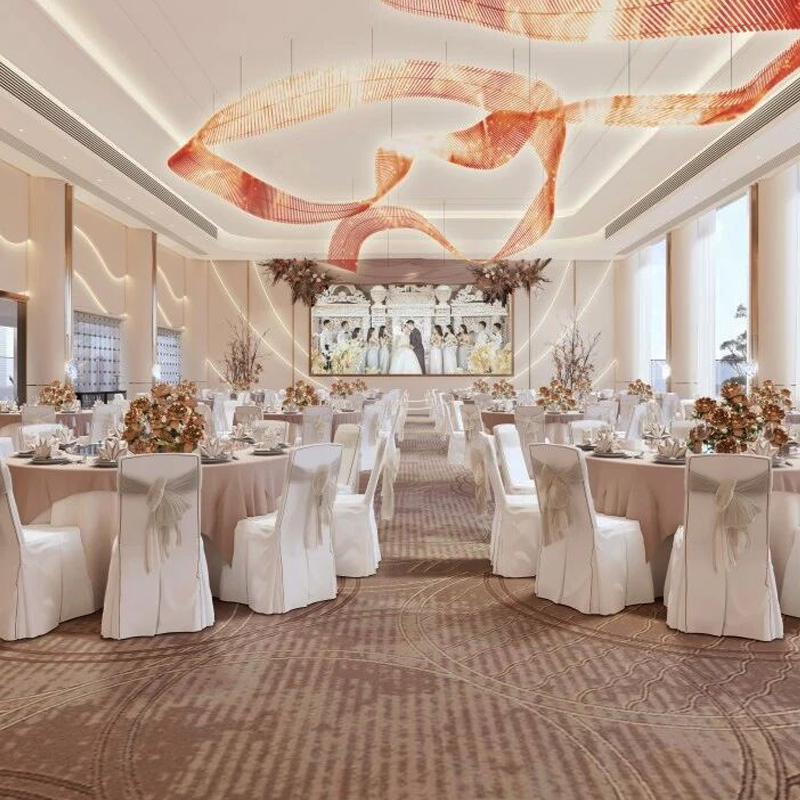

BW-2835-120-8-24D-1012-SCM product visual.jpg
BW-2835-120-8-24D-1012-SCM product visual 2.jpg

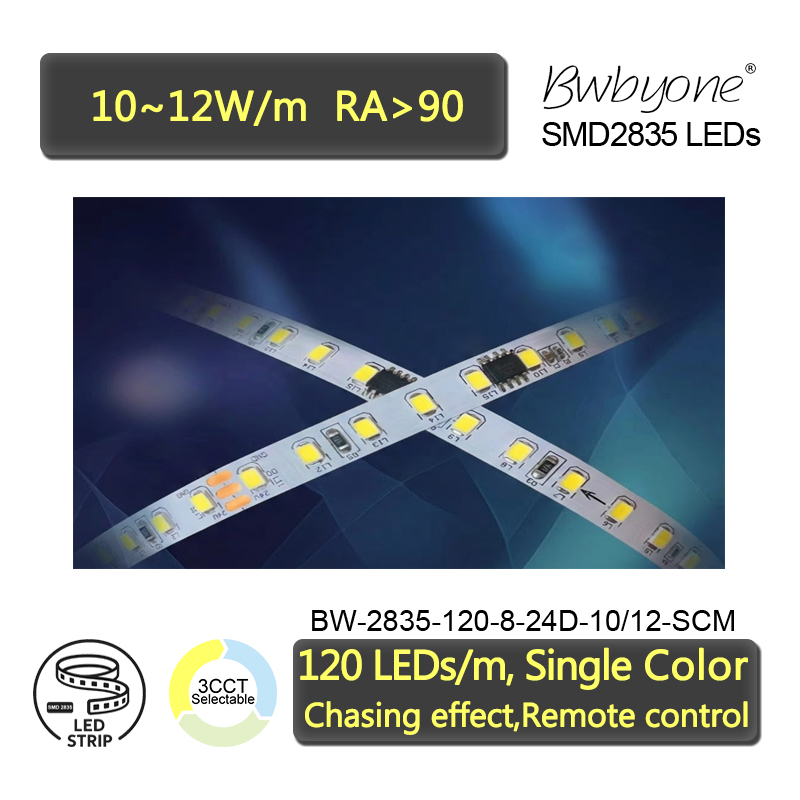

High CRI 2835 LED Strip Light with IC Control 120 LEDs per Meter 8mm PCB Multifunction Remote Dynamic Lighting

Product Overview: This LED strip uses 2835 LEDs arranged at a density of 120 LEDs per meter on an 8 mm PCB, operating within a power range of 10~12 W/m. Each LED delivers approximately 26~28 lumens while maintaining a color rendering index above 90, providing illumination that preserves the natural appearance of surfaces and materials. The strip is designed as a dynamic lighting system supplied with a dedicated control module and multifunction remote control, enabling a range of preset lighting behaviors including sequential running patterns and animated effects. With 23 selectable lighting modes, users can easily adjust brightness and lighting effects without additional programming or external controllers. The circuit layout is organized into fifteen-LED cutting sections, with each segment incorporating its own IC and resistor. This segmented structure supports stable signal control for dynamic lighting while also allowing individual sections to be replaced if needed, which simplifies maintenance during long term operation.

    Send Inquiry
    cpbjtp

    LED Recessed Mounted Downlight

    We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.

    product details

    Product models and descriptions

    BW-2835-120-8-24D-10/12-SCM

    BW- abbreviation of company name Byone

    2835- Chips model

    120- 120 PCS Chips per meter

    8- Strip width:8mm

    24D- Rated Voltage: DC 24V

    10/12- Rated Power: 10~12W/m

    SCM- single color temperature chips, with chasing moving effect



    Always consult our qualified salesperson to know more about our product models and descriptions.

    Product specification

    Input Voltage: DC 24V

    Power:10~12W/m

    Luminous:1000~1200LM/m

    LED Chips model:SMD2835

    LED density: 120 LEDs/m

    Color temperature : Available in 3000K/4000K/6000K single color temperature

    CRI:Ra>90

    Dimensions:PCB Width-8mm; 10m per roll per package

    Unique Feature:Chasing moving effect,remote control

    Working temperature and IP rating: -20 ~ 50° C, IP20.

    Application and installation

    This LED strip is suitable for decorative installations where animated lighting effects contribute to the visual atmosphere. Typical uses include retail shelving, bar counters, entertainment venues, themed interiors, gaming areas, and architectural accent lighting where moving light patterns enhance spatial perception. The 8 mm width also allows installation inside narrow aluminum profiles, furniture structures, or concealed lighting channels.

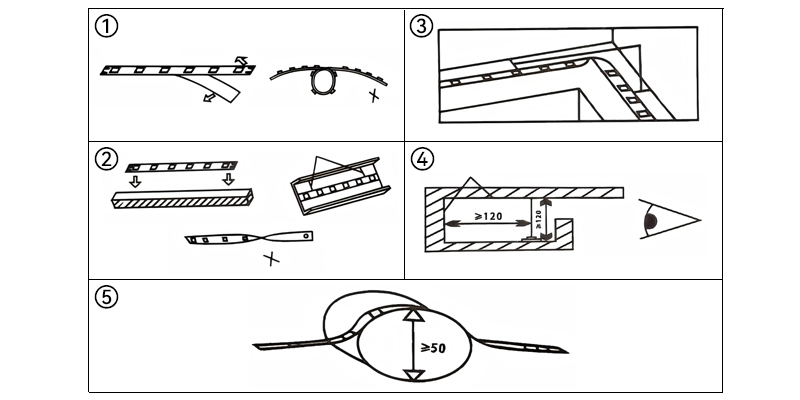

    bw-2835-120-8-24d-1012-scm-installation-instruction-m

    Features

    ● Each 2835 LED chip produces approximately 26 ~ 28 lumens while maintaining a CRI above 90, providing bright output together with reliable color rendering for spaces where object appearance should remain natural.



    ● The strip is supplied with a dedicated controller and multifunction remote control that supports 23 preset lighting modes, allowing users to change lighting patterns and brightness directly without complex system setup.



    ● Every fifteen LEDs form an independent cutting section, and each segment integrates its own IC and resistor. This arrangement supports controlled dynamic lighting sequences and simplifies maintenance by allowing localized replacement.



    ● This 120 LEDs per meter configuration creates a dense lighting line that reduces visible spacing between light points, helping dynamic effects appear smoother and more continuous.



    ● The 8 mm PCB width allows the strip to fit into narrow installation channels and compact aluminum profiles, making it suitable for furniture integration and architectural details where space is limited.
