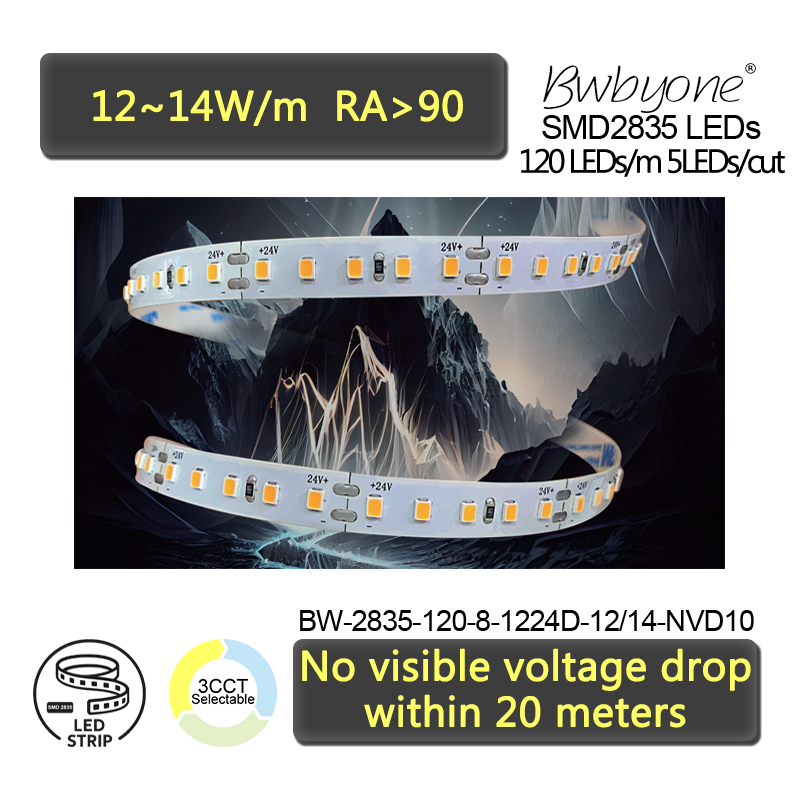

High CRI LED Strip Light 120LEDs/m 10mm Width with 20m No Voltage Drop

BW-2835-120-10-1224D-12/14-NVD20

BW- abbreviation of company name Byone

2835- Chips model

120- 120 PCS Chips per meter

10- Strip width:10mm

1224D- Rated Voltage: DC 12V/24V

12/14- Rated Power: 12~14W/m

NVD20- No visible voltage drop within 20m

Always consult our qualified salesperson to know more about our product models and descriptions.

Input Voltage: DC 12V/24V

Power:12~14W/m

Luminous:1000~1200LM/m

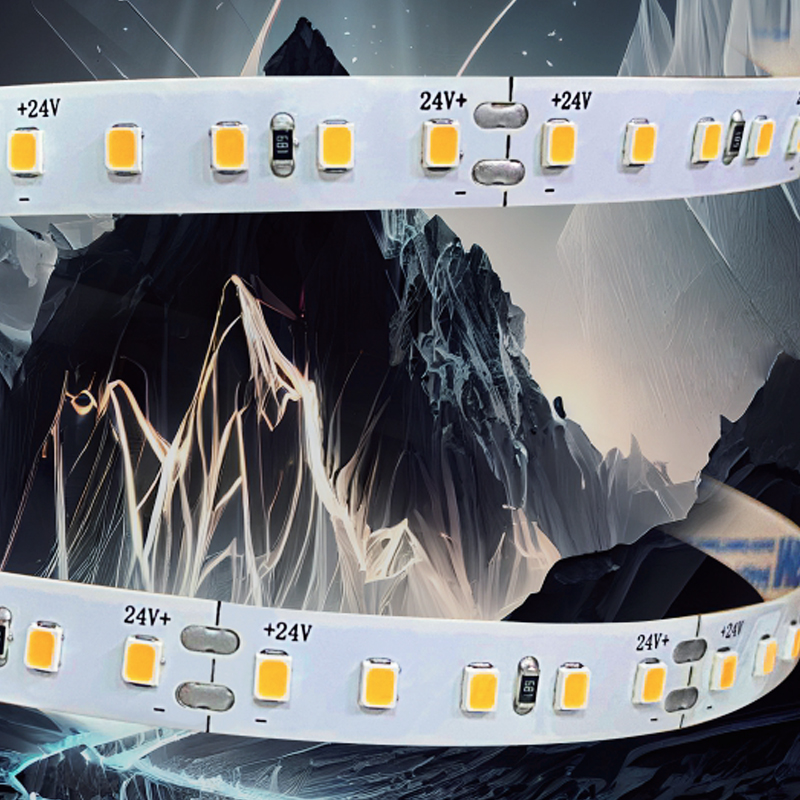

LED Chips model:SMD2835

LED density: 120 LEDs/m

Cutting unit: 5 LEDs per cut

Color temperature : Available in 3000K/4000K/6000K single color temperature

CRI:Ra>90

Dimensions:PCB Width-10mm; 20m per roll per package

Unique Feature:Stable voltage over 20m length

Working temperature and IP rating: -20 ~ 50° C, IP20.

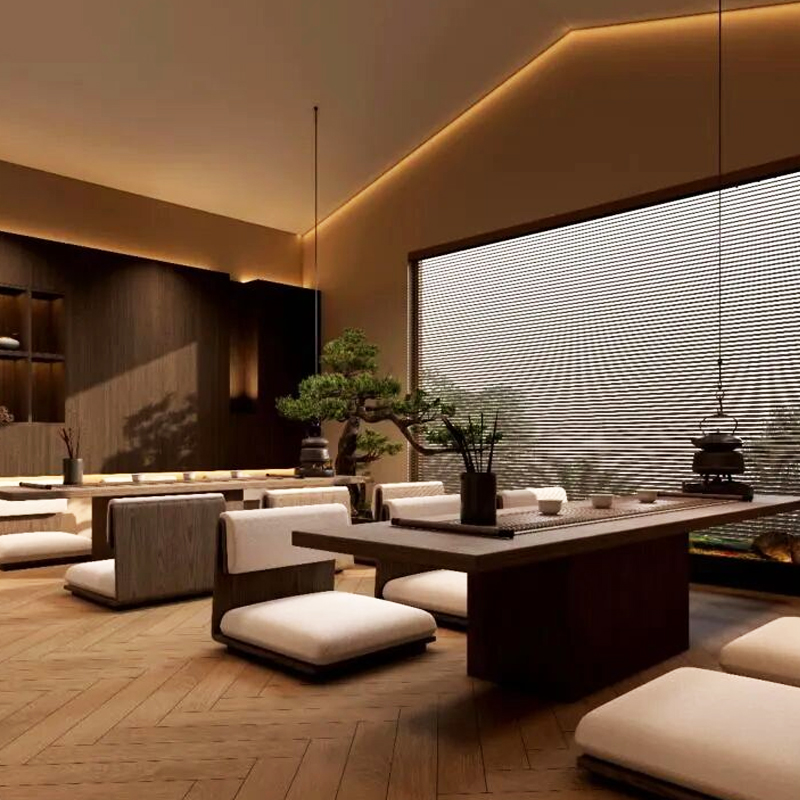

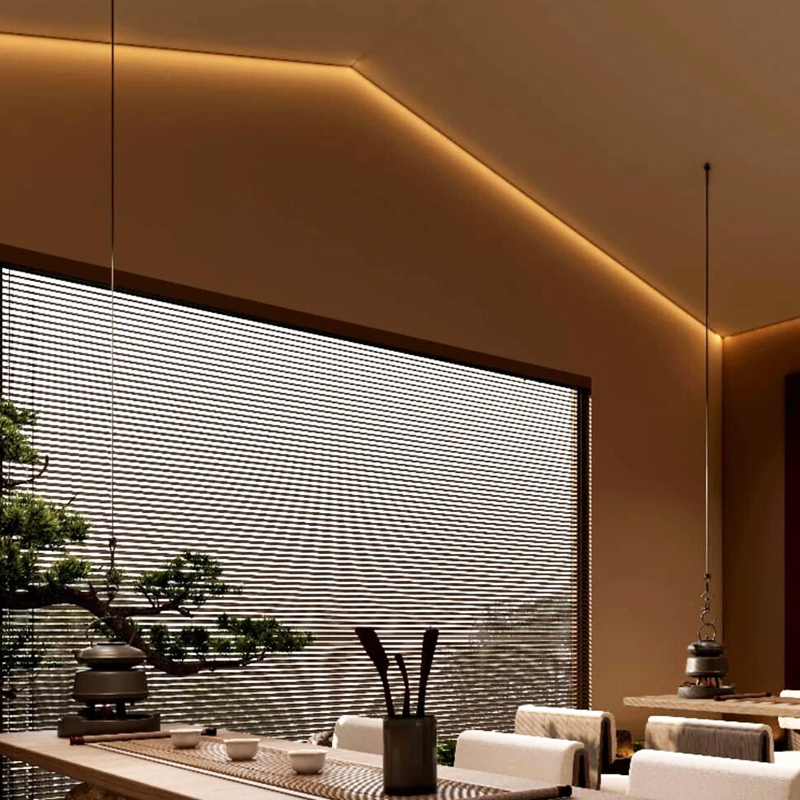

Application and installation: This LED strip is well suited for residential interiors, display shelving, cabinetry, hospitality spaces, and linear accent lighting where accurate color reproduction and clean light lines are required. Ideal for long, uninterrupted installations that benefit from reduced power injection points and flexible cutting lengths.

● High color rendering performance is the defining characteristic of this strip, with a CRI above 90 ensuring materials, finishes, and surfaces appear natural and consistent under illumination. This makes it particularly suitable for environments where visual comfort and color fidelity matter more than high lumen output.

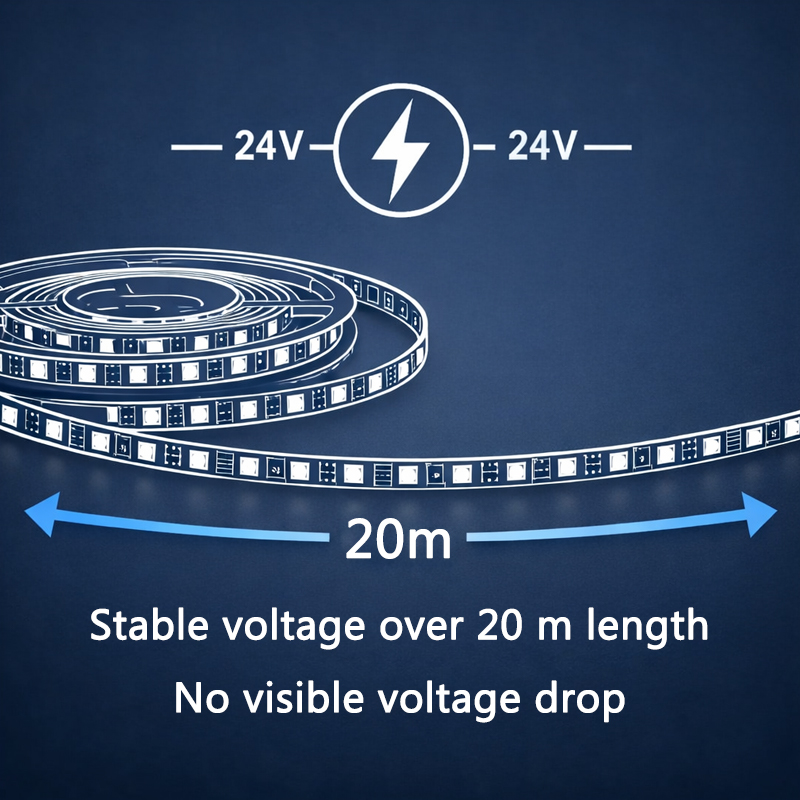

● The electrical design supports continuous installation lengths of up to 20 meters without noticeable brightness loss, simplifying system layouts and reducing wiring complexity compared with conventional strips that require frequent power feeds. This advantage becomes especially relevant in long corridors, shelves, and architectural recesses.

● The luminous output and density remain intentionally moderate, positioning the product as an entrylevel solution with stable performance rather than a high intensity light source. Heat generation is easier to manage, supporting long service life in enclosed or profile mounted applications.

● The cutting unit is configured at 5 LEDs per cut, which differs from the commonly used 6LEDs This finer cutting resolution allows more precise length adjustment, reducing installation waste and enabling better alignment with furniture edges and architectural details. Combined with the 10mm strip width, it offers a balance of compact form factor, flexibility, and control that is not typically found in standard entry grade LED strips.
