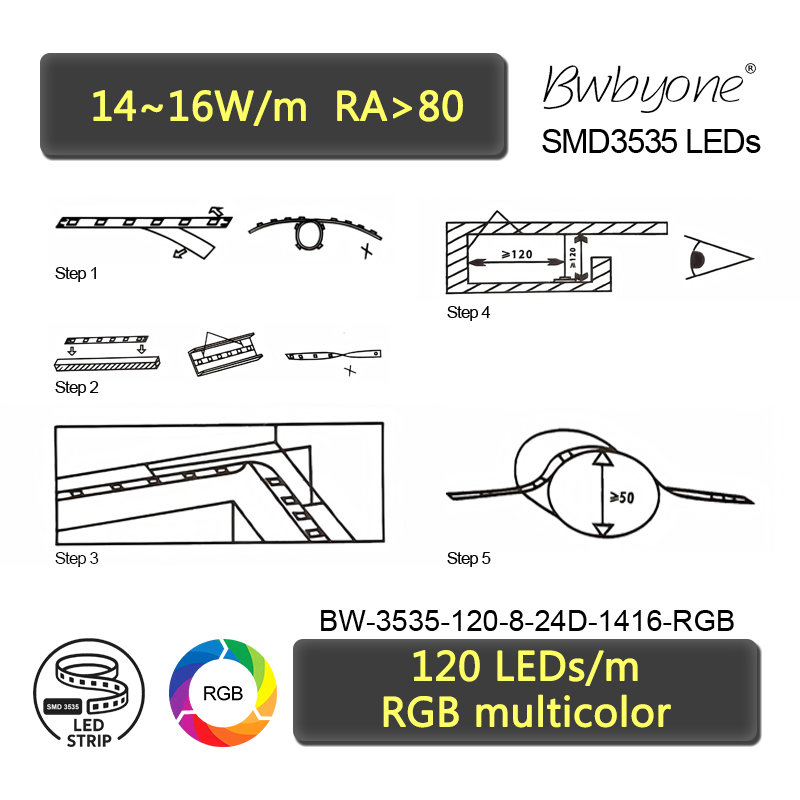

BW-3535-120-8-24D-1416-RGB installation instruction.jpg

BW-3535-120-8-24D-1416-RGB product visual 2.jpg

BW-3535-120-8-24D-1416-RGB product visual.jpg

High Density 3535 RGB LED Strip Light 120 LEDs per Meter 8mm PCB Dynamic Color Lighting

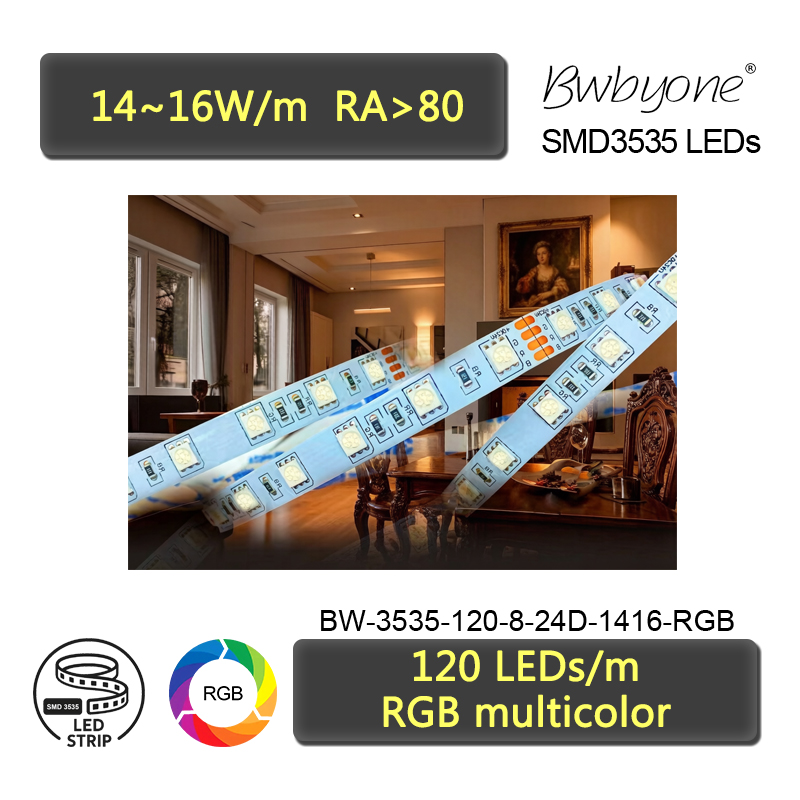

Product Overview: This RGB LED strip uses 3535 LED packages arranged at a density of 120 LEDs per meter on an 8 mm PCB.Compared with conventional RGB strips, the smaller 3535 package allows a significantly tighter LED layout while maintaining stable electrical performance and controlled heat distribution. The increased LED density reduces visible spacing between light points and produces a more continuous dynamic lighting appearance, especially in direct view installations or shallow profile applications. This model is developed for projects that require stronger visual continuity and sharper RGB performance than traditional low density RGB products can provide. Its compact LED structure also contributes to clearer dynamic transitions and more refined color presentation during animated lighting sequences.

Send Inquiry

High Density 3535 RGB LED Strip Light

120 LEDs per Meter 8mm PCB Dynamic Color Lighting

product details

Model
Specification
Features
Line Drawing
OEM services
Download

Product models and descriptions

BW-3535-120-8-24D-1416-RGB

BW- abbreviation of company name Byone

3535- Chips model

120- 60 PCS Chips per meter

8- Strip width:8mm

24D- Rated Voltage: DC 24V

14/16- Rated Power: 14~16W/m

RGB- RGB multicolor lighting

Always consult our qualified salesperson to know more about our product models and descriptions.

Product specification

Input Voltage: DC 24V

Power:14~16W/m

Luminous:1500~1800LM/m

LED Chips model:SMD3535

LED density: 120 LEDs/m

Cutting unit: 6 LEDs per cut

Color temperature : RGB multicolor lighting

CRI:Ra>80

Dimensions:PCB Width-8mm; 10m per roll per package

Unique Feature:RGB color-changing capability

Working temperature and IP rating: -20 ~ 50° C, IP20.

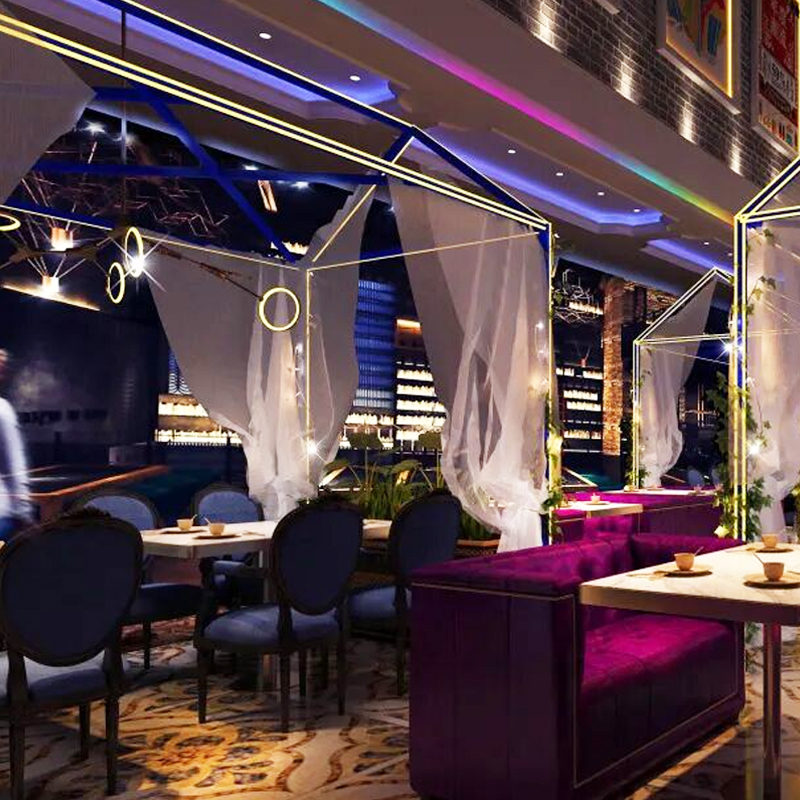

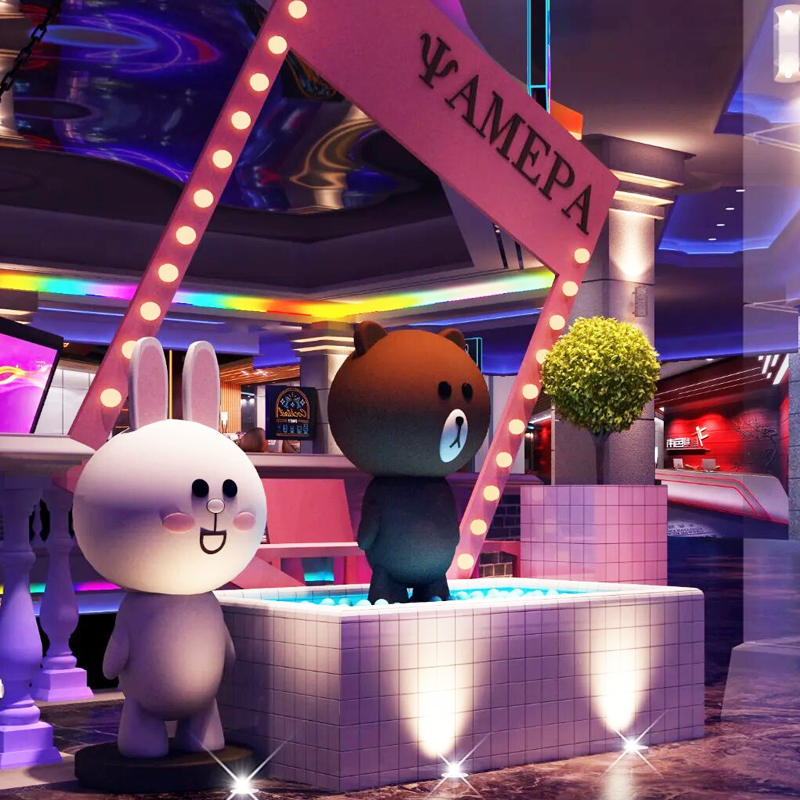

Application and installation: This strip is suitable for gaming environments, retail interiors, bar lighting, entertainment spaces, architectural accents, and display installations where vivid RGB effects and continuous looking illumination are required. The high LED density also makes it appropriate for shallow aluminum profiles, narrow recessed channels, and decorative applications where traditional RGB strips may show excessive pixel spacing.

Features

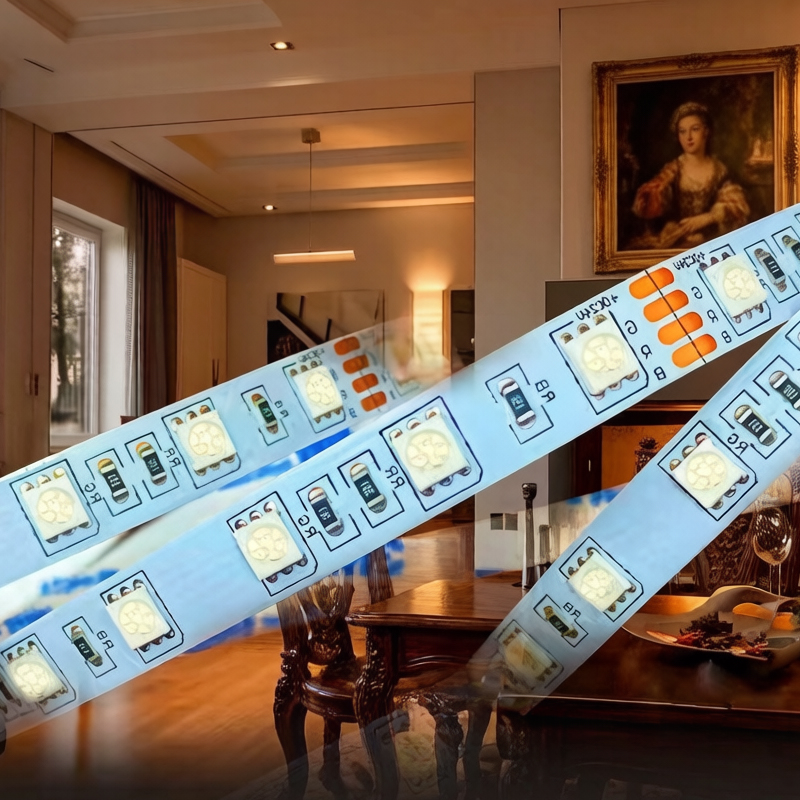

● The strip uses compact 3535 RGB LED packages instead of traditional LED chips, allowing higher installation density within the same strip width. This structure improves visual continuity and creates a more refined lighting appearance during both static and dynamic operation.

● With 120 LEDs per meter, the strip delivers a denser luminous layout than conventional RGB strips. Reduced spacing between LEDs helps dynamic effects appear smoother and minimizes visible segmentation in directview applications.

● The strip maintains stronger overall brightness and more stable color output across the full installation length. The higher power configuration supports applications where RGB lighting must remain visually prominent even in larger spaces.

● The 8 mm PCB width allows integration into compact aluminum profiles and narrow architectural details while still supporting highdensity RGB circuitry. This balance between compact dimensions and elevated LED count makes the strip suitable for modern linear lighting structures.

● Compared with traditional RGB products, the 3535model configuration produces sharper color definition and more concentrated light output. This characteristic is particularly noticeable in animated lighting patterns, chasing effects, and fast changing RGB sequences where visual precision becomes more important.
