High Density Alternating Dual White LED Strip 2835 LEDs 10mm PCB 240 LEDs/m
SMD Strip Light
We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.
Product models and descriptions:

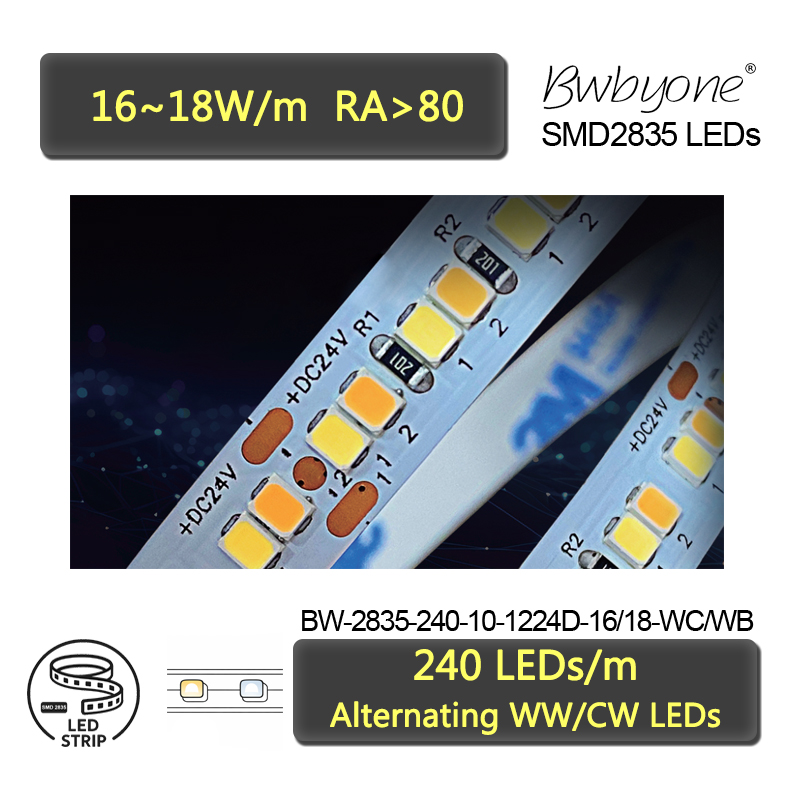

BW-2835-240-10-1224D-16/18-WC/WB
BW- abbreviation of company name Byone
2835- Chips model
240- 240 PCS Chips per meter
10- Strip width:8mm
1224D- Rated Voltage: DC 12V/24V
16/18- Rated Power: 16~18W/m
WC/WB- Discrete WW and CW LEDs in alternating arrangement
Always consult our qualified salesperson to know more about our product models and descriptions.
Product specification:
Input Voltage: DC 12V/24V
Power:16~18W/m
Luminous:1200~1400LM/m
LED Chips model:SMD2835
LED density: 240 LEDs/m
Cutting unit: 12 LED per cut
Color temperature : Tunable White, 2700K–6000K (WW/CW alternating LEDs, blue color is also available)
CRI:Ra>80
Dimensions:PCB Width-8mm; 10m per roll per package
Unique Feature:Discrete warm white and cool white LEDs in an alternating layout.
Working temperature and IP rating: -20 ~ 50° C, IP20.

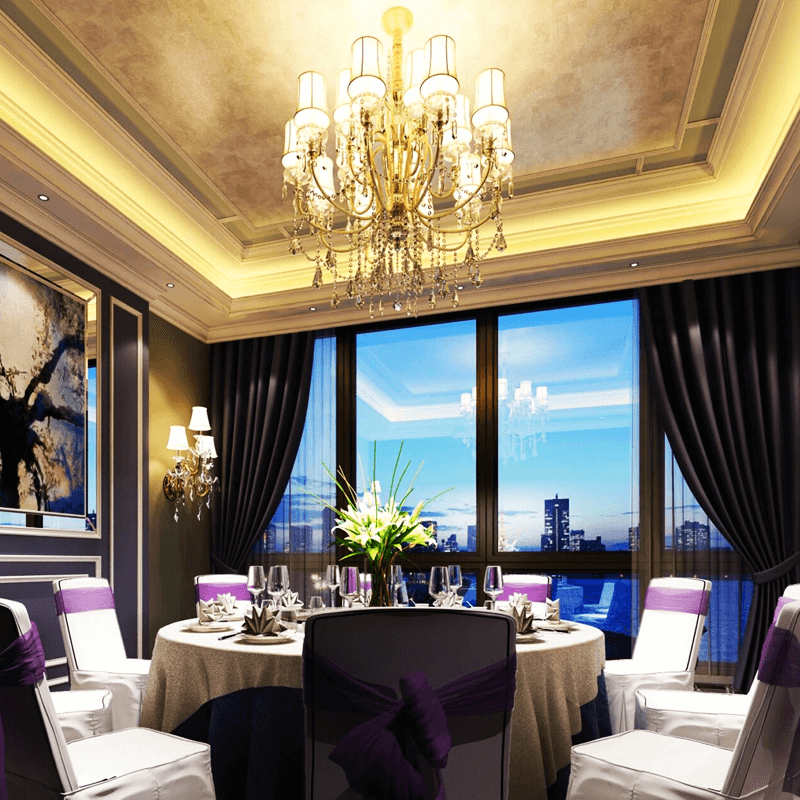

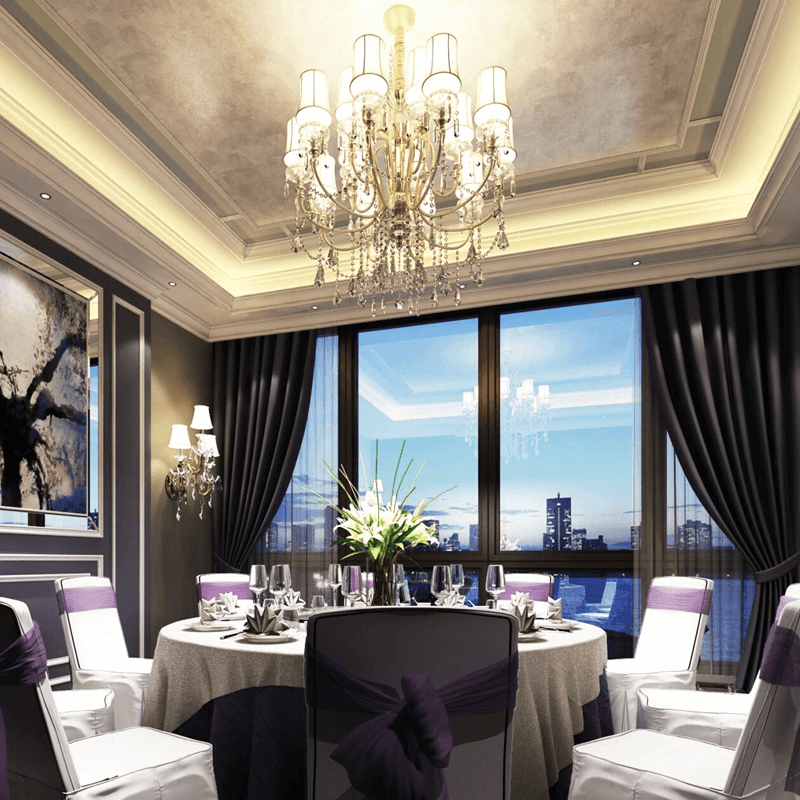

Application and installation: The strip is suitable for architectural coves, feature lighting, commercial interiors, large display structures, and accent lighting where strong brightness and adjustable tone are required. Versions combining warm white and blue are particularly effective in entertainment spaces, branded environments, and decorative installations that demand both functional illumination and color contrast.
Features

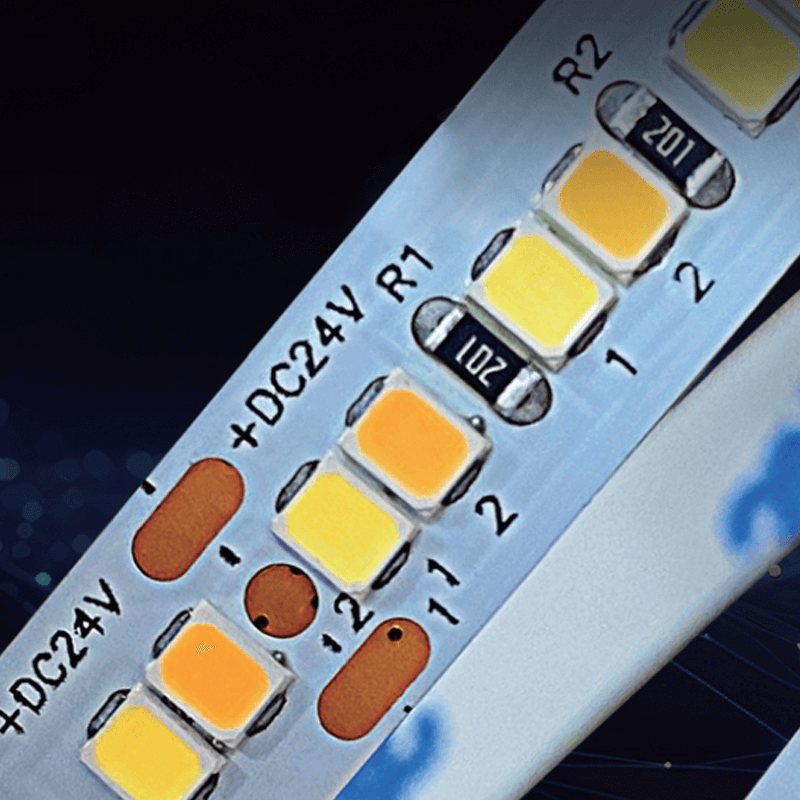

● Warm white LEDs alternate with cool white LEDs along the strip, creating a dual channel structure that supports flexible color temperature adjustment. By replacing the cool white LEDs with blue, the same layout can produce a white-and-color effect without altering PCB design or LED spacing. This adaptability allows the product to serve a wider range of lighting concepts than conventional alternating layouts.
● With 240 LEDs per meter and a power rating of up to 18W/m, the strip delivers a dense and continuous luminous appearance. The high LED count reduces visible spacing and supports uniform brightness across long runs, even in applications where the strip remains directly visible. This density positions the product above entrylevel alternating strips in terms of visual intensity and output capability.
● The 10mm PCB provides the structural and electrical capacity required for highdensity operation. Compared with narrower boards, it supports more robust current paths and improved thermal distribution, contributing to stable performance at elevated power levels. The design also enables a cutting unit of 12 LEDs, balancing flexibility with electrical stability and simplifying installation planning for larger projects.
● Operating within familiar voltage systems while offering higher output, the strip maintains predictable behavior for driver selection and control. Its CRI above 80 ensures acceptable color reproduction for general architectural and decorative lighting, aligning performance with practical project requirements rather than specialty colorcritical use.
