High Output 2835 Dual Row LED Strip 240 LEDs/ 15mm Width 2500 Lumens

Product Overview: This LED strip represents a higher output configuration within the dual row linear lighting category, developed for projects that require substantially higher luminous performance on a robust electrical platform. Using 2835 LEDs arranged in two parallel rows on a 15 mm wide PCB, the strip reaches a total density of 240 LEDs per meter while operating at an elevated power range of 16–18 W/m. With a maximum luminous output of up to 2500 lm/m, it moves beyond standard functional lighting and into a performance-oriented class suitable for demanding architectural and commercial environments.

Compared with lower power model using similar dimensions, this model is defined by its ability to deliver higher light output without compromising operational stability. The wider PCB and dual row layout provide the necessary electrical and thermal headroom to support increased drive current, making the strip suitable for applications where brightness consistency and system reliability are equally critical. In the context of the global LED strip market, this configuration aligns with high tier linear lighting solutions rather than basic or utility grade products.

    Send Inquiry
    cpbjtp

    LED Recessed Mounted Downlight

    We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.

    product details

    Product models and descriptions

    BW-2835-240-15-1224D-16/18-DR-2K5

    BW- abbreviation of company name Byone

    2835- Chips model

    240- 240 PCS Chips per meter

    15- Strip width:15mm

    12/24D- Rated Voltage: DC 12V/24V

    16/18- Rated Power: 16~18W/m

    DR- Double row series

    2K5- Max. Luminous of this series



    Always consult our qualified salesperson to know more about our product models and descriptions.

    Product specification

    Input Voltage: DC 12V/24V

    Power:16~18W/m

    Luminous:2000~2500LM/m

    LED Chips model:SMD2835

    LED density: 240 LEDs/m

    Cutting unit: 6 LEDs per cut

    Color temperature : Available in 3000K/4000K/6000K single color temperature

    CRI:Ra>85

    Dimensions:PCB Width-15mm; 10m per roll per package

    Working temperature and IP rating: -20 ~ 50° C, IP20.

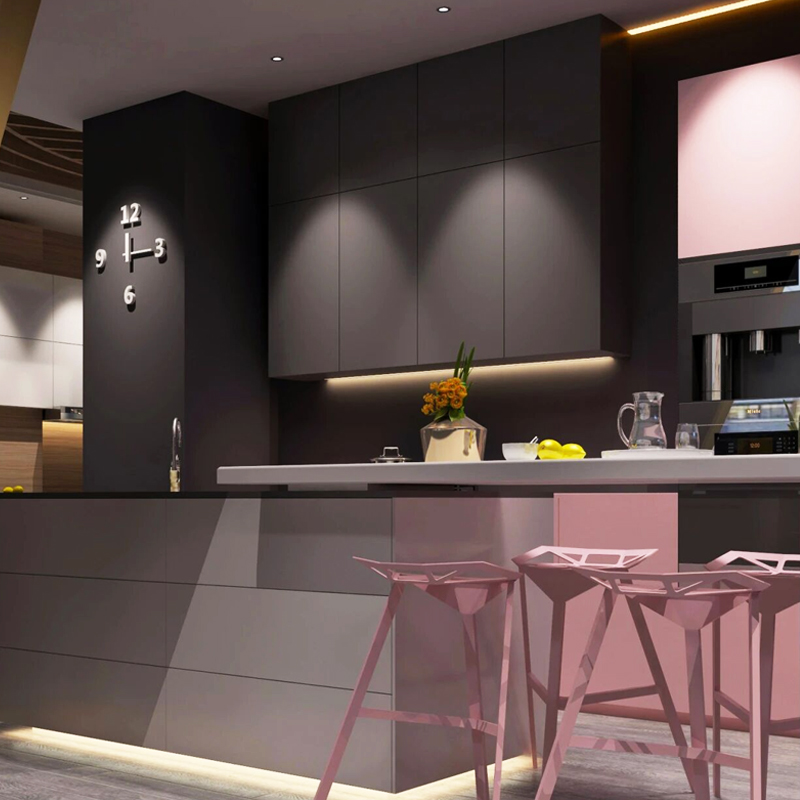

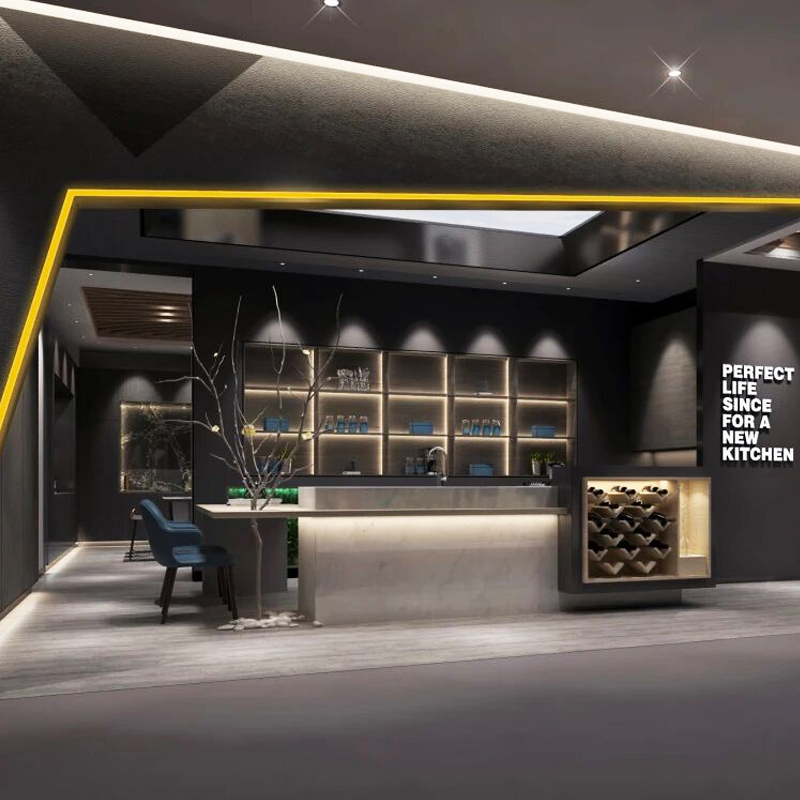

    Application and installation: This model is intended for high demand linear lighting applications such as commercial interiors, retail environments, feature ceilings, signage back lighting, large display systems, and architectural elements requiring strong illumination levels. Suitable for installations using wide or deep aluminum profiles designed for higher thermal loads.

    Features

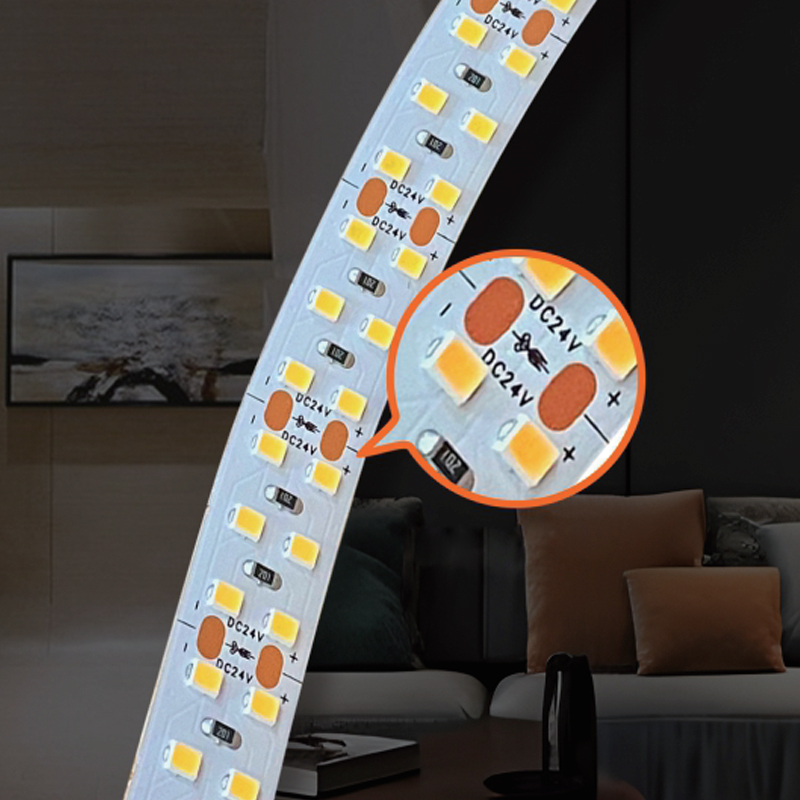

    ● The 15 mm PCB width plays a central role in enabling higher luminous output. Compared with narrower models, the wider board provides increased copper area and layout flexibility, supporting higher current capacity and improved heat spreading. This structural margin allows the strip to operate at up to 18 W/m while maintaining controlled electrical behavior over extended use.

    ● The dualrow LED arrangement distributes light sources across the full board width, which helps balance thermal load and supports uniform brightness even at elevated output levels. With 240 LEDs/m, the strip maintains a dense and continuous light pattern, making it suitable for visible linear installations where strong illumination must also appear clean and consistent.

    ● Delivering up to 2500 lm per meter, this model sits well above basic linear strips in terms of light output. The higher lumen package enables fewer runs to achieve target illumination levels, improving layout efficiency in large spaces. At the same time, it ensures reliable color appearance, supporting commercial and architectural applications where visual accuracy remains important.

    ● From a system design perspective, this highoutput dual row strip is best suited for projects that demand both intensity and durability. It integrates naturally with heavy duty aluminum profiles and professional grade power supplies, forming part of a lighting system designed for long operating hours and consistent performance rather than minimal cost.

      We offer OEM manufacturing services according to specific requirements.Our OEM services include:
