High Voltage 220V LED Strip 2835 LEDs 5mm PCB High Output Design

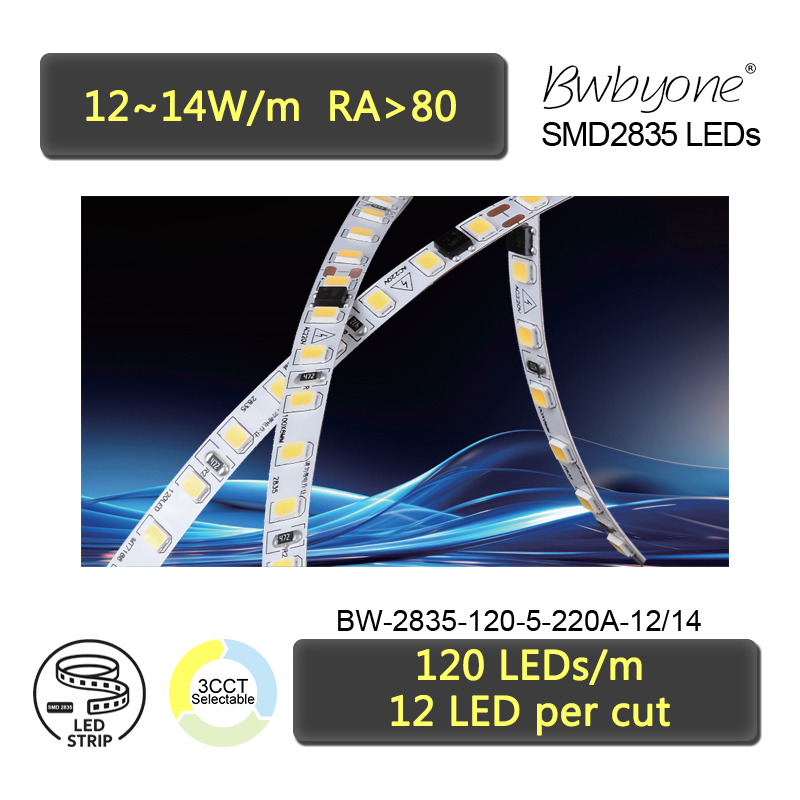

Product models and descriptions:

BW-2835-120-5-220A-12/14

BW- abbreviation of company name Byone

2835- Chips model

120- 120 PCS Chips per meter

5- Strip width:5mm

220A- Rated Voltage: AC 220V

12/14- Rated Power: 12~14W/m

Always consult our qualified salesperson to know more about our product models and descriptions.

Input Voltage: AC 220V

Power:12~14W/m

Luminous:1500~1800LM/m

LED Chips model:SMD2835

LED density: 120 LEDs/m

Cutting unit: 12 LEDs per cut

Color temperature : Available in 3000K/4000K/6000K single color temperature

CRI:Ra>80

Dimensions:PCB Width-5mm; 10m per roll per package

Working temperature and IP rating: -20 ~ 50° C, IP20.

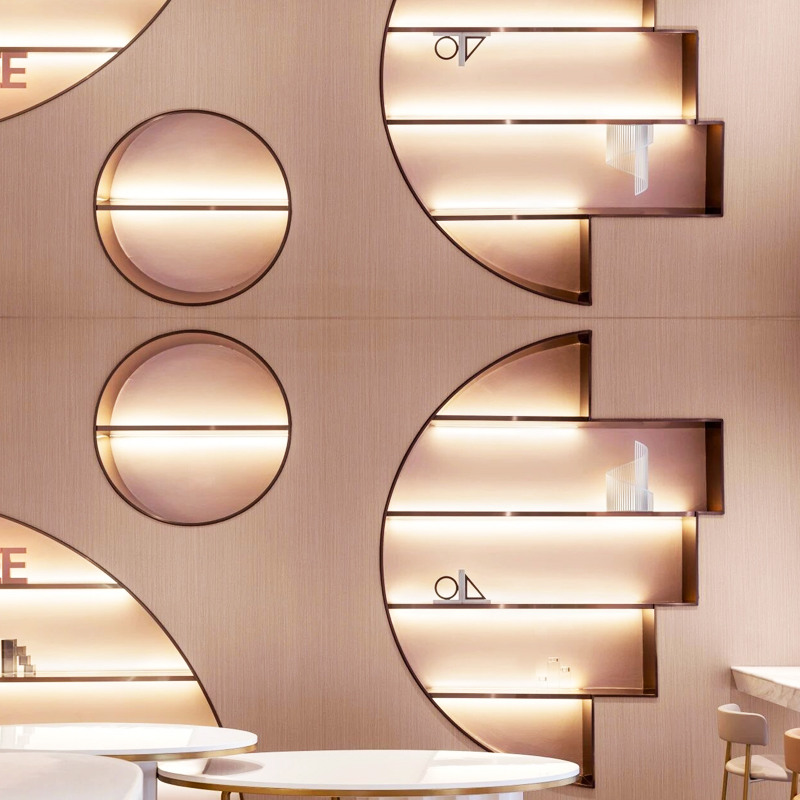

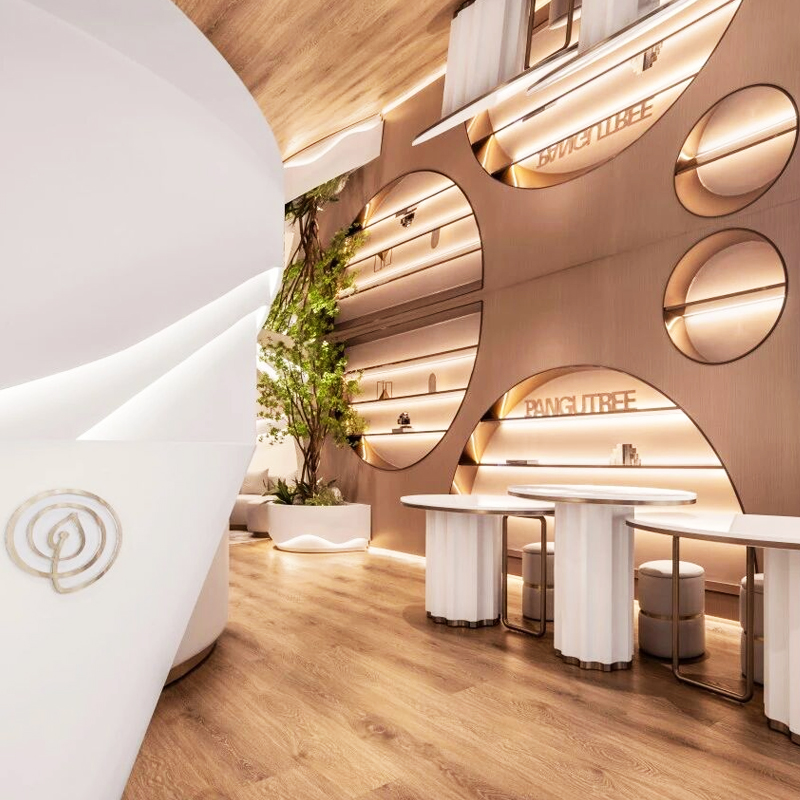

Application and installation: This product is well suited for architectural outlines, linear accent lighting, commercial signage, corridor lighting, and large scale interior installations where long runs and simplified wiring are required. It is particularly effective in projects where access to drivers is limited or where reducing installation components and connection points is a priority.

● The strip operates on a 220V highvoltage system, distinguishing it fundamentally from standard low voltage LED strips. This configuration allows direct connection to mains power, reducing the need for external drivers and minimizing voltage drop concerns over extended lengths. For installers, this translates into fewer components, faster deployment, and cleaner system layouts, especially in large or continuous installations.

● Although LED density, power consumption, and CRI are positioned at a conventional level, the strip delivers a comparatively high lumen output. This efficiency-oriented design prioritizes visible brightness and practical illumination rather than advanced color control. As a result, the strip performs well in applications where light output per meter is more critical than refined optical tuning.

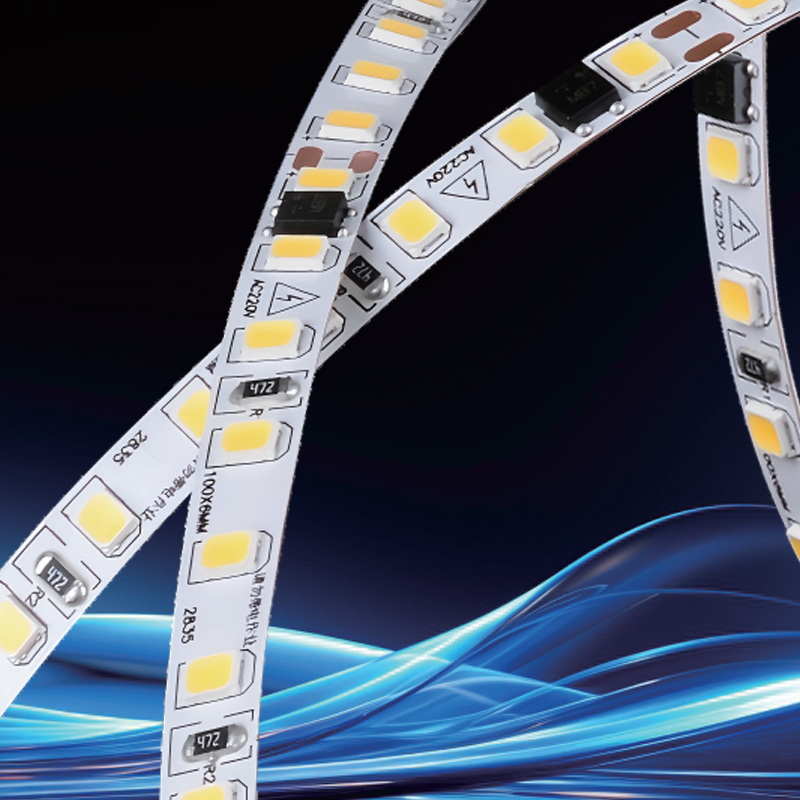

● Only5mm PCB width places this product among the narrowest high voltage LED strips available. This slim format enables installation in tight channels, shallow recesses, and minimal profiles that would not accommodate wider boards. Despite its narrow structure, the PCB supports stable operation at higher voltage levels without compromising mechanical integrity.

● The strip is designed with a cutting unit of 12 LEDs, offering a balanced approach between flexibility and electrical stability. While highvoltage products typically allow fewer cutting options than low voltage strips, this segmentation still provides practical adaptability for on-site length adjustment without significantly affecting performance.
