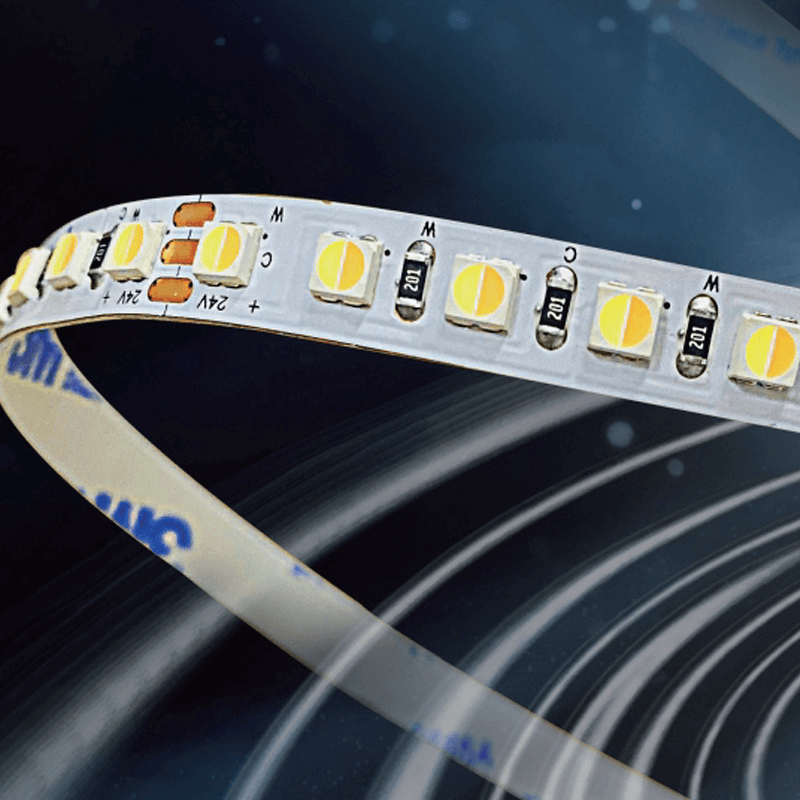

Integrated Dual White LED Strip with 3838 LEDs 8mm PCB High CRI Tunable Configuration

This LED strip introduces a less conventional LED model to tunable white and mixed color lighting by adopting 3838 LED packages instead of the more common 2835 series. Built on an 8mm PCB with 120 LEDs per meter, the strip makes it clearly above entry level products in terms of color quality. Its defining characteristic lies in the integrated chip configuration: each LED package combines two light sources within a single housing. In its standard form, these are warm white and cool white, enabling smooth adjustment of color temperature without altering the physical layout of the strip. Alternatively, the cool white channel can be replaced with blue, allowing the same platform to serve both functional white lighting and decorative or accent-oriented applications. This flexibility, paired with the distinct optical behavior of 3838 LEDs, gives the product a clearly different identity from conventional tunable white strips.

    Send Inquiry
    cpbjtp

    SMD Strip Light

    We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.

    product details

    Product models and descriptions:

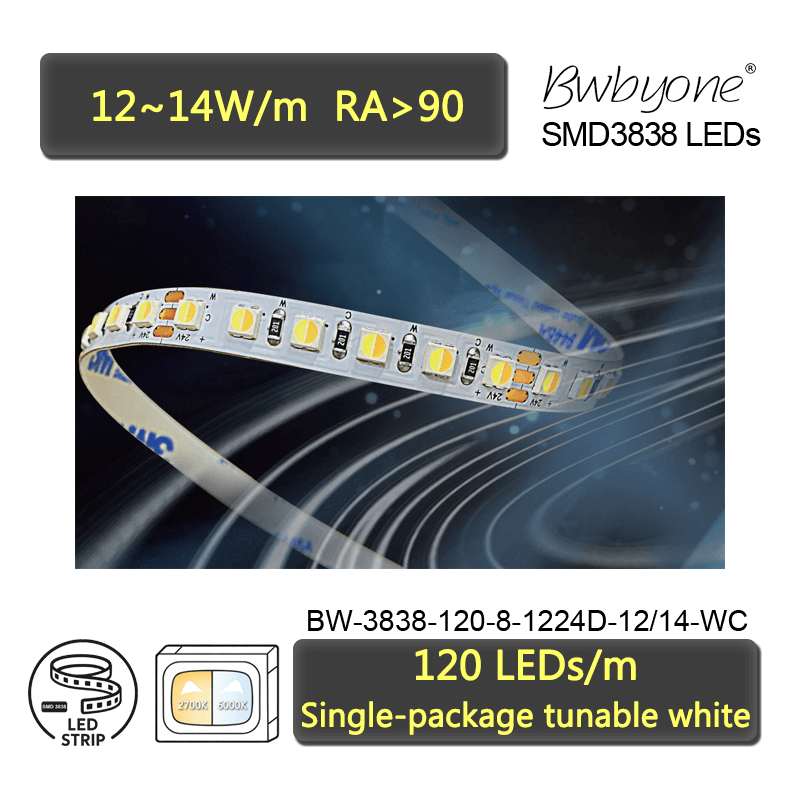

    BW-3838-120-8-1224D-12/14-WC

    BW- abbreviation of company name Byone

    3838- Chips model

    120- 120 PCS Chips per meter

    8- Strip width:8mm

    1224D- Rated Voltage: DC 12V/24V

    12/14- Rated Power: 12~14W/m

    WC- Dual CCT (WW/CW or WW/BLUE) LED configuration,each LED package integrates chips



    Always consult our qualified salesperson to know more about our product models and descriptions.

    Product specification:

    Input Voltage: DC 12V/24V

    Power:12~14W/m

    Luminous:1200~1400LM/m

    LED Chips model:SMD3838

    LED density: 120 LEDs/m

    Cutting unit: 6 LED per cut

    Color temperature : Tunable White, 2700K~6000K(Blue color is also available)

    CRI:Ra>90

    Dimensions:PCB Width-8mm; 10m per roll per package

    Unique Feature:Using dual-CCT integrated LED packages

    Working temperature and IP rating: -20 ~ 50° C, IP20.

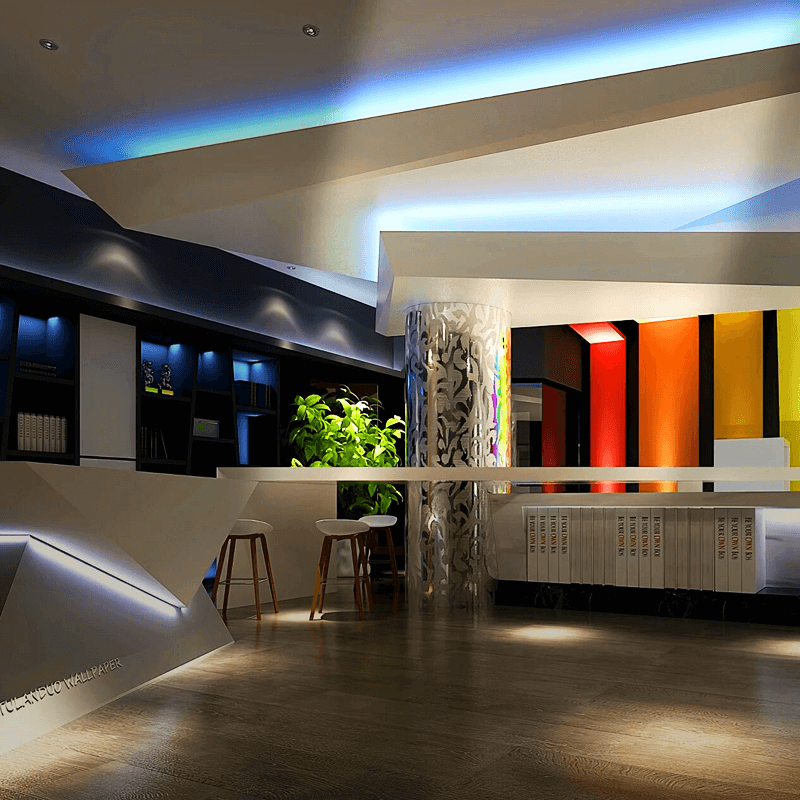

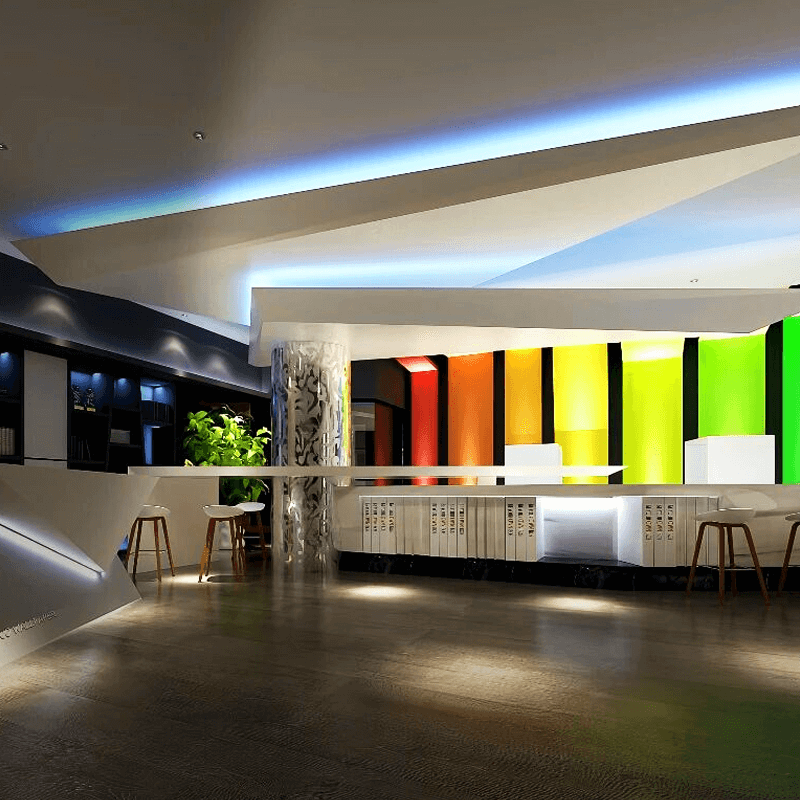

    Application and installation: The strip is suitable for interior architectural lighting, feature walls, display installations, retail environments, and hospitality spaces where high color fidelity and adjustable tone are required. Versions combining warm white with blue are especially applicable to accent lighting, mood lighting, and visual merchandising where white illumination and color effects are both needed within a single lighting system.

    Features

    ●  Each 3838 LED integrates two light sources within one package, supporting either warm white plus cool white or warm white plus blue configurations. This structure enables tonal adjustment or color switching without alternating different LED types along the strip. Compared with physically separated LEDs, the integrated approach delivers smoother visual transitions and avoids visible color segmentation at short viewing distances.

    ●  The use of 3838 LEDs sets this product apart from standard tunable white strips. With a larger emitting surface and different internal structure, these LEDs provide a distinct luminous appearance and improved color stability, particularly at higher CRI levels. This makes the strip well suited to applications where color accuracy and visual comfort are more important than maximum brightness density.

    ●  It ensures accurate color reproduction across illuminated objects and surfaces. This level of color rendering supports use in environments where material finishes, product colors, or interior details need to be presented faithfully, rather than simply brightly lit.

    ●  The 8mm PCB maintains compatibility with slim mounting profiles and compact channels, allowing the strip to be integrated into spacelimited designs. Despite incorporating integrated dual channel LEDs, the overall form factor remains familiar, simplifying installation and system planning.
