IP68 Waterproof LED Strip with Individual Diffusers and Cuttable Single LEDs

Product Overview: This LED strip is designed as a fully sealed lighting solution for demanding environments where exposure to water, moisture, or dust is unavoidable. Built with 2835 LEDs mounted on a 15mm PCB, it delivering stable and consistent illumination under continuous use. What clearly differentiates this model from conventional indoor strips is its integrated silicone encapsulation, which provides true IP68 protection. The strip is engineered for long term outdoor or submerged applications, while maintaining precise light control and electrical reliability. With a relatively low LED density of 42 LEDs per meter, the design intentionally prioritizes durability, optical comfort, and serviceability over visual density.

Send Inquiry

4W 320LM BW-CGC90401 Round LED Under Cabinet Light

Wall Lights/Cabinet Lighting

product details

Model
Specification
Features
Line Drawing
OEM services
Download

Product models and descriptions

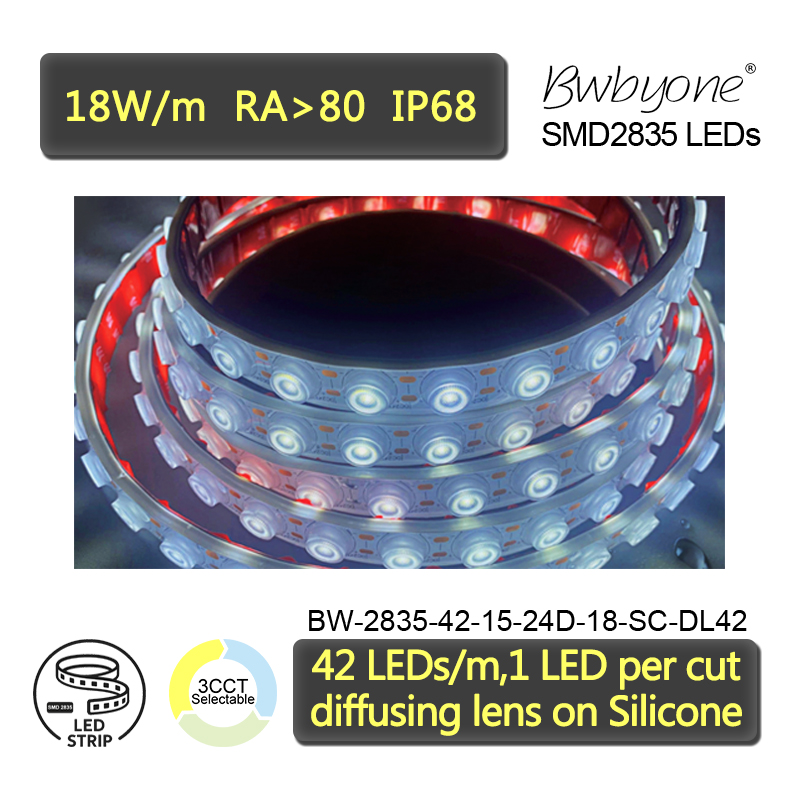

BW-2835-42-15-24D-18-SC-DL42

BW- abbreviation of company name Byone

2835- Chips model

42- 42 PCS Chips per meter

15- Strip width:15mm

24D- Rated Voltage: DC 24V

18- Rated Power: 18W/m

SC- Single Cuttable LED strip

DL42- Diffusing lens. Dia. Of lens: 4.2mm

Always consult our qualified salesperson to know more about our product models and descriptions.

Product specification

Input Voltage: DC 24V
Power:18W/m
Luminous:900~1000LM/m

LED Chips model:SMD2835

LED density: 42 LEDs/m

Cutting unit: 1 LEDs per cut

Color temperature : Available in 3000K/4000K/6000K single color temperature
CRI:Ra>80
Dimensions:PCB Width-15mm; 5m per roll per package

Working temperature and IP rating: -20 ~ 50° C, IP68.

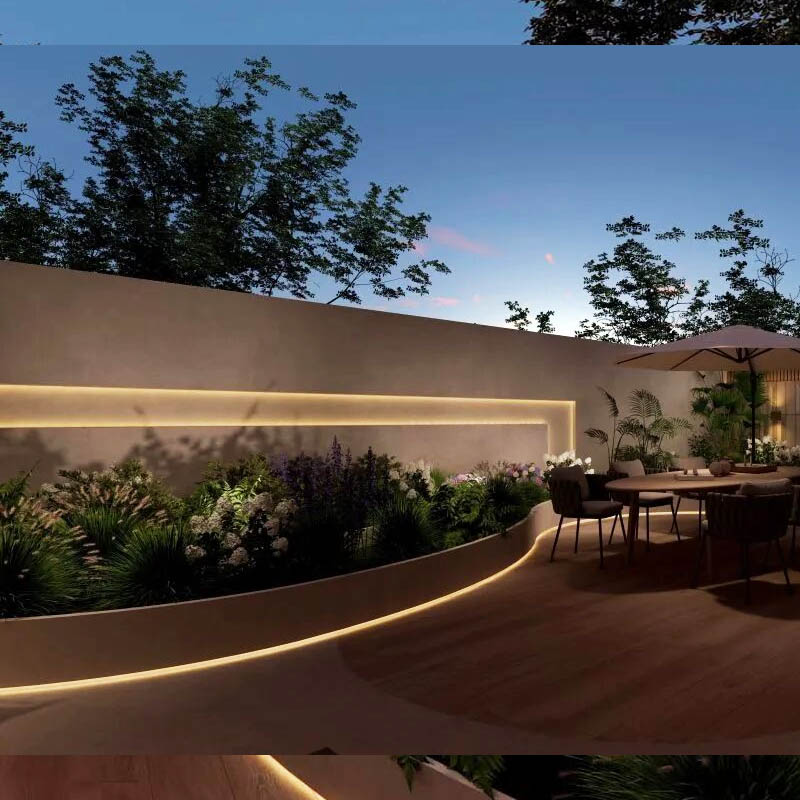

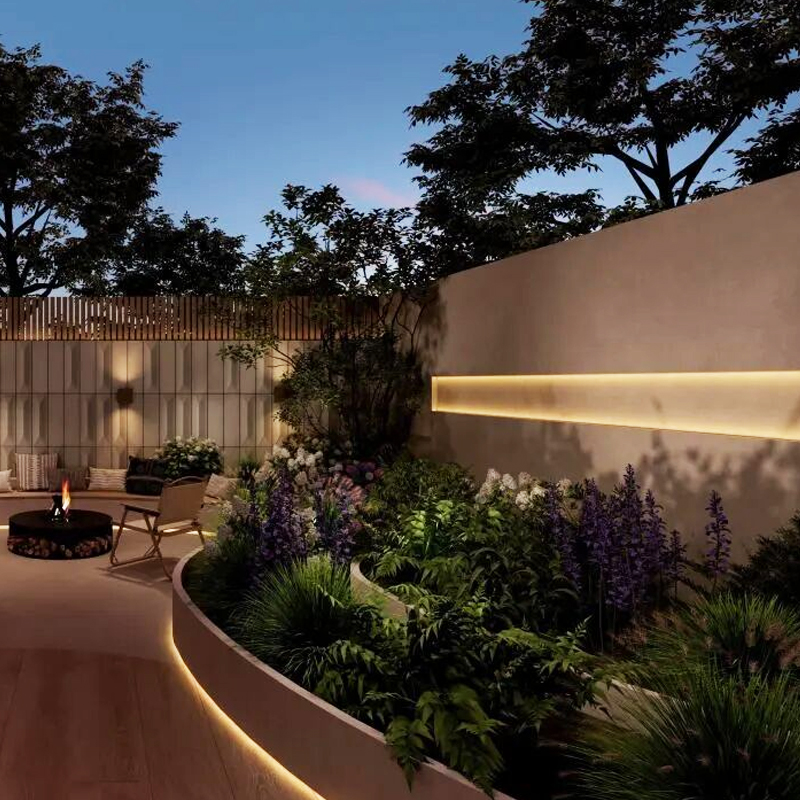

Application and installation: This product is suitable for outdoor architectural outlines, landscape lighting, fountains, pools, marine installations, signage exposed to weather, and industrial environments where water ingress is a constant concern. It is also applicable in projects requiring frequent length customization on site, such as curved profiles or segmented installations, where both waterproof integrity and flexible cutting options are essential.

Features

An encased in a continuous silicone layer surrounds the LED strip, forming a continuous waterproof barrier that meets IP68 requirements. This construction protects the internal circuitry from water immersion, humidity, dust, and chemical exposure, making the strip reliable in environments where standardproducts are insufficient. The silicone material also provides mechanical cushioning, improving resistance to vibration and impact.
The 15mm width is purpose-built to support the silicone encapsulation and internal optical components. Compared with narrow boards, this wider structure offers greater mechanical stability and improved heat dissipation, which is particularly important for a sealed product operating at 18W per meter. The additional width also allows more consistent current distribution along the strip, contributing to stable output over long runs.

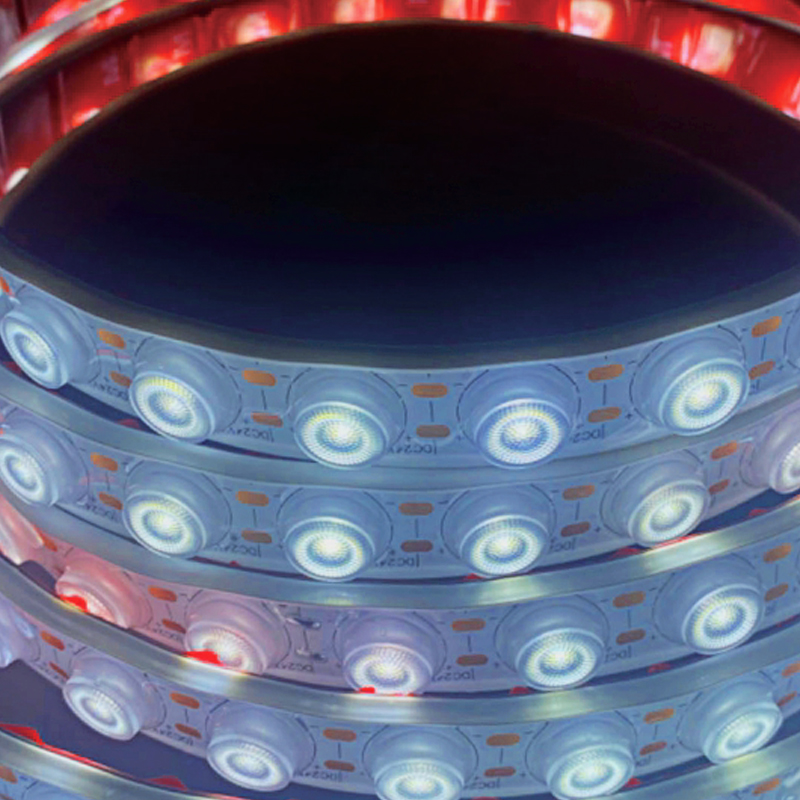

Each LED is paired with its own integrated diffusion element within the silicone housing. This individual lightspreading structure softens glare, reduces harsh point brightness, and creates a more uniform visual appearance, even at close viewing distances. Unlike surface diffusion methods, this approach maintains optical consistency even if the outer surface is exposed to water or contaminants.
The strip supports one LED per cut, with each LED driven by its own dedicated resistor. This design greatly simplifies length adjustment and minimizes performance variation after cutting. Voltage stability and brightness consistency are maintained at each segment, which is especially valuable for customized outdoor installations where precise sizing and reliability are critical.
