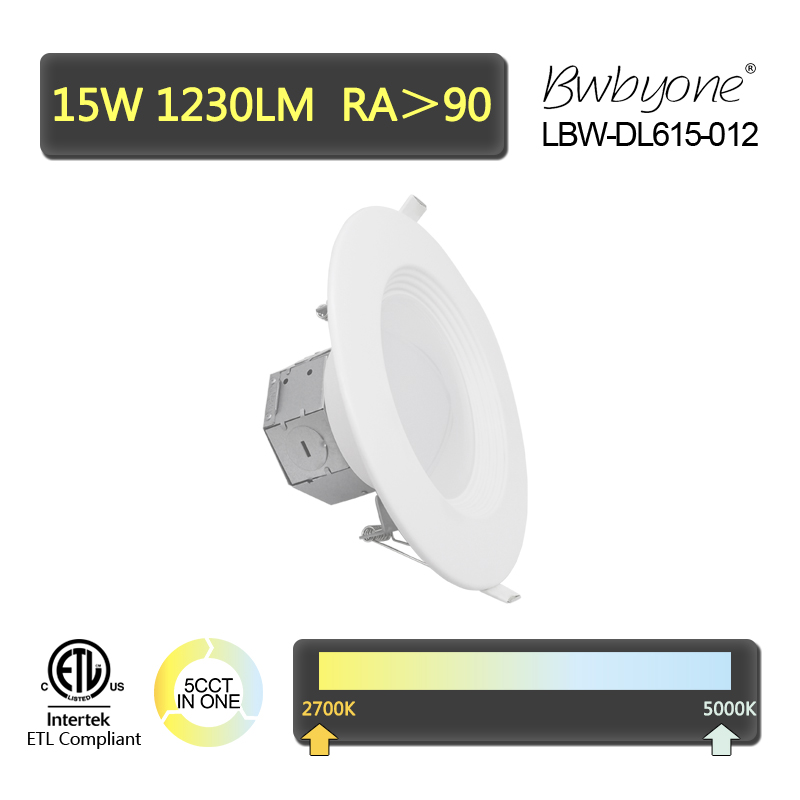

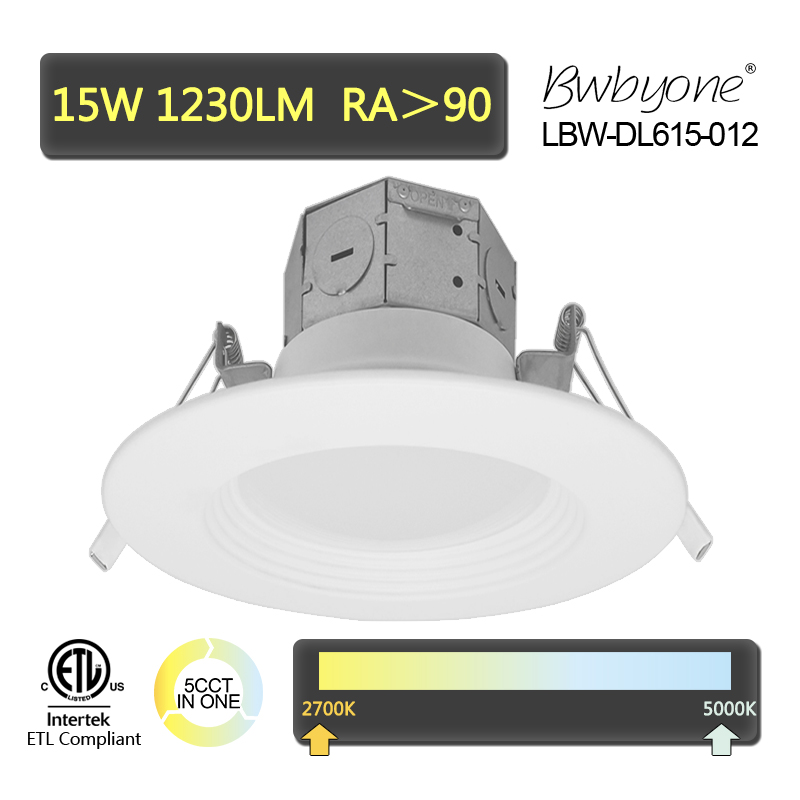

LBW-DL615-012 LED Recessed Mounted Downlight

Product Overview: This model has an integrated design that combines the junction box and driver into a single unit, simplifying maintenance and ensuring ease of use.Thanks to our self-owned patended design for this 5CCT manual dimmer, it allows 5 types of color temperatures selections which from 2700K to 5000K, making it suitable for various settings like residential and commercial spaces. This LED downlight supports a wide voltage range (100-277V) and frequency (50/60Hz), with ETL certification, the product ensures reliable performance and compatibility across the US market and the most global markets.

    Send Inquiry
    cpbjtp

    LED Recessed Mounted Downlight

    We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.

    product details

    Product models and descriptions

    LBW- abbreviation of company name Byone

    DL6- Product model series

    15- Product rated power

    0/1/2- Product finish color: 0-white,1-silver,2-black

    1/Z- Product color temperature:1- 5CCT in 1, Z-RGB

    1/2 - 1-Dimmable by Smart Home App, 2: Dimmable by Triac dimmer

    Example:

    LBW-DL615-012: White finish color, 5CCT in 1,Dimmable by Triac dimmer

    LBW-DL615-211: Black finish color, 5CCT in 1,Dimmable by Smart Home App.

    Always consult our qualified salesperson to know more about our product models and descriptions.

    Product specification

    Input Voltage: 110V~277V,50/60Hz
    Power:15W
    Luminous:1230 lm
    Chips model:SMD2835
    Color temperature :5CCT IN 1 (2700K ~5000K)
    Power factor:>0.9
    CRI:Ra>90
    Dimensions:H83 x Φ180 mm
    Opening sizes: Φ160mm
    Housing material:Steel with PC
    Finish color: White
    Working temperature: -20 ~ 40° C

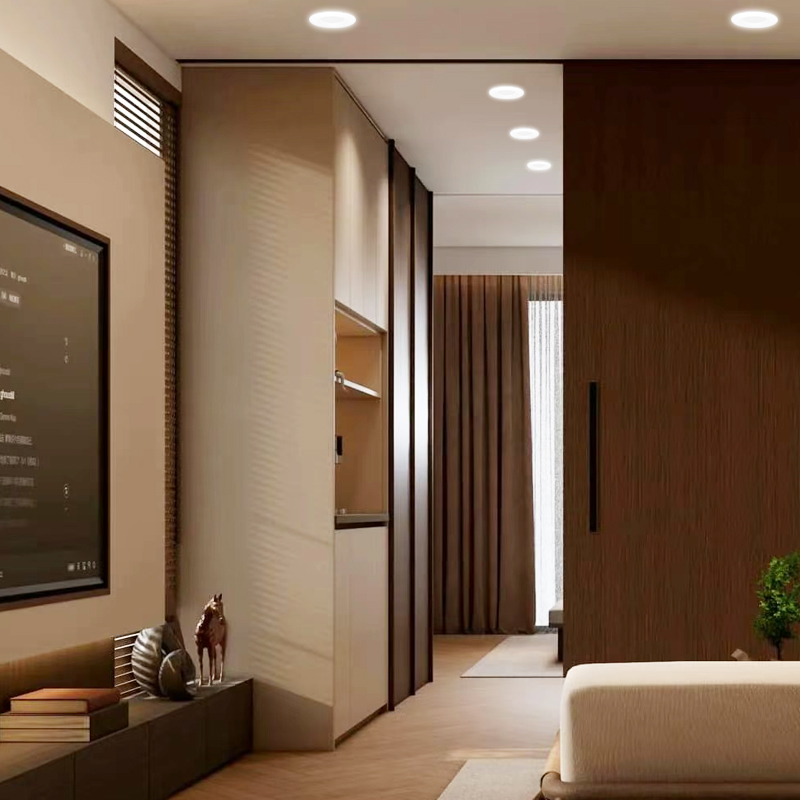

    Application and installation:Recessed mounted on any ceiling for multiple lighting needs in residential, office, and commercial spaces.Application and installation:Recessed mounted on any ceiling for multiple lighting needs in residential, office, and commercial spaces.
    Application and installation: Recessed mounted on any ceiling for multiple lighting needs in residential, office, and commercial spaces.

    Features

    ● With its high power factor and color rendering index performance, this LED downlight delivers perfect light output with outstanding energy-saving feature.
    ● Offering 1230 lumens of light output, delivers consistent and efficient illumination for daily lighting,perfect for everyday lighting applications in homes, offices, and commercial spaces.
    ● The integrated junction box include integrated manual dimmer, convenient and quick finish color temperature adjustment.
    ● Come with optional retrofit kits, allowing to upgrade existing fixtures with a new LED light source,offering a cost-effective solution without the need for full fixture replacement.
    ● ETL Compliant for North American Standards.Ensures your products meet recognized electrical safety requirements, supports faster market access.

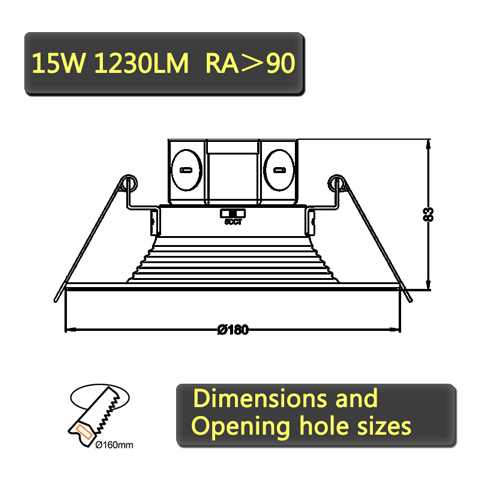

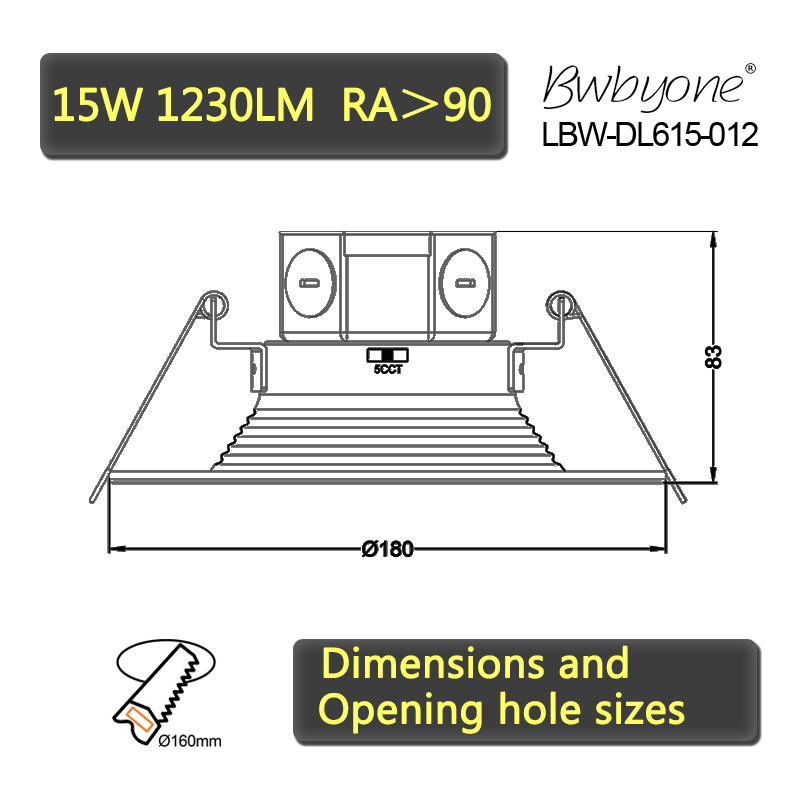

    Line Drawing

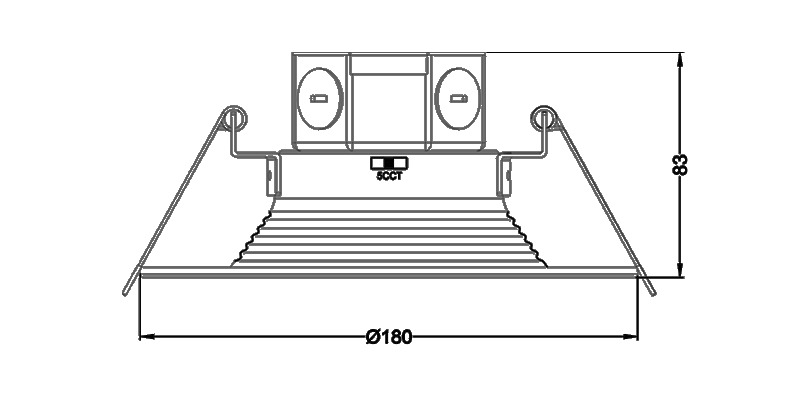

    LBW-DL615-012 Line drawing m
