LED Strip with Individual Diffusers and Single LED Cut Design 2835 11mm PCB

Product Overview: This LED strip is developed for applications where precise light control, clean segmentation, and predictable electrical behavior are more important than high visual density. Built with 2835 LEDs on 11mm width PCB, the strip operates at 18W/m, offering stable output for general purpose indoor lighting. This model integrates structural and electrical refinements at the single LED level. Each LED is treated as an independent optical and electrical unit, allowing the product to perform consistently even when customized into short segments. The result is a practical lighting solution that balances straightforward specifications with thoughtful internal design, making it suitable for professional installations where control and reliability are valued over decorative density.

Send Inquiry

4W 320LM BW-CGC90401 Round LED Under Cabinet Light

Wall Lights/Cabinet Lighting

product details

Model
Specification
Features
Line Drawing
OEM services
Download

Product models and descriptions

BW-2835-42-11-24D-18-SC-DL48

BW- abbreviation of company name Byone

2835- Chips model

42- 42 PCS Chips per meter

11- Strip width:11mm

24D- Rated Voltage: DC 24V

18- Rated Power: 18W/m

SC- Single Cuttable LED strip

DL48- Diffusing lens. Dia. of lens: 4.8mm

Always consult our qualified salesperson to know more about our product models and descriptions.

Product specification

Input Voltage: DC 24V
Power:18W/m
Luminous:900~1000LM/m

LED Chips model:SMD2835

LED density: 42 LEDs/m

Cutting unit: 1 LEDs per cut

Color temperature : Available in 3000K/4000K/6000K single color temperature
CRI:Ra>80
Beam Angle:170°
Dimensions:PCB Width-11mm; 20m per roll per package

Working temperature and IP rating: -20 ~ 50° C, IP20.

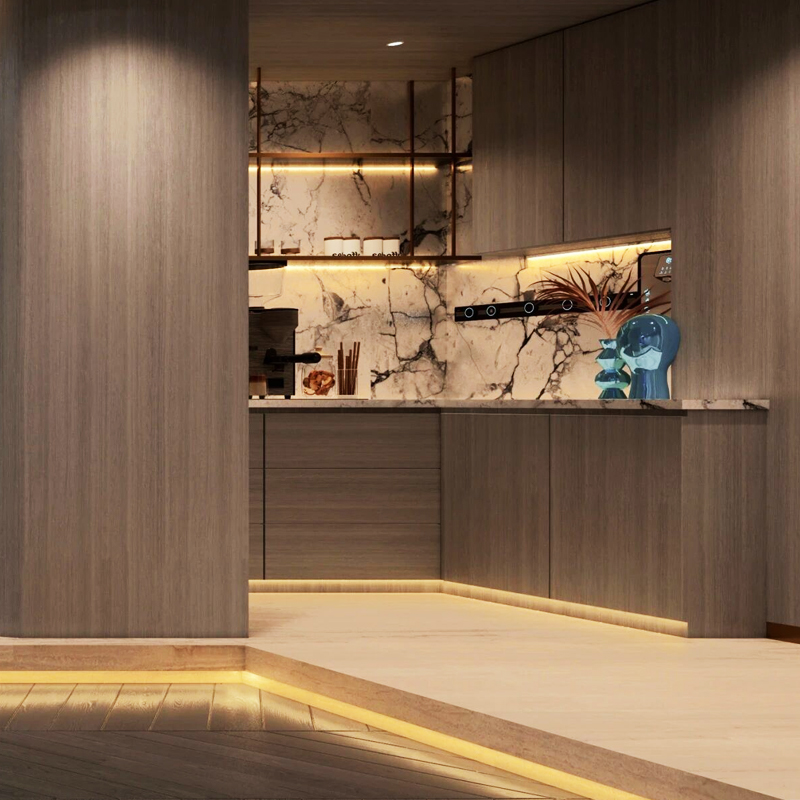

Application and installation: This product is well suited for furniture lighting, display cabinets, shelving systems, signage back lighting, light boxes, and architectural details used in dry indoor environments. It is particularly appropriate for projects that require frequent cutting, segmented layouts, or precise length matching, such as retail fixtures, exhibition stands, and custom built interiors.

Features

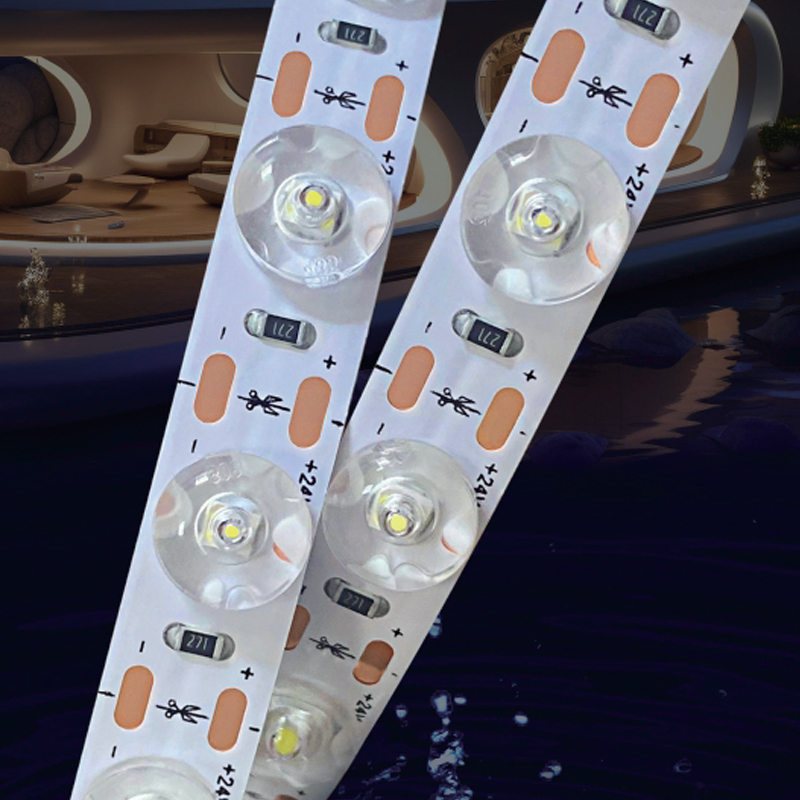

Each LED is equipped with its own dedicated diffusion element, positioned directly over the light source. This localized diffusion approach reduces point glare and softens brightness without relying on external covers or profiles. Compared with standard LED strips, the light output appears more controlled and visually comfortable, especially in applications where the strip is visible at close range or mounted without an additional diffuser.
The strip supports single LED cutting, with every LED paired with an individual resistor. This configuration ensures that electrical load and current regulation remain stable after cutting, preventing brightness imbalance between segments. It allows installers to trim the strip to exact lengths without compromising performance, which is particularly useful in modular designs and custom installations that demand high dimensional accuracy.
The 11mm PCB width provides a practical balance between compact size and structural stability. Compared with ultranarrow models, this width offers improved mechanical strength and more consistent heat distribution, while still fitting into most standard aluminum profiles and mounting channels. It also supports the integration of individual optical components without overcrowding the layout.
This strip is intended for dry indoor use, simplifying installation and reducing material complexity. The design maintains better heat dissipation and easier integration with profiles, connectors, and accessories commonly used in interior lighting systems.
