Single Color Chasing LED Strip DC 24V 8mm Width for Dynamic Linear Lighting

Product Overview: This LED strip is designed to introduce dynamic lighting behavior into single color linear installations. Unlike conventional static strips, it produces a flowing or chasing light effect while maintaining the clean appearance and simplicity of a monochrome output. It offers a practical balance between visual motion and controlled electrical performance.

Send Inquiry

4W 320LM BW-CGC90401 Round LED Under Cabinet Light

Wall Lights/Cabinet Lighting

product details

Model
Specification
Features
Line Drawing
OEM services
Download

Product models and descriptions

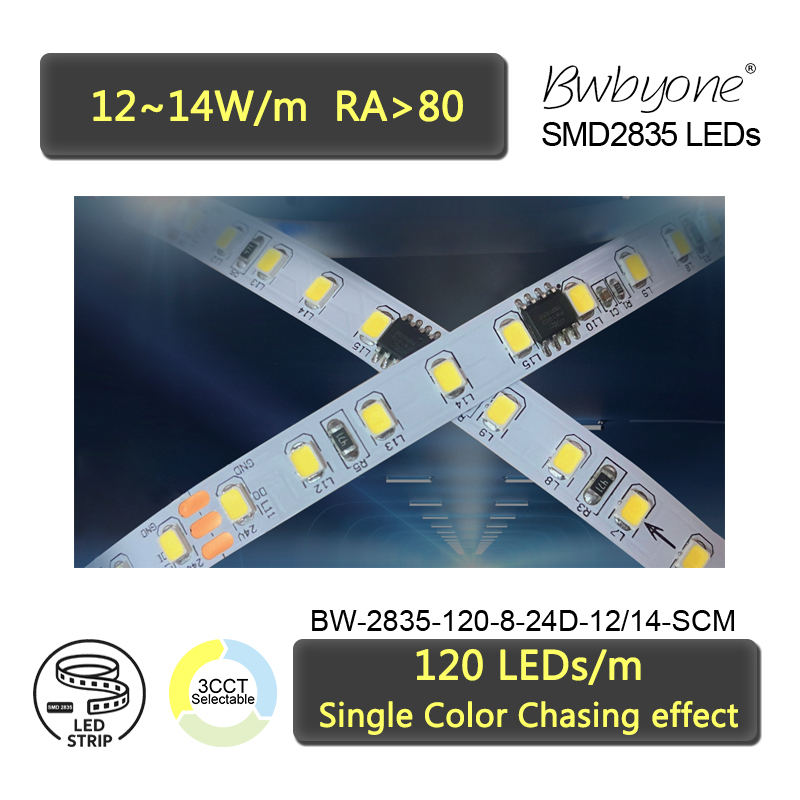

BW-2835-120-8-24D-12/14-SCM

BW- abbreviation of company name Byone

2835- Chips model

120- 120 PCS Chips per meter

8- Strip width:8mm

24D- Rated Voltage: DC 24V

12/14- Rated Power: 12~14W/m

SCM- single color temperature chips, with chasing moving effect

Always consult our qualified salesperson to know more about our product models and descriptions.

Product specification

Input Voltage: DC 24V
Power:12~14W/m
Luminous:1200~1400LM/m

LED Chips model:SMD2835

LED density: 120 LEDs/m

Color temperature : Available in 3000K/4000K/6000K single color temperature
CRI:Ra>80
Dimensions:PCB Width-8mm; 10m per roll per package

Unique Feature:Chasing moving effect

Working temperature and IP rating: -20 ~ 50° C, IP20.

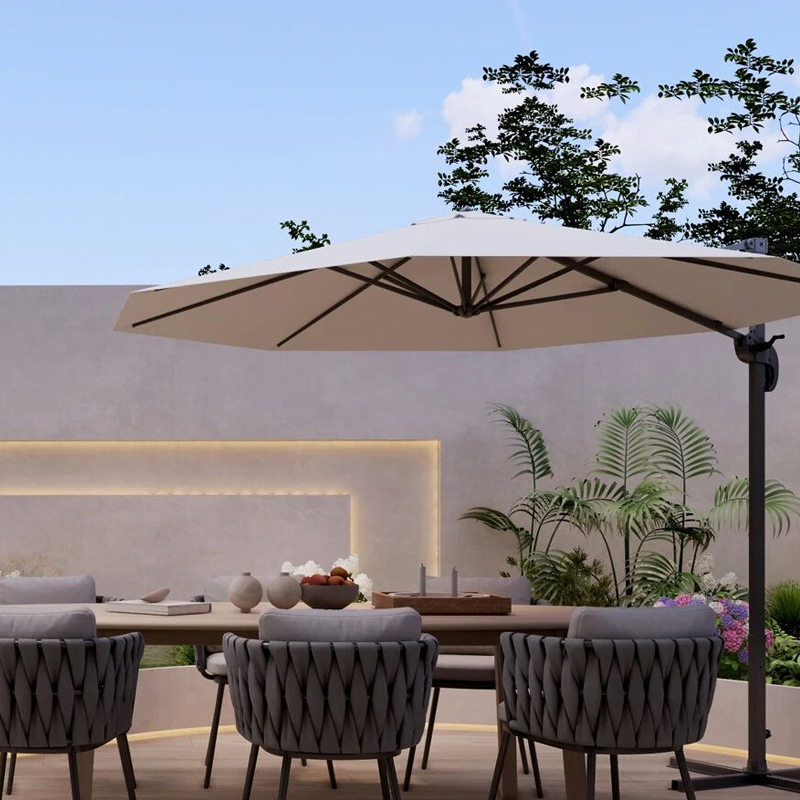

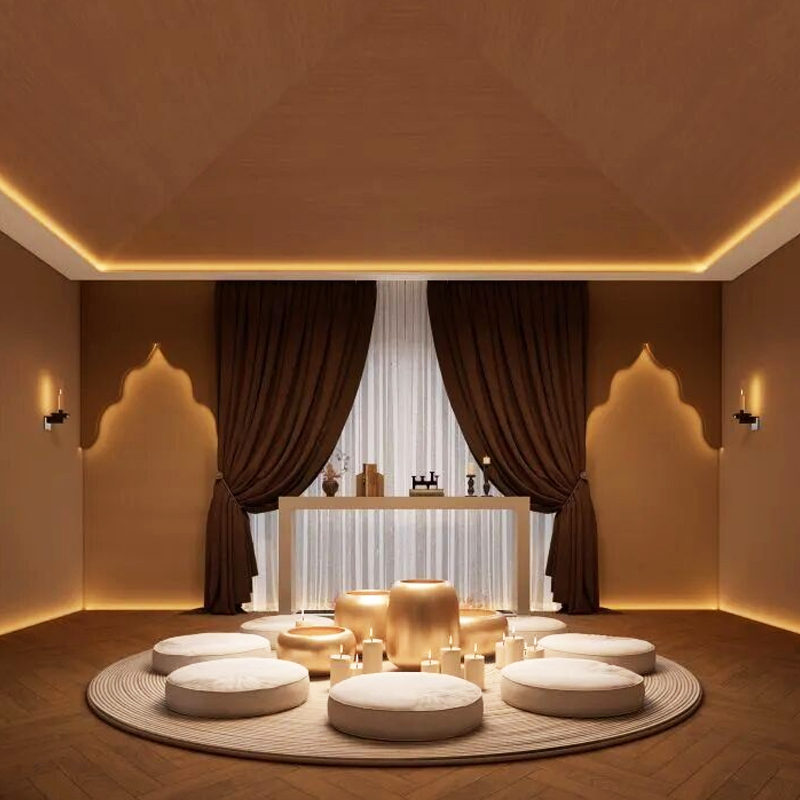

Application and installation: This LED strip is ideal for indoor decorative and accent lighting where dynamic motion is desired, such as coves, display shelves, signage outlines, bars, retail features, and entertainment oriented interiors. It allows easy integration into standard aluminum profiles and concealed channels.

Features

●This strip creates a flowing, sequential lighting effect using single color LEDs, often referred to as a chasing or running light pattern. It adds motion and visual interest while preserving the clarity and consistency of monochrome illumination, making it easier to integrate into controlled design themes.

●The strip provides sufficient brightness for most decorative and functional uses. The light level is intentionally balanced to support long viewing times without glare, while still maintaining a clearly visible dynamic effect.It also positioned at a moderate level that supports most architectural and decorative lighting needs without excessive brightness.

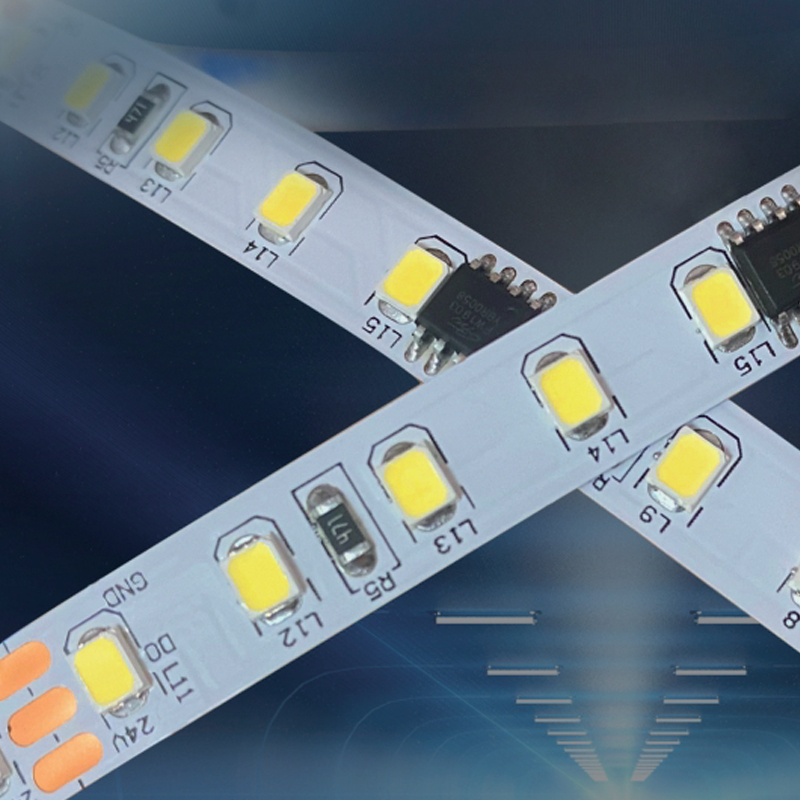

●Its circuit structure is built on a high-temperature resistant electroplated PCB, ensuring stable current delivery and reliable operation during continuous dynamic sequences.It is designed to withstand heat generated during continuous operation. This construction supports consistent electrical behavior and reduces performance variation over extended running periods.

●Operating exclusively at 24V voltage, the strip supports longer runs with improved voltage stability. The standardized cutting sections simplify installation and controller integration in dynamic lighting systems.
