Ultra High CRI LED Strip Light 180LEDs/m 10mm Width for Color Critical Lighting
LED Recessed Mounted Downlight
We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.
Product models and descriptions
Product models and descriptions:
BW-2835-180-10-1224D-14/16-02
BW- abbreviation of company name Byone
2835- Chips model
180- 180 PCS Chips per meter
10- Strip width:10mm
12/24D- Rated Voltage: DC 12V/24V
14/16- Rated Power: 14~16W/m
02- Model serial number of this series,higher color rendering index type
Always consult our qualified salesperson to know more about our product models and descriptions.
Product specification
Product specification:
Input Voltage: DC 12V/24V
Power:14~16W/m
Luminous:1200~1500LM/m
LED Chips model:SMD2835
LED density: 180 LEDs/m

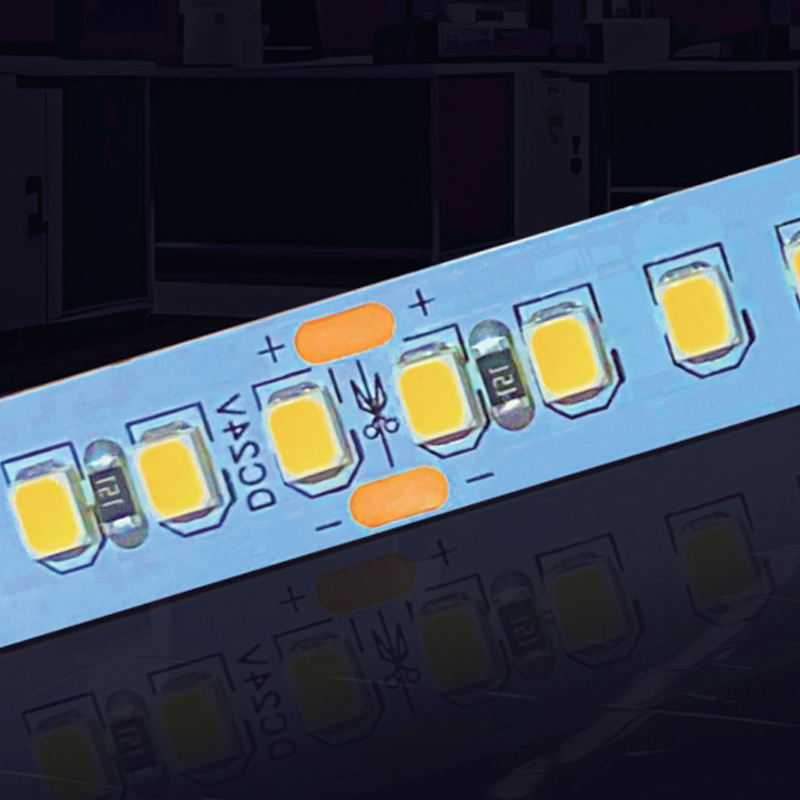

Cutting unit: 6 LEDs per cut
Color temperature : Available in 3000K/4000K/6000K single color temperature
CRI:Ra>97
Dimensions:PCB Width-10mm; 10m per roll per package
Working temperature and IP rating: -20 ~ 50° C, IP20.

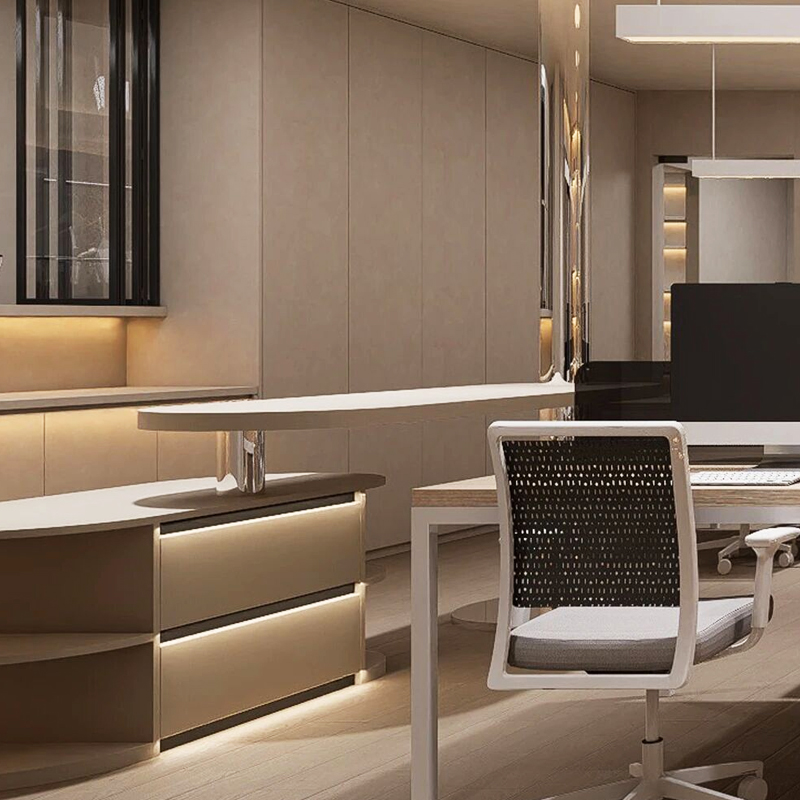

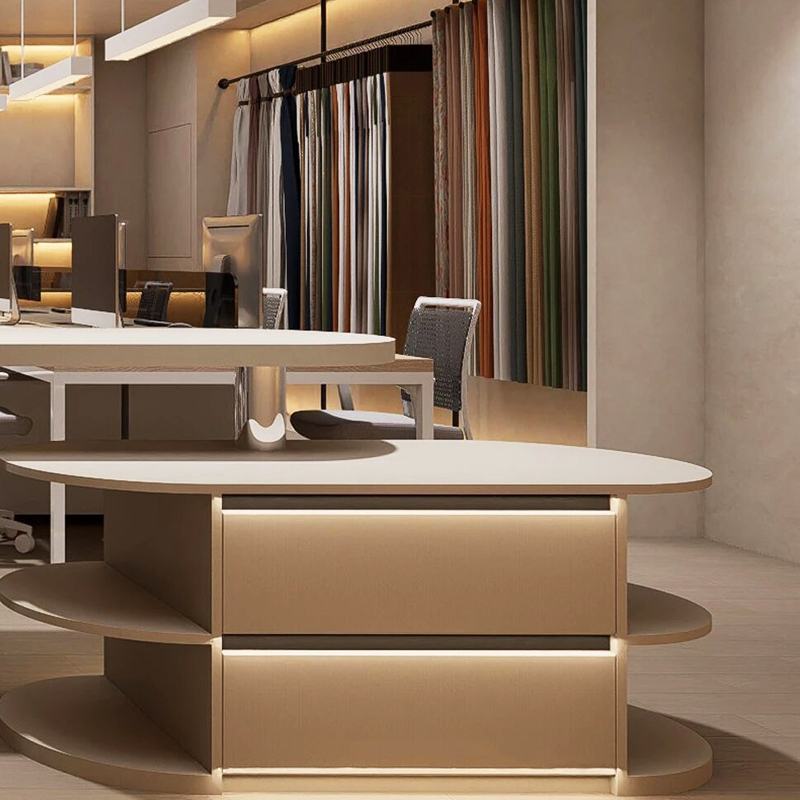

Application and installation: This model is suitable for retail displays, galleries, residential interiors, and decorative linear lighting where accurate color presentation is critical and space constraints require a slim strip model.
Features
● An ultra-high color rendering index above 97 makes this strip well beyond standard commercial lighting levels, allowing colors to appear vivid, consistent, and free from distortion. This characteristic is especially valuable in environments where subtle differences in tone, texture, or material finish must be clearly perceived.
● The electrical and optical parameters are deliberately maintained at a moderate level, ensuring stable output and thermal behavior without pushing the strip into highpower operation. This balanced approach supports long term reliability and predictable performance in both open and enclosed installations.
● With a 10mm PCB, the strip fits easily into commonly used aluminum profiles and narrow architectural details, offering greater design flexibility compared with wider highoutput alternatives. The compact form factor also simplifies integration in furniture, shelving, and recessed lighting structures.
● The LED density contributes to smooth light continuity and reduced spotting, while remaining aligned with the product’s core objective of visual quality rather than maximum intensity. This combination allows the strip to serve as a refined lighting element where precision and appearance are prioritized over sheer output.
We offer OEM manufacturing services according to specific requirements.Our OEM services include:
